1. Киришүү
This manual provides essential information for the safe and effective installation, operation, and maintenance of your new replacement washer drain pump. This component is designed to replace the original drain pump in compatible Samsung washing machine models, restoring proper drainage function.
2. Коопсуздук маалыматы
WARNING: Always disconnect power to the washing machine before attempting any installation, maintenance, or repair. Failure to do so can result in electric shock, injury, or death.
- Орнотуу учурунда кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргонуу шаймандарын (ЖКК) кийиңиз.
- Эгер кандайдыр бир кадамды так билбесеңиз, квалификациялуу техника боюнча адиске кайрылыңыз.
- Ensure all water lines are properly shut off and drained before beginning work.
- Балдарды жана үй жаныбарларын жумуш аймагынан алыс кармаңыз.
3. Пакеттин мазмуну
Пакетиңизде төмөнкү нерсе бар экенин текшериңиз:
- One (1) Replacement Washer Drain Pump (Model: WA5471ABW/XAA-01)
4. Шайкештик
This replacement drain pump is compatible with a wide range of Samsung washing machine models. Please verify your washer's model number against the list below or consult your appliance's documentation for compatibility.
Key Compatible Samsung Models include:
- WA5471ABP/XAA-01
- WF448AAW/XAA-05
- WF448AAP/XAC-0004
- WF210ANW/XAC-0001
- WF218ANW/XAA-01
- WA5471ABP/XAA-02
- WF448AAW/XAC
- WF330ANB/XAA-01
- WF317AAG/XAA-00
- WA5471ABW/XAA-02
- WF337AAWXAA
- WF448AAW/XAA-07
- WF520ABP/XAA
- WF317AAS/XAA-00
- WF337AAW/XAA-00
- WF306BHW/XAA
- WF328AAW/XAA-00
- WF206ANS/XAC
- WF328AAW/XAA-02
- WF220ANW/XAC-0001
- WF218ANB/XAA-00
- WF350ANWXAA0000
- WF419AAW/XAA-04
- WF448AAP/XAC-0005
- WF209ANW/XAA
- WF448AAP/XAA-04
- WF520ABP/XAA-01
- WF350ANRXAA0000
- WA5451ANW/XAA-02
- WF448AAP/XAC-0001
- WF206BNW/XAA
- WF448AAP/XAA-08
- WF328AAG/XAA-00
- WF220ANWXAA
- WF448AAP/XAC
- WF210ANW/XAA-03
- WF431ABW/XAA-00
- WF448AAE/XAA-02
- WF419AAU/XAA-03
- WF520ABW/XAA-02
- WF331ANW/XAA-00
- WF350ANW/XAA-02
- WF448AAP/XAC-0002
- WF218ANW/XAA-00
- WF448AAP/XAC-0007
- WF220ANW/XAC-0003
- WF448AAW/XAC-00
- WF448AAP/XAA-00
- WF419AAW/XAA-01
- WF338AAW/XAA-00
- WF331ANR/XAA-04
- WF409ANW/XAA
- WF448AAE/XAA-01
- WF410ANR/XAA-02
- WF210ANW/XAA-01
- WF511ABR/XAA-00
- WF448AAW/XAC-0001
- WF328AARXAA0000
- WF448AAP/XAA-02
- WF448AAP/XAA-01
- WF219ANW/XAA-01
- WF220ANW/XAA-03
- WA5471ABW/XAA-01
- WF210ANW/XAC-0003
- WF350ANW/XAA-01
- WF316BAW/XAA
- WF206BNW/XAC
- WF328AAWXAA0001
- WF448AAP/XAC-0008
- WF317AASXAA
- WF338AAB/XAA-00
- WF350ANR/XAA-02
- WA484DSHAWR/A1-01
- WF328AARXAA0001
- WF328AAR/XAA-01
- WF448AAP/XAA-05
- WF410ANW/XAA-00
- WF419AAU/XAA-02
- WF328AAW/XAA-01
- WF409ANW/XAA-01
- WF220ANW/XAC-0002
- WF419AAW/XAA-02
- WF520ABP/XAC-0002
- WF219ANW/XAA
- WF448AAP/YE
- WA5451ANW/XAA-01
- WF210ANW/XAA-02
- WF328AAR/XAA-00
- WF219ANB/XAA-00
- WF350ANR/XAA-01
- WA484DSHASU/A1-01
- WF210ANW/XAC-0002
- WF328AARXAA0002
- WF330ANB/XAA-00
- WF520ABP/XAA-02
- WA5471ABP/XAA-00
- WA5471ABW/XAA-00
- WF218ANB/XAC
- WF218ANB/XAA
- WF409ANR/XAA
- WA5451ANW/XAA-00
- WF410ANR/XAA-00
- WF209ANW/XAA-00
- WF520ABP/XAC-0003
- WF338AAB/XAA-01
- WF328AAWXAA0000
- WF338AAW/XAA-01
- WF419AAU/XAA-00
- WF419AAW/XAA-03
- WF330ANW/XAA-01
- WF410ANW/XAA-02
- WF520ABP/XAA-03
- WF331ANW/XAA-04
- WA5451ANW/XAA-03
5. Орнотуу (Орнотуу)
Replacing a washer drain pump typically involves several steps. It is recommended to consult a service manual specific to your Samsung washer model for detailed, step-by-step instructions and diagrams.
- Электр менен сууну өчүрүү: Кир жуугуч машинаны электр розеткасынан сууруп, суу берүү клапандарын жаап коюңуз.
- Калган сууну төгүү: Place towels and a shallow pan under the washer. Disconnect the drain hose from the standpipe or utility sink and lower it to drain any remaining water.
- Насоско кирүү: Depending on your washer model, you may need to remove the front panel, back panel, or tilt the washer back to access the drain pump.
- Шлангдарды жана зымдарды ажыратыңыз: Carefully disconnect the hoses attached to the old drain pump and the electrical wiring harness. Be prepared for some water spillage.
- Эски насосту алып салуу: Unmount the old drain pump from its housing. Note its orientation for correct installation of the new pump.
- Жаңы насосту орнотуу: Mount the new replacement drain pump in the same position as the old one. Reconnect the hoses securely and attach the electrical wiring harness.
- Кир жуугучту кайра чогултуу: Кирүү учурунда алынып салынган панелдерди кайра орнотуңуз.
- Электр менен сууну кайра туташтыруу: Turn on the water supply and plug the washing machine back into the electrical outlet.

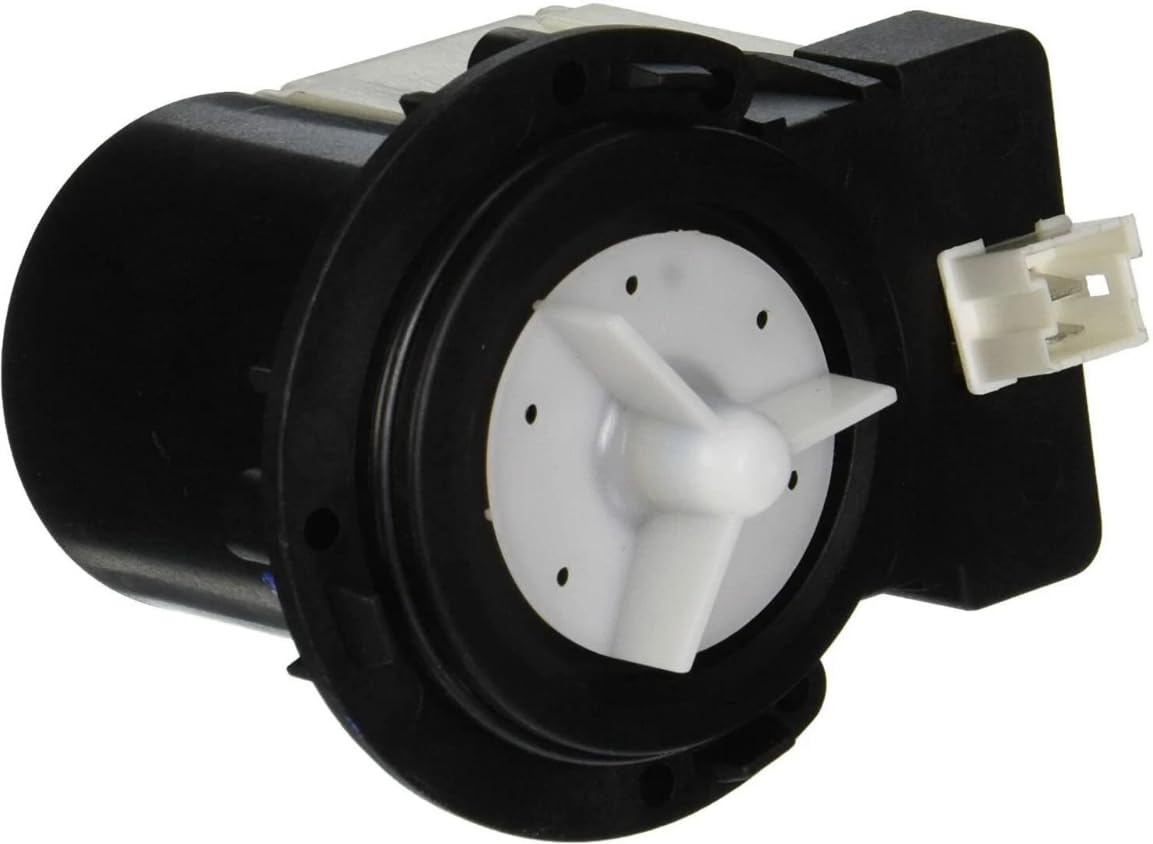

Сүрөт 1: The replacement washer drain pump. This image shows the pump from an angled perspective, highlighting its black motor housing, white plastic body, and the metallic stator core. It is a compact unit designed for efficient water removal from washing machines.
6. Operating (Verification)
After installation, it is crucial to verify the proper function of the new drain pump.
- Сыноо циклин жүргүзүү: Select a short wash or rinse and spin cycle on your washing machine.
- Check for Drainage: Observe if the water drains completely and efficiently during the drain cycle.
- Адаттан тыш үндөрдү угуңуз: Pay attention to any abnormal sounds (grinding, humming, rattling) coming from the pump area. A properly functioning pump should operate smoothly.
- Агышууларды текшерүү: Carefully check all hose connections and the pump housing for any signs of water leaks.
7. Техникалык тейлөө
To ensure the longevity and optimal performance of your drain pump, consider the following maintenance tips:
- Фильтрди үзгүлтүксүз тазалоо: Many washing machines have a drain pump filter (often located behind a small access panel at the bottom front of the washer). Regularly clean this filter to prevent lint, coins, and other debris from clogging the pump.
- Шлангдарды текшерүү: Periodically check the drain hose for kinks, cracks, or blockages. Ensure it is not stretched or pinched.
- Level Washer: Ensure your washing machine remains level. An unbalanced washer can cause excessive vibration, potentially stressing components like the drain pump.
8. Кыйынчылыктарды
If you encounter issues after installing the new drain pump, refer to these common troubleshooting steps:
- Кир жуугуч машина сууну агызбай жатат:
- Verify the washing machine is receiving power.
- Check for kinks or blockages in the drain hose.
- Clean the drain pump filter (if accessible).
- Ensure the pump's electrical connections are secure.
- Confirm the pump is correctly installed and not obstructed.
- Дренаж циклиндеги адаттан тыш үндөр:
- Disconnect power and inspect the pump for foreign objects (e.g., coins, buttons) that may have entered the impeller.
- Насостун бекем орнотулганын жана башка компоненттерге титиребегенин текшериңиз.
- Leaks Around the Pump:
- Disconnect power and check all hose clamps and connections for tightness.
- Inspect rubber seals and gaskets for proper seating or damage.
If these steps do not resolve the issue, it is advisable to contact a qualified appliance technician.
9. Техникалык шарттар
| Бөлүмдүн номери | WA5471ABW/XAA-01 |
| Элемент моделинин номери | WA5471ABW/XAA-01 |
| Камтылган компоненттер | Дренаж насосу |
| Өндүрүүчү | Жалпы |
| Шайкештик | Refer to Section 4: Compatibility for a detailed list of compatible Samsung washer models. |
10. Кепилдик жана колдоо
For information regarding product warranty, returns, or technical support, please refer to the seller's policies or contact the retailer from whom the product was purchased. As a generic replacement part, specific warranty terms may vary.
