Generic Greenhouse Assembly and User Manual

1. Продукт бүтүп калдыview

This manual provides instructions for the assembly, operation, and maintenance of your Generic Greenhouse. Designed for hobby gardeners, this large rectangular greenhouse (236.2 in x 118.1 in x 78.7 in) offers a controlled environment for growing various plants. It features a rust-proof galvanized steel frame and a UV-resistant green polyethylene (PE) mesh fabric cover, ensuring durability and optimal light conditions.

The greenhouse includes eight ventilation windows for airflow and a matte finish that blends with outdoor spaces.

1.1-сүрөт: Бүттүview of the Generic Greenhouse, highlighting key features such as the ventilation window, galvanized steel frame connection, and door buckle mechanism.

2. Коопсуздук маалыматы

• Ассамблея: Always follow assembly instructions carefully. Two people are recommended for safe and efficient assembly.
• Жайгашкан жери: Choose a level, sheltered location for the greenhouse to minimize wind exposure. Ensure adequate clearance around the structure.
• Анкерлөө: Securely anchor the greenhouse to the ground to prevent it from being lifted or damaged by strong winds. Additional anchoring kits may be purchased separately if needed.
• Курч жээктер: Be cautious of sharp edges on metal components during assembly. Wear protective gloves if necessary.
• Вентиляция: Ensure proper ventilation to prevent overheating, especially during warm weather.
• Балдар жана үй жаныбарлары: Балдарды жана үй жаныбарларын чогулуш өтүүчү жайдан алыс кармаңыз. Алардын күнөскананын ичинде же айланасында көзөмөлсүз ойношуна жол бербеңиз.
• Электр: Do not install electrical equipment inside the greenhouse without proper waterproofing and safety precautions.

3. Пакеттин мазмуну

Монтаждоону баштоодон мурун, бардык компоненттер бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир бөлүктөрү жок же бузулуп калса, кардарларды колдоо менен байланышыңыз.

• Galvanized Steel Frame компоненттери
• Green PE Mesh Fabric Cover
• Туташтыргычтар жана бекиткичтер
• Ventilation Window Panels (8 units)
• Монтаждоо боюнча нускама (бул документ)

4. Орнотуу жана чогултуу

Assembly requires approximately 2 hours with two people. Ensure you have sufficient space and the necessary tools (e.g., gloves, step ladder, measuring tape).

4.1. Рамка монтажы

1. Unpack all galvanized steel frame components and lay them out.
2. Identify the base rails and connect them to form the rectangular base of the greenhouse.
3. Assemble the arch sections by connecting the curved poles. Refer to the included diagrams for correct orientation.
4. Attach the assembled arch sections to the base rails using the provided connectors and fasteners. Ensure all connections are secure.
5. Install the horizontal support bars between the arch sections to provide structural rigidity.

4.1-сүрөт: Detail of a galvanized steel frame connection, illustrating how poles are joined.

4.2. Капкак орнотуу

1. Carefully unfold the green PE mesh fabric cover.
2. Drape the cover over the assembled frame, ensuring it is centered and evenly distributed.
3. Secure the cover to the frame using the integrated ties, clips, or fasteners. Start from one end and work your way around, pulling the cover taut to minimize wrinkles.
4. Ensure the base of the cover is properly extended to allow for anchoring.

4.2-сүрөт: The greenhouse with its green PE mesh cover fully installed and the front door closed.

4.3. Door and Window Setup

1. Locate the zippered door opening at one end of the greenhouse.
2. The door can be rolled up and secured using the provided buckles or ties for easy access and additional ventilation.
3. Identify the eight ventilation windows along the sides of the greenhouse. These windows typically feature mesh screens and can be rolled up and secured to allow airflow.

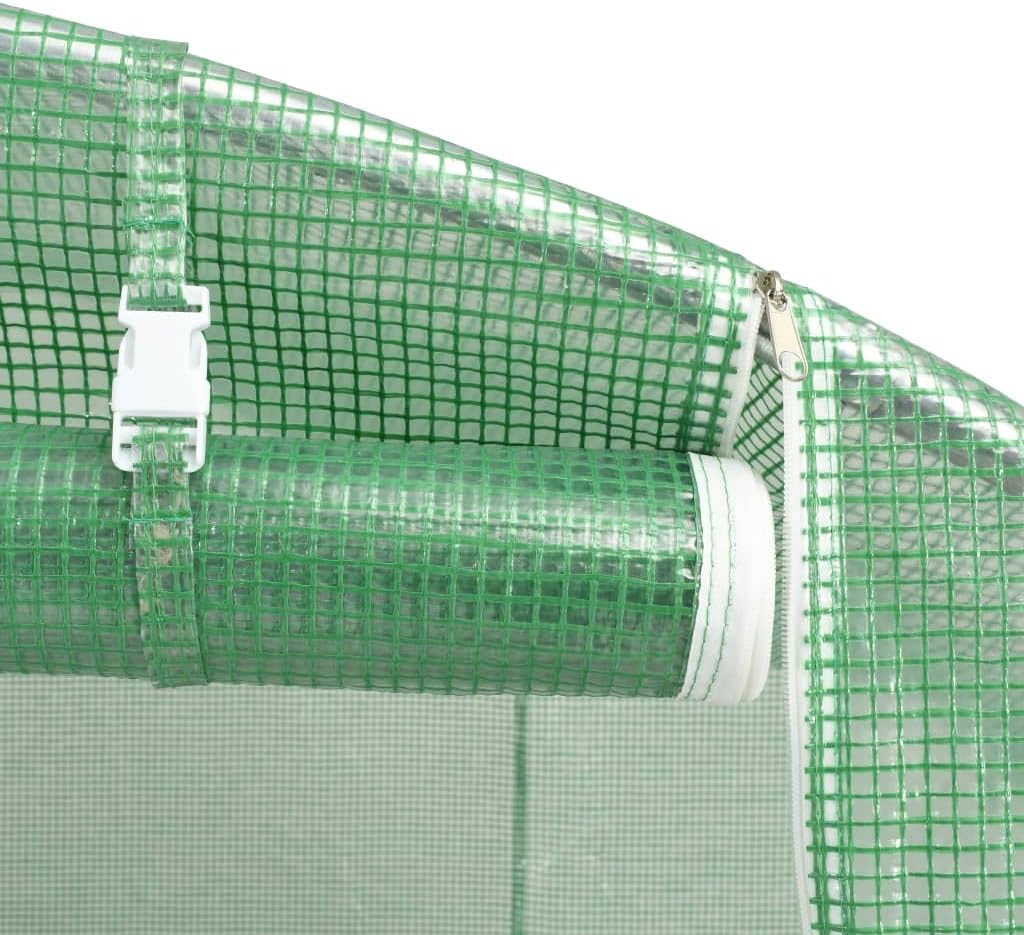

4.3-сүрөт: Detail showing the door panel rolled up and fastened with a buckle for open access or ventilation.

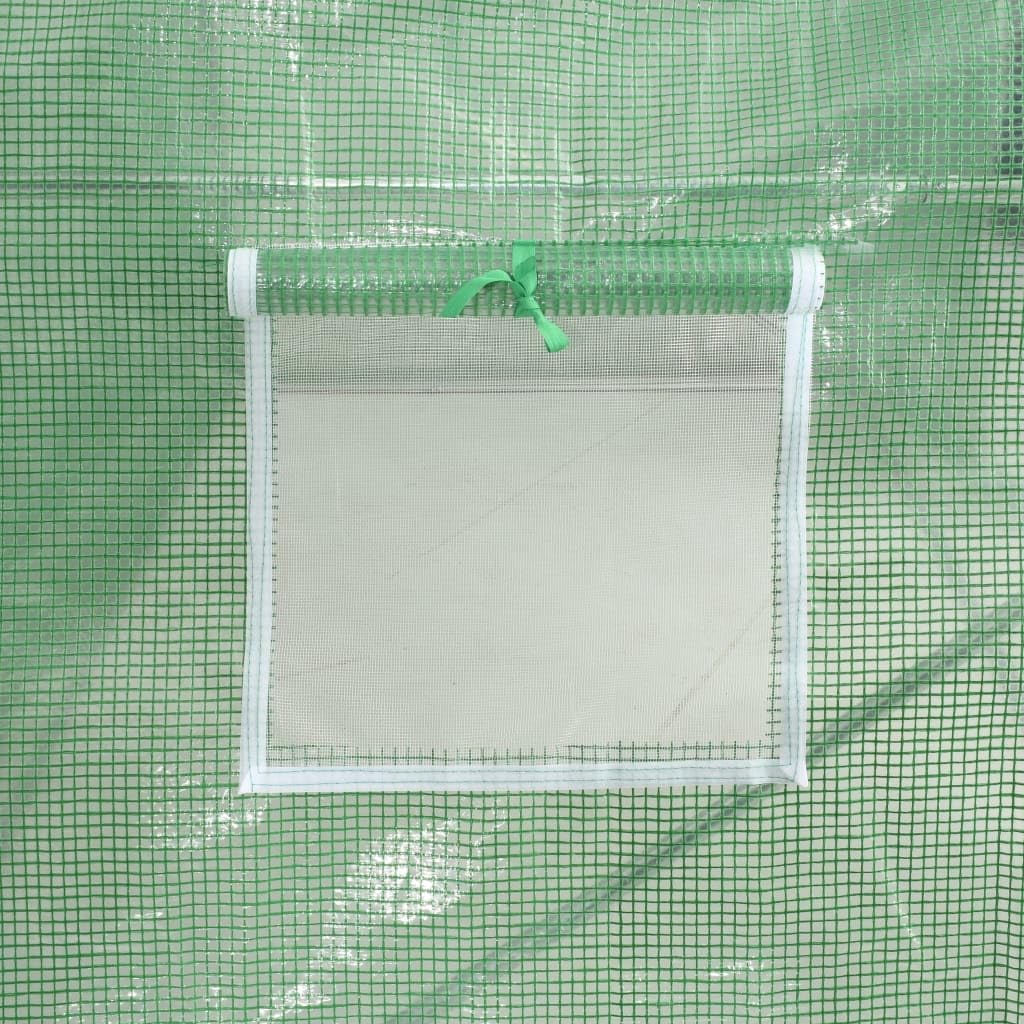

4.4-сүрөт: Detail of a ventilation window, featuring a mesh screen for insect protection and airflow.

4.4. Анкерлөө

Once the greenhouse is fully assembled, it is crucial to anchor it securely to the ground. Use ground stakes, weights, or other appropriate anchoring methods suitable for your soil type and local weather conditions. Proper anchoring prevents wind damage.

5. Иштөө нускамалары

5.1. Ventilation Management

• The greenhouse is equipped with eight ventilation windows. Open these windows during warm periods to allow air circulation and prevent excessive heat buildup.
• Close windows during cooler temperatures or strong winds to maintain warmth and protect plants.
• The front door can also be rolled up and secured for additional airflow.

5.2. Light and UV Protection

The green PE mesh fabric cover is UV-resistant, protecting your plants from harmful sun rays while allowing sufficient light for growth. Monitor plant health and adjust shading if necessary, though the cover is designed for optimal light transmission.

5.3. Plant Care

Regularly monitor the temperature and humidity inside the greenhouse. Adjust ventilation and watering schedules according to the specific needs of your plants and local climate conditions.

6. Техникалык тейлөө

• Тазалоо: Periodically clean the PE mesh cover with mild soap and water to remove dirt and debris, ensuring maximum light penetration. Avoid harsh chemicals or abrasive cleaners.
• Frame Inspection: Regularly inspect the galvanized steel frame for any signs of rust, damage, or loose connections. Tighten fasteners as needed.
• Капкакты текшерүү: Check the cover for tears, punctures, or wear. Repair small damages promptly with appropriate repair kits to extend the cover's lifespan.
• Анкердик текшерүү: Verify that the greenhouse remains securely anchored, especially after strong winds or heavy rainfall.
• Кышкы кам көрүү: In areas with heavy snowfall, it is recommended to remove snow accumulation from the roof to prevent structural damage. Consider disassembling and storing the greenhouse cover during harsh winter months for prolonged durability.

7. Кыйынчылыктарды

8. Техникалык шарттар

• Модел: B0F92HW93P
• Өлчөмдөрү (W x L x H): 300 x 600 x 200 см (118.1 x 236.2 x 78.7 дюйм)
• Түсү: Жашыл
• Форма: Төрт бурчтуу
• Рамка материалы: иш-аракет кылууга түрткү болот
• Мукабанын материалы: Green PE (Polyethylene) Mesh Fabric, UV-resistant
• Вентиляция: 8 Windows
• Салмагы: 27.56 kg (Note: Original product data listed 2756 kg, which has been corrected to 27.56 kg based on typical greenhouse weights and other product information.)
• Ассамблея талап кылынат: Ооба
• Ассамблеяга сунушталган адамдардын саны: 2
• SKU: 45536
• EAN: 8718475723417

9. Кепилдик жана колдоо

Кепилдик жөнүндө маалымат же техникалык колдоо алуу үчүн, сатуучудан саясатты караңыз же түздөн-түз өндүрүүчүгө кайрылыңыз. Сатып алуунун далили катары сатып алуу дүмүрчөгүңүздү сактап коюңуз.
