Roper RAS8244LQ0 шайба аралаштыргыч камера иттер топтому үчүн колдонмо

1. Продукт бүтүп калдыview

This kit provides essential replacement parts for the agitator mechanism in Roper RAS8244LQ0 washing machines. The components are designed to restore proper agitator function, which is crucial for effective clothes cleaning. It is vital to ensure compatibility with your specific washer model before proceeding with installation.

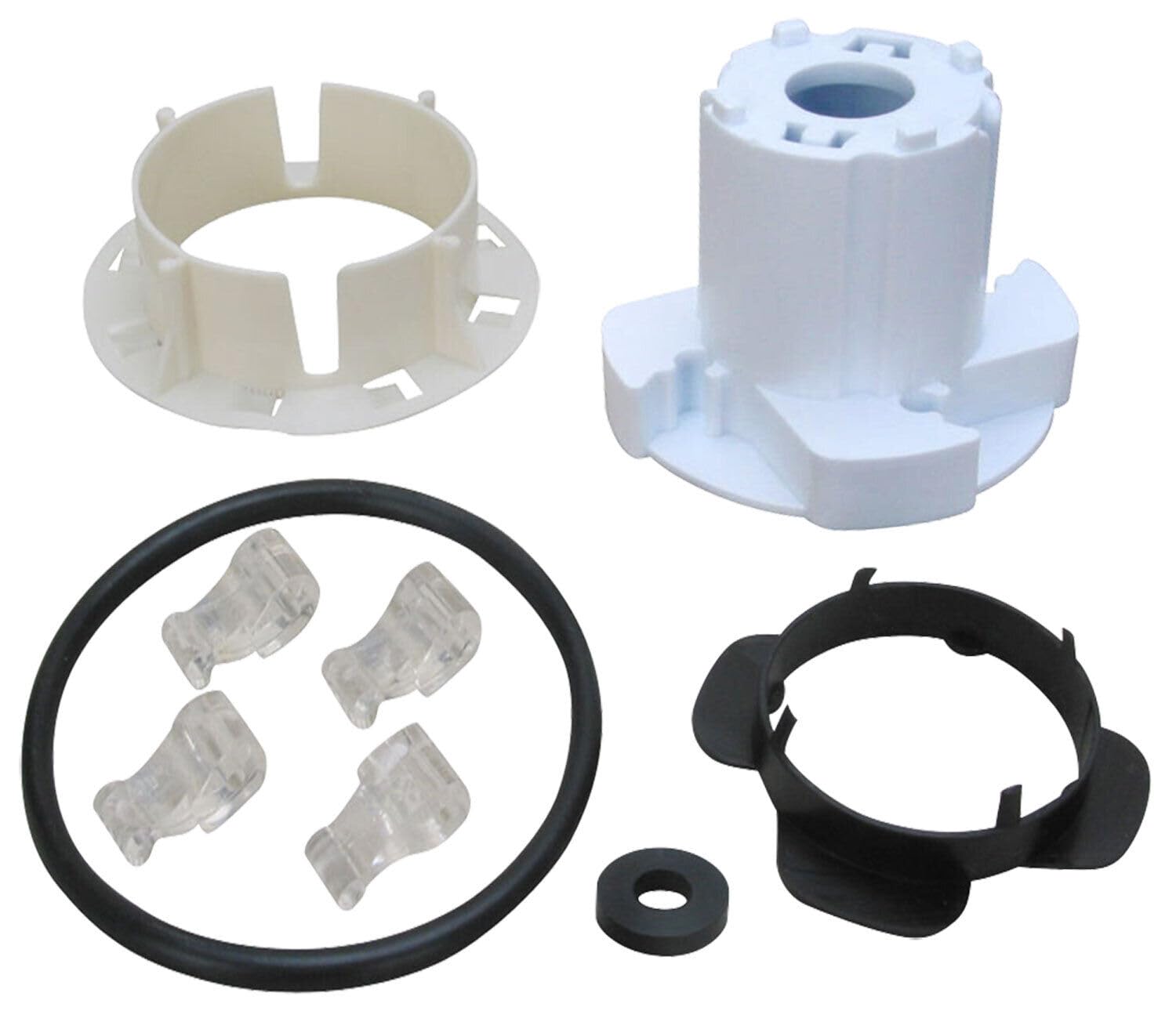

Image 1.1: Components of the Agitator Cam Dogs Kit. This image displays all parts included in the kit: a white plastic agitator cam, a white plastic agitator drive block, four clear plastic agitator cam dogs, a black rubber O-ring, and a small black plastic washer/spacer.

Комплекттин мазмуну:

• Agitator Cam (White Plastic)
• Agitator Drive Block (White Plastic)
• Agitator Cam Dogs (4x, Clear Plastic)
• O-Ring (Black Rubber)
• Washer/Spacer (Black Plastic)

2. Compatibility and Safety

This replacement kit is specifically designed for the Roper RAS8244LQ0 washing machine model. Before attempting any repair, always verify that your washer's model number matches the one specified for this kit. Appliance parts can appear similar, so careful verification is essential to ensure proper fit and function.

Коопсуздук чаралары:

• Always disconnect the washer from its power source by unplugging it from the wall outlet before beginning any repair or maintenance.
• Травмалардын алдын алуу үчүн кол кап сыяктуу тиешелүү жеке коргоочу шаймандарды кийиңиз.
• Эгер кандайдыр бир кадамды так билбесеңиз, квалификациялуу техника боюнча адиске кайрылыңыз.

3. Орнотуу (Орнотуу)

The following steps outline the general procedure for replacing the agitator cam dogs and related components. Specific washer designs may vary slightly.

1. Кубатты өчүрүү: Unplug the washing machine from the electrical outlet. Turn off the water supply valves to the washer.
2. Кирүү аралаштыргычы: Open the washer lid. Locate the agitator cap, usually in the center of the agitator. Remove the agitator cap. This may involve prying it off or unscrewing it.
3. Remove Agitator Bolt: Inside the agitator, you will find a bolt securing it to the transmission shaft. Use an appropriate socket wrench to loosen and remove this bolt.
4. Remove Agitator: Carefully pull the entire agitator assembly straight up and out of the washer tub. It may require some force or wiggling.
5. Replace Cam Dogs and Components: Invert the agitator. The old cam dogs will be located in the base of the agitator. Remove the old cam dogs, the old agitator cam, and the old drive block. Clean any debris from the agitator base. Install the new agitator drive block, then the new agitator cam, ensuring it seats correctly. Insert the four new clear plastic cam dogs into their respective slots in the agitator cam. Ensure they are oriented correctly to engage with the drive block. Replace the O-ring and washer/spacer if they were part of the original assembly and are being replaced.
6. Reinstall Agitator: Carefully lower the agitator back onto the transmission shaft, aligning the splines. Push it down firmly until it seats properly.
7. Коопсуз аралаштыргыч: Reinsert the agitator bolt and tighten it securely with the socket wrench. Do not overtighten.
8. Replace Agitator Cap: Snap or screw the agitator cap back into place.
9. Күчтү калыбына келтирүү: Plug the washing machine back into the electrical outlet and turn on the water supply valves.
10. Сыноо: Run a short wash cycle to ensure the agitator is functioning correctly and the washer is operating as expected.

4. Операциялык кароо

Once the new agitator cam dogs kit is installed, the washing machine's agitator should operate smoothly, providing the necessary agitation for cleaning clothes. If the agitator does not move or makes unusual noises after installation, refer to the troubleshooting section.

5. Техникалык тейлөө

The agitator cam dogs are wear-and-tear parts. While this kit is designed for durability, regular maintenance of your washing machine can extend the life of all its components.

• Avoid overloading the washer, as excessive weight can put strain on the agitator mechanism.
• Ensure that no foreign objects (e.g., coins, small toys) are left in pockets, as these can fall into the tub and interfere with agitator movement.
• Periodically inspect the agitator for any signs of wear or damage.

6. Кыйынчылыктарды

If you encounter issues after installing the agitator cam dogs kit, consider the following common problems and solutions:

7. Техникалык шарттар

8. Кепилдик жана колдоо

For information regarding warranty coverage or technical support for this product, please refer to the seller or manufacturer's official documentation provided at the time of purchase. Specific warranty terms and support contact details are typically included with your purchase receipt or on the product packaging.
