eeTao Replacement Charger Instruction Manual

1. Продукт бүтүп калдыview

This manual provides instructions for the safe and efficient use of your eeTao Replacement Charger. This power supply adapter is designed to charge 21V UN38.3 LITHIUM batteries for SNJORT S7MAX Max+ Cordless Leaf Blowers.

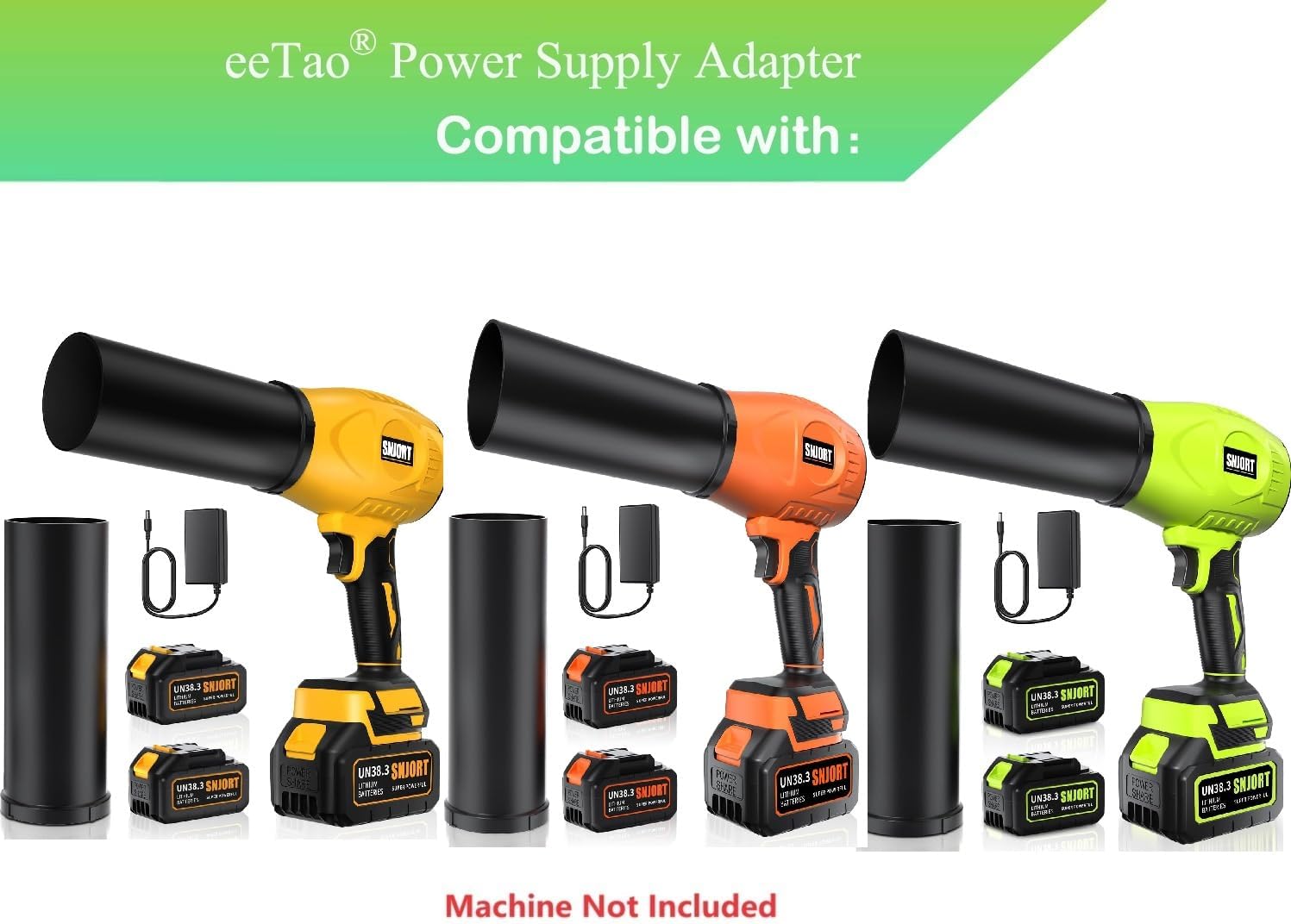

Сүрөт 1.1: The eeTao replacement charger shown alongside various SNJORT S7MAX Max+ cordless leaf blowers and their compatible 21V batteries. This image illustrates the product's intended use and compatibility.

2. Коопсуздук маалыматы

Please read all safety instructions before using the charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Use the charger only with the specified 21V UN38.3 LITHIUM batteries for SNJORT S7MAX Max+ Cordless Leaf Blowers.
• Заряддагычты жамгырга же нымдуу шарттарга чыгарбаңыз.
• Зымы же сайы бузулган болсо, заряддагычты колдонбоңуз.
• Заряддоочу түзүлүштү жылуулук булактарынан жана түз күн нурунан алыс кармаңыз.
• Always unplug the charger from the power outlet before attempting any cleaning or maintenance.
• This charger features Over Voltage Protection (OVP), Over Current Protection (OCP), and Short Circuit Protection (SCP) for enhanced safety.

Сүрөт 2.1: An illustration highlighting the multiple security protection features integrated into the eeTao charger, such as temperature, overcharge, lightning, short circuit, and anti-interference protection, ensuring safe charging.

3. Орнотуу

1. Заряддагычты таңгактан чыгаруу: Carefully remove the charger from its packaging. Inspect it for any signs of damage.
2. Кубатка туташуу: Plug the charger's AC power cord into a standard 100-240 VAC 50/60 Hz wall outlet. Ensure the outlet is easily accessible.
3. Батареяга туташуу: Insert the barrel connector of the charger into the charging port of the SNJORT S7MAX Max+ 21V battery. Ensure a firm connection.

4. Иштөө нускамалары

Once the charger is properly connected to both the power outlet and the battery, the charging process will begin automatically. The charger is designed to provide a DC21V output suitable for your battery.

• Заряддоо көрсөткүчү: Most batteries and chargers have an indicator light (e.g., red for charging, green for fully charged). Refer to your battery's specific manual for detailed indicator behavior.
• Заряддоо убактысы: Charging time will vary depending on the battery's capacity and its current charge level.
• Ажыратууда: Once the battery is fully charged, disconnect the charger from the battery first, then unplug it from the wall outlet.

Сүрөт 4.1: Кесилген view of the charger's premium cable, illustrating its robust construction with an inner insulator, coarsening core for efficient power transfer, and a durable TPE protective outer layer.

5. Техникалык тейлөө

• Тазалоо: Use a dry, soft cloth to clean the exterior of the charger. Do not use liquid cleaners or solvents.
• Сактагыч: Кубаттоочу түзүлүштү колдонбогон учурда салкын, кургак жерде, күндүн нуру түз тийбеген жана нымдуулуктан алыс сактаңыз.
• Кабельге кам көрүү: Avoid bending or kinking the power cord excessively. Do not wrap the cord tightly around the charger.

6. Кыйынчылыктарды

• Заряддагыч иштебейт:
  • Заряддоочу розеткага бекем сайылганын текшериңиз.
  • Check if the wall outlet is receiving power by testing it with another device.
  • Заряддоочу кабелди жана туташтыргычты көрүнгөн зыяндын бар-жогун текшериңиз.
• Батарея заряддалбай жатат:
  • Ensure the charger's barrel connector is fully inserted into the battery's charging port.
  • Verify that the battery is compatible with this charger (SNJORT S7MAX Max+ 21V UN38.3 LITHIUM BATTERIES).
  • Маанилүү эскертүү: Rechargeable batteries are not permanent and have an average battery life of 1 to 3 years. If the battery is damaged or has reached the end of its lifespan, it may not be able to charge, even with a functional charger.

7. Техникалык шарттар

8. Кепилдик жана колдоо

eeTao offers a 30 күндүк кайтарым акча саясат жана 24-month satisfaction exchange for this product. For warranty claims or technical support, please refer to your purchase documentation or contact the seller directly through the platform where the product was purchased.

9. Видео ресурстар

No official product videos from the seller meeting the specified criteria (m3u8 format, 'Seller' creator type, or useful 'preview' content) were available for embedding in this manual.
