Introduction
Thank you for choosing the Wirsh Geimori GU38 Electric Single Dose Coffee Grinder. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new coffee grinder. Please read it thoroughly before first use and keep it for future reference.
Маанилүү коопсуздук маалыматы
- Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Мотордук базаны сууга же башка суюктуктарга батырбаңыз.
- Колдонбогондо, тетиктерди кийүүдөн же чечүүдөн мурун жана тазалоодон мурун розеткадан сууруп алыңыз.
- кыймылдуу бөлүктөргө тийбегиле.
- Эч кандай шайманды зымы же сайы бузулган, же шайман иштебей калгандан кийин же кулап түшкөн же кандайдыр бир түрдө бузулгандан кийин иштетпеңиз.
- Өндүрүүчү тарабынан сунушталбаган же сатылбаган тиркемелерди колдонуу өрткө, электр шокуна же жаракатка алып келиши мүмкүн.
- Сыртта колдонбоңуз.
- Шнур столдун же столдун четине илинип калышына же ысык беттерге тийбеңиз.
- Ыстык газ же электр мешине же ысытылган мештин жанына коюуга болбойт.
- Always check for the presence of foreign objects in the hopper before grinding.
- Бул шайман тиричиликте гана колдонуу үчүн.
Продукт бүттүview
The Wirsh Geimori GU38 is a precision electric coffee grinder designed for single-dose grinding, ensuring minimal retention and fresh coffee every time. It features a 38mm 6-core conical burr and stepless adjustment for various brewing methods.

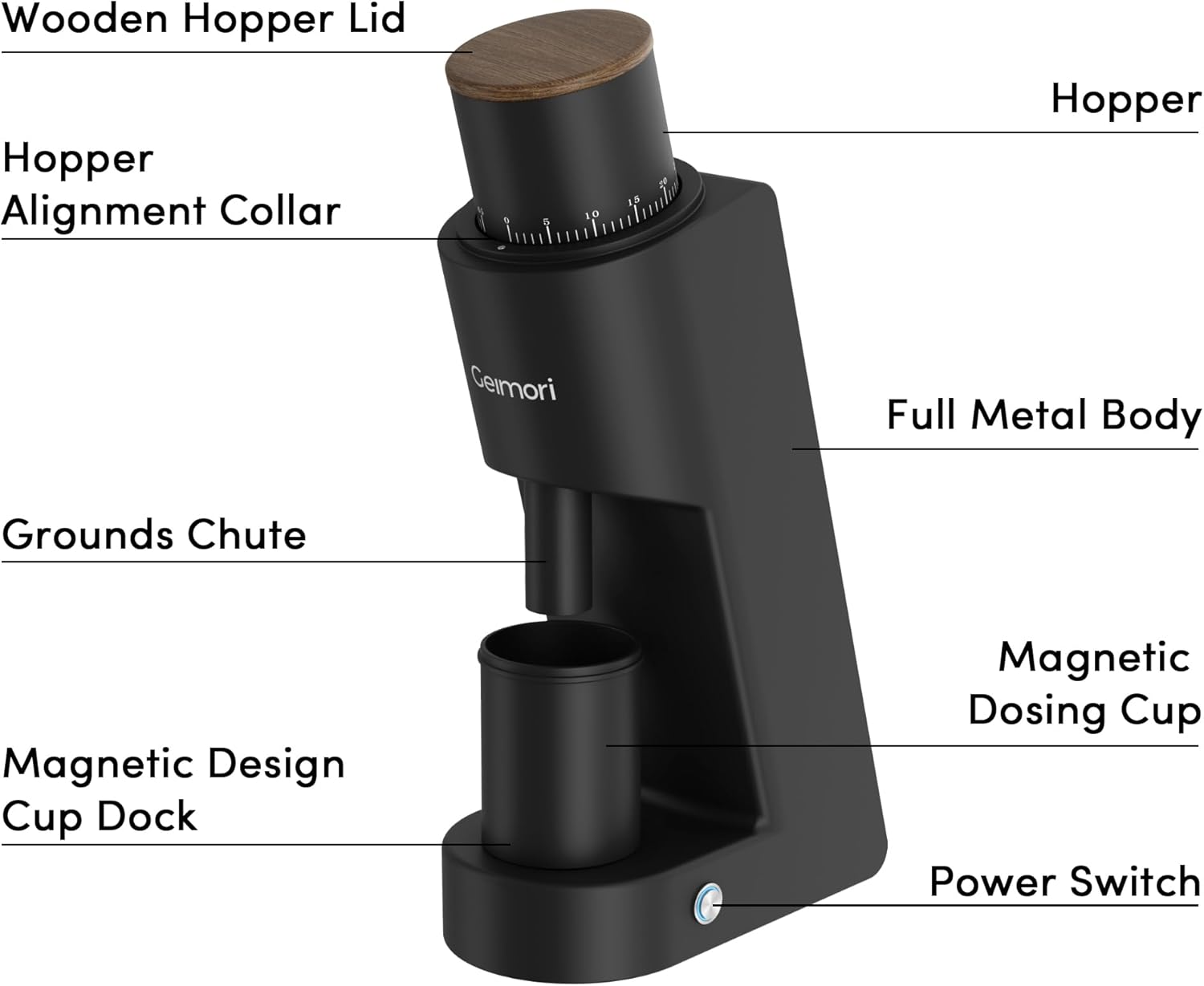

This image displays the Wirsh Geimori GU38 coffee grinder with its key components labeled for easy identification. These include the Wooden Hopper Lid, Hopper, Hopper Alignment Collar, Full Metal Body, Grounds Chute, Magnetic Dosing Cup, Magnetic Design Cup Dock, and Power Switch.
Жайгашуу
- Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
- Жайгашкан жери: Майдалагычты туруктуу, тегиз жана кургак бетке коюңуз.
- Алгачкы тазалоо: Биринчи колдонуудан мурун, сыртын жарнама менен сүртүңүзamp cloth. Remove the grounds chute and burrs (see Maintenance section) and clean them with the included brush. Ensure all parts are dry before reassembly.
- Кубат туташуу: Connect the power adapter to the grinder and then plug it into a suitable electrical outlet (120V or 230V, as per your model).
The image shows the Wirsh Geimori GU38 coffee grinder in a kitchen setting, highlighting its zero retention design. A hand is shown pressing down on the bellows, indicating its function in minimizing coffee residue. A pour-over coffee setup is visible in the background.
Unboxing and Initial Overview Video
Бул видео кутучаны ачуу жана баштапкы кайра баштоо тажрыйбасын беретview of the Wirsh Geimori GU38 electric coffee grinder, demonstrating its components and sleek design.
Иштөө нускамалары
1. Майдалоону жөндөө
The Geimori GU38 features 65 stepless grind settings with 0.01mm micro-adjustments, allowing for precise control over your grind size. To adjust the grind, rotate the hopper alignment collar. Turning it clockwise results in a finer grind, while counter-clockwise rotation yields a coarser grind.
This image illustrates the stepless adjustment mechanism of the Geimori GU38. A hand is shown rotating the top part of the grinder, which features a dial with markings from 0 to 65, indicating the fine-tuning capability for grind size.
Жакын план view of the 38mm 6-core CNC conical burr, made from high-nitrogen SUS420 stainless steel, located inside the Geimori GU38 grinder. Markings for 'COARSE' and 'FINE' indicate the direction for grind adjustment.
2. Кофе дандарын жүктөө
Remove the wooden hopper lid. Add your desired amount of whole coffee beans into the hopper. The single-dose design is optimized for grinding only the amount of beans needed for your immediate brew, ensuring maximum freshness.
3. Майдалоо процесси
- Place the magnetic dosing cup securely in its dock.
- Press the power button located at the base of the grinder to start grinding. The grinder will operate until all beans are processed.
- Once grinding is complete, remove the dosing cup.
- For optimal zero retention, gently press the bellows on the hopper lid a few times to clear any remaining grounds from the chute.
The image shows a hand placing the magnetic dosing cup onto the base of the Geimori GU38 grinder. The magnetic feature ensures effortless auto-alignment, preventing wobbling and spills during the grinding process.
4. Recommended Grind Settings for Brewing Methods
The stepless adjustment allows for versatility across various brewing methods:
- Эспрессо: Fine grind (lower numbers on the dial).
- Drip Coffee: Medium grind (mid-range numbers).
- French Press: Coarse grind (higher numbers).
- Cold Brew: Very coarse grind (highest numbers).
Experiment with settings to find your preferred taste profile for each brewing method.
Operating the Geimori GU38 with AeroPress Video
This video demonstrates the process of grinding coffee with the Geimori GU38 and brewing it using an AeroPress, showcasing the grinder's stepless adjustment and zero retention features in action.
Тейлөө жана тазалоо
Regular cleaning ensures optimal performance and extends the lifespan of your grinder. The grounds chute and burrs are designed to be easily removable for thorough cleaning.
- Ажыратыңыз: Тазалоодон мурун жаргылчакты дайыма электр розеткасынан сууруп алыңыз.
- Хопперди алып салуу: Turn the hopper alignment collar counter-clockwise until it detaches from the grinder body.
- Буттарды алып салуу: Carefully lift out the upper conical burr.
- Таза компоненттери: Use the included cleaning brush to remove any coffee grounds from the burrs, grounds chute, and inside the hopper. Do not use water on the burrs or any electrical components.
- Clean Dosing Cup: The magnetic dosing cup can be washed with warm, soapy water and thoroughly dried.
- Кайра чогултуу: Once all parts are clean and dry, reassemble the burrs and hopper by aligning them correctly and turning the hopper alignment collar clockwise until secure.
This image highlights the detachable grounds chute of the Geimori GU38, illustrating how it can be easily removed for cleaning and maintenance, ensuring no old coffee grounds affect the flavor of your fresh brew.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жаргылчак иштебейт. | Кубат баскычы сайылган эмес; кубат булагы басылган эмес. | Ensure power cord is securely plugged in. Press the power button firmly. |
| Ыңгайсыз майдалоо. | Burrs are dirty or worn; grind setting is too coarse/fine for beans. | Clean the burrs thoroughly. Adjust grind setting incrementally. Consider replacing burrs if heavily worn. |
| Grinder jams or stops during operation. | Foreign object in burrs; beans are too oily or damp; motor overheating. | Unplug and check for foreign objects. Use dry, fresh beans. Allow motor to cool down if overheated. |
| Excessive coffee retention. | Grounds stuck in chute. | Use the bellows on the hopper lid after grinding. Regularly clean the grounds chute. |
Техникалык шарттар
- Бренд: Wirsh
- Модел: ГУ38
- Түсү: Кара
- Продукциянын өлчөмдөрү: 3.5"L x 6.3"W x 12"H
- Элемент Салмагы: 6.67 фунт (3.03 килограмм)
- Материал: Aluminum, Stainless Steel, Wood
- Бурр түрү: 38mm 6-Core Conical Burr (High-nitrogen SUS420 stainless steel, HRC58)
- Майдалоо жөндөөлөрү: 65 Stepless Micron Adjustments (0.01mm per increment)
- Мотор: 96W High-efficiency DC motor, 190 RPM
- Тtage: 120 вольт, 230 вольт
- Өзгөчөлүктөр: Zero Retention, Magnetic Dosing Cup, All Metal Build
- Сунушталган колдонуулар: Espresso, Filter Coffee, Drip Coffee, French Press, Cold Brew
Кепилдик жана колдоо
For warranty information, product support, or to purchase replacement parts, please refer to the official Wirsh webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алганыңыздын далили катары сатып алуу дүмүрчөгүңүздү сактаңыз.
