TIMBER RIDGE Oversized Heated Camping Chair with Lumbar Support

Introduction

This manual provides detailed instructions for the safe and effective use of your TIMBER RIDGE Oversized Heated Camping Chair with Lumbar Support. Please read all instructions carefully before use and retain this manual for future reference. This chair is designed for outdoor use, offering comfort and warmth in various conditions.

Маанилүү коопсуздук маалыматы

• ЭСКЕРТҮҮ: 450 фунт максималдуу салмак кубаттуулугун ашпаңыз.
• Keep the heated chair at least 3 feet away from flammable materials.
• Always turn off the heating function before folding or unfolding the chair to prevent burns or damage to the chair.
• Always follow the instructions for proper assembly and use to ensure safety.

Продукт өзгөчөлүктөрү

• Жылытылган комфорт: Dual heating zones for back and seat warm up to 131°F in 10 seconds. Three heat settings (104°F, 122°F, 131°F) are available. (Battery not included).
• Cold-Weather Comfort: Padded design transfers warmth to your back and hips for extended outdoor stays.
• Белди колдоо: Adjustable lumbar support, cushioned seating, and ergonomic design for enhanced comfort.
• Spacious Seating: Roomy 22” x 17.5” seat with a 27.5” back height.
• Оор курулуш: Sturdy steel frame supports up to 450 lbs.
• Көчүрүү мүмкүнчүлүгү: Easy to carry at 13.5 lbs, with two portability options.
• Көп функциялуу сактагыч: Includes a large cup holder and versatile side pockets for beverages, snacks, and essentials.

Image: The TIMBER RIDGE Oversized Heated Camping Chair set up in a snowy outdoor environment next to a campfire and a campэ.

Орнотуу жана ачуу

1. Отургучту көтөрүүчү сумкасынан чыгарыңыз.
2. Grasp the top of the chair frame and the armrests, then pull outwards to extend the chair.
3. Ensure all four legs are fully extended and stable on the ground.
4. Verify that any locking mechanisms are securely engaged to prevent accidental folding during use.

Image: The unfolded TIMBER RIDGE Heated Camping Chair positioned in a snowy outdoor setting, with a tent and campfire in the background.

Иштөө нускамалары

Жылытуу функциясы

1. Locate the power bank pocket and the heating control button on the chair.
2. Connect a 5V/2.4A power bank (not included) to the chair's internal USB cable. Эскертүү: The chair is not compatible with 5V/2A power banks.
3. Press and hold the heating control button for a few seconds to turn on the heating function. The button will illuminate.
4. Press the button briefly to cycle through the three heat settings: Low (104°F), Medium (122°F), and High (131°F). The button's color will change to indicate the current setting.
5. To turn off the heating function, press and hold the button again until the light turns off.

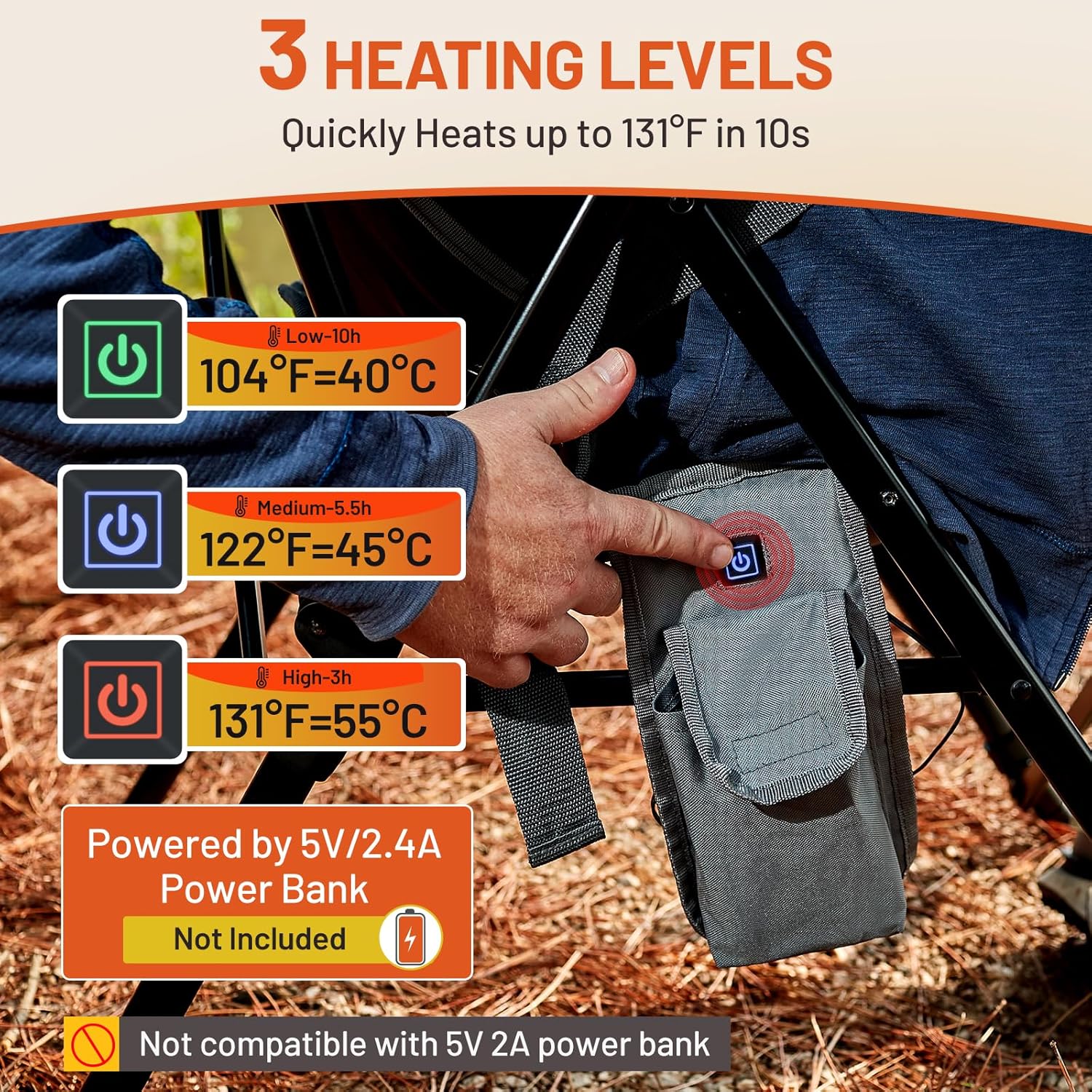

Сүрөт: жакын план view of the heating control panel on the chair, showing the power button and indicators for Low (104°F), Medium (122°F), and High (131°F) heat settings, powered by a 5V/2.4A power bank (not included).

Бел колдоо тууралоо

The chair features adjustable lumbar support. Locate the straps on the back of the chair. Adjust these straps to find your preferred level of lumbar support, enhancing your sitting comfort.

Image: A person seated in the chair, with an overlay illustrating how the adjustable lumbar support straps can be manipulated to find a comfortable position.

Сактоо жана көчүрүү

To fold the chair for storage or transport, ensure the heating function is off. Grasp the chair frame and push inwards to collapse it. Secure the chair with any integrated straps or place it into the provided carrying bag. The chair offers two portability options: carrying it in its bag or using the integrated shoulder strap.

Image: Two individuals demonstrating the chair's portability. One person carries the folded chair in its storage bag, while another carries it using a shoulder strap.

Кошумча функциялар

The chair includes a swiveling cup holder to securely hold beverages and side pockets for convenient storage of small items like cell phones, books, or snacks. The sturdy steel armrests provide additional support.

Сүрөт: деталдуу view highlighting the chair's features, including the swiveling cup holder, a multi-compartment side pocket, and the sturdy steel armrest.

Кароо жана тейлөө

• Жарнама менен кездемени тазалаңызamp кездеме жана жумшак самын. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Allow the chair to air dry completely before folding and storing.
• Store the chair in a dry place to prevent rust on metal components and mildew on fabric.
• Regularly inspect the frame and fabric for any signs of wear or damage.

Проблемаларды чечүү

• Жылытуу функциясы иштебей жатат: Ensure the power bank is fully charged and is a 5V/2.4A model. Check that the USB cable is securely connected to both the power bank and the chair. Press and hold the control button to activate.
• Кресло өзүн туруксуз сезет: Verify that all legs are fully extended and the chair's frame is locked into position. Some users have noted that the locking latch may require a firm check to ensure it is fully engaged.
• Бүктөө/ачуу кыйынчылыгы: Ensure no fabric or objects are obstructing the frame's movement. Apply gentle, even pressure.

Техникалык шарттар

Продукт видеосу

Кепилдик жана колдоо

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official TIMBER RIDGE webсайт. Бардык кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
