Mujocooker 4-Wheel Foldable Mobility Scooter

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Mujocooker 4-Wheel Foldable Mobility Scooter. Please read this manual thoroughly before using the scooter to ensure proper function and to prevent injury or damage.

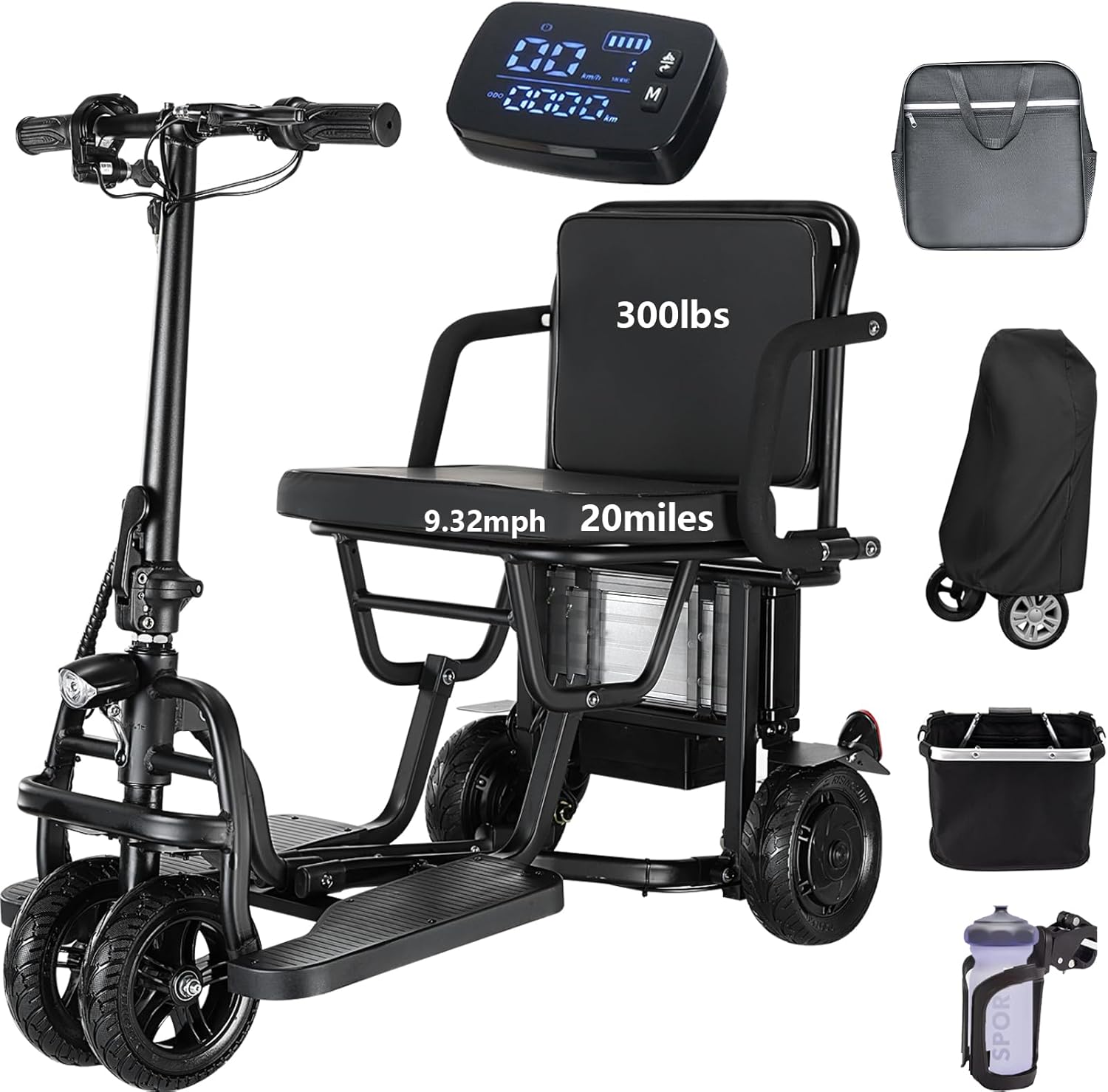

Image 1.1: The Mujocooker 4-Wheel Foldable Mobility Scooter, showcasing анын компакттуу дизайны жана аксессуарлары.

2. Коопсуздук маалыматы

Your safety is paramount. Adhere to all warnings and instructions to avoid accidents and ensure safe operation.

• Колдонмону окуу: Always read and understand the entire user manual before operating the scooter.
• Салмак сыйымдуулугу: 300 lbs (136 кг) максималдуу салмак сыйымдуулугунан ашпаңыз.
• рельеф: Operate the scooter on stable, level surfaces. Exercise caution on uneven terrain, inclines, and slippery surfaces. While designed for various terrains, avoid extreme conditions.
• Incline Limits: Be aware of the scooter's maximum climbing angle. Avoid steep inclines that may compromise stability.
• Айлануу: Reduce speed when turning, especially on uneven surfaces, to prevent tipping. The dual front wheel design enhances stability compared to single-wheel designs.
• Тормоздоо: Always use the hand brake to slow down or stop. Utilize the brake buckle when parked to prevent unintended rolling.
• Көрүнүш: Ensure headlights and taillights are functional, especially in low-light conditions. Use turn signals to indicate direction changes.
• Балдар жана үй жаныбарлары: Keep children and pets away from the scooter during operation and charging.
• Airline Approval: This scooter is designed to be airline approved for travel. Consult your airline for specific battery regulations before flying.

Image 2.1: Illustration of the scooter's capability on various terrains and the stability provided by the dual front wheel design.

3. Пакеттин мазмуну

Бардык буюмдар кутудан чыгарылганда бар экенин текшериңиз:

• Mujocooker 4-Wheel Foldable Mobility Scooter
• 8AH Lithium Battery (pre-installed or separate)
• Батарея заряддагыч
• Алынуучу алдыңкы себет
• Cup Holder
• Сактоо капкагы
• Keys (for ignition and battery lock)
• User Manual

Сүрөт 3.1: Бүттүview of user-friendly features such as the large capacity storage basket and cup holder.

4. Components Overview

Familiarize yourself with the main components and controls of your scooter.

Сүрөт 4.1: Детальдуу view of the intuitive controls and large display on the handlebar.

Рулду башкаруу элементтери:

1. Forward/Reverse Button (D/R): Toggles between forward and reverse driving modes.
2. Left/Right Turn Indicator: Activates the corresponding turn signal.
3. Мүйүз баскычы: Сигнал үнү угулат.
4. Круиздик башкаруу системасы: Engages cruise control to maintain a constant speed.
5. Three Speed Adjustable: Cycles through low, medium, and high-speed settings.
6. Батарея кубаттоо көрсөткүчү: Учурдагы батарея деңгээлин көрсөтөт.
7. Спидометр: Shows current driving speed.
8. Жалпы Пробег: Displays accumulated distance traveled.
9. Тормоз рычагы: Activates the mechanical brake.
10. Keyholes: For ignition and battery lock.

Image 4.2: The scooter is equipped with a bright headlight for forward visibility and a red taillight for rear visibility.

5. Орнотуу

5.1 Скутерди ачуу

1. Бүктөлгөн скутерди тегиз, туруктуу бетке коюңуз.
2. Release any locking mechanisms that secure the scooter in its folded position.
3. Carefully unfold the main frame, ensuring all joints click securely into place.
4. Raise the handlebar stem and lock it into the upright position.
5. Adjust the handlebar height to a comfortable position and secure it.
6. Attach the seat and any accessories like the front basket or cup holder.

5.2 Батареяны орнотуу (эгерде алдын ала орнотулбаса)

1. Батарея бөлүмүн, адатта отургучтун астына жайгаштырыңыз.
2. Insert the battery pack, ensuring it is correctly oriented and securely seated.
3. Lock the battery with the provided key to prevent theft and ensure proper connection.

5.3 Алгачкы заряддоо

Before first use, fully charge the battery. Refer to Section 7 for detailed battery information.

6. Иштөө нускамалары

6.1 Күйгүзүү/өчүрүү

Insert the key into the ignition and turn it to the 'ON' position to power on the scooter. Turn the key to 'OFF' to power down.

6.2 Driving (Forward/Reverse)

Use the D/R button on the handlebar to switch between forward (D) and reverse (R) modes. Gently twist the accelerator grip to control speed.

Image 6.1: Location of the Reverse (D/R) button and Horn button on the handlebar.

6.3 Ылдамдык режимдери

The scooter features three adjustable speed settings. Press the speed button (often labeled 'M' or a gear icon) to cycle through low, medium, and high speeds. The maximum speed for each gear is approximately 3.73 mph, 6.21 mph, and 9.32 mph respectively. Select a speed appropriate for your environment and comfort level.

Image 6.2: Visual representation of the three speed modes and the maximum speed of 9.32 mph.

6.4 Круиздик контрол

To activate cruise control, reach your desired speed and press the cruise control button. The scooter will maintain this speed without continuous accelerator input. Press the brake or accelerator again to disengage cruise control.

Image 6.3: The display indicating active cruise control, allowing the scooter to maintain a constant speed.

6.5 Тормоздоо

Pull the brake lever on the handlebar to engage the brake. For parking, use the brake buckle to lock the brake lever in place, preventing the scooter from rolling.

Image 6.4: Step-by-step guide on how to engage the brake buckle to secure the scooter when parked.

6.6 Turn Signals and Horn

Use the left/right turn indicator switch to activate the corresponding turn signal. Press the horn button to alert pedestrians or other vehicles.

Image 6.5: Close-up of the left and right turn signal indicators on the handlebar and their corresponding lights.

7. Батарея маалыматы

7.1 Батареяны заряддоо

Connect the charger to the scooter's charging port and then to a standard electrical outlet. The charging indicator on the charger will show the charging status. A full charge typically takes 4-5 hours. Do not overcharge the battery.

Image 7.1: Details of the 36V 8AH lithium battery, including 4-5 hours charging time and various protection features.

7.2 Батареяга кам көрүү

• Батареянын ден соолугун сактоо үчүн, скутер колдонулбаса да, батареяны дайыма заряддап туруңуз.
• Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
• Батареяны кургак, салкын жерде, түз күндүн нурунан жана өтө температурадан алыс сактаңыз.
• The battery is extractable for convenient charging indoors.

Image 7.2: The 8AH lithium battery provides an extended travel range of up to 20 miles per charge.

7.3 Anti-theft Feature

The battery is designed with an anti-theft mechanism. Use the separate key to lock and unlock the battery, securing it in place and preventing unauthorized removal.

Image 7.3: The anti-theft battery design ensures security and protection against water ingress, extending service life.

8. Бүктөө жана сактоо

8.1 Folding Procedure

The scooter features a quick-fold design, allowing it to be folded in approximately 3 seconds for easy transport and storage.

1. Ensure the scooter is powered off and the key is removed.
2. Remove any detachable accessories like the basket.
3. Release the handlebar locking mechanism and fold the handlebar stem down.
4. Engage the main folding mechanism, typically a lever or latch, and carefully fold the scooter into its compact form.
5. Ensure all parts are securely latched in the folded position.

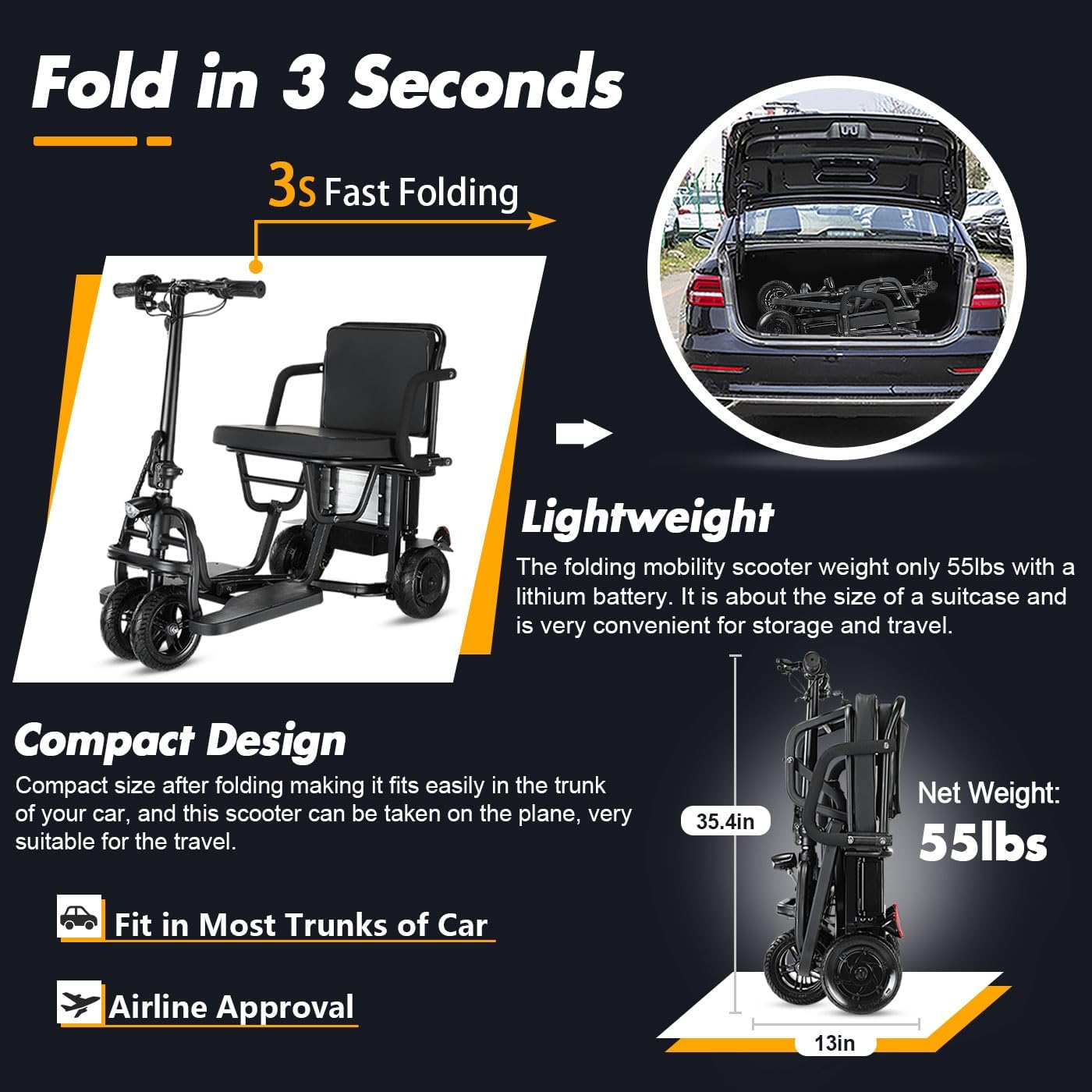

Image 8.1: The scooter folds quickly into a compact size, similar to a suitcase, making it suitable for car trunks and airline travel.

8.2 Сактоо

Store the folded scooter in a dry, protected area. Use the provided storage cover to protect it from dust and light when not in use for extended periods.

9. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө скутериңиздин узак жана коопсуз иштешин камсыздайт.

• Тазалоо: Скутерди жарнама менен сүртүңүзamp cloth. Avoid using harsh chemicals or direct water spray.
• Шиналарды текшерүү: Regularly check the solid rubber tires for wear or damage.
• Тормозду текшерүү: Ensure the brake system is functioning correctly and the brake lever has proper tension.
• Электр байланыштары: Мезгил-мезгили менен бардык электрдик байланыштарды бекемдигин жана коррозия белгилерин текшерип туруңуз.
• бекиткичтер: Check all bolts and screws for tightness and secure them as needed.

10. Кыйынчылыктарды

Бул бөлүм сиз кабылышы мүмкүн болгон жалпы көйгөйлөрдү карайт.

11. Техникалык шарттар

Image 11.1: Details of the 300W motor, rated power, max speed, and max climbing angle.

Image 11.2: The scooter boasts a remarkable turning radius of just 34 inches for enhanced maneuverability.

Image 11.3: The scooter's 4.9-inch ground clearance allows for multi-terrain driving on various surfaces.

12. Кепилдик жана колдоо

12.1 Кепилдиктин чоо-жайы

The Mujocooker Mobility Scooter comes with a Тетиктерге 1 жылдык кепилдик жана а Батареяга 3 айлык кепилдик from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage due to misuse, accidents, or unauthorized modifications.

12.2 Байланыш маалыматы

For technical support, warranty claims, or any inquiries, please contact us via email. Our support team aims to respond within 24 hours.

Электрондук почта: mujocooker@163.com

Image 12.1: Contact information for customer support, including email and return policy details.

Сүрөт 12.2: Бүттүview of Mujolife service, including warranty periods and contact email.
