Generic ZUKED-320-0.75KW VFD өзгөрүлмө жыштыктагы дисктин колдонуучу колдонмосу
Model: ZUKED-320-0.75KW
1. Киришүү
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the Generic ZUKED-320-0.75KW Variable Frequency Drive (VFD). This device is designed to control the speed of 3-phase AC motors by varying the frequency and voltage of the power supplied to the motor. Please read this manual thoroughly before installation and operation to ensure proper usage and to prevent damage to the equipment or injury to personnel.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Improper installation or operation can lead to serious injury or death. Only qualified personnel should install, operate, or maintain this equipment. Always disconnect power before performing any work on the VFD.
- Электр шок коркунучу: This VFD operates at high voltages. Do not touch electrical components when power is applied. Wait at least 10 minutes after disconnecting power for capacitors to discharge before servicing.
- Негиздөө: VFD жергиликтүү жана улуттук электр эрежелерине ылайык туура жерге туташтырылганын текшериңиз.
- Курчап турган чөйрө: Install the VFD in a clean, dry, and well-ventilated area, away from direct sunlight, corrosive gases, flammable materials, and excessive vibration.
- Монтаждоо: Mount the inverter on a non-combustible surface.
- Ашыкча ток коргоо: Ensure appropriate overcurrent protection devices are installed in the input power circuit.

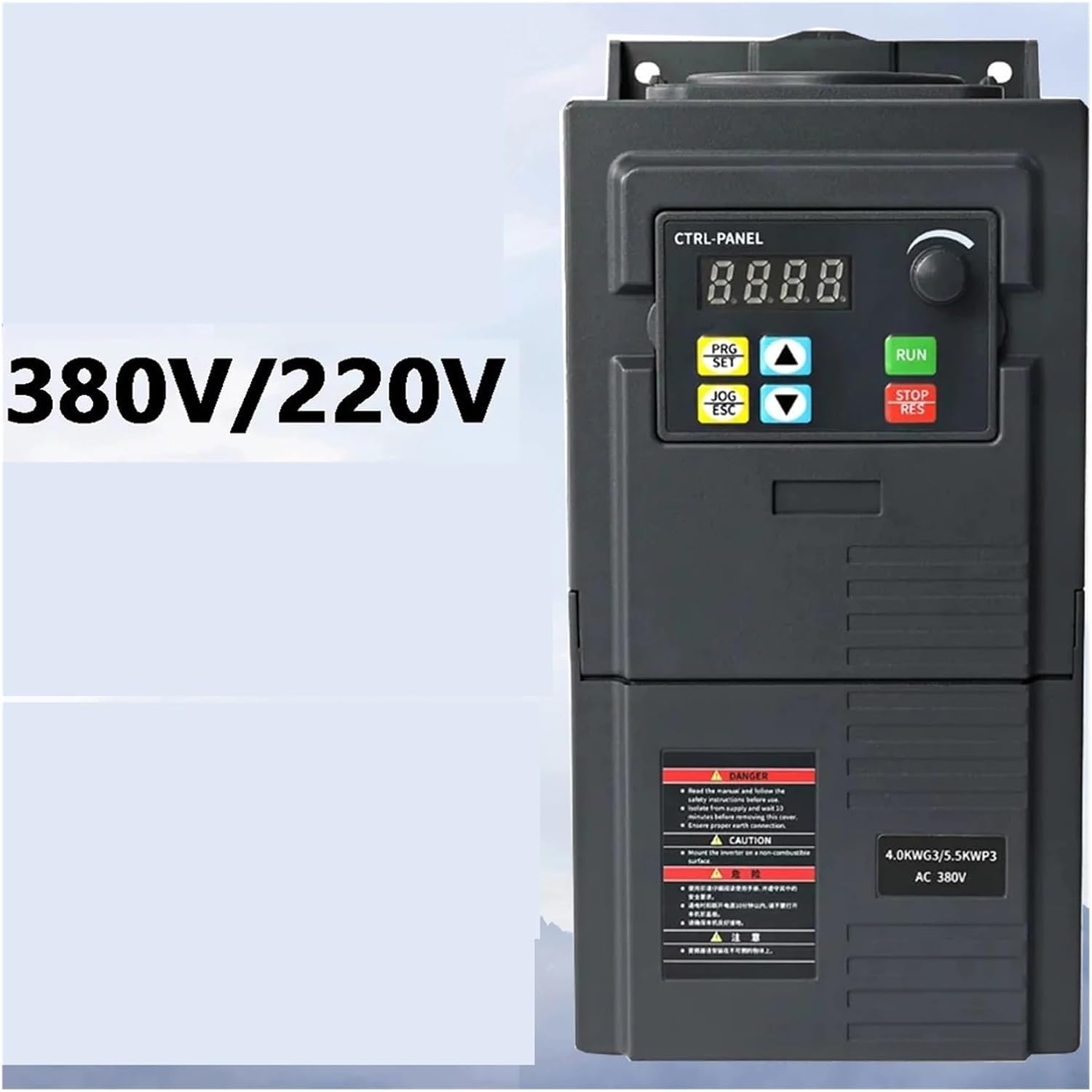

Сүрөт 1: Алдыңкы view of the VFD, showing the control panel and important safety labels. Note the 'DANGER' and 'CAUTION' warnings regarding electrical hazards and proper installation.
3. Продукт бүтүп калдыview
The ZUKED-320-0.75KW VFD is a robust variable frequency drive designed for precise motor speed control in industrial applications. It features advanced vector control technology for accurate torque and speed regulation.
Негизги өзгөчөлүктөрү:
- 3-phase input/output compatibility (380V).
- Advanced vector control technology for precise torque/speed regulation (±0.5% speed accuracy).
- Dual analog input.
- Comprehensive protection: Overcurrent, overvoltage, overload, phase loss, short circuit.
- Simple PLC function for basic automation tasks.
- Built-in PID controller for process control.
- Чыгуу томtage regulation (AVR function).
- Built-in EMC filter to reduce electromagnetic interference.
- Energy-saving mode: Automatically adjusts output to match load demands.
4. Орнотуу жана орнотуу
4.1. Таңгактан чыгаруу жана текшерүү
Upon receiving the VFD, carefully inspect the packaging for any signs of damage. Open the package and verify that all components are present and undamaged. If any damage is found or parts are missing, contact your supplier immediately.
4.2. Монтаждоо
The VFD should be mounted vertically on a flat, non-combustible surface to ensure proper heat dissipation. Allow sufficient clearance around the unit for ventilation (at least 10 cm on all sides). Use appropriate screws and mounting hardware for secure installation.
2-сүрөт: Каптал view of the VFD, highlighting the ventilation grilles and potential mounting points on the rear panel. Proper airflow is crucial for cooling.
3-сүрөт: Төмөнкү view of the VFD, illustrating the internal capacitors and the design of the mounting brackets for secure installation.
4.3. Электр зымдары
All wiring must be performed by a qualified electrician. Ensure power is disconnected before making any connections.
4.3.1. Электр зымдары
- Киргизүү кубаттуулугу (R, S, T): Connect the 3-phase 380V AC power supply to the R, S, T terminals.
- Мотордун чыгышы (U, V, W): Connect the 3-phase motor to the U, V, W terminals.
- Жерге туташтыруу (PE): Connect the ground wire to the PE terminal. This is critical for safety.
4.3.2. Башкаруу зымдары
The VFD supports various control inputs for start/stop, speed reference, and fault indications. Refer to the detailed wiring diagram provided with the product for specific terminal assignments for dual analog input, RS485 communication, and other I/O ports.

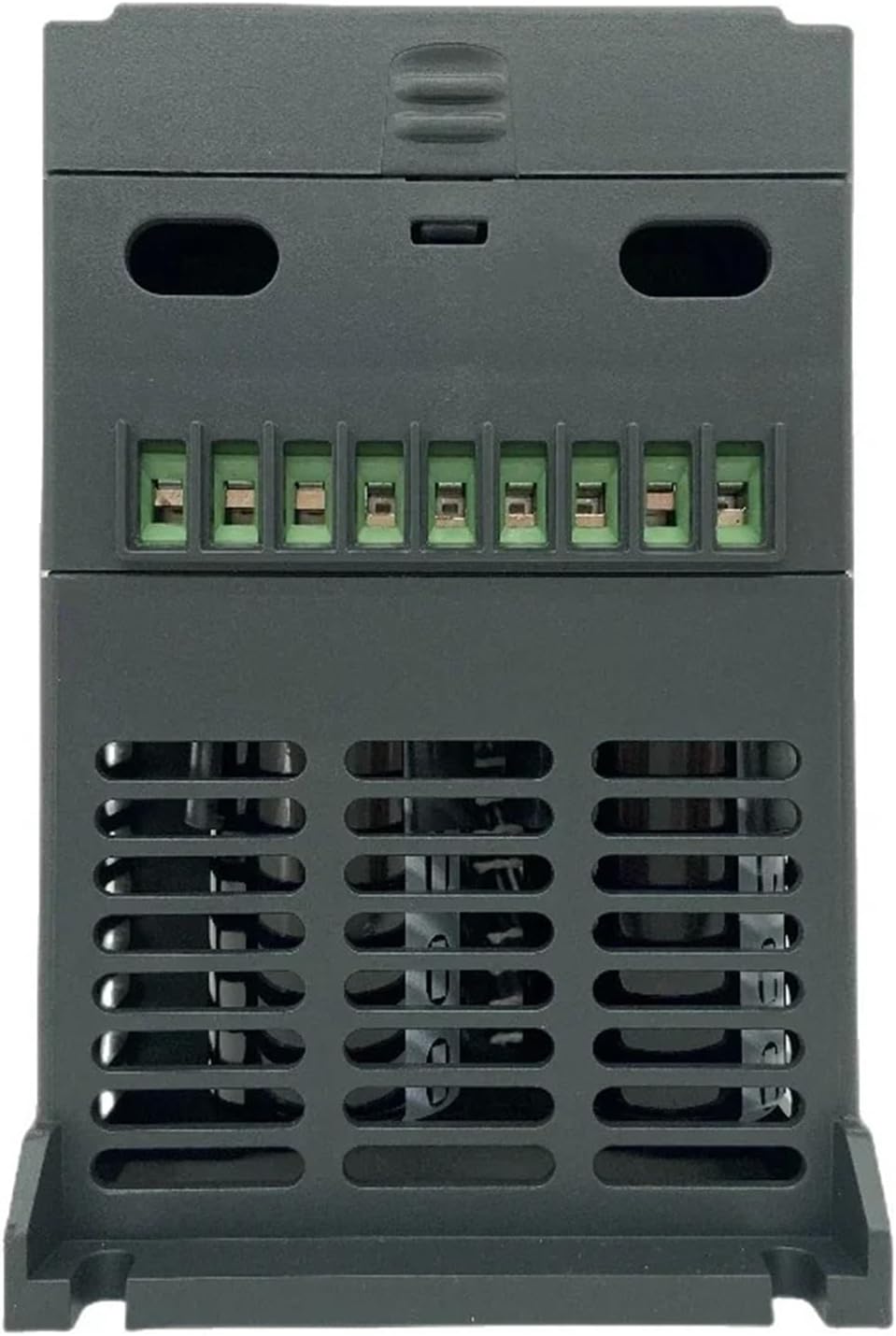

4-сүрөт: Арткы view of the VFD, displaying the terminal block where power input, motor output, and control signals are connected. Ensure all connections are secure and correctly polarized.
5-сүрөт: Бурчтуу view of the VFD, illustrating the main unit and a separate, possibly removable, terminal block for control wiring, emphasizing modularity and ease of connection.
5. Иштөө нускамалары
5.1. Control Panel Overview
The VFD features a digital display and control buttons for parameter setting and operation. The display shows operational status, frequency, current, and other parameters. Buttons include PRG/SET, JOG/ESC, UP/DOWN arrows, RUN, and STOP/RES.
5.2. Негизги операция
- Күйгүзүү: Apply 3-phase 380V AC power to the VFD. The display will light up.
- Жыштык коюу: Use the UP/DOWN arrow buttons or the rotary encoder (if present) to set the desired output frequency.
- Моторду ишке киргизүү: басыңыз RUN моторду ишке киргизүү үчүн баскыч.
- Моторду токтотуу: басыңыз ТОКТОТУУ/КАЙРА КАЙРА КУРУУ моторду токтотуу үчүн баскыч.
5.3. Параметрлердин Орнотуулары
The VFD has numerous parameters that can be adjusted to optimize performance for specific applications. These include acceleration/deceleration times, motor parameters, control modes (V/F, vector control), and PID settings.
- Программалоо режимине кирүү: басыңыз PRG/SET баскычы.
- Параметрлерди чабыттоо: Use the UP/DOWN arrows to scroll through parameter groups and individual parameters.
- Edit Parameter: Басыңыз PRG/SET again to enter edit mode for a selected parameter. Use UP/DOWN to change the value.
- Сактоо жана чыгуу: Басыңыз PRG/SET to save the new value, then JOG/ESC программалоо режиминен чыгуу үчүн.
Refer to the detailed parameter list in the full product manual for specific parameter codes and their functions.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and reliable operation of the VFD. Always disconnect power before performing any maintenance.
- Тазалоо: Periodically clean the VFD's exterior and ventilation grilles to prevent dust accumulation, which can hinder cooling. Use a soft, dry cloth. Do not use liquid cleaners.
- Текшерүү: Regularly inspect wiring connections for tightness and signs of wear or damage. Check for any unusual noises or odors during operation.
- Fan Check: Ensure the cooling fan operates freely and is not obstructed.
- Экологиялык текшерүү: Иштөө чөйрөсү белгиленген температура жана нымдуулук диапазондорунда калаарын текшериңиз.
7. Кыйынчылыктарды
This section provides solutions for common issues. For complex problems, contact technical support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| VFD күйбөйт | No input power; Blown fuse; Loose wiring | Электр менен камсыздоону текшериңиз; сактагычты алмаштырыңыз; зымдардын туташуусун текшериңиз. |
| Мотор иштебейт | Incorrect parameters; Motor wiring error; External fault signal | Check motor parameters (voltage, current, frequency); Verify motor wiring (U, V, W); Check control input signals. |
| Ашыкча токтун бузулушу (OC) | Motor overload; Short circuit in motor or wiring; Rapid acceleration/deceleration | Reduce motor load; Check motor and wiring for shorts; Increase acceleration/deceleration times. |
| Overvoltagэлектрондук ката (OV) | Жогорку кирүү көлөмүtage; Rapid deceleration with high inertia load | Киргизүүнү текшерүү томtage; Increase deceleration time; Consider adding a braking resistor if applicable. |
| Overload fault (OL) | Motor or VFD overloaded | Reduce motor load; Check motor current settings; Ensure VFD capacity matches motor requirements. |
8. Техникалык шарттар
| Өзгөчөлүк | Description |
|---|---|
| Модел | ZUKED-320-0.75KW |
| Киргизүү көлөмүtage | 3 фазалуу 380V |
| Output Voltage | 3 фазалуу 380V |
| Чыгуу күчү | 0.75КВт |
| Output Current | 3.8A (for 0.75KW model) |
| Чыгуу жыштыгы | 0-400 Гц |
| Башкаруу ыкмасы | Vector Control, V/F Control |
| Коргоо | Ашыкча ток, Ашыкчаtage, Overload, Phase Loss, Short Circuit |
| Камтылган өзгөчөлүктөр | PID Controller, EMC Filter, Simple PLC Function, AVR Function |
| Өлчөмдөрү (болжол менен) | 0.39 x 0.39 x 0.39 дюйм (Пакеттин өлчөмдөрү) |
| Элемент Салмагы | 3.53 унция (100 грамм) |
9. Кепилдик жана колдоо
For warranty information, technical support, or service inquiries, please contact the seller or manufacturer directly. Keep your purchase receipt and product model number handy for faster assistance.
