Карниздик валдын абалынын сенсорунун колдонмосу

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Generic Crankshaft Position Sensor, Model 39180-2B000. This sensor is designed to provide accurate data for optimal engine performance and fuel efficiency in compatible Kia Optima, Forte, and Rio vehicles. Please read this manual thoroughly before installation and use.

Продукт бүттүview жана Функция

The Crankshaft Position Sensor is a critical component in your vehicle's engine management system. It provides vital information to the engine control unit (ECU) regarding the crankshaft's rotational speed and position. This data is used by the ECU to determine ignition timing, fuel injection timing, and other engine parameters, ensuring smooth operation and efficient combustion.

The sensor is constructed from durable plastic and metal materials, designed for long-term reliability and performance in automotive environments.

1-сүрөт: Негизги view of the Crankshaft Position Sensor, showing the sensor body, wiring, and connector.

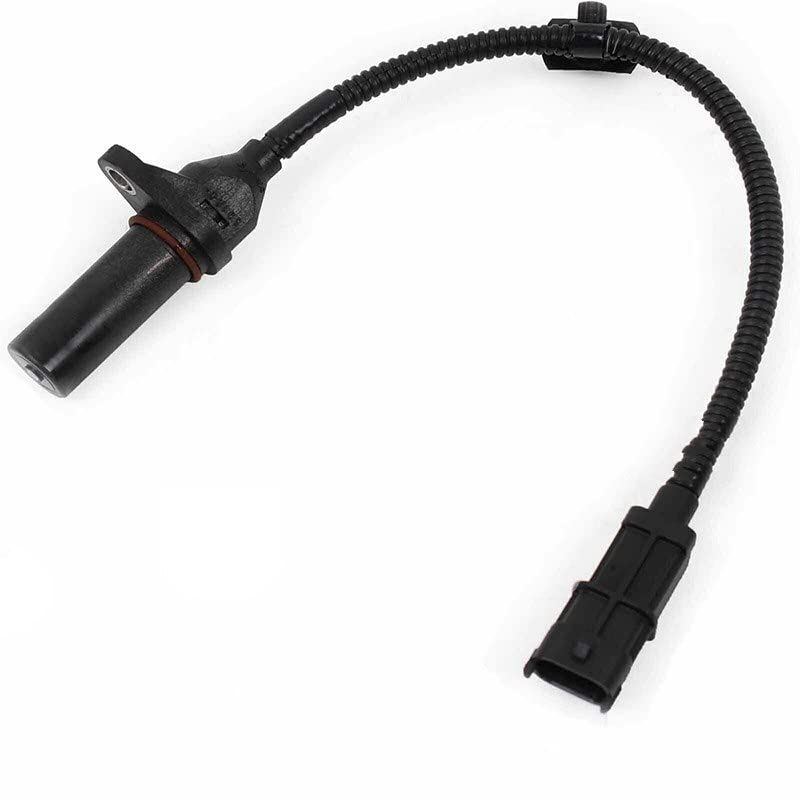

2-сүрөт: Бурчтуу view of the sensor, highlighting the robust construction and connection point.

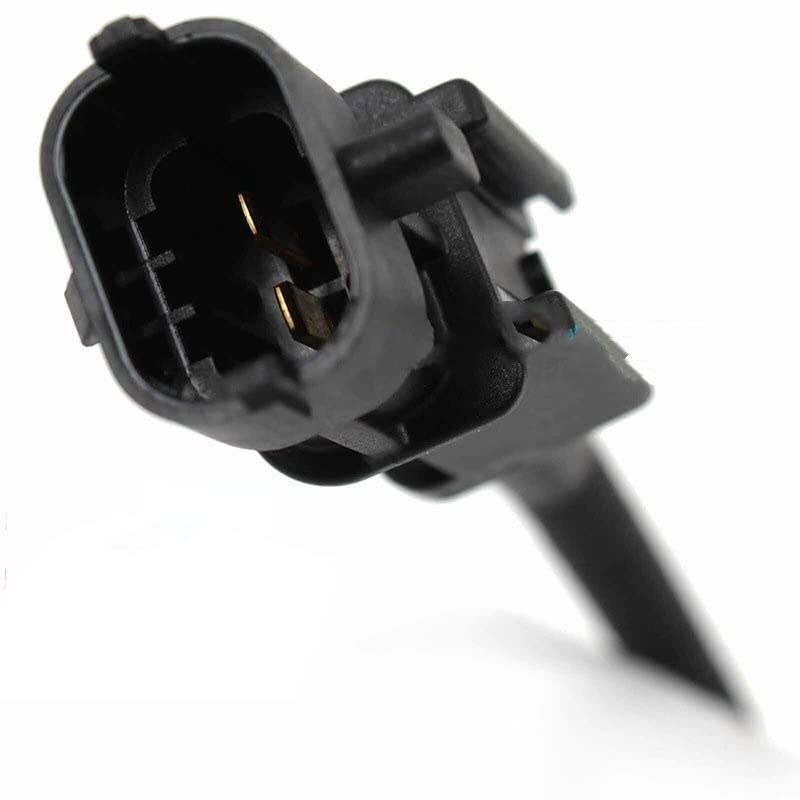

3-сүрөт: Жакын план view of the electrical connector, showing the pin configuration for secure attachment.

Техникалык шарттар

Орнотуу

Installation of a crankshaft position sensor typically requires mechanical knowledge and specific tools. If you are not confident in performing this procedure, it is recommended to seek assistance from a qualified automotive technician.

Жалпы орнотуу кадамдары:

1. Биринчи коопсуздук: Ensure the vehicle is turned off, the ignition key is removed, and the battery's negative terminal is disconnected to prevent accidental starting or electrical shorts. Allow the engine to cool down if it has been recently running.
2. Сенсорду табыңыз: Identify the location of the existing crankshaft position sensor. This can vary by vehicle model but is often found near the crankshaft pulley or flywheel. Consult your vehicle's service manual for the exact location.
3. Зымдарды ажыратыңыз: Эски сенсордон электр туташтыргычын кылдаттык менен ажыратыңыз. Түздөн-түз зымдарды тартпаңыз.
4. Эски сенсорду алып салуу: Use the appropriate wrench or socket to unbolt and remove the old sensor from its mounting point. Note any O-rings or seals that may be present.
5. Жаңы сенсорду даярдоо: Inspect the new sensor for any damage. If an O-ring is supplied, ensure it is properly seated. A small amount of clean engine oil can be applied to the O-ring to aid installation.
6. Жаңы сенсорду орнотуу: Insert the new sensor into its mounting hole and hand-tighten the bolt. Then, tighten to the manufacturer's specified torque using a torque wrench. Do not overtighten.
7. Зымдарды кайра туташтыруу: Жаңы сенсорго электр туташтыргычын кайра туташтырыңыз, анын ордуна бекем чыкылдатыңыз.
8. Батареяны кайра туташтыруу: Унаанын аккумуляторунун терс терминалын кайра туташтырыңыз.
9. Сыноо операциясы: Start the vehicle and check for any warning lights or abnormal engine behavior. It may be necessary to clear any stored diagnostic trouble codes (DTCs) using an OBD-II scanner.

Маанилүү эскертүү: Always compare the new sensor with your original part and verify the part number (39180-2B000) to ensure compatibility with your specific vehicle year, make, and model. Incorrect part installation can lead to engine malfunction.

Операция

Once installed, the Crankshaft Position Sensor operates continuously while the engine is running. It generates a signal based on the rotation of the crankshaft, which typically has a reluctor wheel or tone ring. This signal is then sent to the vehicle's ECU. The ECU interprets this signal to precisely determine the crankshaft's angular position and rotational speed. This information is crucial for synchronizing ignition spark and fuel injection events, ensuring the engine runs smoothly, efficiently, and with optimal power output.

Техникалык тейлөө

The Crankshaft Position Sensor is generally a maintenance-free component. However, regular vehicle maintenance practices can help ensure its longevity:

• Keep Engine Bay Clean: Periodically clean the engine bay to prevent excessive dirt, oil, or debris buildup around the sensor and its wiring.
• Зымдарды текшерүү: During routine vehicle inspections, check the sensor's wiring and connector for any signs of wear, fraying, or corrosion. Ensure the connection remains secure.
• Физикалык зыянды болтурбоо: Be mindful of the sensor's location during other engine work to avoid accidental impact or damage.

Проблемаларды чечүү

A faulty crankshaft position sensor can lead to various engine performance issues. Here are common symptoms and potential solutions:

• Мотор кыймылдатат, бирок башталбайт:

  Мүмкүн болгон себеп: Sensor not sending a signal to the ECU.

  Чечим: Check sensor wiring and connector for looseness or damage. If intact, the sensor may need replacement.
• Intermittent Stalling or Misfires:

  Мүмкүн болгон себеп: Intermittent signal from the sensor due to internal fault or wiring issue.

  Чечим: Inspect wiring for fraying or corrosion. If symptoms persist, consider sensor replacement.

• Текшерүү кыймылдаткыч жарыгы (CEL) күйүп турат:

  Мүмкүн болгон себеп: ECU has detected an issue with the sensor's signal, often accompanied by specific diagnostic trouble codes (DTCs) like P0335.

  Чечим: Use an OBD-II scanner to retrieve DTCs. Diagnose based on the code. Sensor replacement is often indicated.

• Rough Idling or Poor Acceleration:

  Мүмкүн болгон себеп: Inaccurate or erratic signal affecting ignition and fuel timing.

  Чечим: Verify sensor connection. If performance issues continue, sensor replacement may be necessary.

For accurate diagnosis, it is highly recommended to consult a professional automotive technician or use an OBD-II diagnostic tool.

Кепилдик жана колдоо

This product is manufactured to high-quality standards. For any issues or inquiries regarding the product, please refer to the seller's return and warranty policy as stated at the point of purchase. Your satisfaction is important, and support is typically available from the seller for any product-related concerns.

For technical assistance or further questions, please contact the manufacturer or seller directly. Please have your purchase details and the product model number (39180-2B000) ready when contacting support.
