Generic Replacement Ice Maker for Whirlpool GS2SHAXSS01 Refrigerator - Instruction Manual

1. Киришүү

This manual provides detailed instructions for the safe and correct installation, operation, and maintenance of your Generic Fricpart-145225 replacement ice maker. This part is designed to replace the ice maker in Whirlpool GS2SHAXSS01 refrigerator models. Please read this manual thoroughly before beginning installation to ensure proper function and to prevent damage to the product or your appliance.

2. Коопсуздук маалыматы

Always observe the following safety precautions to reduce the risk of electric shock, injury, or damage.

• Кубатты өчүрүү: Before attempting any installation or maintenance, always unplug the refrigerator from the power outlet or turn off the circuit breaker to avoid electrical shock.
• Коргоочу шаймандарды кийүү: It is recommended to wear work gloves to protect your hands from sharp edges and safety glasses to protect your eyes.
• Кесиптик орнотуу: If you are unsure about any step of the installation process, it is advisable to consult a qualified appliance technician.
• Этияттык менен мамиле кылуу: The ice maker assembly contains delicate components. Handle it carefully to prevent damage.
• Суу менен камсыздоо: Суу түтүктөрүн ажыратуудан мурун, муздаткычка суу берүү өчүрүлгөнүн текшериңиз.

3. Шайкештик

This replacement ice maker (Fricpart-145225) is specifically designed for use with the Whirlpool GS2SHAXSS01 refrigerator model. Appliance parts can appear similar across different models. To ensure correct fitment and function, please verify your refrigerator's model number before proceeding with installation. The model number is typically located inside the refrigerator compartment or on the back of the unit.

4. Орнотуу боюнча нускамалар

Follow these steps carefully to install your new ice maker.

Керектүү куралдар:

• Screwdriver (Phillips or flathead, depending on your refrigerator model)
• Жумушчу мээлейлер
• Коопсуздук көз айнек

Кадам-кадам колдонмо:

1. Муздаткычты даярдоо:
   • Муздаткычты розеткадан сууруп алыңыз.
   • Муздаткычка суу берүүнү өчүрүңүз.
   • Empty the ice bin and remove any existing ice.
2. Locate and Access the Old Ice Maker:

   The ice maker is typically located in the freezer compartment, usually on the upper left side. You may need to remove shelves or the ice bin to gain full access.
3. Disconnect the Old Ice Maker:
   • Carefully disconnect the electrical wiring harness. This usually involves pressing a tab and pulling the connector apart.
   • Unscrew the mounting screws that secure the ice maker to the freezer wall. There are typically 2-3 screws.
   • Gently remove the old ice maker assembly from the freezer.
4. Жаңы муз жасагычты орнотуу:

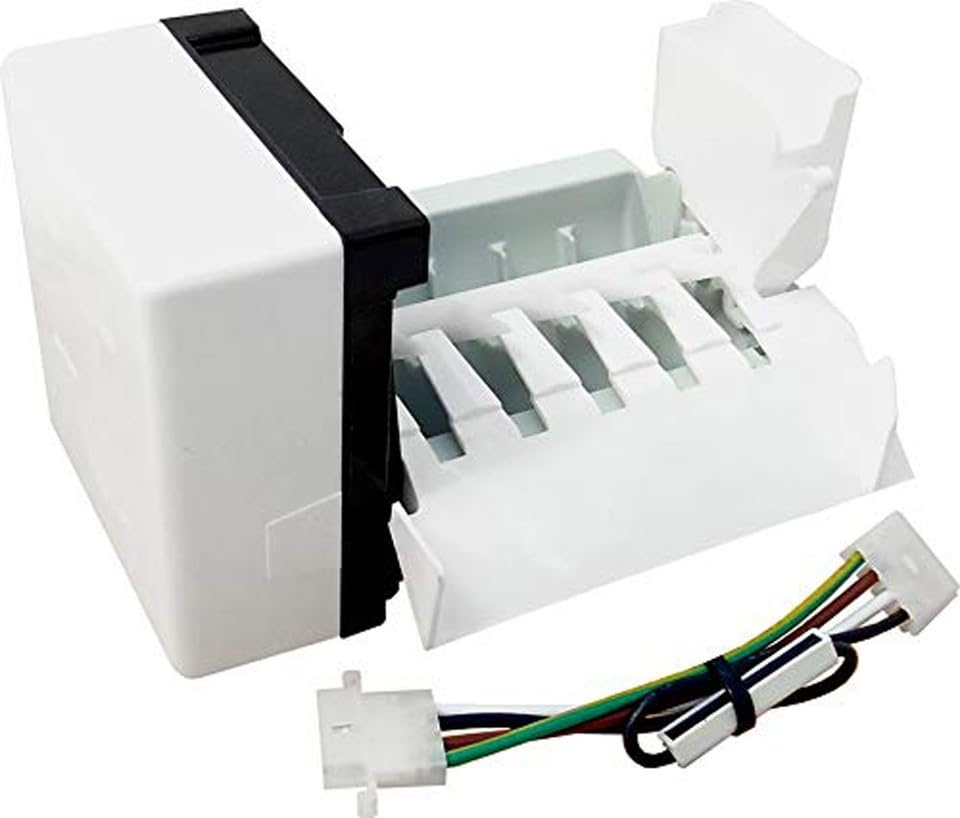

   Image 1: The Generic Fricpart-145225 replacement ice maker. This image shows the complete assembly, including the motor, ice mold, and wiring harness, ready for installation into a compatible Whirlpool refrigerator.

   • Align the new Fricpart-145225 ice maker with the mounting holes in the freezer.
   • Secure the ice maker with the mounting screws removed earlier. Do not overtighten.
   • Connect the electrical wiring harness to the new ice maker. Ensure it clicks securely into place.
5. Электр энергиясын жана сууну калыбына келтирүү:
   • Turn on the water supply to the refrigerator. Check for any leaks around the water inlet tube.
   • Муздаткычты кайра розеткага сайыңыз же автоматтык өчүргүчтү күйгүзүңүз.
6. Баштапкы сыноо:

   Allow several hours for the freezer to reach its operating temperature and for the ice maker to cycle. The first batch of ice may take 12-24 hours to produce. Discard the first few batches of ice to ensure any manufacturing residues are flushed out.

5. Операция

Once installed and powered, the ice maker will automatically begin producing ice. The ice maker typically has an arm or sensor that detects when the ice bin is full and will stop production until ice is removed. Ensure the ice maker's shut-off arm is in the down position for ice production to occur.

• First Ice Production: It may take 12-24 hours for the first batch of ice to be produced after installation and initial startup.
• Ice Production Rate: The rate of ice production can vary based on freezer temperature, frequency of door openings, and water pressure.
• Shut-Off Arm: Ensure the metal shut-off arm is not obstructed and can move freely. If it is in the up position, the ice maker will not produce ice.

6. Техникалык тейлөө

Үзгүлтүксүз техникалык тейлөө муз жасагычыңыздын оптималдуу иштешин жана узак мөөнөттүү иштешин камсыз кылууга жардам берет.

• Таза муз челек: Periodically empty and clean the ice bin with mild soap and water. Rinse thoroughly and dry before returning it to the freezer.
• Суу чыпкасын текшерүү: If your refrigerator has a water filter, ensure it is replaced according to the manufacturer's recommendations to maintain water quality and ice production.
• Суу түтүгүн текшерүү: Occasionally inspect the water supply line for kinks, leaks, or damage.
• Эритүү: If ice builds up around the ice maker, it may be necessary to manually defrost the freezer or clear the obstruction.

7. Кыйынчылыктарды

Жалпы маселелер жана аларды чечүү үчүн төмөнкү таблицага кайрылыңыз.

Эгерде бул чечимдерди колдонуп көргөндөн кийин да көйгөй чечилбесе, кардарларды колдоо кызматына же квалификациялуу техникке кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

This product is covered by the standard warranty provided by the retailer or manufacturer at the time of purchase. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance beyond what is provided in this manual, or to inquire about warranty service, please contact the seller or manufacturer directly using the contact information provided with your purchase.
