Electric Guitar 6-String Individual Tremolo Bridge Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your new 6-string individual tremolo bridge for electric guitars. Designed for durability and wear resistance, this zinc alloy tremolo bridge enhances your guitar's sound with ease and precision, offering versatility and expressiveness for various musical settings.

2. Пакеттин мазмуну

Төмөндө тизмеленген бардык компоненттер пакетиңизге камтылганын текшериңиз:

• 1 x Tremolo Bridge
• 1 x Tremolo Arm
• 2 x Bridge Studs
• 1 x Adjustment Wrench
• Springs and Screws (for bridge and spring claw)

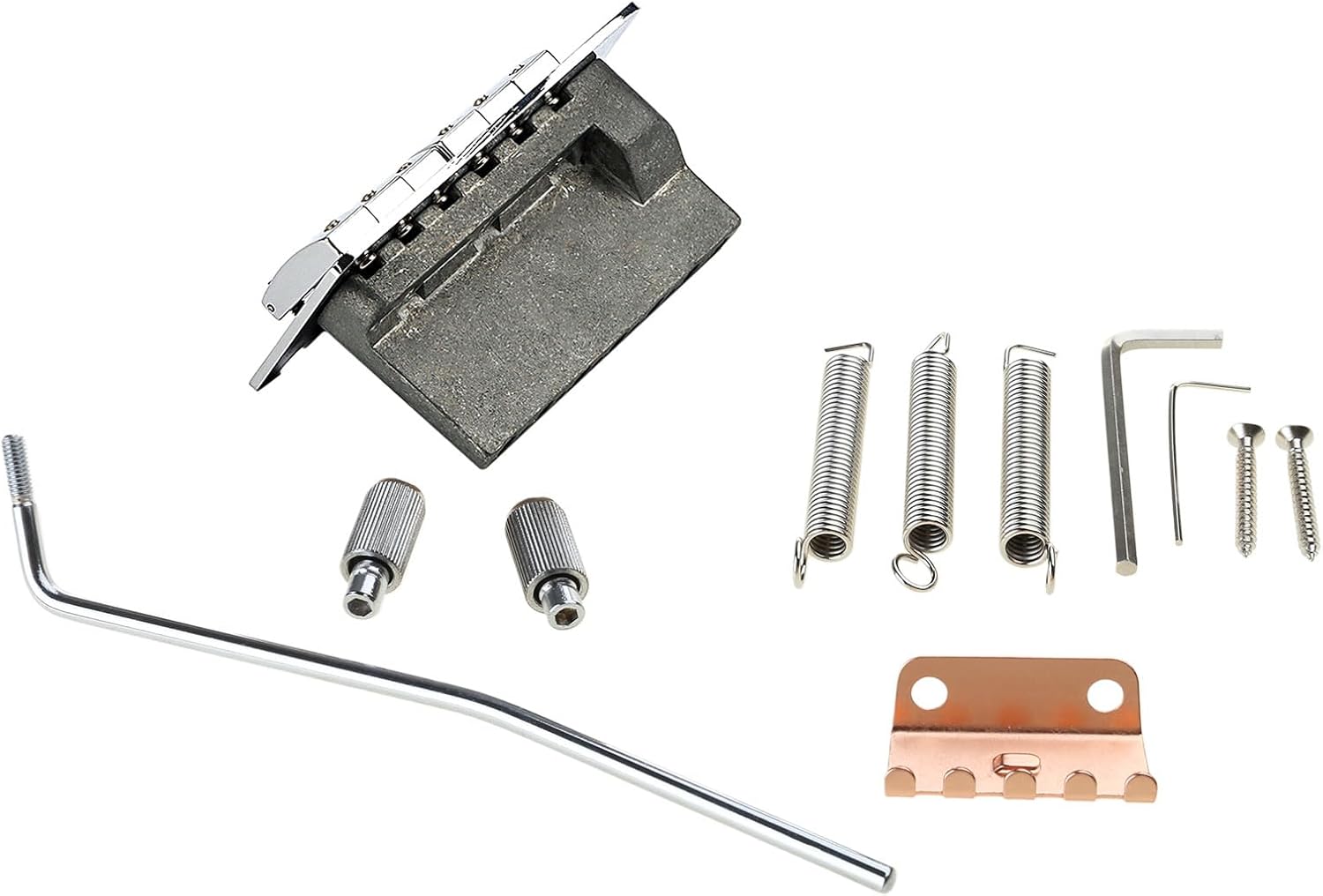

Figure 2.1: ашыкview пакетке кирген бардык компоненттердин ичинен.

3. Орнотуу жана орнотуу

Proper installation is crucial for optimal performance. If you are unsure about any step, it is recommended to seek assistance from a qualified guitar technician.

3.1. Preparing Your Guitar

• Carefully remove the old bridge and strings from your electric guitar.
• Clean the bridge cavity and surrounding area to ensure a smooth installation surface.

3.2. Installing the Bridge Studs

• Insert the two bridge studs into the designated holes on your guitar body. Ensure they are seated firmly and level.

3.3. Mounting the Tremolo Bridge

• Carefully place the tremolo bridge onto the installed studs. The bridge features curved saddles and an exquisite finish for a perfect fit.
• Attach the tremolo springs to the bridge block and the spring claw in the guitar's tremolo cavity.
• Secure the spring claw with screws to adjust spring tension later.

Figure 3.1: Assembled tremolo bridge and arm.

Figure 3.2: Underside of the tremolo bridge, showing the tremolo block.

3.4. Attaching the Tremolo Arm

• Screw the tremolo arm into the designated hole on the tremolo bridge. Ensure it is securely fastened but still allows for smooth movement.

4. Operating the Tremolo Bridge

The tremolo bridge allows for pitch modulation, adding vibrato and dive-bomb effects to your playing.

4.1. Tuning and Intonation

• After installing new strings, stretch them thoroughly and tune your guitar to the desired pitch.
• Adjust the saddle height for optimal action and intonation using the provided wrench. Each saddle is individual, allowing for precise adjustments.

4.2. Using the Tremolo Arm

• Gently push down on the tremolo arm to lower the pitch of the strings.
• Pull up on the tremolo arm (if set up for floating tremolo) to raise the pitch.
• Experiment with different pressures and movements to achieve various vibrato and pitch-shifting effects.

5. Техникалык тейлөө

Regular maintenance will ensure the longevity and optimal performance of your tremolo bridge.

• Тазалоо: Wipe down the bridge regularly with a soft, dry cloth to remove dust, sweat, and grime. For stubborn dirt, a slightly damp кездемени колдонсо болот, андан кийин дароо кургатуу.
• Майлоо: Occasionally apply a small amount of specialized lubricant (e.g., graphite or silicone-based) to the pivot points and saddles to ensure smooth operation and reduce friction.
• Текшерүү: Periodically check all screws and components for tightness. Ensure the tremolo springs are not stretched or damaged.
• Сап өзгөртүүлөр: When changing strings, it's a good opportunity to clean and inspect the bridge thoroughly.

6. Кыйынчылыктарды

Бул жерде кээ бир жалпы маселелер жана алардын мүмкүн болуучу чечимдери:

7. Техникалык шарттар

Key specifications for the Ldabrye 6-String Individual Tremolo Bridge:

• Материал: Цинк эритмеси
• Түрү: 6-String Individual Tremolo Bridge
• Өзгөчөлүктөрү: Curved saddles, exquisite finish
• Модель номери: Ldabrye
• ASIN: B0FF36N2TH
• Өлчөмдөрү: (Refer to Figure 7.1 for detailed measurements)

Figure 7.1: Detailed dimensions of the tremolo bridge.

8. Кепилдик жана колдоо

Information regarding specific warranty terms and conditions for this product is not provided in the available data. For any support inquiries or warranty claims, please contact the seller or manufacturer directly through your purchase platform.

Өндүрүүчүнүн шилтемеси: Ldabrye

Запастык бөлүктөрдүн болушу: Маалымат жеткиликсиз.
