1. Киришүү
This manual provides essential information for the safe and effective operation of your LEICESTERCN 1.1A Motorcycle Battery Maintainer, Model C11. This device is designed to charge and maintain 12V Lead-Acid (AGM, Gel, Wet) and 12V Lithium LiFePO4 batteries, ensuring optimal battery health and readiness for motorcycles, ATVs, scooters, and other powersport vehicles.

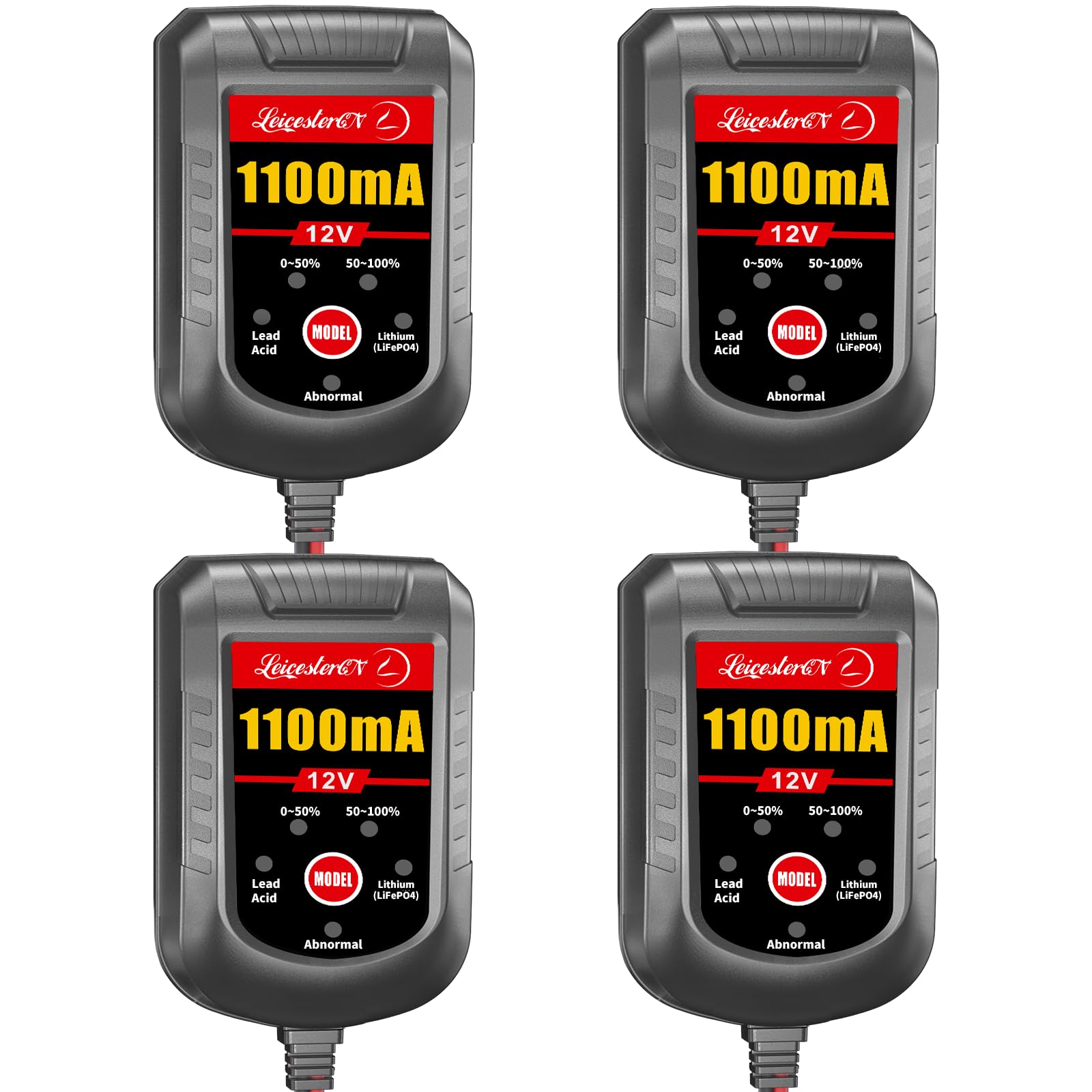

Image 1.1: LEICESTERCN 1.1A Motorcycle Battery Maintainer with included accessories.
2. Коопсуздук маалыматы
Бул продуктуну колдонуудан мурун бардык коопсуздук эскертүүлөрүн жана нускамаларын окуп чыгыңыз. Бул нускамаларды аткарбоо электр шокуна, өрткө же олуттуу жаракатка алып келиши мүмкүн.
- Вентиляция: Ensure adequate ventilation when charging. Batteries can produce explosive gases.
- Көздү коргоо: Батареялардын жанында иштеп жатканда ар дайым коргоочу көз айнек тагыныңыз.
- Sparks: Avoid creating sparks near the battery. Do not connect or disconnect the charger while it is powered on.
- Полярдуулук: Connect the positive (+) charger lead to the positive (+) battery terminal and the negative (-) charger lead to the negative (-) battery terminal. Reverse polarity protection is built-in, but correct connection is always recommended.
- Бузулган батареялар: Do not attempt to charge frozen, damaged, or leaking batteries.
- Ички колдонуу: This charger is designed for indoor use. Do not expose to rain or excessive moisture.
- Балдар: Балдар жетпеген жерде сактаңыз.
3. Пакеттин мазмуну
Пакетиңизде бардык буюмдар бар экенин текшериңиз:
- LEICESTERCN 1.1A Battery Maintainer (Model C11)
- Alligator Clip Harness
- Fused Ring Terminal Harness
- User Manual
Image 3.1: Charger unit with alligator clips and ring terminal connectors.
4. Продукциянын өзгөчөлүктөрү
The LEICESTERCN 1.1A Battery Maintainer offers advanced features for comprehensive battery care:
- Жалпы шайкештик: Supports 12V Lead-Acid (AGM, GEL, WET, EFB & Deep Cycle) and 12V Lithium LiFePO4 batteries with BMS.
- 1.1A Precision Charging: Tailored output for smaller amp-hour batteries found in motorcycles, ATVs, and scooters, preventing overheating.
- Smart Float Mode: Automatically switches to float mode once fully charged, maintaining optimal battery health without overcharging.
- Төмөн томtage Калыбына келтирүү: Manual override function to initiate charging for 12V batteries discharged below 8V (but above 4V).
- Adaptive Weather Compensation: Adjusts charging parameters for optimal performance in cold (-4°F) and hot (104°F) conditions.
- Мульти-Сtage Заряддоо: 4-s колдонотtage charging process (Desulfation, Bulk Charge, Absorption, Float) to extend battery lifetime.
- Коопсуздукту коргоо: Includes spark-proof technology, reverse polarity protection, over-current, over-voltage, overheat, short-circuit protection, and automatic auto-stop.
- Кеңейтилген мүмкүнчүлүк: 8FT total reach (6ft AC cord + 2ft DC cable) for flexible placement.
Image 4.1: Universal compatibility with various 12V battery types.
Сүрөт 4.2: Бүттүview of the charger's safety and operational features.
5. Орнотуу
Follow these steps to connect your battery maintainer:
- Туташуу ыкмасын тандаңыз: Select either the alligator clip harness for temporary connections or the fused ring terminal harness for permanent installation.
- Батареяга туташуу:
- туташтыруу кызыл (+) connector to the positive (+) battery terminal.
- туташтыруу кара (-) connector to the negative (-) battery terminal.
Ensure a secure connection. The charger features spark-proof technology, but it is best practice to connect the battery leads before plugging the charger into an AC outlet.
- Батарея түрүн тандоо: Once connected, plug the charger into a standard 110V AC outlet. The charger will power on. Press the РЕЖИМ button to select the appropriate battery type (Lead-Acid or Lithium LiFePO4). The corresponding LED indicator will illuminate.
Image 5.1: Charger connected to a motorcycle battery for maintenance.
6. Иштөө нускамалары
The LEICESTERCN 1.1A Battery Maintainer operates automatically once connected and the battery type is selected.
6.1 Заряддоо процесси
The charger will automatically detect the battery's state and begin the appropriate charging stage. The LED indicators will show the charging progress:
- 0-50% LED: Illuminates when the battery is charging from 0% to 50% capacity.
- 50-100% LED: Illuminates when the battery is charging from 50% to 100% capacity.
- Float режими: Once 100% charge is reached, the charger automatically switches to float mode, indicated by the 50-100% LED remaining solid. In this mode, the charger monitors the battery and provides a gentle charge to maintain full capacity without overcharging.
Image 6.1: Charger's automatic revitalization and float mode capabilities.
6.2 Төмөн-томtage Recovery Mode
If your 12V battery is discharged below 8V, the charger may not initiate charging automatically. To activate the low-voltage recovery mode:
- Ensure the charger is connected to the battery and plugged into an AC outlet.
- басып, кармап туруңуз РЕЖИМ баскычын 3 секунда басыңыз.
- Both the 0-50% and 50-100% LEDs will illuminate, indicating that forced charging has started. This mode bypasses standard detection to revive deeply discharged batteries.
Эскертүү: If a 12V battery is discharged below 4V, it may be permanently damaged and unrecoverable. Replacement is recommended for safety.
Image 6.2: Activating low-voltage recovery for deeply discharged batteries.
6.3 Adaptive Weather Compensation
The charger automatically adjusts its charging profile based on ambient temperature to prevent under-charging in cold conditions (Cold Mode: -4°F) and over-charging/overheating in hot conditions (Hot Mode: 104°F).
Image 6.3: Charger's adaptive weather compensation for optimal performance.
7. Техникалык тейлөө
To ensure the longevity and optimal performance of your battery maintainer and batteries:
- Таза байланыштар: Periodically inspect and clean battery terminals and charger connectors to ensure good contact.
- Сактагыч: Заряддоо түзүлүштү колдонбогондо салкын, кургак жерде сактаңыз.
- Кабелдик текшерүү: Regularly check the AC and DC cables for any signs of damage. Do not use the charger if cables are damaged.
- Battery Level (Lead-Acid): For traditional lead-acid batteries, check electrolyte levels periodically and refill with distilled water if necessary, following battery manufacturer guidelines.
8. Кыйынчылыктарды
If you encounter issues with your LEICESTERCN 1.1A Battery Maintainer, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Charger not turning on / No LEDs illuminated | No AC power; Faulty AC outlet; Damaged charger. | Check AC power connection. Test outlet with another device. Contact support if charger is damaged. |
| "Abnormal" LED is illuminated | Reverse polarity connection; Short circuit; Battery voltage too low (<4V); Internal fault. | Verify correct battery polarity. Check for short circuits in cables/connections. If battery is below 4V, it may be unrecoverable. Contact support if problem persists. |
| Battery not charging / Charging LEDs not progressing | Poor battery connection; Incorrect battery type selected; Battery severely discharged (<8V); Battery is faulty. | Ensure secure connections. Verify correct battery type selected with MODE button. Activate Low-Voltage Recovery Mode (Section 6.2). Test battery health. |
| Заряддоочу түзүлүш иштөө учурунда ысып кетет | Normal operation; Poor ventilation; Overload. | Some warmth is normal. Ensure adequate ventilation around the charger. If excessively hot, disconnect and contact support. |
9. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Бренд | LEICESTERCN |
| Модель номери | C11 |
| Output Voltage | 12 вольт |
| Киргизүү көлөмүtage | 110 вольт |
| Учурдагы рейтинг | 1100 миллионamps (1.1A) |
| Продукциянын өлчөмдөрү (D x W x Y) | 3.2" x 1.7" x 1.3" |
| Туташтыргыч түрү | Alligator and Ring Terminals |
| Шайкеш батареянын түрлөрү | 12V Lead-Acid (AGM, Gel, Wet, EFB, Deep Cycle), 12V Lithium LiFePO4 |
| Иштөө температурасы диапазону | -4°F жана 104°F |
| UPC | 765147772592 |
10. Кепилдик жана колдоо
Your LEICESTERCN 1.1A Battery Maintainer (Model C11) comes with a 3 жылдык сапат кепилдиги жана а 12-Month Refund Guarantee.
For technical support, warranty claims, or any questions regarding your product, please contact LEICESTERCN customer service through the retailer's platform or visit the official LEICESTERCN store page: LEICESTERCN Store.
