1. Киришүү
The LifeQuality Jeweller Smart Wireless Environmental Monitor is designed to provide real-time measurements of indoor environmental parameters. This device accurately monitors temperature, relative humidity, carbon dioxide (CO₂), and overall air quality. It utilizes the secure Jeweller radio protocol for reliable communication with compatible security hubs, enabling users to maintain a healthy and comfortable indoor environment. The monitor helps identify poor air quality conditions and provides timely alerts for corrective action.
2. Коопсуздук маалыматы
- Аппаратты иштетүүдөн мурун бардык нускамаларды окуп чыгыңыз.
- Аппаратты экстремалдык температурага, түз күндүн нуруна же жогорку нымдуулукка дуушар кылбаңыз.
- Avoid placing the device near heat sources or in areas with strong electromagnetic interference.
- Аппаратты ачууга же оңдоого аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
- Аппаратты балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Батареяларды жергиликтүү эрежелерге ылайык жок кылыңыз.
3. Түзмөк бүттүview
The LifeQuality monitor features a compact, sleek design for unobtrusive placement. It includes internal sensors for environmental monitoring and a tamper-protected casing.

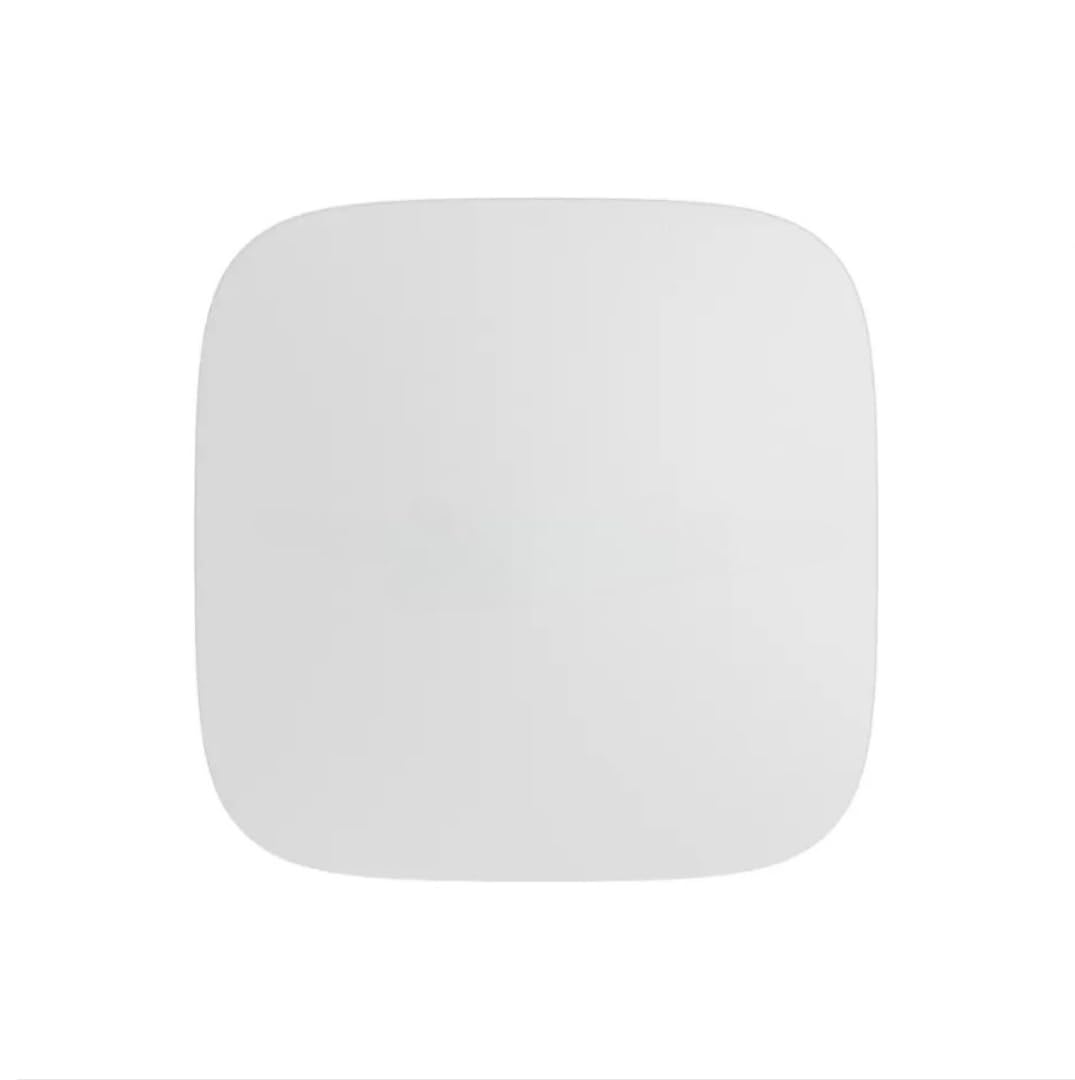

1-сүрөт: Алдыңкы, арткы жана каптал views of the LifeQuality Jeweller Smart Wireless Environmental Monitor. The back view shows the mounting plate and screw holes, while the front is a smooth, white surface.
3.1. Пакеттин мазмуну
- LifeQuality Jeweller Smart Wireless Environmental Monitor (Model 57537.135.WH3)
- Орнотуу комплекти (бурамалар жана якорьлор)
- Quick Start Guide
4. Орнотуу жана орнотуу
4.1. Жайгашкан жерди тандоо
Select a central location within the intended monitoring area, away from direct drafts, windows, heating/cooling vents, and direct sunlight. Ensure the location is within the Jeweller radio protocol range of your security hub (up to 1,300 meters in open space).
2-сүрөт: Example placement of the LifeQuality monitor on a table. The device's compact size allows for discreet integration into various indoor environments.
4.2. Аппаратты орнотуу
- Remove the mounting plate from the back of the monitor by twisting it counter-clockwise.
- Position the mounting plate on the desired wall or surface. Use a pencil to mark the screw holes.
- Drill pilot holes if necessary, then secure the mounting plate using the provided screws and anchors.
- Align the monitor with the mounted plate and twist clockwise until it clicks securely into place.
4.3. Pairing with the Hub
- Ensure your security hub is powered on and in pairing mode (refer to your hub's manual for specific instructions).
- Open the mobile application associated with your security system.
- Navigate to the device addition section within the app.
- Follow the on-screen prompts to add the LifeQuality monitor. This typically involves scanning a QR code on the device or manually entering its serial number.
- Once successfully paired, the device will appear in your app, and you can begin monitoring environmental data.
5. Операция
5.1. Monitoring Environmental Data
After successful pairing, the LifeQuality monitor will continuously transmit data to your security hub. You can view real-time temperature, humidity, CO₂, and air quality readings through the dedicated mobile or desktop application.
- Температура: Displays the ambient temperature in Celsius or Fahrenheit.
- Нымдуулук: Shows the relative humidity percentage.
- CO₂ Concentration: Indicates carbon dioxide levels in parts per million (ppm). Elevated CO₂ levels can indicate poor ventilation.
- Абанын сапаты: Provides an overall assessment of air quality, often based on volatile organic compounds (VOCs) or other pollutants.
5.2. Setting Up Alerts and Notifications
The application allows you to set custom thresholds for each monitored parameter. If a parameter exceeds or falls below your defined limits, the system will send instant notifications to your connected devices.
- Open the application and select the LifeQuality monitor.
- Navigate to the settings or alert configuration section.
- Adjust the desired high and low thresholds for temperature, humidity, CO₂, and air quality.
- Enable notifications for these alerts.
Дайыма кайраview historical data within the app to identify trends and optimize your indoor environment.
6. Техникалык тейлөө
6.1. Тазалоо
Wipe the device periodically with a soft, dry cloth to remove dust. Do not use abrasive cleaners, solvents, or spray liquids directly onto the device.
6.2. Батареяны алмаштыруу
The LifeQuality monitor is designed for extended battery life. When the battery level is low, you will receive a notification through the application. To replace the battery:
- Twist the monitor counter-clockwise to remove it from its mounting plate.
- Open the battery compartment (refer to the device diagram in the Quick Start Guide for exact location).
- Replace the old batteries with new ones of the specified type (e.g., CR123A, quantity as per device). Ensure correct polarity.
- Close the battery compartment and reattach the monitor to its mounting plate.
- Confirm battery status in the application.
6.3. Микропрограмманы жаңыртуу
Firmware updates are typically managed through the connected security hub and mobile application. Ensure your device and hub are connected to the internet to receive automatic updates that improve performance and add new features. Follow the in-app instructions for any manual update procedures.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк хаб менен жупташпай жатат. | Device out of range; hub not in pairing mode; low battery. | Move device closer to hub; ensure hub is in pairing mode; replace batteries. |
| Туура эмес окуулар. | Improper placement (near vents, direct sunlight); sensor obstruction. | Relocate device to a more suitable area; ensure sensors are clear of dust/debris. |
| No data updates in app. | Loss of connection to hub; hub offline; app issue. | Check device-to-hub connection; verify hub's internet connection; restart app. |
| Tamper alert triggered unexpectedly. | Device not securely mounted; physical disturbance. | Ensure device is firmly attached to its mounting plate; check for physical interference. |
8. Техникалык шарттар
- Модел: 57537.135.WH3
- Өндүрүүчү: AJAX
- Мониторингге алынган параметрлер: Temperature, Relative Humidity, CO₂, Air Quality
- Байланыш протоколу: Jeweller wireless protocol
- Зымсыз диапазон: 1,300 метрге чейин (ачык мейкиндик)
- Электр камсыздоо: Battery-operated (type and quantity to be confirmed in Quick Start Guide)
- Түсү: Ак
- Камтылган компоненттер: Монитор
9. Кепилдик маалыматы
This LifeQuality Jeweller Smart Wireless Environmental Monitor (Model 57537.135.WH3) comes with a 1 жылдык Өндүрүүчүнүн Кепилдиги from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation. Please retain your proof of purchase for warranty claims.
For detailed warranty terms and conditions, please refer to the official documentation provided with your product or contact customer support.
10. Кардарларды колдоо кызматы
If you encounter any issues or have questions regarding your LifeQuality Jeweller Smart Wireless Environmental Monitor, please refer to the troubleshooting section of this manual or contact your retailer or the manufacturer's customer support. Support contact details are typically available on the manufacturer's official webсайтында же продуктунун таңгагында.
Өндүрүүчү: AJAX
For the most up-to-date support information, visit the official AJAX webсайт.
