1. Продукт бүтүп калдыview
The Globe Electric Harlo 1-Light Outdoor Wall Sconce is designed to enhance outdoor spaces with its matte black finish and contemporary farmhouse style. This fixture is suitable for various outdoor applications such as porches, balconies, and decks. It requires one E26/Medium Base 60W bulb (sold separately) and is fully dimmable with a compatible dimmer switch.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Farmhouse Contemporary Design: Matte black finish complements various outdoor decors.
- Көңүл буруучу функция: Compatible with dimmer switches (sold separately) for adjustable lighting.
- Оңой орнотуу: Includes all necessary mounting hardware for quick setup.
- Аба ырайына туруктуу: Сыртта колдонуу үчүн иштелип чыккан.
- Smart Bulb Compatible: Can be automated with a Globe Electric Smart bulb (sold separately).
Image 1.1: The Harlo wall sconce illuminating an outdoor patio area.
Image 1.2: Two Harlo wall sconces installed on a balcony, enhancing the outdoor living space.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. Consult a qualified electrician if you are not familiar with electrical wiring.
- Орнотууну баштоодон мурун бардык нускамаларды кылдат окуп чыгыңыз.
- Бардык электр байланыштары жергиликтүү коддорго жана эрежелерге ылайык жасалганын текшериңиз.
- Белгиленген лампочканын түрүн жана ватты гана колдонуңузtagысып кетүүдөн качуу үчүн.
- Do not install this fixture on a surface that is not structurally sound.
- Орнотуу учурунда балдарды жана үй жаныбарларын жумуш аймагынан алыс кармаңыз.
3. Пакеттин мазмуну
Verify that all components are present before beginning installation. If any parts are missing or damaged, contact Globe Electric customer support.
- 1 x Harlo Outdoor Wall Sconce Fixture
- Монтаждоочу жабдыктар (буроолор, зым гайкалар, монтаждоо плитасы)
- Instruction Manual
Note: E26/Medium Base 60W bulb and dimmer switch are sold separately and are not included in the package.
Image 3.1: Product packaging for the Harlo wall sconce.
4. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 60000170 |
| Бренд | Globe Electric |
| Түс | Matte Black |
| Материал | Металл |
| Стиль | Ферма |
| Продукциянын өлчөмдөрү (L x W x Y) | 27.9L x 25.4W x 23.8H Сантиметр |
| Ички/тышкы колдонуу | Сыртта |
| Power Source | Hardwired |
| Тtage | 120 вольт |
| Жарык булактарынын саны | 1 |
| Лампанын базасы | E26 (Орто база) |
| Макс Ватtage | 60 Ватт |
| Сууга туруктуулук деңгээли | Сууга чыдамдуу |
| Монтаж түрү | Дубалга орнотуу |

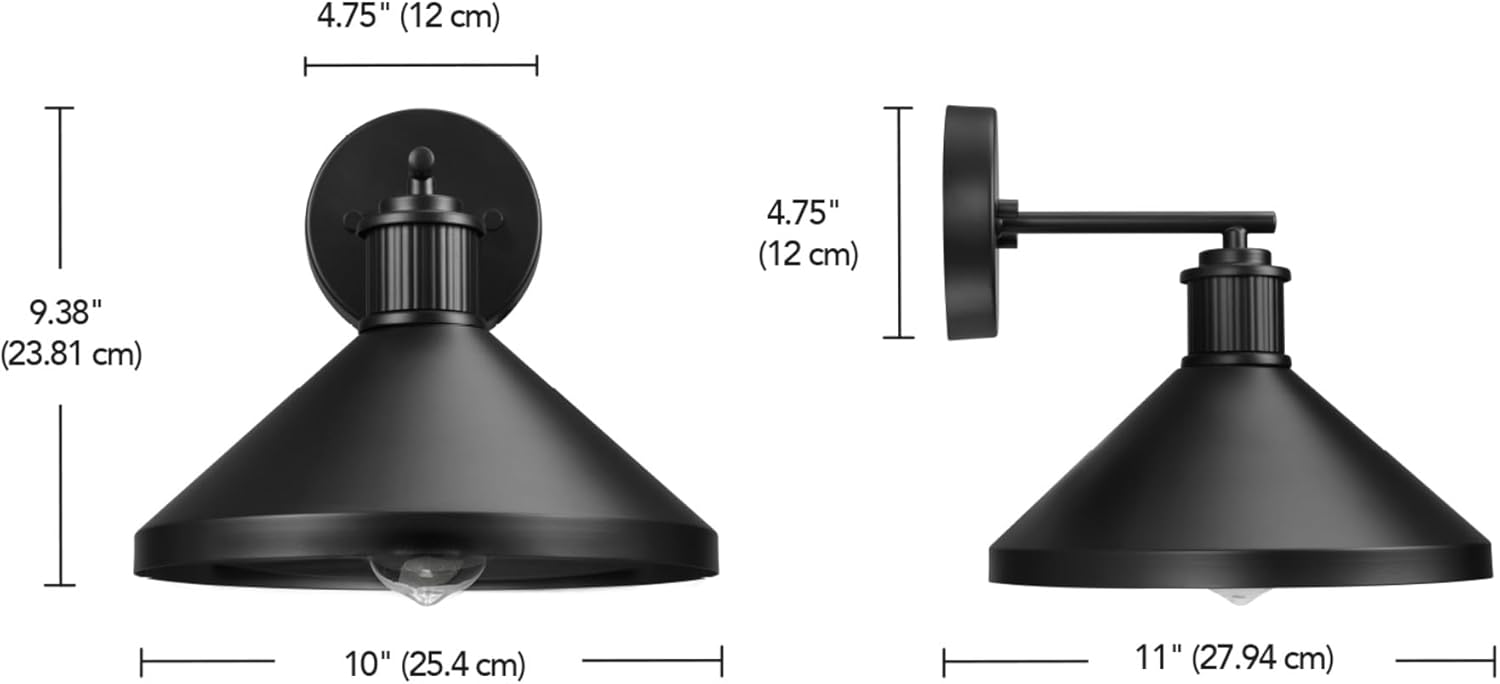

Image 4.1: Dimensional drawing of the Harlo wall sconce.
5. Орнотуу жана орнотуу
Before you begin, ensure the power is turned OFF at the circuit breaker or fuse box. It is recommended to have a second person assist with installation.
5.1 Талап кылынган куралдар (кошумча эмес)
- Филлипс баш бурагычы
- Жалпак баштуу бурагыч
- Wire Strippers
- Электр лентасы
- Коопсуздук көз айнек
- Шаты (зарыл болсо)
5.2 Орнотуу кадамдары
- Кубатты өчүрүү: Locate the circuit breaker or fuse box controlling the power to the installation location and turn off the power.
- Монтаждоо плитасын даярдоо: Attach the mounting plate to the junction box using the provided screws. Ensure the plate is securely fastened.
- Электр байланыштарын жасоо:
- туташтыруу кара арматурадан зым кара зым гайкасын колдонуп, туташтыргыч кутучадан (чыгуудагы) зымды чыгарыңыз.
- туташтыруу ак арматурадан зым ак (нейтралдуу) зым зым гайканы колдонуу менен бириктирүүчү кутудан.
- туташтыруу жер арматурадан зым жер зым гайкасын колдонуп, зымды туташтыруучу кутучадан (же орнотуучу пластинкадагы жашыл жерге туташтыргыч бурамага) туташтырыңыз.
- Ensure all wire nuts are tightly secured and wrap connections with electrical tape for added safety.
- Арматураны орнотуу: Арматураны бекитүүчү пластина менен кылдаттык менен тегиздеп, берилген бурамалар менен бекитиңиз. Арматура дубалга тегиз жана туруктуу экенин текшериңиз.
- Лампаны орнотуу: Screw in one E26/Medium Base 60W maximum bulb (sold separately) into the socket. Do not overtighten.
- Күчтү калыбына келтирүү: Электрди өчүргүчтөн же сактагыч кутучасынан кайра күйгүзүңүз.
- Сыноочу шайман: Жарык берүүчү лампа туура иштеп жатканын текшерүү үчүн жарык өчүргүчтү күйгүзүңүз.
Image 5.1: The Harlo wall sconce ready for bulb installation.
Image 5.2: Detail of the ribbed metal socket.
6. Иштөө нускамалары
6.1 Негизги операция
Once installed and powered, the Harlo wall sconce operates via a standard wall light switch. Simply toggle the switch to turn the light on or off.
6.2 Күңүрттөөчү функция
This fixture is fully dimmable. To utilize the dimming feature, you must install a compatible dimmer switch (sold separately) in place of your standard wall switch. Ensure the bulb you use is also dimmable.
6.3 Smart Bulb Compatibility
For advanced control and automation, you can replace the standard E26 bulb with a Globe Electric Smart bulb (sold separately). Once installed, you can control the lighting solutions with your smartphone via the Globe Electric app, enabling features like scheduling, remote control, and voice commands.
Image 6.1: Key features including weather resistance and bulb type.
7. Техникалык тейлөө
7.1 Тазалоо
To clean the fixture, ensure the power is turned off. Wipe the fixture with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish. Allow the fixture to dry completely before restoring power.
7.2 Лампаны алмаштыруу
Before replacing the bulb, turn off the power to the fixture at the circuit breaker or fuse box. Allow the bulb to cool completely if it has been recently in use. Unscrew the old bulb and screw in a new E26/Medium Base bulb, ensuring it does not exceed the maximum 60W rating. Restore power and test the new bulb.
8. Кыйынчылыктарды
If you experience issues with your Harlo wall sconce, refer to the table below for common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Жарык күйбөйт. | Шайманга күч жок. | Автоматтык өчүргүчтү же сактагычты текшериңиз. Дубалдагы өчүргүчтүн КҮЙҮК абалда экенин текшериңиз. |
| Бошоң зым байланыштары. | Turn off power, check all wire connections. Tighten wire nuts. | |
| Бузулган лампа. | Replace bulb with a new, working E26 bulb. | |
| Жарык жылтылдайт. | Бошогон лампа же зымдар. | Электр кубатын өчүрүңүз, лампочканы бекемдеңиз. Зымдардын туташууларын текшериңиз. |
| Шайкеш келбеген диммерди которгуч же лампа. | Ensure both dimmer switch and bulb are dimmable and compatible. | |
| Жабдуулар ызы-чуу салып жатышат. | Шайкеш келбеген диммер которгучу. | Replace dimmer switch with a high-quality, compatible LED dimmer. |
If the problem persists after trying these solutions, contact Globe Electric customer support.
9. Кепилдик жана Кардарларды колдоо
Globe Electric products are manufactured to high-quality standards and are warranted against defects in materials and workmanship. For specific warranty details, including duration and terms, please refer to the warranty card included with your purchase or visit the official Globe Electric webсайт.
For technical assistance, missing parts, or warranty claims, please contact Globe Electric customer support:
- Webсайт: www.globe-electric.com
- Телефон: караңыз webаймактык байланыш номерлери үчүн сайт.
