Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Hessaire DIY 12,000 BTU 1.0 Ton 21.7 SEER Ductless Mini Split Air Conditioner and Heat Pump. Please read this manual thoroughly before installation and use, and retain it for future reference.
Коопсуздук маалыматы
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Электр туташуулары үчүн туура жерге туташтырууну камсыз кылыңыз.
- Аппаратты нымдуу колдор менен иштетпеңиз.
- Keep children away from the unit during operation.
- Аба кирүүчү же чыгуучу жерлерди жаап албаңыз.
- For maintenance, always disconnect power before servicing.
- Use only the specified refrigerant (R-454B).
Пакеттин мазмуну
Таңгактан чыгарууда бардык компоненттер бар экенин текшериңиз:
- Ички блок (аба менен иштеген аппарат)
- Тышкы блок (конденсатор)
- Lineset (Pre-charged)
- Орнотуу топтому
- Алыстан башкаруу
- Колдонуучунун Колдонмосу (бул документ)

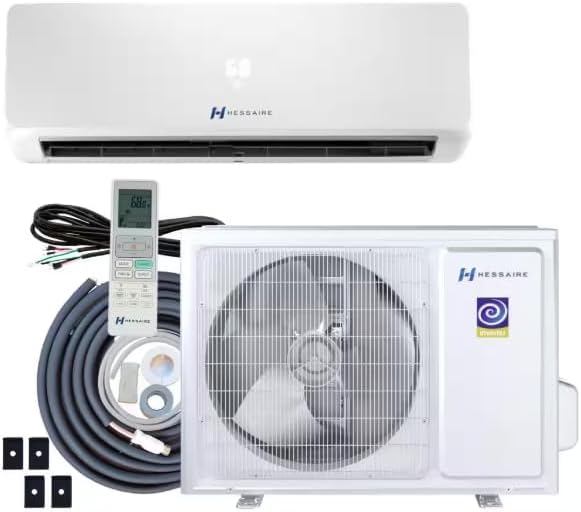

Figure 1: Hessaire DIY Mini Split system showing the indoor unit, outdoor unit, remote control, and lineset.
Орнотуу жана орнотуу
The Hessaire DIY Mini Split system is designed for straightforward installation. The outdoor condenser unit comes pre-charged with R-454B refrigerant, simplifying the process. The lineset can be trimmed to the required length without losing refrigerant, further aiding DIY installation.
Негизги орнотуу эске алуулар:
- Жайгашкан жери: Choose a location for both indoor and outdoor units that allows for proper airflow and drainage.
- Монтаждоо: Securely mount the indoor unit to a wall and the outdoor unit on a stable surface or wall bracket.
- Сызыктар топтомунун туташуусу: Carefully connect the pre-charged lineset between the indoor and outdoor units, ensuring tight seals to prevent leaks.
- Электр зымдары: Connect the electrical wiring according to local codes and the wiring diagram provided in the full installation guide (not included in this summary). Ensure the unit is connected to a dedicated 115V circuit.
- Дренаж: Install the condensate drain line with a proper slope to allow for continuous water removal.
For detailed step-by-step instructions, refer to the comprehensive installation manual included with your product. Professional installation is recommended if you are unfamiliar with HVAC systems or electrical work.
Иштөө нускамалары
Your Hessaire Mini Split system is controlled via the included digital remote. The remote allows you to select operating modes, adjust temperature, and set various functions.
Алыстан башкаруу функциялары:

Figure 2: Energy Guide label for Hessaire Model H12FB1, detailing cooling (SEER2) and heating (HSPF2) efficiency ratings.
- Кубат баскычы: Агрегатты КҮЙГҮЗӨТ же ӨЧҮРөт.
- РЕЖИМ: Иштөө режимдери боюнча циклдик циклдер: Автоматтык, Муздатуу, Кургатуу, Жылуулук, Вентилятор.
- Температураны жөндөө: колдонуу + жана - каалаган температураны коюу үчүн баскычтар.
- Күйөрман: Желдеткичтин ылдамдыгын тууралайт (Авто, Төмөн, Орто, Жогорку).
- AI SMART: Activates intelligent operating mode for optimal comfort and energy efficiency.
- SUPER: Engages maximum cooling or heating for rapid temperature change.
- ТЫНЧ: Reduces fan speed for quieter operation.
- ТАЙМЕР КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Sets a timer for the unit to turn ON or OFF automatically.
- УЙКУ: Ыңгайлуу уйку үчүн температураны жана желдеткичтин ылдамдыгын тууралайт.
- ТАЗА: Initiates a self-cleaning function for the indoor unit.
- ION ECO: Activates ionizer and energy-saving mode.
- 8°C HEAT: Maintains a minimum temperature of 8°C (46°F) to prevent freezing in unoccupied spaces.
For optimal performance, ensure the remote control has fresh batteries and is pointed towards the indoor unit during operation.
Техникалык тейлөө
Regular maintenance ensures the longevity and efficiency of your Hessaire Mini Split system.
Сунушталган тейлөө:
- Аба чыпкасын тазалоо: Clean the air filters of the indoor unit every 2-4 weeks, or more frequently depending on usage and air quality. Wash with mild detergent and warm water, then dry completely before reinstallation.
- Тышкы блокту тазалоо: Periodically clear debris (leaves, dirt) from around the outdoor unit to ensure proper airflow. Gently clean the condenser coils with a soft brush or water hose.
- Дренаждык линияны текшерүү: Ensure the condensate drain line is free of blockages to prevent water overflow.
- Сезондук текшерүү: Before seasonal use (e.g., summer for cooling, winter for heating), inspect all connections and components for any signs of wear or damage.
Кандайдыр бир тейлөө иштерин жүргүзүүдөн мурун, ар дайым блокту электр кубатынан ажыратыңыз.
Проблемаларды чечүү
If you encounter issues with your Hessaire Mini Split, consult the following common troubleshooting steps before contacting support.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | Электр кубаты жок, пульттун батареялары өчүп, өчүргүч иштен чыкты. | Электр менен камсыздоону текшериңиз, алыскы батареяларды алмаштырыңыз, өчүргүчтү баштапкы абалга келтириңиз. |
| Жетишсиз муздатуу/жылытуу | Dirty air filters, blocked outdoor unit, wrong mode selected, temperature setting too high/low. | Clean filters, clear outdoor unit, select correct mode, adjust temperature. |
| Ички блоктон суунун агып чыгышы | Бөгөттөлгөн дренаждык линия, туура эмес орнотуу. | Clear drain line, ensure proper slope. If issue persists, consult a professional. |
| Адаттан тышкаркы ызы -чуу | Loose parts, debris in fan, unit not level. | Inspect for loose parts, remove debris, ensure unit is level. |
If the problem persists after attempting these solutions, please contact Hessaire customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Hessaire |
| Модель номери | H12FB1 |
| Кубаттуулугу | 12 000 BTU (1 тонна) |
| SEER рейтинги | 21.7 |
| Тtage | 115 вольт |
| Муздаткыч | R-454B |
| Ызы-чуу деңгээли | 39 децибел |
| Элемент Салмагы | 90 фунт |
| Продукциянын өлчөмдөрү | 18 x 45 x 21 дюйм |
| Өзгөчөлүктөр | Fast Cooling, DIY Installation with pre-charged condenser |
Кепилдик маалымат
The Hessaire DIY Mini Split system comes with a Компрессорго 7 жылдык кепилдик жана а Бөлүктөргө 1 жылдык кепилдик. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the official Hessaire webсайт.
Кардарларды колдоо
For technical assistance, troubleshooting beyond this guide, or warranty inquiries, please contact Hessaire customer support. Contact information can typically be found on the manufacturer's webсайтында же продуктунун таңгагында.
Сиз да зыярат кылсаңыз болот Amazon'догу Hessaire дүкөнү көбүрөөк продукт маалымат алуу үчүн.
