1. Продукт бүтүп калдыview
This high-performance GPS/GLONASS antenna is designed to optimize the performance of your AT&T or T-Mobile SS2FII Cell Booster. It supports GPS synchronization, which is essential for femtocell devices to maintain precise location and timing, ensuring regulatory compliance and optimal network operation. The antenna features a secure MMCX connector and a 15ft RG-174 low-loss cable, offering flexible placement options. It can be mounted indoors or near a window using the included industrial-grade 3M GT7112 adhesive pad. The antenna supports the full frequency range for GPS L1 and GLONASS satellites (1575–1602 MHz), facilitating fast and stable signal acquisition even in challenging environments. It is an ideal solution for replacing faulty units or enhancing indoor coverage.
Негизги өзгөчөлүктөрү:
- Шайкештик: Specifically designed for AT&T/T-Mobile SS2FII Cell Boosters to enable GPS synchronization.
- Кош тилкелүү колдоо: Operates in the 1575–1602 MHz range for full L1 band coverage, ensuring fast and accurate satellite lock.
- MMCX Connector: Features a durable MMCX connector for a secure fit.
- Узартылган кабель: Includes a 15ft (4.58-meter) RG-174 low-loss cable for flexible placement.
- Оңой монтаждоо: Comes with a high-strength 3M GT7112 adhesive pad for secure indoor or window mounting without tools.
- Компакт дизайн: Lightweight (78 grams) and compact (38.0 x 34.5 x 12.5 mm) for discreet installation.
2. Орнотуу жана орнотуу
Proper installation of the GPS/GLONASS antenna is crucial for optimal performance of your cell booster. Follow these steps for setup:
- Туташуу пунктун аныктоо: Locate the MMCX antenna port on your AT&T/T-Mobile SS2FII Cell Booster. Refer to your cell booster's manual for exact port location.
- Антеннаны туташтыруу: Carefully align the MMCX connector of the GPS antenna with the port on your cell booster and push it firmly until it clicks into place. Ensure a secure connection.
- Монтаждоо ордун тандоо: Select an indoor location with a clear, unobstructed view of the sky, preferably near a window. Avoid areas with heavy metal obstructions or electronic interference. The 15ft cable allows for flexible placement.
- Антеннаны орнотуу: Clean the chosen surface thoroughly. Peel off the backing from the 3M GT7112 adhesive pad on the bottom of the antenna. Press the antenna firmly onto the surface for at least 30 seconds to ensure a strong bond.
- Кабелдик башкаруу: Route the RG-174 cable neatly to avoid kinks or damage. Secure it if necessary to prevent accidental dislodgement.

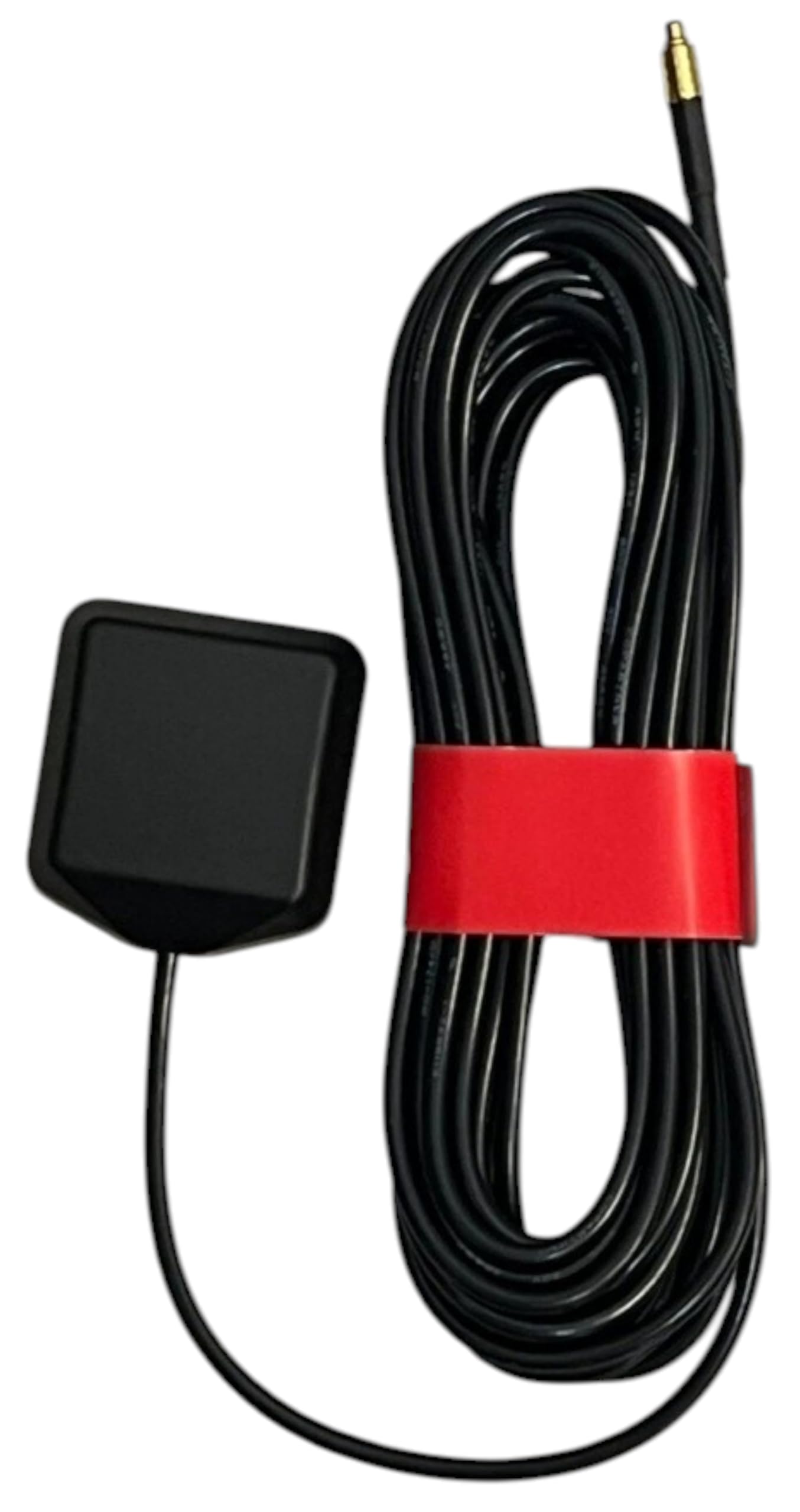

Image 1: Generic GPS GLONASS Antenna showing the main unit, coiled 15ft RG-174 cable, and MMCX connector.
Сүрөт 2: Жакын пландан view of the Generic GPS GLONASS Antenna, highlighting the unit's top surface with a label indicating "GPS ANTENNA" and frequency range "1575-1602MHz", along with certification marks.
Орнотуу видео ресурстары:
Video 1: This video demonstrates the physical appearance and rotation of a GPS antenna, similar to the product, showcasing its form factor and connector type.
Video 2: This video illustrates the magnetic properties of a dual-mode GPS active antenna, demonstrating how it can attach to metallic surfaces, and shows the connector type.
3. Иштөө нускамалары
Once the GPS/GLONASS antenna is securely connected and mounted, it will automatically begin to acquire satellite signals. The primary function of this antenna is to provide precise GPS synchronization data to your AT&T/T-Mobile SS2FII Cell Booster.
- Сигнал алуу: The antenna will actively search for GPS L1 and GLONASS satellite signals within its operating frequency range of 1575–1602 MHz. This process typically begins automatically when the cell booster is powered on.
- Синхрондоштуруу: The acquired satellite data is used by the femtocell to synchronize its internal clock and location. This synchronization is critical for the cell booster's regulatory compliance and efficient operation within the cellular network.
- Оптималдуу аткаруу: Ensure the antenna maintains an unobstructed view of the sky for continuous and stable signal reception. Any significant blockage can degrade synchronization performance.
4. Техникалык тейлөө
The Generic GPS GLONASS Antenna requires minimal maintenance to ensure long-term performance.
- Үзгүлтүксүз текшерүү: Periodically check the antenna and its cable for any signs of physical damage, such as cuts, fraying, or loose connections.
- Тазалык: Keep the antenna unit clean and free from dust, dirt, or debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or abrasive materials.
- Туташуу текшерүү: Ensure the MMCX connector remains securely attached to the cell booster. A loose connection can lead to signal loss.
- Adhesive Integrity: If the antenna is mounted using the adhesive pad, periodically check that it remains firmly attached to the surface.
5. Кыйынчылыктарды
If you experience issues with your GPS/GLONASS antenna or cell booster's GPS synchronization, consider the following troubleshooting steps:
- No GPS Signal / Poor Synchronization:
- Текшерүү жайгаштыруу: Ensure the antenna is placed in a location with a clear, unobstructed view of the sky. Move it closer to a window or to a higher position if possible.
- Байланышты текшерүү: Confirm that the MMCX connector is fully and securely plugged into the cell booster.
- Экологиялык факторлор: Thick walls, metal roofs, or nearby electronic devices can interfere with GPS signals. Try relocating the antenna away from such obstructions.
- Booster Status: Check the status indicators on your AT&T/T-Mobile SS2FII Cell Booster. If it indicates a GPS error, power cycle the booster and allow time for re-acquisition.
- Физикалык зыян:
- Inspect the cable and antenna unit for any visible damage. Damaged components may need replacement.
- Incompatible Device:
- Ensure your cell booster is specifically the AT&T/T-Mobile SS2FII model, as this antenna is designed for that compatibility.
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Жалпы |
| Модель номери | GPS |
| Антенна түрү | GPS GLONASS Antenna |
| Туташтыргыч түрү | MMCX |
| Иштөө жыштык диапазону | 1575-1602 MHz (GPS L1 & GLONASS) |
| Кабель түрү | RG-174 |
| Кабелдин узундугу | 15 Фут (4.58 метр) |
| Монтаждоо | 3M Adhesive Pad (GT7112) |
| Түс | Кара |
| Элемент Салмагы | 8 унция (болжол менен 227 грамм) |
| Продукциянын өлчөмдөрү | 4.5"L x 2"W x 3"H (болжол менен 11.4 x 5.1 x 7.6 см) |
| Antenna Dimensions (approx.) | 38.0 x 34.5 x 12.5 мм |
| Импеданс | 50 Ом |
| Каналдардын саны | 1 |
7. Кепилдик жана колдоо
This product is covered by a standard return policy. For specific details regarding returns or replacements, please refer to the retailer's policy at the time of purchase. Typically, a 30-day return window is provided for refunds or replacements.
For technical assistance, troubleshooting beyond the scope of this manual, or inquiries about product functionality, please contact the manufacturer or your point of purchase. Keep your purchase receipt or order information handy when seeking support.
