1. Киришүү
Thank you for choosing the Mujocooker 4-Wheel Folding Mobility Scooter. This lightweight electric scooter is designed to provide enhanced mobility and independence for adults. Featuring a unique dual front wheel design for increased stability, a powerful motor, and a foldable frame, it is suitable for various terrains and travel. Please read this manual thoroughly before operating the scooter to ensure safe and correct usage.

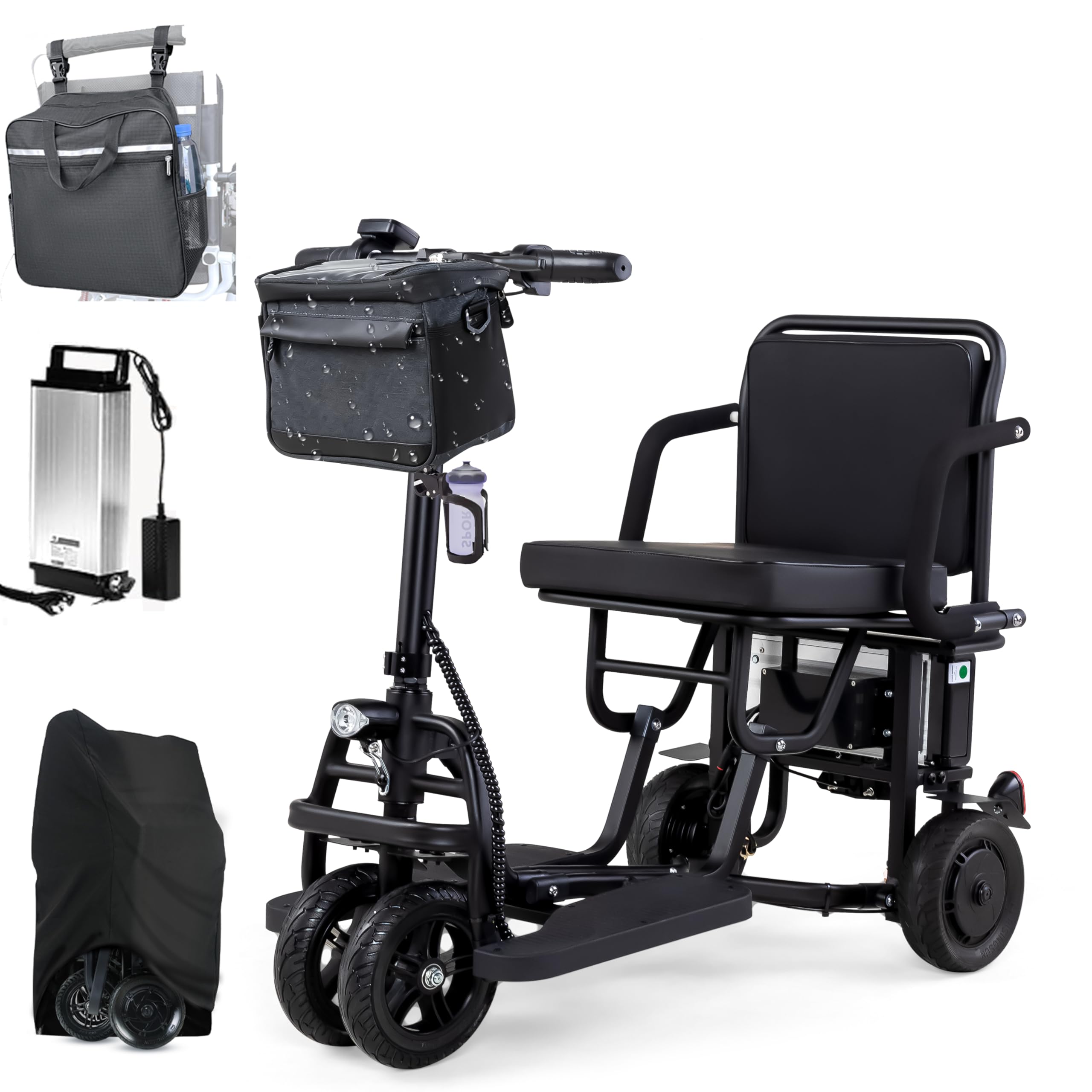

Image 1.1: Mujocooker 4-Wheel Folding Mobility Scooter in its operational state.
2. Коопсуздук маалыматы
Сиздин коопсуздугуңуз эң маанилүү. Жаракат алуунун же зыяндын алдын алуу үчүн бардык коопсуздук көрсөтмөлөрүн аткарыңыз.
- Скутерди иштетип жатканда ар дайым туулга сыяктуу тиешелүү коопсуздук шайманын кийиңиз.
- Ensure the scooter is fully charged before each use to avoid unexpected power loss.
- Familiarize yourself with all controls, including speed adjustment, brakes, and turn signals, before riding.
- 300 LBS максималдуу салмагы кубаттуулугу ашпагыла.
- Avoid operating the scooter on steep inclines (greater than 9 degrees) or uneven surfaces that may compromise stability.
- Use headlights and turn signals in low-light conditions or when making turns to enhance visibility.
- Exercise caution when operating in crowded areas and be mindful of pedestrians.
- Do not operate the scooter under the influence of alcohol or medication that may impair judgment.
- Regularly inspect tires, brakes, and battery for proper function.
3. Пакеттин мазмуну
Таңгактан чыгаргандан кийин, бардык буюмдар бар экенин текшериңиз:
- Mujocooker 4-Wheel Folding Mobility Scooter
- 10AH Lithium-Ion Battery (pre-installed or separate)
- Батарея кубаттагычы (42.0V 2.0A)
- Рюкзак
- Чаң баштык
- Metal Basket
- Суу чөйчөк кармоочу
- User Manual
- Allen Wrenches (for minor attachments like headlamp)
4. Орнотуу
4.1 Скутерди ачуу
- Бүктөлгөн скутерди тегиз, туруктуу бетке коюңуз.
- Carefully release the locking mechanism that secures the scooter in its folded position.
- Unfold the main frame, handlebar, and seat until they click securely into place.
- Колдонуудан мурун бардык кулпу механизмдери иштетилгенин текшериңиз.
Image 4.1: The scooter can be folded and unfolded quickly for transport and storage.
4.2 Батареяны орнотуу жана заряддоо
The scooter comes with a removable 10AH Lithium-Ion battery. It is recommended to fully charge the battery before first use.
- Орнотуу: If the battery is not pre-installed, slide it into the designated compartment until it locks securely. Ensure the battery is locked with the provided key to prevent theft.
- Заряддоо: Connect the charger to the scooter's charging port or remove the battery and charge it directly. The charging time is approximately 6 hours for a full charge.
- Көрсөткүч: The charger will typically show a red light during charging and turn green when fully charged.

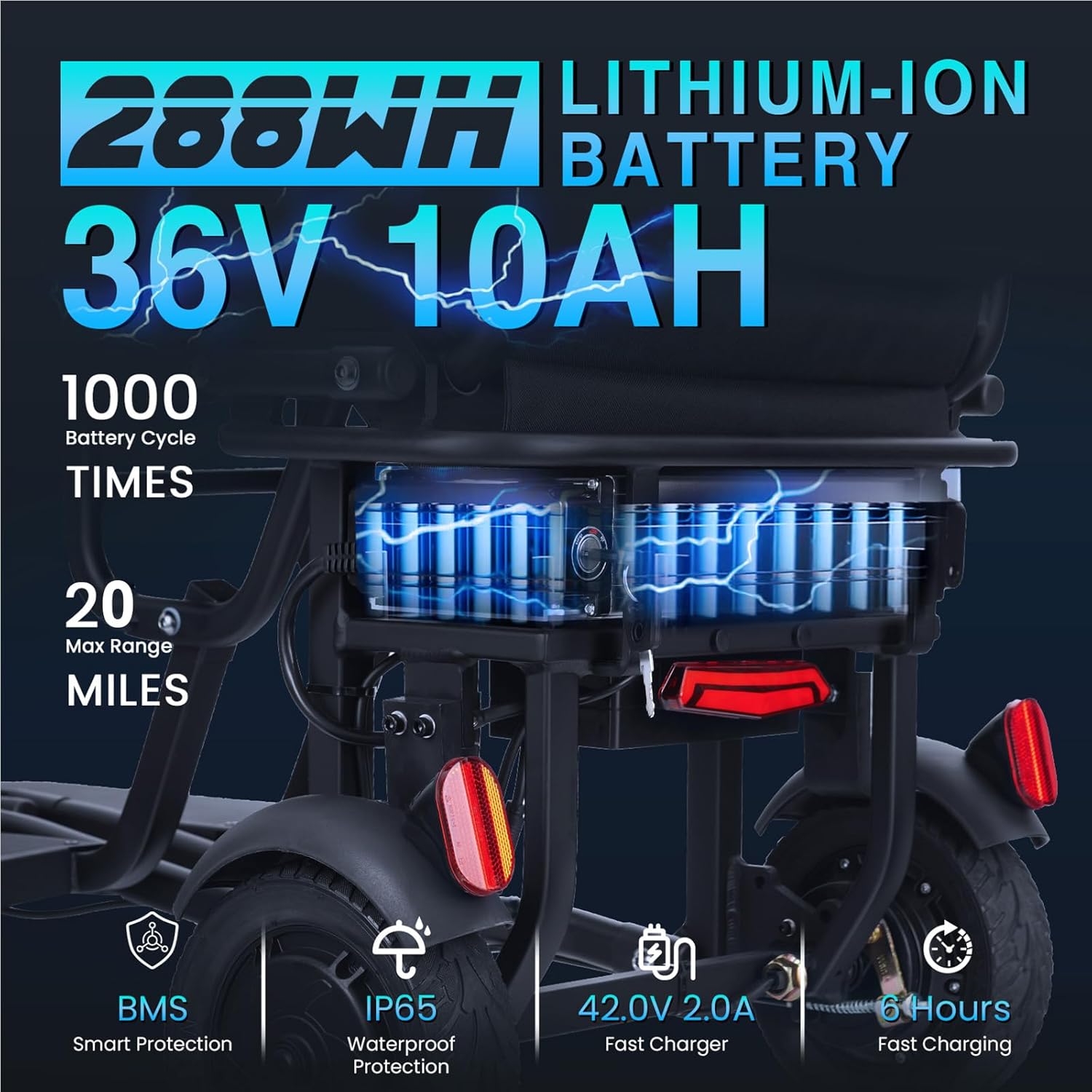

Сүрөт 4.2: Детальдуу view of the 36V 10AH Lithium-Ion battery and charging specifications.
Image 4.3: The scooter battery can be charged while installed or removed.
4.3 Аксессуарларды тиркөө
Attach the backpack, metal basket, and cup holder to their designated points on the scooter as needed. The headlamp may require minor assembly using the provided Allen wrenches.
5. Иштөө нускамалары
5.1 Башкаруу панелинин үстүнөview
The intuitive control panel on the handlebar provides access to all essential functions.
Image 5.1: The backlit LED display shows speed, battery level, and fault warnings. Controls include throttle, D/R switch, turn signals, and horn.
- Күйгүзүү/өчүрүү: Ачкычты салып, ON абалына буруңуз.
- Throttle Rotary Handle: Rotate to accelerate. Release to stop immediately.
- D/R Switch (Forward/Reverse): Toggle to select driving direction.
- Trumpet Switch (Horn): Корно тартуу үчүн басыңыз.
- Бурулуш сигналдары: Activate left or right turn signals using the switch.
- Speed Mode Button (M): Cycle through 3 forward speed modes (3.73 mph, 6.21 mph, 9.32 mph).
- Cruise Control: The scooter can maintain a constant speed of 3.73 mph without continuous throttle input. Squeeze the handbrake to disengage cruise control.
- Жарыктандыруу: Turn the key to the right again to activate lights.
Image 5.2: Close-up of the D/R (Forward/Reverse) button and horn button on the handlebar, alongside the solid tires.
5.2 Скутер айдоо
Start slowly and gradually increase speed as you become comfortable with the controls.
- Ылдамдатуу: Gently rotate the throttle handle.
- Тормоздоо: Release the throttle handle to slow down. Use the mechanical handbrake for sensitive and controlled stopping.
- Айлануу: The scooter has a turning radius of 34 inches, allowing for navigation in tight spaces. Use turn signals when changing direction.
- рельеф: The scooter is equipped with 8-inch flat, explosion-proof solid rubber tires and 4.9 inches of ground clearance, suitable for various surfaces including sidewalks, grass, and uneven terrain.
Image 5.3: The scooter's 34-inch turning radius allows for easy maneuverability.
6. Техникалык тейлөө
6.1 Батареяга кам көрүү
- Charge the battery regularly, even if the scooter is not in frequent use, to maintain battery health.
- Заряддоодон мурун батарейканы толугу менен түгөтүп жибербеңиз.
- Батареяны кургак, салкын жерде, түз күндүн нурунан жана өтө температурадан алыс сактаңыз.
- If the battery gets hot during charging, ensure it is in a well-ventilated area.
6.2 Дөңгөлөктөрдү тейлөө
The scooter uses solid, explosion-proof tires, which require minimal maintenance. Periodically inspect them for any signs of wear or damage.
6.3 Тазалоо жана сактоо
- Скутерди жарнама менен тазалаңызamp cloth. Avoid using harsh chemicals or direct water spray.
- Store the scooter in a dry, protected area when not in use.
- Use the provided dust bag for protection against dust and moisture during storage.
Image 6.1: Using the dust bag helps protect the scooter during storage.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скутер күйбөйт | Battery not charged; Battery not properly installed; Key not fully turned. | Charge battery; Ensure battery is securely in place and locked; Turn key fully to ON position. |
| Иш учурунда электр кубатын жоготуу | Батарея заряды аз. | Батареяны кайра заряддаңыз. |
| Brakes feel ineffective | Тормоздун тросун тууралоо керек; Тормоз колодкаларынын эскиргендиги. | Inspect and adjust brake cable tension; Contact customer support for brake pad replacement. |
| Scooter struggles on inclines | Operating on too steep an incline; Low battery; Exceeding weight capacity. | Avoid inclines greater than 9 degrees; Ensure battery is fully charged; Verify weight is within limits. |
| Uncomfortable seat | Жеке каалоо. | Consider adding additional padding or a cushion for comfort. |
If you encounter issues not listed here or require further assistance, please contact Mujocooker customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | B0FN3KZFJK |
| Бренд | Mujocooker |
| Дөңгөлөк түрү | Solid, Explosion-proof Rubber Tires |
| Максималдуу ылдамдык | Саатына 9.32 миль (15 км/саат) |
| Заряд үчүн диапазон | 20 миляга чейин |
| Батарея | 36V 10AH Lithium-Ion (288Wh) |
| Заряддоо убактысы | Болжол менен 6 саат |
| Мотор күчү | 300W Mid-Drive Motor |
| Maximum Climbing Ability | 9 градуска чейин |
| Айлануу радиусу | 34 дюйм |
| Жерди тазалоо | 4.9 дюйм |
| Frame Material | Алюминий |
| Тормоз стили | Mechanical Handbrake |
| Кошумча функциялар | 3+1 Speed Mode, Dual Front Wheel Combination, Airline Approved, LED Headlights, Turn Signals, Horn, Backpack, Dust Bag, Cup Holder, Basket |
9. Кепилдик жана колдоо
Mujocooker is committed to providing quality products and customer satisfaction.
- Кайтаруу саясаты: Your purchase is protected by a 30-day return policy.
- Продукт Кепилдиги: A 1-year warranty covers quality-related issues for the scooter.
- Бөлүктөргө кепилдик: 1-year warranty for parts.
- Батареяга кепилдик: 3-month warranty for the battery.
- Кардарларды колдоо: Dedicated customer support is available 24/7 to assist you.
- Электрондук почта колдоо: For assistance, please email mujocooker@163.com.
Image 9.1: Mujocooker offers email support within 24 hours and provides return labels.
Сүрөт 9.2: Бүттүview of Mujocooker's service commitment, including warranty periods and contact email.
