uxcell 2136-8M-20 Timing Belt Instruction Manual

1. Киришүү

This manual provides essential information for the proper use, installation, and maintenance of the uxcell 2136-8M-20 Timing Belt. This synchronous belt is designed for reliable power transmission in various industrial applications.

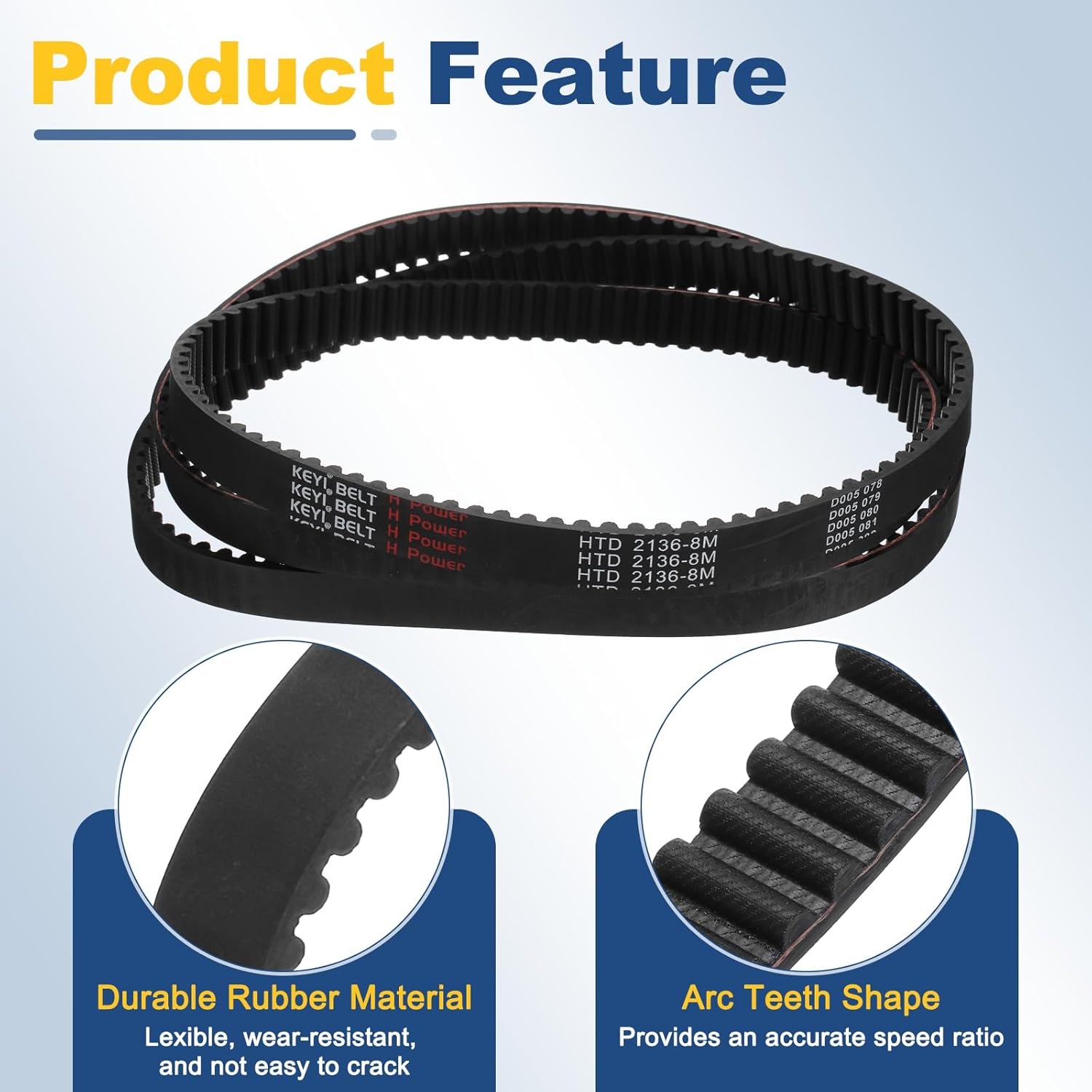

Image: The uxcell timing belt highlighting its durable rubber material and arc teeth shape.

Негизги өзгөчөлүктөрү:

• Durable Rubber Material: Flexible, wear-resistant, and designed to prevent cracking.
• Glass Fiber Wire: Embedded for high tensile strength and load-bearing capacity, ensuring stable transmission.
• Arc Tooth Profile: Ensures optimal meshing with pulleys, reducing friction and noise, and providing an accurate speed ratio with anti-slip transmission.
• High Power Transmission: Capable of transmitting 3-5 times greater power than trapezoidal tooth pulleys, suitable for high-power and high-torque applications.

2. Техникалык шарттар

The following table details the technical specifications for the uxcell 2136-8M-20 Timing Belt.

Image: Diagram illustrating the dimensions and tooth profile of the 8M timing belt.

Note: Manual measurements may have slight variations.

3. Орнотуу жана орнотуу

Proper installation is crucial for the optimal performance and longevity of the timing belt. Always refer to the equipment manufacturer's specific instructions for belt replacement and tensioning.

Image: Various power transmission components including a timing belt, pulleys, and bearings.

1. Биринчи коопсуздук: Ensure all power to the machinery is disconnected and locked out before beginning any installation work.
2. Компоненттерди текшерүү: Before installing the new belt, inspect pulleys, bearings, and other associated components for wear, damage, or misalignment. Replace any worn parts.
3. Таза беттер: Clean all pulley grooves and contact surfaces to remove any debris, oil, or grease that could affect belt grip or cause premature wear.
4. Курду орнотуу: Carefully place the timing belt onto the pulleys. Avoid forcing or prying the belt, as this can damage the internal cords. Ensure the belt teeth fully engage with the pulley grooves.
5. Чыңдоо: Adjust the tensioning mechanism according to the equipment manufacturer's specifications. Correct tension is vital:
   • Өтө бош: Can lead to tooth jumping, slippage, and premature wear.
   • Өтө катуу: Can cause excessive load on bearings, increased friction, and reduced belt life.
   Use a tension meter if available for precise adjustment.
6. Тегиздөө: Verify that the pulleys are correctly aligned. Misalignment can cause uneven belt wear, noise, and reduced efficiency.
7. Алгачкы киришүү: After installation, run the machinery at a reduced speed for a short period and re-check the belt tension and alignment.

Image: A timing belt correctly installed on a machinery component, demonstrating proper engagement.

4. Иштетүү боюнча нускамалар

Once installed, the timing belt operates as a critical component in synchronous power transmission. Adhere to the following guidelines for optimal performance:

• Maintain Proper Load: Operate the machinery within its specified load limits to prevent excessive stress on the belt.
• Avoid Sudden Starts/Stops: Rapid acceleration or deceleration can induce shock loads, potentially damaging the belt teeth or internal structure.
• Экологиялык шарттар: Ensure the operating environment is within the belt's temperature and chemical resistance specifications. Extreme conditions can degrade belt material.
• Үзгүлтүксүз мониторинг: Periodically observe the belt during operation for any unusual noises, vibrations, or signs of slippage.

5. Техникалык тейлөө

Regular maintenance extends the life of your timing belt and ensures consistent performance. Always perform maintenance with the machinery powered off and secured.

• Чыңалууну текшерүү: Regularly check and adjust belt tension. If the belt cannot maintain proper tension after adjustment, it indicates wear and requires replacement.
• Визуалдык текшерүү: Periodically inspect the belt for signs of wear, such as:
  • Cracks or fraying on the belt surface.
  • Missing or damaged teeth.
  • Excessive glazing or hardening of the rubber.
  • Signs of foreign material embedded in the belt or pulley grooves.
• Тазалоо: Keep the belt and pulley area clean from dust, dirt, and other contaminants. Avoid using harsh chemicals that could degrade the rubber.
• Сактагыч: Store spare belts in a cool, dry place away from direct sunlight, high humidity, and ozone-generating equipment. Avoid bending or creasing belts during storage.
• Алмаштыруу: Replace the timing belt if any significant wear or damage is observed, or according to the machinery manufacturer's recommended service intervals.

6. Жалпы көйгөйлөрдү чечүү

This section addresses common problems encountered with timing belts and potential solutions.

7. Кепилдик жана колдоо

For information regarding product warranty or technical support, please refer to the uxcell official website or contact your point of purchase. Ensure you have your product model number (2136-8M-20) available when seeking support.

This product is subject to a standard return policy of 30 days for refund or replacement, as per the purchase terms.
