Жалпы автоматтык таразалоочу толтуруучу машина 0-999G колдонуучусунун колдонмосу

1. Продукт бүтүп калдыview

This manual provides instructions for the Automatic Weighing Filling Machine, designed for precise and efficient dispensing of various granular and powdered materials. Constructed from durable 201 stainless steel, this machine is suitable for use in home kitchens, grain processing plants, farms, food processing facilities, and retail environments.

Негизги өзгөчөлүктөрү:

• Туруктуу курулуш: Made from 201 Stainless Steel for longevity and corrosion resistance.
• Precise Weighing: Filling range of 10-999g (0.02-2.2lbs) with a precision of 2g.
• Натыйжалуу операция: Dual vibration design (magnetic and motor) for quick filling, achieving 12-15 bags per minute.
• Интеллектуалдык башкаруу панели: Allows for seamless weight adjustment, speed control, and quantity settings.
• Коопсуздук өзгөчөлүктөрү: External circuit board isolation, leak protection, and automatic shut-off for low material levels.
• Колдонуучуга ыңгайлуу дизайн: Foot pedal operation, visual monitoring window, and easy-to-clean components.
• Мобилдүүлүк: Equipped with universal wheels for easy movement and secure buckles for stability.

Эмне камтылган:

• Automatic Weighing Filling Machine unit
• Электр кабели
• ачкыч
• User Manual
• Two different sizes of filling outlets

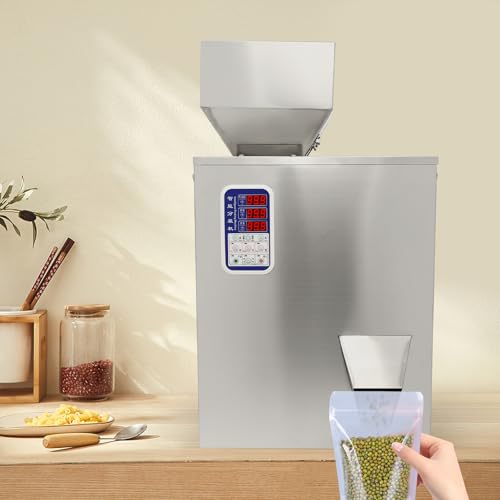

Figure 1: Automatic Weighing Filling Machine in use.

Figure 2: Machine with included accessories.

2. Коопсуздук нускамалары

Read all safety instructions carefully before operating the machine. Failure to follow these instructions may result in injury or damage to the equipment.

• Электр коопсуздугу: Ensure the machine is connected to a grounded power outlet. Do not operate with wet hands or in damp environments. The machine features an insulated power interface.
• Материалды иштетүү: Only use the machine for dry, granular, or powdered materials as specified. Do not attempt to fill liquids or corrosive substances.
• Тейлөө: Тазалоодон же тейлөөдөн мурун электр энергиясын өчүрүңүз.
• Ашыкча жүктөн коргоо: Do not exceed the maximum hopper capacity of 35kg (77.16lbs).
• Автоматтык түрдө өчүрүү: The machine is equipped with an automatic shut-off feature when material levels are low. Do not bypass this safety mechanism.
• Powder Ingress Prevention: The design includes protective measures to prevent powder from entering the mainboard wire. Do not tamper with these seals.
• Балдар жана үй жаныбарлары: Иш учурунда балдарды жана үй жаныбарларын машинадан алыс кармаңыз.

3. Компоненттер жана башкаруу элементтери

Машина компоненттери:

• Хоппер: Top container for holding bulk material.
• Башкаруу панели: Digital interface for setting parameters.
• Filling Outlet: Where material is dispensed. Two sizes are provided.
• Foot Pedal Port: Бут педалы үчүн туташуу.
• Power Inlet: Электр шнурын туташтыруу үчүн.
• Универсал дөңгөлөктөр: For mobility, two with brakes.

Сүрөт 3: Алдыңкы view машинанын.

4-сүрөт: Каптал view машинанын.

Башкаруу панели:

The intelligent control panel allows for precise setting of filling parameters.

Figure 5: Control Panel layout.

• Preset Weight (设定重量): Displays the target weight per fill.
• Weight (重量): Displays the actual weight of the current fill.
• Quantity (数量): Displays the number of fills completed.
• Minus Set (减): Белгиленген маанини азайтат.
• Reset (清零): Resets the current weight or quantity.
• Add (加): Белгиленген маанини жогорулатат.
• Speed Settings (快/中/慢): Adjusts the filling speed (Fast, Medium, Slow).
• Start (开始): Initiates the filling process.
• Empty (清料): Discharges remaining material from the hopper.
• Stop (停止): Halts the filling process.

4. Орнотуу

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечектеги ташуу же сактоо үчүн таңгактарды сактаңыз.
2. Жайгашкан жери: Place the machine on a stable, flat surface. Use the universal wheels to position it, then engage the brakes on the two braked wheels to secure it.
3. Хоппер монтажы: Ensure the hopper is securely seated on top of the main unit.
4. Filling Outlet Installation: Select the appropriate filling outlet size for your bags/containers and attach it to the machine.
5. Кубат туташуу: Connect the power cord to the machine's power inlet and then to a grounded electrical outlet.
6. Бут педалдык туташуу: If using, connect the foot pedal to its designated port on the machine.

5. Иштөө нускамалары

1. Күйгүзүү: Turn on the main power switch, usually located near the power inlet. The control panel displays will illuminate.
2. Материалды жүктөө: Pour the material to be filled into the hopper. Do not exceed the maximum capacity.
3. Set Target Weight: Use the 'Minus Set' (减) and 'Add' (加) buttons to adjust the 'Preset Weight' (设定重量) to your desired filling amount.
4. Set Quantity (Optional): If you need to fill a specific number of bags, you can set the 'Quantity' (数量) using the respective buttons.
5. Adjust Filling Speed: Select the desired filling speed (Fast, Medium, Slow) using the speed buttons on the control panel. The machine also features 8 gears on the speed baffle for fine-tuning.
6. Start Filling: Press the 'Start' (开始) button or press the foot pedal to begin the filling process. The machine will dispense material until the preset weight is reached.
7. Монитор процесси: Observe the filling process through the visual window and the 'Weight' (重量) display on the control panel.
8. Stop Filling: To pause or stop the operation, press the 'Stop' (停止) button or release the foot pedal.
9. Reset Counter: Press 'Reset' (清零) to clear the current weight or quantity count.
10. Бош бункер: To clear remaining material from the hopper, press the 'Empty' (清料) button.

Figure 6: Filling outlet.

6. Техникалык тейлөө жана тазалоо

Regular maintenance ensures optimal performance and extends the lifespan of your machine.

1. Электр энергиясын өчүрүү: Always unplug the machine from the power outlet before cleaning or performing any maintenance.
2. Hopper and Outlet Cleaning: The stainless steel buckles on the lids and filling outlets allow for easy disassembly. Remove the hopper and filling outlet. Wash them with mild soap and water, then rinse thoroughly and dry completely before reassembly.
3. Тышкы тазалоо: Жарнама менен машинанын сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды колдонбоңуз же негизги блокту сууга салбаңыз.
4. Ички тазалоо: Use a soft brush or compressed air to remove any residual powder or debris from internal components, taking care not to damage wiring or sensors. Ensure no powder enters the mainboard wire area.
5. Сактагыч: When not in use for extended periods, clean the machine thoroughly and store it in a dry, dust-free environment.

7. Кыйынчылыктарды

Жалпы маселелер жана алардын чечимдери үчүн бул бөлүмдү караңыз.

8. Техникалык шарттар

Figure 7: Machine dimensions.

9. Кепилдик жана колдоо

Information regarding warranty coverage and customer support contacts is not available in the provided product data. Please refer to your purchase documentation or contact the retailer for details on warranty and support services.
