VECELO Queen Size Upholstered Bed Frame User Manual

Маанилүү коопсуздук маалыматы

Сураныч, бул продуктту чогултуу жана колдонуудан мурун бардык нускамаларды окуп, түшүнүңүз. Бул нускамаларды аткарбоо жаракатка же зыянга алып келиши мүмкүн.

• Do not exceed the maximum weight capacity of 800 pounds for this bed frame.
• Колдонуудан мурун бардык болттор жана бурамалар бекем бекемделгенин текшериңиз. Мезгил-мезгили менен текшерип, зарыл болсо, кайра бекемдөө.
• Чогуу учурунда муунуп калуу коркунучун болтурбоо үчүн кичинекей бөлүктөрүн балдардан алыс кармаңыз.
• Assemble the bed frame on a soft, clean surface (like a carpet) to prevent scratching the product or your floor.
• Бул продукт ички колдонуу үчүн гана арналган.
• Avoid using abrasive cleaners or harsh chemicals on the velvet fabric or metal frame.

Пакеттин мазмуну

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact VECELO customer support.

• Headboard (Upholstered with LED lights and charging ports)
• Каптал рельстер (сол жана оң)
• Бут тактасы
• Борбордук тирөөч устун(тар)
• Wooden Slats (with Velcro strips)
• Support Legs (for frame and center beam)
• Монтаждоо жабдыктары (буроолор, болттар, шайбалар, Аллен ачкычы)
• LED алыстан башкаруу
• Instruction Manual

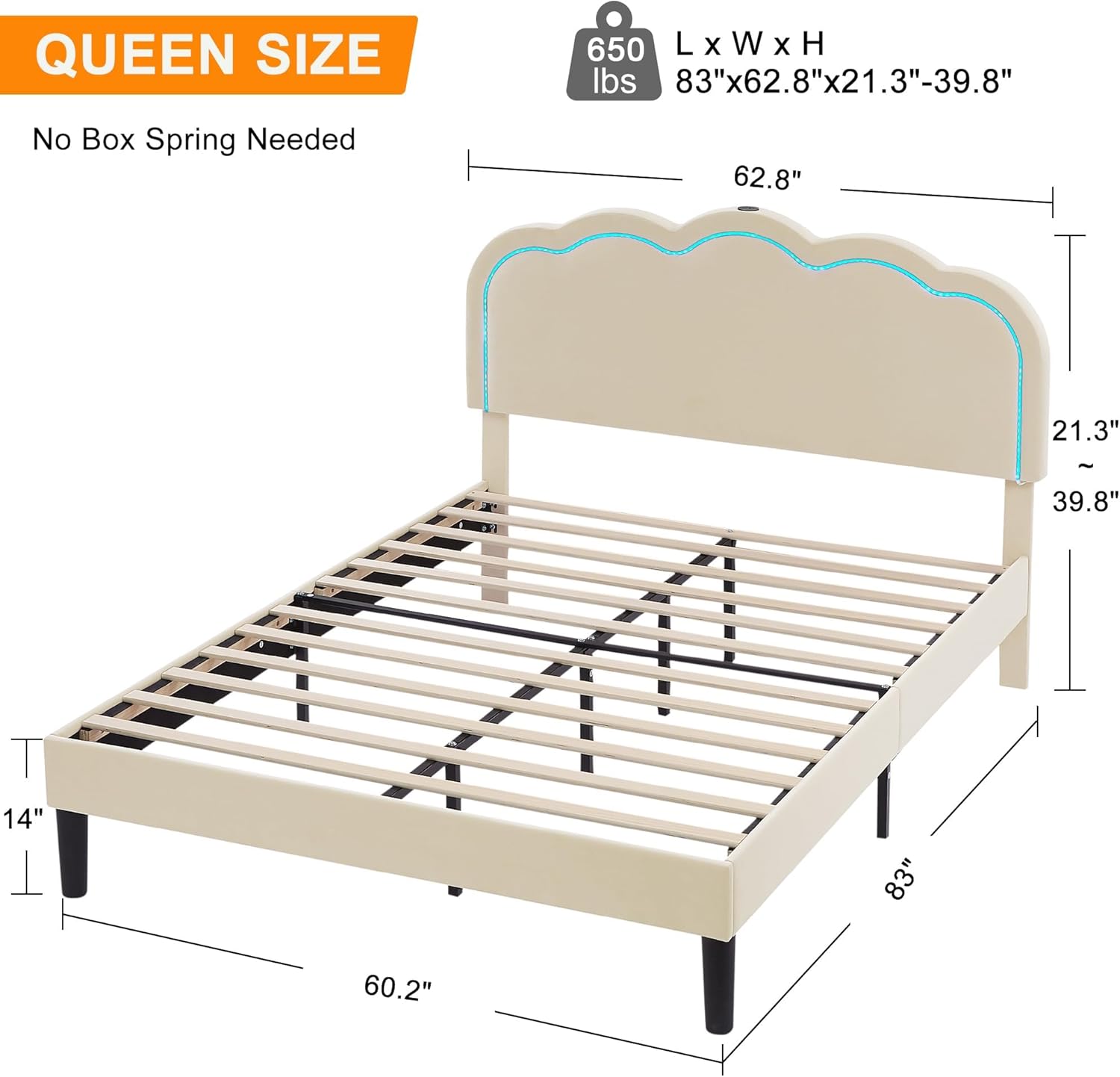

Сүрөт: бүттүview төшөктүн рамасынын компоненттеринин жана өлчөмдөрүнүн.

Орнотуу жана чогултуу

Assembly of the VECELO Queen Size Bed Frame is designed to be straightforward. Most screws are pre-installed for convenience. It is recommended to have two people for assembly.

1. Бөлүктөрдү таңгактан чыгаруу жана аныктоо: Carefully unpack all components and lay them out on a clean, soft surface. Refer to the "Package Contents" section and the included parts list to ensure everything is present.
2. Каптал карниздерди тактайдын башына бекитүү: Connect the side rails to the headboard using the provided bolts and Allen wrench. Do not fully tighten bolts until the entire frame is assembled.
3. Капталдагы рельстерди бут тактага бекитиңиз: Connect the other end of the side rails to the footboard. Ensure proper alignment before partially tightening bolts.
4. Орнотуу борборунун тирөөч устун: Place the center support beam(s) into the designated slots or brackets on the headboard and footboard. Attach any required support legs to the center beam.
5. Secure Wooden Slats: Lay the wooden slats across the bed frame. The slats feature Velcro strips for secure attachment to the frame, preventing movement and reducing noise. Ensure slats are evenly spaced.
6. Акыркы бекемдөө: Once all components are in place and aligned, fully tighten all bolts and screws using the Allen wrench.
7. Туташуу кубаты: Plug the power adapter for the LED lights and charging ports into a wall outlet.

Image: Details of the bed frame's construction, including Velcro strips, wooden slats, and metal frame.

Иштөө нускамалары

LED баштуу жарыктандыруу

The upholstered headboard features integrated LED lighting with various customization options.

• Контролдоо ыкмалары: The LED lights can be controlled via the included remote control or a dedicated smartphone application. Refer to the separate LED light manual for app download and pairing instructions.
• Түс параметрлери: Choose from over 16 million colors to match your mood or room decor.
• Жарык эффекттери: Access more than 20 preset lighting effects, including brightness adjustments, flashing patterns, and wave effects.
• Динамикалык режимдер:
  • Музыка режими: Lights synchronize with music played through your device's microphone or the app.
  • Микрофон режими: Lights react to ambient sounds detected by the microphone.
  • Таймер режими: Жарыктардын автоматтык түрдө күйүшү же өчүрүлүшү үчүн графиктерди орнотуңуз.

Image: LED headboard lights syncing to music, controlled by app or remote.

Image: RGB LED lighting display with app control showing music, mic, and timing modes.

USB заряддоо порттору

The headboard includes built-in USB-A and Type-C charging ports for convenient device charging.

• Колдонуу: Simply plug your compatible USB-A or Type-C charging cable into the respective port on the headboard.
• Күч: The charging ports are powered when the bed frame is connected to a wall outlet.
• Шайкештик: Compatible with most smartphones, tablets, and other USB-powered devices.

Image: USB-A and Type-C charging ports located on the headboard.

Жөнгө салынуучу баштык

The headboard height can be adjusted to accommodate different mattress thicknesses.

• Жөнгө салуу деңгээли: The headboard offers three adjustable height settings: 43.6 inches, 45.6 inches, and 47.6 inches (from the floor).
• Матрастын шайкештиги: These settings are ideal for mattresses with thicknesses of 8, 10, and 12 inches, respectively.
• Кантип тууралоо керек: Adjustment typically involves re-positioning the headboard attachment points during assembly or by loosening and re-tightening specific bolts. Refer to the detailed assembly guide for precise steps.

Image: Adjustable headboard heights and recommended mattress thicknesses.

Техникалык тейлөө

Proper care and maintenance will extend the life and appearance of your VECELO bed frame.

• Velvet Fabric: For general cleaning, gently vacuum the velvet upholstery with a brush attachment to remove dust and debris. For spills, blot immediately with a clean, dry cloth. For deeper cleaning, professional dry cleaning is recommended. Avoid harsh chemicals or excessive moisture.
• Металл рамка: Металл рамканы жумшак менен сүртүңүз, гamp cloth. Dry immediately to prevent rust. Avoid abrasive cleaners.
• Slats and Connections: Periodically check all bolts and screws to ensure they remain tight. Re-tighten as needed to maintain stability and prevent noise.
• LED жарыктары: The LED lights are designed for long-term use and generally require no maintenance. If issues arise, refer to the troubleshooting section.

Проблемаларды чечүү

Эгерде сиз керебеттин алкагында кандайдыр бир көйгөйлөргө туш болсоңуз, төмөнкү кеңири таралган көйгөйлөрдү жана чечимдерди караңыз.

Техникалык шарттар

Image: Under-bed space measurement.

Кепилдик жана колдоо

VECELO is committed to providing high-quality products. For specific warranty information, please refer to the documentation included with your purchase or visit the official VECELO webсайт.

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact VECELO customer support:

• Кардарларды тейлөө: Refer to your purchase receipt or the VECELO brand store for contact details.
• Онлайн колдоо: зыярат кылыңыз VECELO Store on Amazon КБС жана кошумча продукт маалыматы үчүн.
