MANAYO PM6BT Bluetooth Phono Preamplifier Колдонмо

1. Киришүү

The MANAYO PM6BT is a versatile Bluetooth 5.2 phono preamplifier designed to integrate turntables into modern audio systems. It functions as both a Bluetooth transmitter and receiver, an MM phonostage, and includes bass/treble equalization and a headphone output. This manual provides instructions for proper setup, operation, and maintenance of your PM6BT unit.

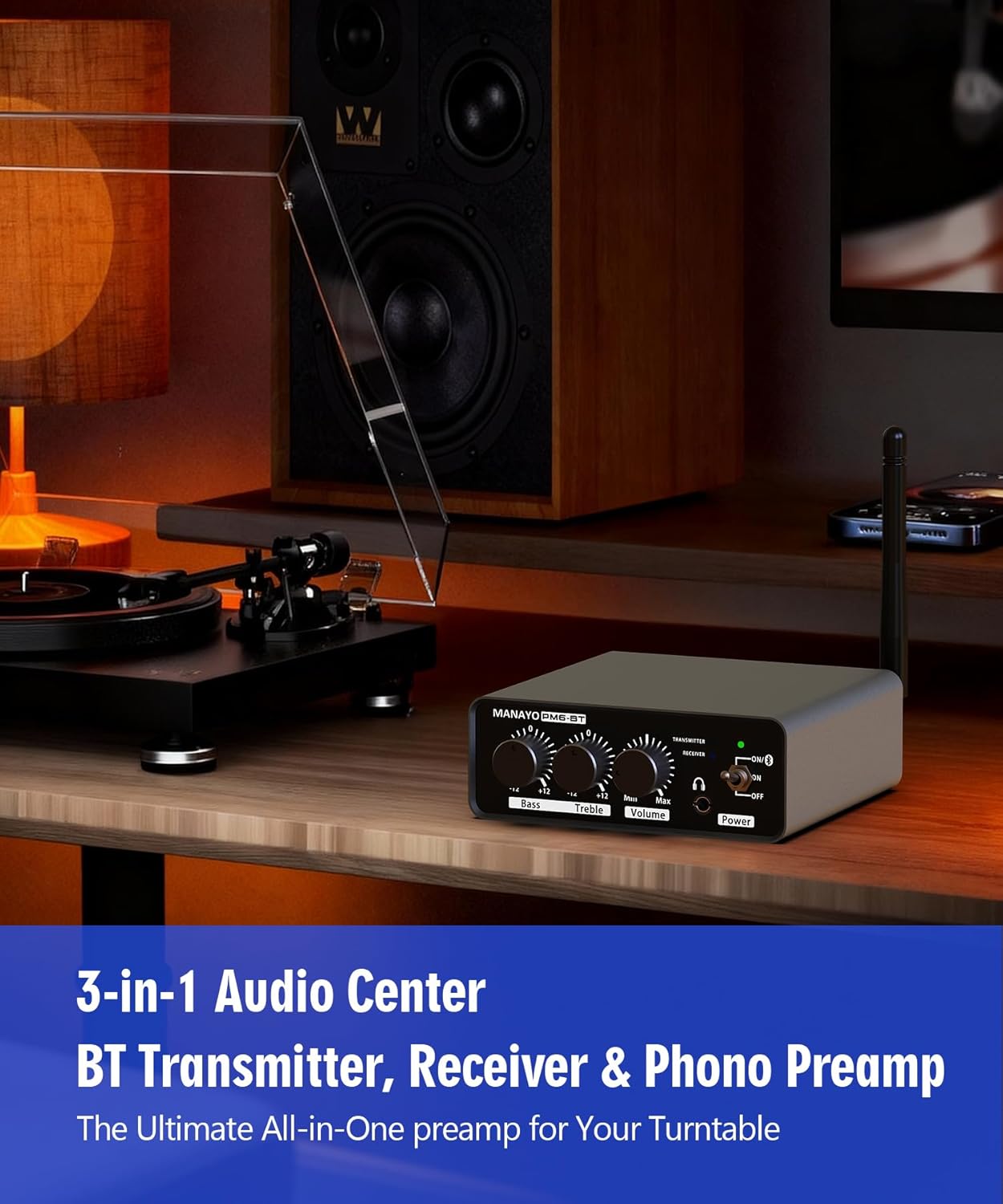

Image: The MANAYO PM6BT unit positioned between a turntable and speakers, illustrating its function as a central audio hub.

2. Пакеттин мазмуну

• MANAYO PM6BT Bluetooth Phono Preampөмүрлүү
• 12V/1A DC Power адаптери
• Тышкы Bluetooth антеннасы
• Колдонуучунун Колдонмосу (бул документ)

3. Продукциянын өзгөчөлүктөрү

• Bluetooth 5.2 туташуусу: Supports aptX/aptX HD codecs for high-resolution wireless audio.
• Dual Bluetooth Modes: Functions as both a Bluetooth Transmitter (TX) for streaming turntable audio to wireless devices and a Bluetooth Receiver (RX) for connecting wireless turntables to wired speakers.
• Integrated MM Phonostage: Provides RIAA equalization and amplification for Moving Magnet (MM) cartridges.
• PHONO/LINE Input Selector: Ensures compatibility with various turntable types.
• Жөнгө салынуучу EQ: Independent Bass and Treble controls for sound customization.
• Гарнитуранын чыгышы: Dedicated 3.5mm jack for private listening.
• Мыкты курулуш: Aluminum alloy chassis with gold-plated RCA connectors and an external antenna for signal integrity.

4. Орнотуу нускамалары

4.1 Кубат адаптерин туташтыруу

Connect the included 12V/1A DC power adapter to the "DC 12V" input on the rear of the PM6BT unit, then plug the adapter into a wall outlet. The unit will power on.

4.2 Attaching the Bluetooth Antenna

Screw the external Bluetooth antenna onto the "ANT" connector on the rear panel of the PM6BT. Ensure it is securely fastened for optimal wireless performance.

4.3 Grounding Connection (for Turntables)

If your turntable has a ground wire, connect it to the ground terminal on the rear of the PM6BT. This helps eliminate hum and noise. Ensure the connection is secure. Note: The ground stud may be large; if your turntable's ground fork is too small, ensure the wire tip is securely trapped under the screw cap.

4.4 Аудио байланыштар

The PM6BT offers various connection methods depending on your setup. Refer to the diagrams below for common configurations.

Image: Visual guide for connecting the PM6BT in Transmitter, Receiver, and wired modes.

4.4.1 Turntable to PM6BT (Wired Output)

• Connect your turntable's RCA outputs to the "INPUT" RCA jacks on the PM6BT.
• Connect the "OUTPUT" RCA jacks on the PM6BT to your ampкөтөргүч же кубаттуу динамиктер.
• Set the PHONO/LINE switch on the PM6BT according to your turntable's output type (see Section 5.2).

4.4.2 Turntable to PM6BT (Bluetooth Transmitter Mode)

• Connect your turntable's RCA outputs to the "INPUT" RCA jacks on the PM6BT.
• Set the Bluetooth switch on the rear panel to "TRANSMITTER" (TX).
• Pair the PM6BT with your Bluetooth speakers or headphones (see Section 4.5).
• Set the PHONO/LINE switch on the PM6BT according to your turntable's output type (see Section 5.2).

4.4.3 Bluetooth Turntable to PM6BT (Bluetooth Receiver Mode)

• Set the Bluetooth switch on the rear panel to "RECEIVER" (RX).
• Pair your Bluetooth turntable with the PM6BT (see Section 4.5).
• Connect the "OUTPUT" RCA jacks on the PM6BT to your ampкөтөргүч же кубаттуу динамиктер.

4.5 Bluetooth жупташтыруу

The PM6BT features automatic "blind" pairing. For the first-time connection:

1. Ensure both the PM6BT and your target Bluetooth device (speaker, headphones, or turntable) are in pairing mode.
2. Place the devices close together (within 1 meter / 3 feet).
3. Keep them away from other wireless devices that might cause interference.
4. Wait patiently. Initial pairing may take 30-60 seconds or longer.
5. A solid green light on the PM6BT indicates a successful connection.

Image: The Bluetooth TX/RX switch on the rear panel of the PM6BT, indicating its dual functionality.

5. Иштөө нускамалары

5.1 Күйгүзүү/өчүрүү

Press the "Power" button on the front panel to turn the unit on or off. The power indicator light will illuminate when the unit is on.

5.2 PHONO/LINE Input Selection

Use the PHONO/LINE switch on the rear panel to select the appropriate input mode:

• PHONO Mode: Select this mode for turntables with Moving Magnet (MM) cartridges that require RIAA equalization and amplification. This mode provides a gain of +36dB.
• LINE Mode: Select this mode for turntables with a built-in preamplifier or other line-level audio sources. This mode provides a gain of +4dB.

Image: The PHONO/LINE switch on the rear of the PM6BT, crucial for matching input signal levels.

5.3 Adjusting Sound Controls

The front panel features controls for customizing your audio output:

• Басс баскычы: Adjusts the low-frequency response. Turn clockwise to increase bass, counter-clockwise to decrease.
• Үч ыргытуу баскычы: Adjusts the high-frequency response. Turn clockwise to increase treble, counter-clockwise to decrease.
• Үн баскычы: Controls the overall output volume for both RCA outputs and the headphone jack.

Image: Front panel controls for Bass, Treble, and Volume, allowing for precise sound customization.

5.4 Гарнитуранын чыгышы

Connect 3.5mm headphones to the headphone jack on the front panel for private listening. The volume knob controls the headphone output level. Note: Connecting headphones does not disconnect the RCA line output.

6. Техникалык тейлөө

• Тазалоо: Агрегаттын сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтардан же эриткичтерден качыңыз.
• Курчап турган чөйрө: Keep the unit in a dry environment, away from direct sunlight, heat sources, and excessive dust.
• Вентиляция: Ашыкча ысып кетүүнүн алдын алуу үчүн аппараттын айланасында жетиштүү желдетүүнү камсыз кылыңыз.
• Кабелдик байланыштар: Кабелдик туташуулар коопсуз жана бузулбашы үчүн мезгил-мезгили менен текшерип туруңуз.
