ELRO FC5010 көмүртек кычкылы детектору Колдонуучунун колдонмосу

1. Киришүү

The ELRO FC5010 Carbon Monoxide (CO) Detector provides early warning of the presence of toxic carbon monoxide gas. CO is odorless, colorless, and tasteless, making it impossible to detect without a specialized device. It is produced by incomplete combustion and can originate from fireplaces, water heaters, and boilers. This detector features a high-quality electrochemical sensor that continuously monitors CO levels in the air. A digital display shows the current CO concentration. In case of dangerously high levels, the detector activates a loud 85 dB alarm. The ELRO FC5010 complies with European standard EN 50291-1:2010.

2. Продукт бүтүп калдыview

Негизги өзгөчөлүктөрү:

• Reliable electrochemical sensor for accurate CO detection.
• Integrated digital display for real-time CO level monitoring.
• Test button to verify proper operation.
• Includes 2x CR123A 3V batteries with a 10-year lifespan.
• Low battery warning with a silence function.
• Alarm silence function.
• Loud 85 dB alarm for clear warning.

Кутуда эмне бар:

• 2x ELRO FC5010 Carbon Monoxide Detectors
• 2x CR123A 3V batteries (10-year lifespan)
• Mounting materials (screws and wall plugs)
• Instruction Manual

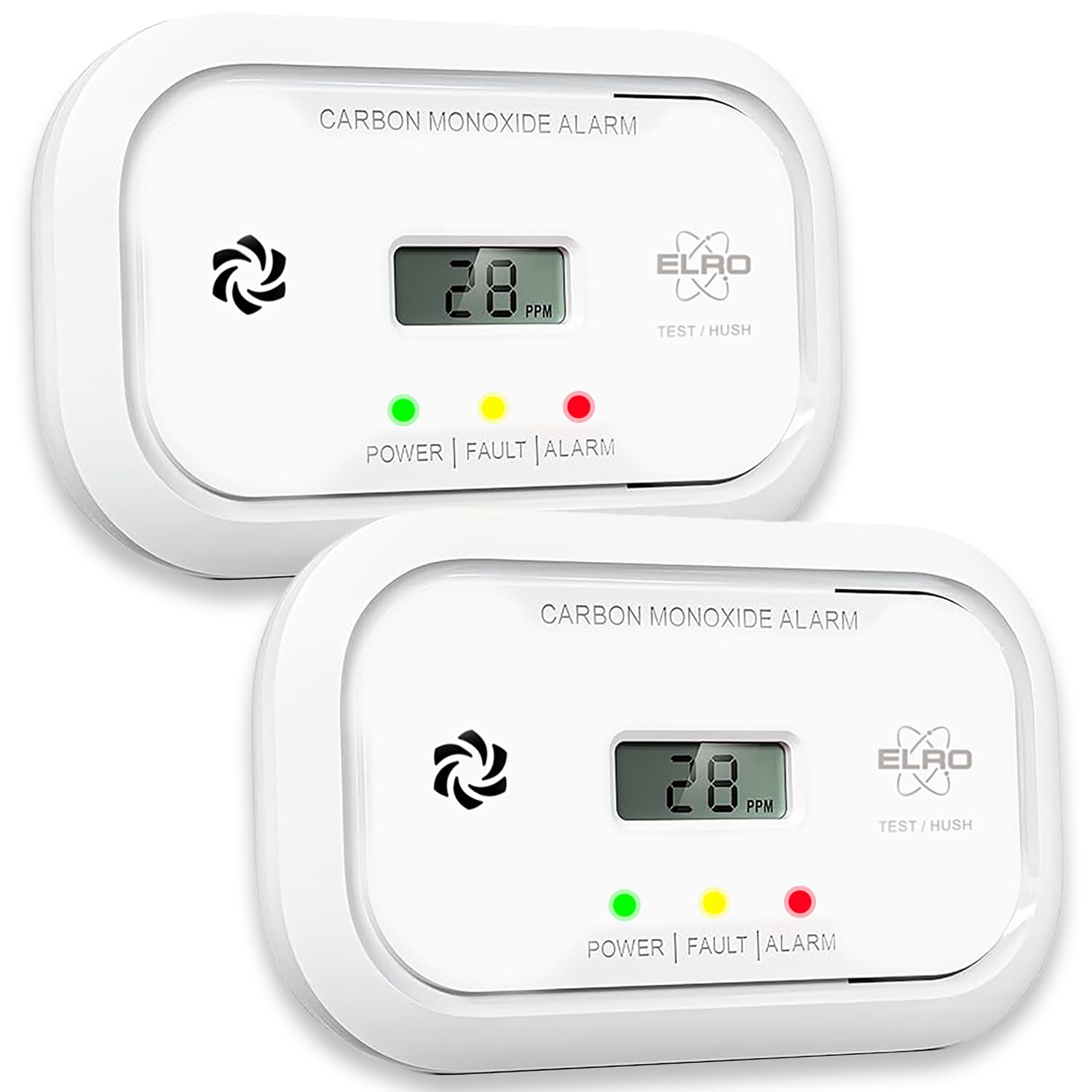

1-сүрөт: ELRO FC5010 Carbon Monoxide Detector. This image shows the front view of the detector with its digital display and indicator lights.

3. Коопсуздук маалыматы

Carbon monoxide is a highly dangerous gas. This detector is designed to alert you to its presence, but it is not a substitute for proper maintenance of combustion appliances, ventilation systems, or a smoke detector. Always ensure adequate ventilation in areas with combustion appliances. The alarm sound can be loud; avoid prolonged exposure to the alarm at close range during testing.

2-сүрөт: Carbon Monoxide is invisible, odorless, and tasteless. This image illustrates that CO cannot be detected by sight, smell, or hearing, emphasizing the need for a detector.

4. Орнотуу жана орнотуу

Жайгашкан жерди тандоо:

• Install the detector approximately 1.5 meters (5 feet) from the floor on a wall.
• Maintain a minimum distance of 1.85 meters (6 feet) from any combustion appliance (e.g., fireplace, boiler, water heater).
• Ideal locations include bedrooms, living rooms, and areas near combustion sources.
• Avoid installing in direct sunlight, near vents, or in extremely dusty/humid environments.

3-сүрөт: Recommended installation areas. This image shows the detector placed in various environments such as a bedroom, near a stove, in a camper, and near central heating, indicating suitable locations.

4-сүрөт: Placement guidelines. This diagram illustrates the recommended mounting height (1-1.5m from floor) and distance from a combustion appliance (1.85m minimum).

Детекторду орнотуу:

1. Select a suitable wall location based on the guidelines above.
2. Use the provided mounting materials (screws and wall plugs) to secure the detector to the wall.
3. Ensure the detector is firmly attached and stable.

5-сүрөт: Easy installation. This image shows the back of the detector with mounting holes and the included screws and wall plugs, demonstrating simple installation.

Детекторду иштетүү:

The detector comes with pre-installed batteries. To activate, follow the instructions on the device or in the quick start guide. Once activated, the CO sensor and batteries will function for 10 years.

6-сүрөт: Activation. This image shows the detector mounted on a wall with an illustration of two CR123A 3V batteries, highlighting the 10-year lifespan upon activation.

5. Иштөө нускамалары

Кадимки операция:

During normal operation, the digital display will show "0 PPM" or the current low level of CO detected. The green "POWER" indicator light will typically flash periodically, indicating the unit is functioning correctly.

7-сүрөт: High-quality CO sensor. This image depicts the detector in a room with visual representations of CO particles, emphasizing the rapid detection capability of the high-quality sensor.

Ойготкуч шарттары:

If the detector senses a dangerous level of carbon monoxide, it will emit a loud 85 dB alarm, and the red "ALARM" indicator light will flash. The digital display will show the detected CO concentration in parts per million (PPM).

What to do if the alarm sounds:

1. Ошол замат таза абага көчүп же аймакты желдетүү үчүн бардык эшик-терезелерди ачыңыз.
2. Do not re-enter the premises or move away from the open door/window until emergency responders have arrived, the premises have been aired out, and your alarm remains in its normal condition.
3. Seek medical attention for anyone experiencing symptoms of CO poisoning (headache, nausea, dizziness).
4. Contact the appropriate authorities (fire department or gas company) to investigate the source of the CO.

Сыноо баскычы:

Press and hold the "TEST/HUSH" button to perform a self-test. The detector will emit a series of beeps and flash its lights, indicating that its electronic circuitry, alarm, and battery are working. The test alarm volume is lower than the actual alarm to prevent hearing damage.

Унчукпоо функциясы:

In case of a nuisance alarm (e.g., from temporary high CO levels during cooking), you can press the "TEST/HUSH" button to temporarily silence the alarm. The detector will continue to monitor CO levels. If CO levels remain high, the alarm will reactivate after a set period.

6. Техникалык тейлөө

Кадимки тестирлөө:

It is recommended to test your CO detector weekly by pressing the "TEST/HUSH" button. This ensures the unit is functioning correctly.

Тазалоо:

Clean the exterior of the detector regularly with a soft, damp cloth. Do not use cleaning agents or solvents. Do not paint the detector, as this can interfere with the sensor's operation.

Батареяны алмаштыруу:

The ELRO FC5010 is equipped with a 10-year sealed battery. When the battery is nearing the end of its life, the detector will emit a low battery warning (audible chirp and/or visual indicator). At this point, the entire unit should be replaced, as the sensor also has a 10-year lifespan.

You can temporarily silence the low battery warning using the silence function, but the unit must be replaced promptly.

7. Кыйынчылыктарды

8. Техникалык шарттар

8-сүрөт: Product Dimensions. This image provides a detailed diagram showing the length (119 mm), width (73 mm), and depth (34 mm) of the ELRO FC5010 detector.

9. Кепилдик жана колдоо

Кепилдик:

This ELRO FC5010 Carbon Monoxide Detector comes with a 2-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.

Кардарларды колдоо:

For technical assistance, troubleshooting, or warranty inquiries, please visit the official ELRO brand store or contact ELRO customer service. You can find more information and contact details on the ELRO Brand Store on Amazon.
