Mujocooker M2

Mujocooker M2 Electric Wheelchair User Manual

Модел: M2

1. Киришүү

This manual provides essential instructions for the safe and effective operation, maintenance, and care of your Mujocooker M2 Electric Wheelchair. Please read this manual thoroughly before using the wheelchair to ensure proper understanding of its features and functions. The M2 Electric Wheelchair is designed for adults, featuring dual brakes, all-terrain capabilities with large front wheels, a wide seat, and compatibility with a wheelchair lift for enhanced mobility.

2. Коопсуздук маалыматы

Сиздин коопсуздугуңуз баарынан маанилүү. Ар дайым төмөнкү көрсөтмөлөрдү карманыңыз:

  • Electromagnetic Brake System: The wheelchair is equipped with an electromagnetic brake system that automatically engages when the joystick is released, preventing unintended movement.
  • Manual Brake Levers: Two manual brake levers are provided, one on each side, for additional control and safety, especially on slopes.
  • Туруктуулук: The wheelchair is designed for stability. Avoid leaning excessively forward or standing on the footrests, as this may cause tipping.
  • Аба ырайы шарттары: Do not use the wheelchair in the rain or wet conditions to prevent damage to electrical components.
  • Тоскоолдуктар: The 16-inch front drive wheels are designed to cross obstacles up to approximately 3 inches. Exercise caution when encountering larger obstacles.
  • Коопсуздук куру: Always use the adjustable safety buckle (seat belt) for secure seating during operation.

3. Пакеттин мазмуну

Таңгактан чыгаргандан кийин, төмөнкү нерселердин бардыгы камтылганын текшериңиз:

  • Mujocooker M2 Electric Wheelchair
  • Джойстик контроллери
  • Detachable Lithium Battery (24V12AH)
  • Батарея заряддагыч
  • Рюкзак
  • Арткы контроллер
  • Куралдар
  • Жарыктандыруу Лamp (LED Headlight)
  • Rear Storage Bag
  • Cup Holder
  • Көрсөтмө (бул документ)
Image showing all included accessories for the Mujocooker M2 Electric Wheelchair: Backpack, Rear Controller, Tools, Instruction Manual, Lighting Lamp, Rear Storage Bag, Cup Holder, and Charger.
Figure 1: All accessories included with the Mujocooker M2 Electric Wheelchair.

4. Орнотуу

Follow these steps to prepare your wheelchair for first use:

  1. Майыптар коляскасын ачуу: Carefully unfold the wheelchair frame until it locks into place. Ensure all locking mechanisms are secure.
  2. Installing the Seat and Backrest: Place the seat cushion and backrest onto the frame. The removable seat is covered with a soft, breathable material.
  3. Attaching the Joystick Controller: Mount the joystick controller to either the left or right armrest, depending on user preference. Secure it firmly.
  4. Installing Footrests: Attach the footrests to the front of the wheelchair. Ensure they are securely fastened and can be rotated for comfort.
  5. Батареяны туташтыруу: Insert the detachable lithium battery into its compartment and connect the battery cables.
Video 1: Demonstrates the assembly and initial setup of the electric wheelchair, including unfolding, attaching components, and connecting the battery.
Видео 2: Кыскача алдын алаview demonstrating the assembly and initial setup of the electric wheelchair.
Image showing the Mujocooker M2 Electric Wheelchair with its joystick controller, footrests, and seat cushion in place.
Figure 2: Fully assembled Mujocooker M2 Electric Wheelchair.

5. Иштөө нускамалары

Familiarize yourself with the controls and operating modes:

  1. Күйгүзүү/өчүрүү: Press the power button on the joystick controller to turn the wheelchair on or off.
  2. Ылдамдыкты жөндөө: Use the speed indicator buttons (+/-) on the controller to adjust the wheelchair's speed.
  3. Джойстикти башкаруу: The joystick allows for forward, reverse, left, and right movement. Gentle movements are recommended for smooth operation.
  4. Мүйүз: Press the horn button on the controller to alert others.
  5. Switching Modes (Manual/Electric): The wheelchair can be switched between manual and electric modes. Pull the red buckle on the wheel to disengage the motor for manual pushing, and push it back in for electric mode.
  6. Унаа токтоочу жай: To park, release the joystick to engage the electromagnetic brakes. For additional security, especially on inclines, engage the manual brake levers located on each side.
Video 3: Demonstrates the various operating modes and controller functions of the electric wheelchair.
Image showing the joystick controller mounted on the armrest, indicating it can be switched between left and right sides.
Figure 3: Adjustable controller placement for left or right-hand use.
Image illustrating the wheelchair's capability to traverse various terrains including smooth road, muddy dirt road, stone road, grass road, brick road, and uphill road.
Figure 4: The M2 Electric Wheelchair is suitable for various road conditions.

6. Батарея жана заряддоо

The M2 Electric Wheelchair is powered by a 24V12AH detachable lithium battery, offering a drive distance of at least 20 miles on a full charge. Charging time is typically 6-8 hours.

  1. Түздөн-түз заряддоо: The battery can be charged directly while installed in the wheelchair via the controller's charging port.
  2. Removed Battery Charging: For convenience, the battery can be easily removed and charged separately.
  3. Авиакомпаниянын саякаттары: The lightweight and detachable battery is suitable for airline travel, high-speed train, and cruise ship transport.
Image showing two charging methods: direct charging via the controller and charging the battery separately after removal.
Figure 5: Two convenient charging methods for the M2 Electric Wheelchair.

7. Folding and Transport

The M2 Electric Wheelchair features a fast-folding design for easy storage and transport.

  1. Бүктөө: Follow the instructions to fold the wheelchair. The process is designed to be quick and simple, taking approximately 3 seconds.
  2. Транспорт: Once folded, the compact size allows for easy placement in a car trunk or other storage spaces.
Video 4: Demonstrates the folding and unfolding process of the electric wheelchair, as well as its ease of transport in a vehicle.
Image showing the folded electric wheelchair being placed into the trunk of a car, highlighting its portability.
Figure 6: The M2 Electric Wheelchair folds compactly for easy car transport.

Optional Wheelchair Lift

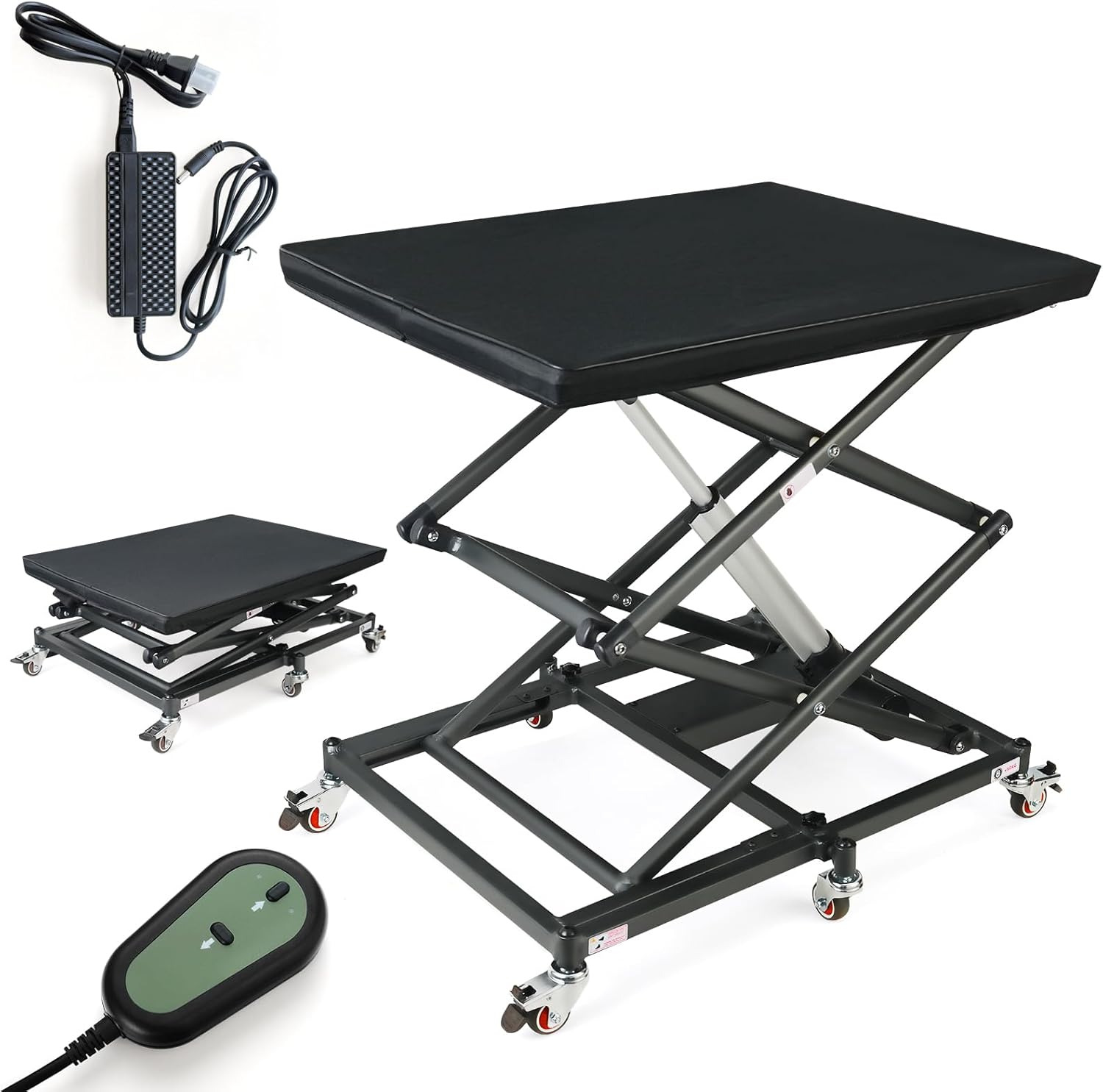

The Mujocooker M2 Electric Wheelchair is compatible with a wheelchair lift for convenient loading into vehicles. An electric scissor lift table is available separately to assist with lifting your mobility device.

Video 5: Demonstrates the use of an electric scissor lift table, which can be used to assist with lifting the wheelchair into a vehicle.

8. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your wheelchair:

  • Тазалоо: The removable seat cover is made of a soft, breathable material that is easy to clean. Wipe down the frame with a damp керектүү кездеме.
  • Шиналар: The 16-inch front and 10-inch rear tires are air-filled for comfort but are designed to be durable and resistant to flats. Regularly check tire pressure and for any signs of wear.
  • Жалпы текшерүү: Periodically check all bolts, connections, and moving parts for tightness and proper function.

9. Кыйынчылыктарды

Бул жерде жалпы маселелерди чечүү жолдору болуп саналат:

  • Камдык ойготкуч: If the backup alarm is active and you wish to turn it off, contact customer support for specific instructions.
  • Battery Cage Damage: In case of damage to the battery cage during shipping or use, it may be possible to straighten bent metal components. If unsure, contact customer support.
  • Tipping on Ramps: While the wheelchair is stable, exercise caution when descending ramps. Ensure your footplates are properly positioned to prevent tipping forward.

10. Техникалык шарттар

ӨзгөчөлүкДеталь
МоделM2
Салмак сыйымдуулугу330 фунт
Орундуктун кеңдиги20 дюйм
Мотор күчү2 x 250 Вт (жалпысынан 500 Вт)
Батарея24V12AH Detachable Lithium
Максималдуу ылдамдык3.7 миль/саат
Drive DistanceAt least 20 miles
Заряддоо убактысы6-8 саат
Front Wheels16 дюймдук пневматикалык
Арткы дөңгөлөктөр10-inch Universal
Тормоз системасыElectromagnetic & Manual Levers
Шокту абсорбциялоо2 Rear Shock Absorption Systems
ЖарыктандырууLED фара
БайланышUSB заряддоо порту

11. Кепилдик жана колдоо

Mujocooker is committed to providing excellent customer service and product reliability.

  • Кепилдик: The M2 Electric Wheelchair comes with a 1-year warranty for parts and a 3-month warranty for the battery.
  • Кардарларды колдоо: For any questions, issues, or support needs, please contact us directly. Our customer service team is responsive and dedicated to assisting you.
  • Электрондук почта: mujocooker@163.com
Image showing Mujocooker's service commitment, including 4-8 days shipping, 1-year parts warranty, 3-month battery warranty, and customer service email.
Figure 7: Mujocooker service and warranty information.
