1. Маанилүү коопсуздук нускамалары
Please read all instructions and warnings before using this product. Basic precautions should always be followed.
- Do not expose the power bank to fire or excessive heat.
- Power банкты сууга же башка суюктуктарга батырбаңыз.
- Do not disassemble or reassemble the power bank.
- Балдар жетпеген жерде сактаңыз.
- If you notice any foreign objects inside the power bank or any damage, discontinue use immediately.
2. Продукт бүтүп калдыview

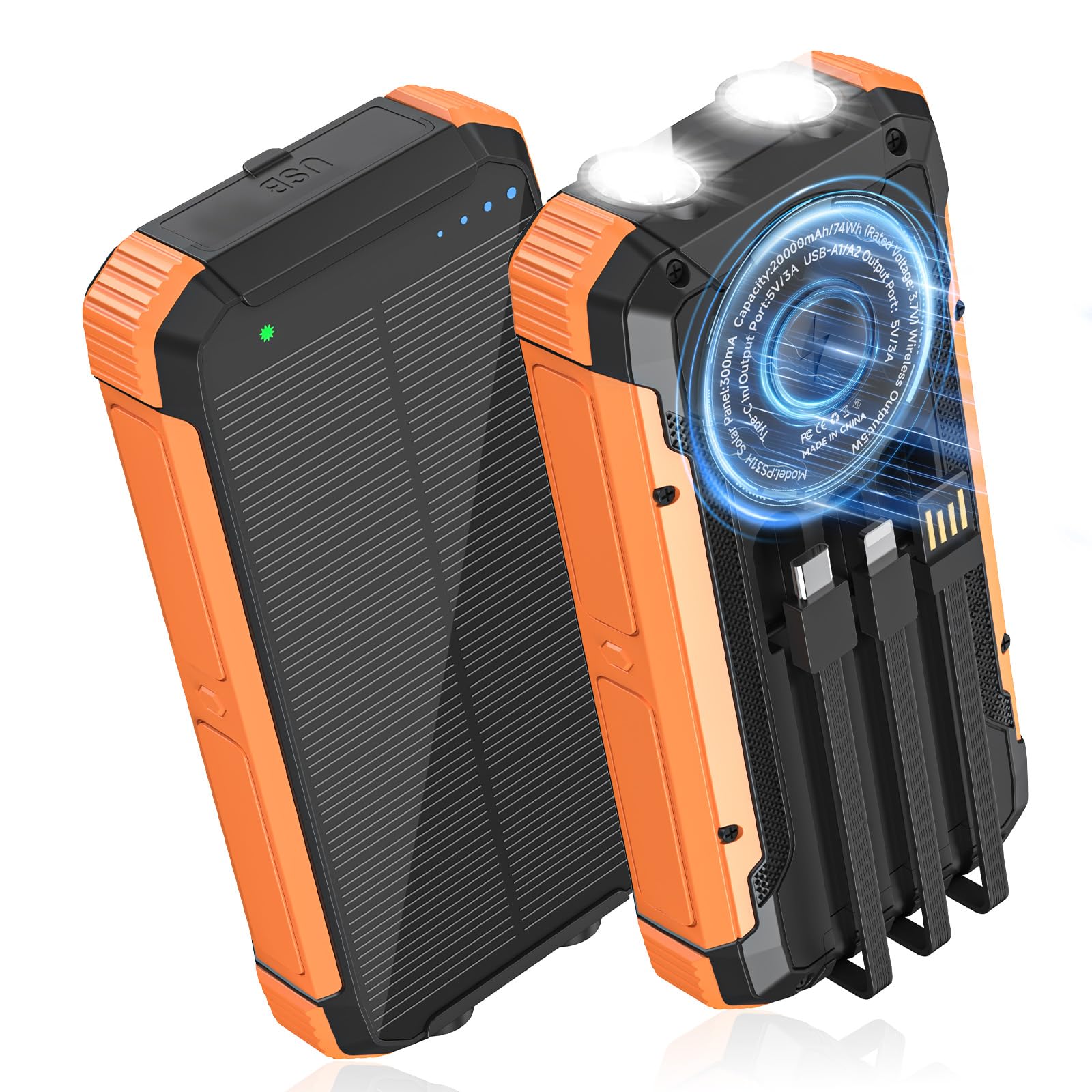

The ERRBBIC PS31H Solar Charger Power Bank is a versatile and robust portable charging solution designed for outdoor enthusiasts and everyday use. It features a high-capacity battery, multiple charging outputs, and integrated emergency tools.
3. Пакеттин мазмуну
Пакет төмөнкү нерселерди камтыйт:
- 1 x ERRBBIC PS31H Solar Power Bank
- 1 x User Manual
- 1 x Free Carabiner
4. Продукциянын өзгөчөлүктөрү
- Жогорку кубаттуулуктагы батарея: Equipped with a 20000mAh explosion-proof lithium polymer battery, providing extended power for your devices.
- Multiple Charging Outputs:
- 3 built-in output cables: Type-C, Lightning, and USB-A.
- 2 external USB-A output ports.
- 1 PD Type-C output port.
- Qi 5W wireless charging pad.
This allows simultaneous charging of up to 6 devices.
The power bank connected to multiple devices, demonstrating its versatile charging capabilities. - Тез кубаттоо технологиясы: 15W PD fast charging via USB-A and USB-C output ports, capable of charging an iPhone 15 up to 65% in 30 minutes.
- Emergency Survival Kit:
- Кош LED фонарь: 3-mode LED flashlight (steady, flashing, rescue/SOS).
- Жогорку натыйжалуу күн панели: 5.5V/300mA solar panel for emergency recharging.
- Mountaineering Buckle: For easy attachment to backpacks.
Illustration of the power bank's dual LED flashlight in steady, strobe, and SOS modes, useful for outdoor activities. - Туруктуу курулуш: Made from sturdy professional ABS material, waterproof (IPX8), drop-proof (5 feet drop tested), and dust-proof. Resistant to chemical corrosion and high temperatures (-20°C to 60°C).
- Коопсуздукту коргоо: 8-fold protection against overcharge, short circuit, overtemperature, overvoltage, over-discharge, and overcurrent. UL2056/UN38.3 certified.
- Автоматтык түрдө өчүрүү: 30 seconds no operation auto shut-off to save power consumption.
5. Орнотуу жана биринчи колдонуу
Before first use, fully charge the power bank using a wall adapter for optimal performance.
- Таңылганын ачуу: Power банкты жана бардык аксессуарларды таңгактан чыгарыңыз.
- Баштапкы төлөм: Connect the power bank to a wall charger using the Type-C input port. The LED indicators will show the charging progress.
- Толук заряддын көрсөткүчү: All LED indicators will be solid blue when fully charged.
6. Иштөө нускамалары
6.1 Power банкты заряддоо
The power bank can be charged via two methods:
- Wall Charging (Recommended): Use a USB wall adapter and a Type-C cable to charge the power bank. This is the fastest and most efficient method.
- Күн кубаты: Place the solar panel directly under strong sunlight. The green LED indicator will light up, indicating solar charging is active. Solar charging is primarily for emergency use and supplemental power, not as a primary charging method due to varying sunlight intensity and panel size.
6.2 Түзмөктөрдү заряддоо
The power bank offers multiple ways to charge your electronic devices:
- Камтылган кабелдер: Pull out the integrated Type-C, Lightning, or USB-A cable and connect it directly to your device.
- External USB Ports: Use your device's original charging cable and plug it into one of the USB-A or Type-C output ports on the power bank.
- Зымсыз кубаттоо: Place your Qi-compatible device on the wireless charging pad on the back of the power bank. Ensure the device is centered for optimal charging.
6.3 Using the Dual LED Flashlight
The power bank features a powerful dual LED flashlight with three modes:
- Күйгүзүү/өчүрүү: Long press the power button on the side of the power bank to turn the flashlight on or off.
- Режимдерди өзгөртүү: Short press the power button to cycle through the modes: Steady → Strobe → SOS.
7. Техникалык тейлөө
- Тазалоо: Wipe the power bank with a dry, soft cloth. Do not use harsh chemicals or abrasive materials.
- Сактагыч: Power банкты күн тийбеген жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
- үзгүлтүксүз колдонуу: Батареянын иштөө мөөнөтүн узартуу үчүн, эгерде үзгүлтүксүз колдонулбаса, Power Bankты жок дегенде үч айда бир жолу толук кубаттап жана разряддап туруу сунушталат.
8. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк заряддалбай жатат | Low power bank battery; Loose cable connection; Incompatible device. | Recharge power bank; Ensure cables are securely connected; Verify device compatibility. |
| Күн кубаттоо иштебейт | Insufficient sunlight; Solar panel obstructed. | Place in direct, strong sunlight; Clear any obstructions from the solar panel. |
| Кол чырак күйбөй жатат | Low power bank battery; Incorrect button press. | Recharge power bank; Long press the power button to activate. |
| Зымсыз кубаттоо иштебейт | Device not Qi-compatible; Device not properly aligned; Thick phone case. | Ensure device supports Qi wireless charging; Reposition device on the charging pad; Remove thick phone case. |
9. Техникалык шарттар
- Модель аты: PS31H
- Батарея сыйымдуулугу: 20000 миллионamp Саат
- Батарея клеткасынын түрү: Литий ион
- Кубат булагы: Күн энергиясы
- Туташтыргыч түрү: USB түрү C
- Чыгуу ток: 3 Amps
- Тtage: 5 вольт
- Порттардын саны: 3 (external) + 3 (built-in cables)
- Зымсыз чыгуу: 5W
- Өзгөчө өзгөчөлүгү: Fast Charging, Dual Flashlight, Portable
- Элемент Салмагы: 0.3 килограмм
- Item Dimensions (L x W x Thickness): 6.3"L x 3.35"W x 0.98"Mh
- Узактыгы: IPX8 Waterproof, Drop-proof, Dust-proof
- Иштөө температурасы: -20°Cден 60°Cге чейин
10. Кепилдик жана колдоо
ERRBBIC provides a 1 жылдык Чектелген Кепилдик for this product. If you encounter any problems or have questions, please contact ERRBBIC customer support. We are committed to providing excellent after-sales service and will reply within 24 hours.
For support, please visit the official ERRBBIC store or contact the seller directly through your purchase platform.
