YINYOO KZ ZS12 PRO 2 USB C Wired Headphones Instruction Manual

1. Киришүү

Thank you for choosing the YINYOO KZ ZS12 PRO 2 USB C Wired Headphones. These in-ear monitors are designed to deliver high-fidelity audio with a multi-driver configuration and ergonomic comfort. This manual provides essential information for proper setup, operation, and maintenance to ensure optimal performance and longevity of your headphones.

2. Продукт бүтүп калдыview

The KZ ZS12 PRO 2 headphones feature an advanced hybrid acoustic architecture designed for clear and immersive sound across various applications, from gaming to music listening.

Негизги өзгөчөлүктөрү:

• Dual-Sided 10* BA Driver Setup: Each side houses 4*31736 ultra-high frequency balanced armatures and 1*30019 mid-high frequency unit for seamless separation and detailed reproduction across frequencies.
• Powerful Dynamic Driver: Equipped with 1* 10mm ultra-low frequency dynamic driver with an optimized magnetic circuit and refined diaphragm design for exceptional bass depth and extension.
• Built-In Electronic Crossover Board: Ensures precise frequency division between dynamic and balanced armature drivers, minimizing interference and maximizing hybrid performance.
• Game-Ready Precision: Offers precise sound imaging, powerful transient response, and superior dynamics, ideal for competitive gaming.
• Универсалдуу USB-C шайкештиги: Easily connects to most everyday audio devices including laptops, desktops, tablets, phones, and gaming consoles.
• High-Performance Omnidirectional HD Microphone: Accurately captures voice for clear communication during calls or gaming.
• Balanced Three-Frequency Performance: Meticulously tuned for deep bass, clear mids, and smooth highs.
• Ergonomic Over-Ear Design: Designed to fit the natural curvature of the ear for secure and comfortable fit during long listening sessions.

Figure 2.1: KZ ZS12 PRO 2 USB C Wired Headphones, general product view.

Figure 2.2: KZ ZS12 PRO 2 earbud with hybrid acoustic architecture highlighted.

Figure 2.3: Diagram showing the internal driver breakdown of the KZ ZS12 PRO 2, including 31736 and 30019 balanced armatures and a 10mm dynamic driver.

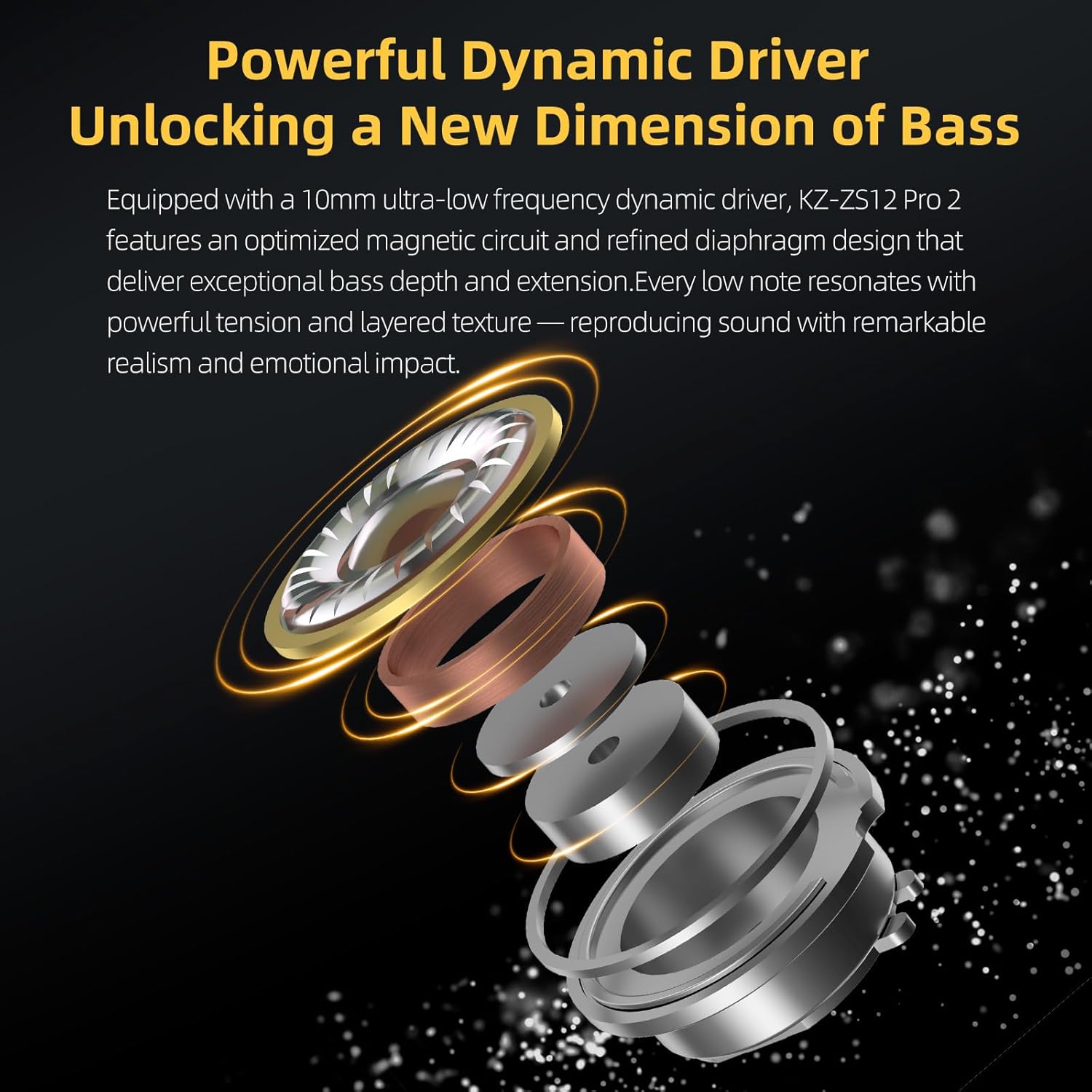

2.4-сүрөт: Детальдуу view of the 10mm ultra-low frequency dynamic driver, highlighting its optimized magnetic circuit and diaphragm.

Figure 2.5: Illustration of the built-in electronic crossover board, responsible for precise frequency division between drivers.

3. Пакеттин мазмуну

Кутудан чыгарылганда бардык буюмдар бар экенин текшериңиз:

• KZ ZS12 PRO 2 USB C Wired Headphones (1 pair)
• USB-C Cable (with in-line microphone and controls)
• Наушниктер (ар кандай өлчөмдөгү)
• User Manual

Figure 3.1: Contents of the KZ ZS12 PRO 2 package.

4. Орнотуу

4.1 Кабелди бекитүү

1. Identify the left (L) and right (R) markings on both the earbuds and the cable connectors.
2. Align the cable connector with the corresponding earbud. The 2-pin connector should slide in smoothly. Do not force it.
3. Коопсуз байланышты камсыз кылыңыз.

Figure 4.1: KZ ZS12 PRO 2 earbud with detachable cable attached.

4.2 Selecting and Installing Eartips

1. Choose the eartip size that provides the best seal and comfort for your ears. A good seal is crucial for optimal sound quality and noise isolation.
2. Gently remove the pre-installed eartips by twisting and pulling.
3. Push the desired eartips onto the nozzle of the earbuds until they are securely attached.

4.3 Наушник тагынуу

The KZ ZS12 PRO 2 features an ergonomic over-ear design for a secure fit:

1. Insert the eartips into your ear canals.
2. Loop the cable over the top of your ears, ensuring it rests comfortably behind your earlobe.
3. Adjust the earbuds for a snug and comfortable fit.

4.4 Түзмөккө туташуу

Connect the USB-C plug of the headphone cable directly to the USB-C port of your compatible audio device.

Figure 4.2: USB-C digital audio plug for KZ ZS12 PRO 2 headphones.

5. Иштөө нускамалары

5.1 In-line аралыктан башкаруу

The in-line remote on the cable provides convenient control over your audio and calls:

• Press once briefly: Play/Pause music, Answer call, Hang up call.
• Press and hold once: Чалуудан баш тартуу.
• Эки жолу басуу: Кийинки Трек.
• Үч жолу катары менен басыңыз: Мурунку трек.

5.1-сүрөт: Катардагы алыстан башкаруу функциялары.

5.2 Sound Modes (Type-C Sound Card Version)

If you have the Type-C sound card version, you can switch between four preset sound modes using the tuning switches:

• Music Equalization Mode: Tri-band natural balance, suitable for various music styles.
• Low-Frequency Enhancement Mode: Deep, powerful low-frequency sounds; prominent instrument sounds.
• Tactical Balance Mode: Clear and precise positioning for gaming (FPS titles).
• Толук кубаттуулук режими: Louder gunshots, prominent environmental sound effects for immersive gaming.

Figure 5.2: Tuning switches for sound modes.

6. Техникалык тейлөө

• Тазалоо: Regularly clean the eartips and earbud nozzles with a soft, dry cloth to prevent wax buildup.
• Сактагыч: Store the headphones in a clean, dry place when not in use to prevent tangling and damage.
• Кабельге кам көрүү: Avoid sharp bends or excessive pulling on the cable to prolong its lifespan.
• Суу каршылык: The headphones are waterproof. However, avoid prolonged exposure to water or submersion.

7. Кыйынчылыктарды

8. Техникалык шарттар

Figure 8.1: Technical specifications for KZ ZS12 PRO 2 headphones.

9. Расмий продукт Videos

10. Кепилдик жана колдоо

Your YINYOO KZ ZS12 PRO 2 headphones come with a standard 30-day refund/replacement return policy. For specific warranty details, technical support, or service inquiries, please refer to the warranty card included in your package or contact YINYOO Audio directly through their official channels or the retailer where the product was purchased.

Кошумча колдоо үчүн, сиз иш сапары менен болот YINYOO Store on Amazon.
