VEVOR CWM03-XL-H Sliding Glass Pet Door Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your VEVOR Sliding Glass Pet Door. Designed for convenience and durability, this pet door allows your large pets easy access while maintaining home security and energy efficiency. Please read all instructions carefully before installation and use.

Image: VEVOR Sliding Glass Pet Door in use, providing access for pets.

Коопсуздук маалыматы

• Always supervise your pet during initial use to ensure they understand how to use the door safely.
• Regularly inspect the pet door for any signs of wear or damage, especially the flap and locking mechanism. Replace worn parts immediately.
• Ensure the pet door is securely installed to prevent accidental dislodgement or security breaches.
• Keep children away from the pet door to prevent injury. This product is not a toy.
• Use the locking panel when you need to restrict your pet's access or for added security at night or when away from home.

Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• 1 x User Manual
• 2 x T-Shaped Positioning Plates
• 1 x Sealing Strip
• 8 x Flat Head Self-Tapping Screws
• 3 x Large Flat Head Self-Tapping Screws
• 10 x Countersunk Tail-Broken Self-Tapping Screws
• 1 x Latch Lock Assembly
• 2 x Frame Connecting Rods
• 1 x Drill Bit (Ø3.2 mm)
• 1 x Drill Bit (Ø6.5 mm)
• 1 x Exploded Diagram

Image: Included accessories and product dimensions.

Техникалык шарттар

Pet Size Guide

To ensure proper fit, measure your pet's width and height. The X-Large flap size is 13 5/8 x 23 5/8 inches, suitable for large dogs.

Image: Pet size guide with measurements for various door sizes.

Сүрөт: Мисamples of dog breeds suitable for different pet door sizes.

Орнотуу жана орнотуу

The VEVOR Sliding Glass Pet Door is designed for easy, tool-free installation into your patio door track. Follow these steps for a secure fit:

1. Assemble the Door Sections: Connect the upper and lower halves of the glass door using the provided frame connecting rods and screws. Ensure the parts fit tightly to prevent gaps.
2. Insert into Track: Carefully insert the assembled pet door vertically into your sliding glass door track. Avoid tilting or inserting at an angle to prevent damage.
3. Бийиктигин тууралоо: Utilize the no-screw telescopic adjustment feature to match the height of your door frame. Twist the knob to secure the door at the desired height.
4. Secure with Brackets (Optional): For enhanced stability, use the T-shaped positioning plates. Mark the positions for screws and drill holes in the telescopic panel, then fix with screws.
5. Install Ground Lock (Optional): If necessary, install the latch lock assembly on the bottom side to further secure the pet door to your patio door. Mark and drill holes, then attach the lock.
6. Apply Sealing Strip: Apply the provided sealing strip along the edges where the pet door meets your sliding glass door to minimize drafts and improve insulation.
7. Critical Alignment Check: Verify that the pet door's rigid corners are square (90°) and align parallel to the sliding door's contact line. Adjust with shims if needed to avoid uneven gaps.

Image: No-screw telescopic adjustment for easy height fitting.

Image: Critical alignment check to ensure proper installation.

Иштөө нускамалары

The VEVOR Sliding Glass Pet Door is designed for simple operation by your pet and includes a secure locking mechanism for your peace of mind.

• Pet Flap Use: Your pet can push through the flexible flap to enter or exit. The sturdy curtain magnets ensure the flap closes automatically after use, helping to maintain indoor temperature.
• Secure Locking Design: A metal slide-in closing panel is provided to restrict access through the pet door. Simply slide the panel down into the designated slots to block the opening.
• Бөгөттөө механизми: The integrated security lock allows you to secure the sliding glass pet door to your main patio door, preventing unauthorized entry or exit. This is ideal for nighttime, when you are away, or in situations where pet access needs to be controlled.

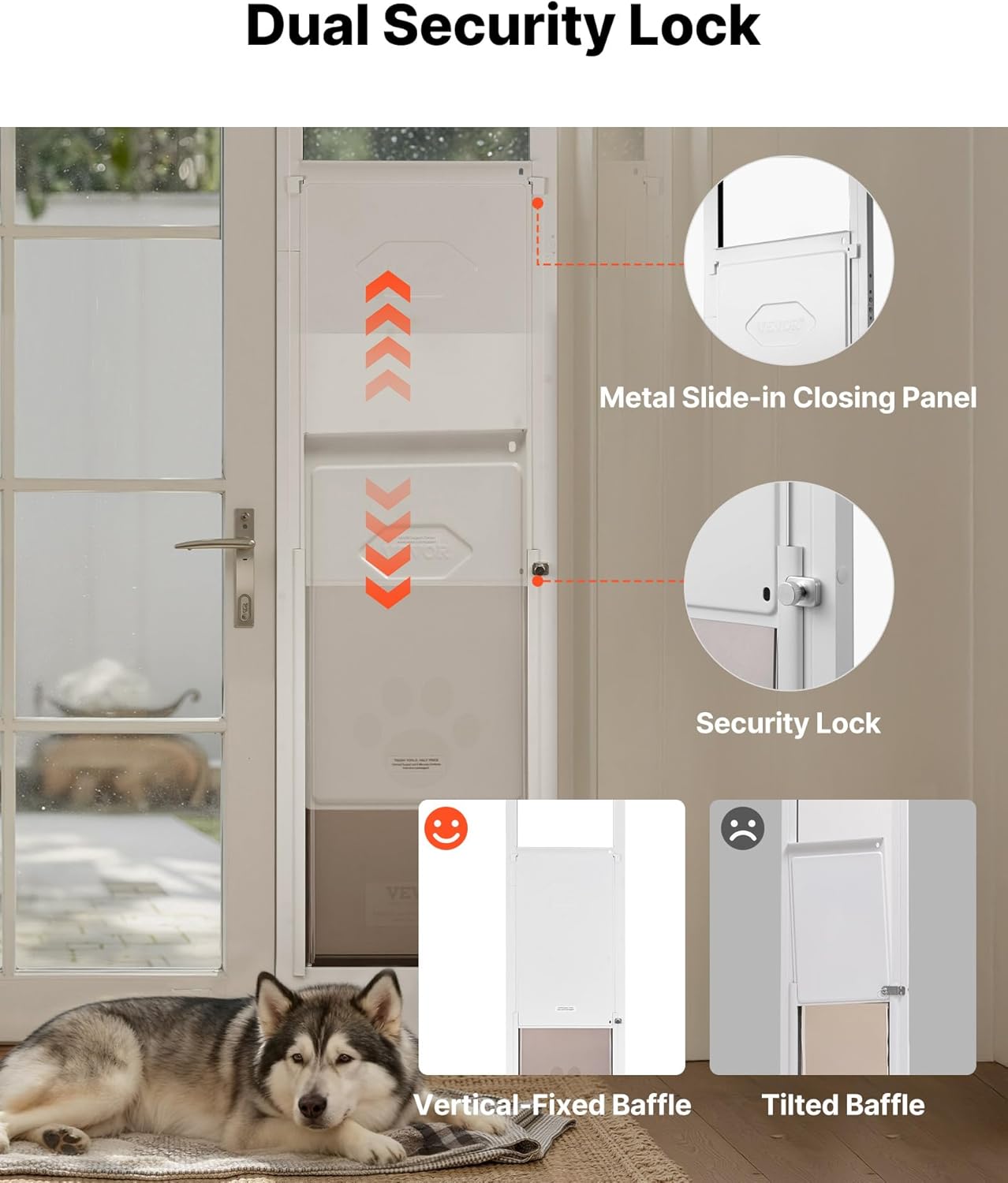

Image: Dual security lock features for controlling pet access.

Image: Pet door in use, providing comfortable access for pets.

Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your VEVOR pet door.

• Тазалоо: Clean the aluminum frame and tempered glass with a mild detergent and a soft cloth. Avoid abrasive cleaners that could scratch the surfaces.
• Flap Inspection: Regularly check the pet flap for tears, cracks, or stiffness. The flap is designed to be flexible and durable, even in varying temperatures (-13°F to 149°F).
• Магнит текшерүү: Ensure the sturdy curtain magnets are clean and free of debris to allow the flap to close properly.
• Hinge and Seal Inspection: Inspect the metal rotating hinges for smooth operation and the sealing strip for any gaps or damage that could lead to drafts. The upgraded metal plate and new hinge structure are built to last and avoid curtain damage.

Image: Durability features for long-lasting performance.

Image: Temperature resistance of the pet door.

Проблемаларды чечүү

Address common issues with your pet door:

• Drafts Around the Door: Ensure the sealing strip is properly installed and intact. Check that the pet door is aligned vertically and securely fastened in the track.
• Pet Not Using the Door: Encourage your pet with treats and positive reinforcement. Guide them through the flap a few times. Never force your pet.
• Flap Not Closing Properly: Check for debris obstructing the magnets or the flap's movement. Ensure the magnets are still strong and the flap is not warped or damaged.
• Door Feels Loose: Re-check the telescopic adjustment and ensure it is tightened. If T-brackets were installed, verify their screws are secure.

Кепилдик жана колдоо

VEVOR products are designed for quality and durability. For technical support, warranty information, or to register your product for an E-Warranty Certificate, please visit the official VEVOR support webсайтында www.vevor.com/support.
