Introduction
This manual provides instructions for the safe and effective use of your Timber Ridge Collapsible Utility Folding Wagon. Please read this manual thoroughly before operating the wagon and retain it for future reference. This wagon is designed for transporting items in various outdoor and indoor settings.
Коопсуздук маалыматы
Жаракат алуунун же зыяндын алдын алуу үчүн төмөнкү коопсуздук көрсөтмөлөрүн аткарыңыз:
- Do not exceed the maximum weight capacity of 225 lbs (102 kg) on flat ground. For sandy or uneven terrain, a suggested maximum load is 150 lbs (68 kg).
- This wagon is not intended for transporting children or pets.
- Ensure all locking mechanisms are engaged before loading or moving the wagon.
- Distribute weight evenly within the wagon to maintain stability.
- Always engage the wheel brakes when parking the wagon, especially on inclines.
- Avoid sharp turns at high speeds to prevent tipping.
- Keep hands and fingers clear of folding parts during setup and folding to prevent pinching.
Компоненттердин тизмеси
The Timber Ridge Collapsible Utility Folding Wagon includes the following main components:
- Main Wagon Frame with Fabric Body
- All-Terrain Wheels (4) with Brakes
- Жөнгө салынуучу тутка
- Removable Bottom Insert
- Каптал сактоочу чөнтөк
- Кубок ээлери (2)
- Storage Cover (for folded wagon)
Орнотуу нускамалары
Follow these steps to unfold and prepare your wagon for use:
- Арабаны жайыңыз: Place the folded wagon on a flat, stable surface. Gently pull the sides of the wagon outwards until the frame begins to expand.
- Түбүн бекитиңиз: Press down firmly on the center of the wagon's bottom until it lies flat and the frame is fully extended and locked into place.
- Төмөнкү панелди салыңыз: Place the removable bottom insert panel into the bottom of the wagon for added stability and support.
- Колду тууралоо: The handle can be adjusted for height and angle. Press the red button on the handle shaft to extend or retract it, and adjust the angle as desired. Ensure it clicks into a secure position.
Image: The Timber Ridge Collapsible Wagon fully set up and loaded with beach gear on a sandy beach.
Image: Visual guide showing the compact folding process of the wagon.
Video: Official product video demonstrating the setup and features of the Timber Ridge Collapsible Wagon.
Иштөө нускамалары
To operate your wagon effectively:
- Жүктөө: Place items evenly inside the wagon, keeping heavier items at the bottom and center to maintain a low center of gravity. Do not overload.
- Маневр жасоо: Use the adjustable handle to pull the wagon. The 360-degree rotating front wheels provide enhanced maneuverability on various terrains.
- Тормоздоо: Each wheel is equipped with a brake. To engage a brake, press down on the red lever located above the wheel. To release, lift the lever. Always engage brakes when the wagon is stationary.
- Side Pockets and Cup Holders: Utilize the large side storage pocket and two cup holders for convenient access to smaller items and beverages.
Image: Illustration detailing the adjustable height and angle features of the wagon's handle for comfortable pulling.
Сүрөт: Жакын план view of the all-terrain wheels, highlighting their 360-degree rotation capability and the integrated brake system.
Техникалык тейлөө
Proper maintenance ensures the longevity of your wagon:
- Тазалоо: Кездемени жана алкакты жарнама менен сүртүңүзamp cloth and mild soap as needed. Allow to air dry completely before folding or storing. Do not use harsh chemicals or abrasive cleaners.
- Дөңгөлөккө кам көрүү: Periodically check the wheels for debris and ensure they rotate freely. Clean any sand or dirt from the wheel mechanisms.
- Сактагыч: When not in use, fold the wagon compactly and store it in a dry, cool place, away from direct sunlight. Use the provided storage cover to protect it from dust and elements.
- Текшерүү: Regularly inspect the frame, fabric, wheels, and handle for any signs of wear, damage, or loose parts. Address any issues promptly.
Проблемаларды чечүү
Жалпы маселелер жана аларды чечүү жолдору:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Вагон толугу менен ачылбайт. | Bottom insert not fully pressed down. | Ensure the bottom insert is firmly pressed until the frame locks into place. |
| Арабаны сүйрөө же башкаруу кыйын. | Overloaded or uneven weight distribution; wheels obstructed. | Reduce load, redistribute weight, or clear debris from wheels. Check if brakes are partially engaged. |
| Handle does not lock in position. | Locking button not fully engaged. | Press the red button and adjust the handle until it clicks securely into place. |
| Тормоз кармабай жатат. | Brake lever not fully depressed. | Ensure the red brake lever is fully pressed down until it locks. Check for debris interfering with the brake mechanism. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү (ачылган) | 35.5"D x 21.5"W x 45.6"H (90.2 см D x 54.6 см В x 115.8 см H) |
| Internal Dimensions (Unfolded) | 35.5"L x 18.5"W x 12"H (90.2 см L x 47 cm W x 30.5 cm H) |
| Катталган өлчөмдөр | 16.5"L x 8.625"W x 30"H (41.9 см L x 21.9 cm W x 76.2 cm H) |
| Weight Capacity (Flat Ground) | 225 фунт (102 кг) |
| Weight Capacity (Suggested for Beach) | 150 фунт (68 кг) |
| Материал | Metal Frame, 600D Oxford Fabric |
| Дөңгөлөк түрү | All-Terrain, 7.5" Diameter, 360° Rotating Front Wheels |
| Өзгөчөлүктөр | Adjustable Handle, Collapsible, Compact, Side Storage Pocket, 2 Cup Holders, Bearing Braking System |
| Модель номери | 21727B-GY |
| UPC | 844093088039 |

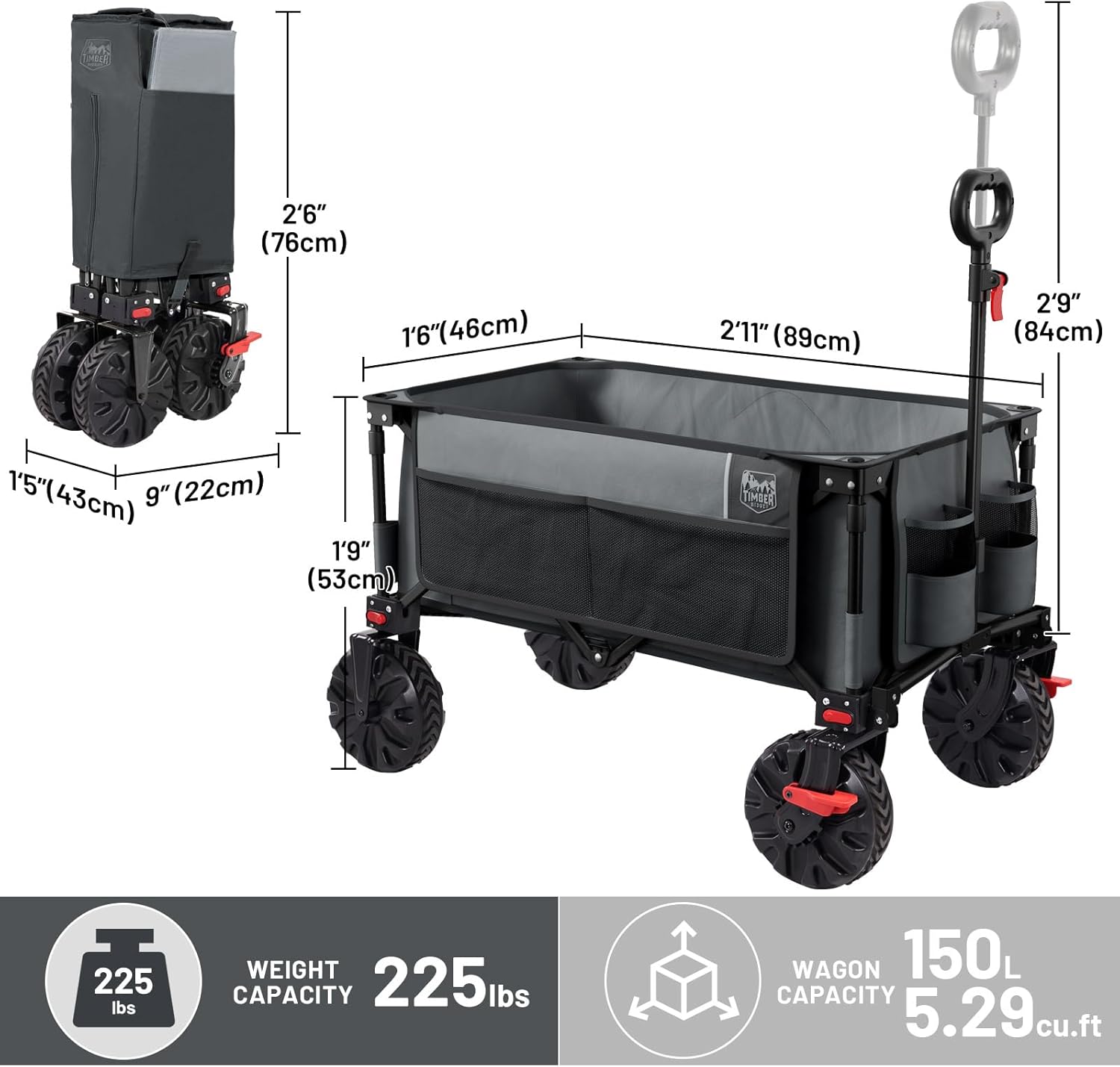

Image: A detailed diagram showing the various dimensions and weight capacity of the Timber Ridge Collapsible Wagon.
Кепилдик маалымат
All TIMBER RIDGE products come with a 1 жылдык кепилдик against quality defects. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Кардарларды колдоо
For any questions, concerns, or warranty claims regarding your Timber Ridge Collapsible Utility Folding Wagon, please contact our customer support team. Refer to the contact information provided with your purchase or visit the official Timber Ridge webжардам үчүн сайт.
