Generic LLS2102 PTO Clutch Repair Kit Instruction Manual

1. Киришүү

This instruction manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of the Generic LLS2102 PTO Clutch Repair Kit. This kit is designed as a direct replacement for Warner 5217-32, 5217-43, and compatible Cub Cadet PTO clutches, ensuring reliable performance for your automotive, motorcycle, truck, or tractor applications.

Please read this manual thoroughly before beginning any installation or repair work. Retain this manual for future reference.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо олуттуу жаракатка же материалдык зыянга алып келиши мүмкүн.

• Always disconnect the vehicle's battery before performing any electrical work or clutch replacement.
• Унаанын домкраттарда же лифтте бекем турушун текшериңиз. Эч качан домкрат менен гана колдоого алынган унаанын астында иштебеңиз.
• Тиешелүү жеке коргонуу шаймандарын (ЖКК), анын ичинде коргоочу көз айнектерди, кол каптарды жана бышык бут кийимдерди кийиңиз.
• Жумуш үчүн туура шаймандарды гана колдонуңуз.
• Эгерде сиз кандайдыр бир кадам боюнча күмөн санасаңыз, квалификациялуу механикке кайрылыңыз.
• Балдарды жана жанында жүргөндөрдү жумуш аймагынан алыс кармаңыз.

3. Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

• 1 x PTO Clutch Assembly (LLS2102)
• 1 x Wire Harness (pre-attached or separate, depending on specific kit version)
• (Additional components may vary slightly by kit version)

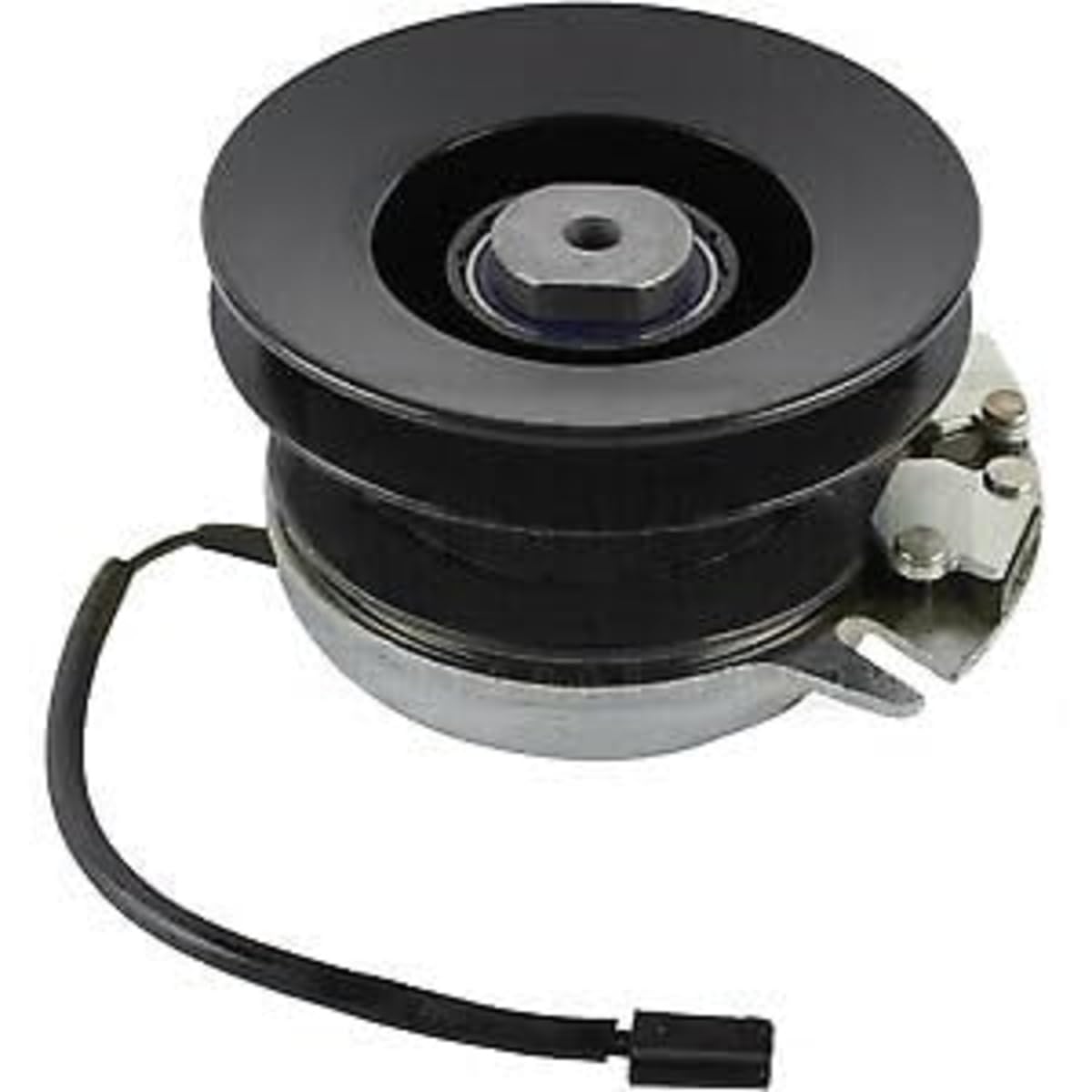

Image 1: Generic LLS2102 PTO Clutch Repair Kit. This image displays the main PTO clutch assembly and its associated wiring harness, which are the primary components of the repair kit.

4. Орнотуу жана орнотуу

This section outlines the general steps for replacing a PTO clutch. Specific procedures may vary depending on your vehicle's make and model. Refer to your vehicle's service manual for detailed instructions.

4.1. Даярдоо

1. Унааны түз жерге токтотуп, токтоочу тормозду коюңуз.
2. Кыймылдаткычты өчүрүп, от алдыруу ачкычын алып салыңыз.
3. Disconnect the negative terminal of the battery to prevent accidental starting or electrical shorts.
4. Allow the engine and surrounding components to cool down completely.
5. Locate the existing PTO clutch assembly. This is typically mounted on the engine crankshaft.

4.2. Removal of Old PTO Clutch

1. Carefully disconnect the electrical wire harness from the old PTO clutch. Note the routing of the wires.
2. Remove any retaining bolts, nuts, or washers that secure the PTO clutch to the crankshaft or engine mounting plate. Keep track of all hardware.
3. Gently slide the old PTO clutch off the crankshaft. It may require some wiggling or light prying. Be careful not to damage the crankshaft or other engine components.
4. Inspect the crankshaft and mounting area for any damage, corrosion, or debris. Clean as necessary.

4.3. Installation of New PTO Clutch

1. Ensure the new LLS2102 PTO clutch is clean and free of any packaging materials.
2. Carefully slide the new PTO clutch onto the crankshaft, aligning any keyways or splines. Ensure it seats fully and correctly.
3. Reinstall all retaining bolts, nuts, and washers. Tighten them to the manufacturer's specified torque settings. Refer to your vehicle's service manual for torque values. Over-tightening or under-tightening can lead to premature failure.
4. Connect the new wire harness to the vehicle's electrical system. Ensure a secure and proper connection. Route the wires away from moving parts and heat sources.
5. Double-check all connections and hardware for tightness and proper routing.

5. Operating (Function Verification)

After installation, perform the following steps to verify proper clutch function:

1. Батареянын терс терминалын кайра туташтырыңыз.
2. Унаанын моторун иштетиңиз.
3. Engage the PTO (Power Take-Off) switch or lever. Listen for the clutch to engage smoothly without unusual noises.
4. Observe the driven implement (if applicable) to ensure it operates correctly.
5. Disengage the PTO. The clutch should disengage smoothly.
6. If any abnormal noises, vibrations, or malfunctions occur, immediately shut down the engine and refer to the Troubleshooting section.

6. Техникалык тейлөө

The LLS2102 PTO Clutch is designed for durability and minimal maintenance. However, periodic inspection is recommended to ensure optimal performance and longevity.

• Визуалдык текшерүү: Periodically inspect the clutch for signs of wear, damage, or corrosion. Check the wire harness for fraying or loose connections.
• Тазалоо: Keep the clutch area free of excessive dirt, debris, and grass clippings, which can impede cooling and operation.
• Майлоо: This clutch is typically a sealed unit and does not require external lubrication. Do not attempt to lubricate internal components unless specifically instructed by the vehicle manufacturer.

7. Кыйынчылыктарды

If you encounter issues with your PTO clutch, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact customer support or a qualified service technician.

8. Техникалык шарттар

The following specifications apply to the Generic LLS2102 PTO Clutch Repair Kit:

• Модель номери: LLS2102
• Шайкештик: Warner 5217-32, Warner 5217-43, Cub Cadet PTO Clutches
• Материал: Plastic (housing/components, specific internal materials may vary)
• Продукциянын өлчөмдөрү: 1 x 1 x 1 дюйм (болжол менен, жеткирүү үчүн)
• Элемент Салмагы: 1 фунт (болжол менен)
• Өндүрүүчү: LLS

9. Кепилдик маалыматы

This Generic LLS2102 PTO Clutch Repair Kit is covered by a limited warranty against defects in materials and workmanship for a period of 1 жыл from the date of purchase. This warranty does not cover damage resulting from improper installation, misuse, neglect, accident, or unauthorized repair or modification.

To make a warranty claim, please retain your proof of purchase and contact customer support.

10. Кардарларды колдоо кызматы

For technical assistance, questions regarding installation, or warranty inquiries, please contact our customer support team:

• Электрондук почта: support@genericparts.com
• Телефон: 1-800-XXX-XXXX (Available Monday-Friday, 9 AM - 5 PM EST)
• Webсайт: www.genericparts.com

When contacting support, please have your product model number (LLS2102) and date of purchase readily available.
