BRRNOO Professional Watch Repair Kit Instruction Manual

Introduction

Thank you for choosing the BRRNOO Professional Watch Repair Kit. This comprehensive kit is designed for both enthusiasts and professionals to perform various watch maintenance tasks, including strap adjustment, link pin removal, and spring bar replacement. Please read this manual carefully before using the tools to ensure safe and effective operation.

Image: The BRRNOO Professional Watch Repair Kit components displayed on a wooden surface.

Коопсуздук маалыматы

• Always handle tools with care to prevent injury.
• Майда тетиктерди жана шаймандарды балдар жетпеген жерде сактаңыз.
• Wear appropriate eye protection when performing watch repairs.
• Ensure your workspace is clean, well-lit, and stable.
• Do not force tools; if a component is resistant, re-evaluate your approach.

Пакеттин мазмуну

Your BRRNOO Professional Watch Repair Kit includes the following items:

• 1 x Double Head Spring Bar Tool
• 1 x Green Bottle (containing spare heads)
• 4 x Spare Heads (for spring bar tool)
• 1 x Metal Watch Strap Remover
• 3 x Spare Watch Strap Remover Heads
• 1 х балка
• 4 x Pin Punch
• 1 x Watch Band Holder

Сүрөт: толук бүттүview of all tools included in the watch repair kit.

Image: Close-up of the green bottle holding various spare tool heads.

Жайгашуу

Before beginning any watch repair, ensure you have a clean, flat, and stable work surface. Organize your tools and the watch components to avoid losing small parts.

1. Unpack all tools from the kit.
2. Identify each tool and its purpose using the "Package Contents" section.
3. Place the watch band holder on your work surface if you plan to adjust a metal watch strap.

Иштөө нускамалары

1. Using the Metal Watch Strap Remover (Link Pin Remover)

This tool is used to push out pins from watch bands to adjust their length.

1. Place the watch band into the slot of the metal watch strap remover, ensuring the pin you wish to remove is aligned with the pusher.
2. Turn the screw handle of the remover clockwise to gently push the pin out of the watch band link.
3. Once the pin is partially out, you may need to pull it the rest of the way with pliers (not included).
4. To reassemble, align the links and insert the pin, then gently tap it back into place using the hammer and a pin punch if necessary.

Image: The metal watch strap remover, a key tool for adjusting watch band length.

2. Using the Double Head Spring Bar Tool

This tool is essential for removing and inserting spring bars, which secure watch straps to the watch case.

1. Identify the spring bar on your watch strap. It typically has a small flange or groove on each end.
2. Use the forked end of the spring bar tool to compress the spring bar by inserting the fork into the flange and pushing inwards.
3. Gently pry the spring bar out of its lug hole. Repeat for the other side to remove the strap.
4. To install a strap, insert one end of the spring bar into a lug hole, then use the forked end to compress the other side and guide it into the opposite lug hole.
5. The pointed end of the tool can be used for fine adjustments or to push out pins in some watch models.

3. Using the Hammer and Pin Punches

These tools are used in conjunction with the watch band holder for more stubborn pins or for reinserting pins.

1. Place the watch band into the watch band holder, aligning the pin to be removed with one of the holes in the holder.
2. Select a pin punch that is slightly smaller than the pin you intend to remove.
3. Position the tip of the pin punch directly on the pin.
4. Gently tap the top of the pin punch with the hammer until the pin starts to emerge from the other side.
5. To reinsert a pin, align it with the holes and gently tap it back into place using the hammer and punch.

Сүрөт: деталдуу view of a pin punch, used for removing and inserting watch band pins.

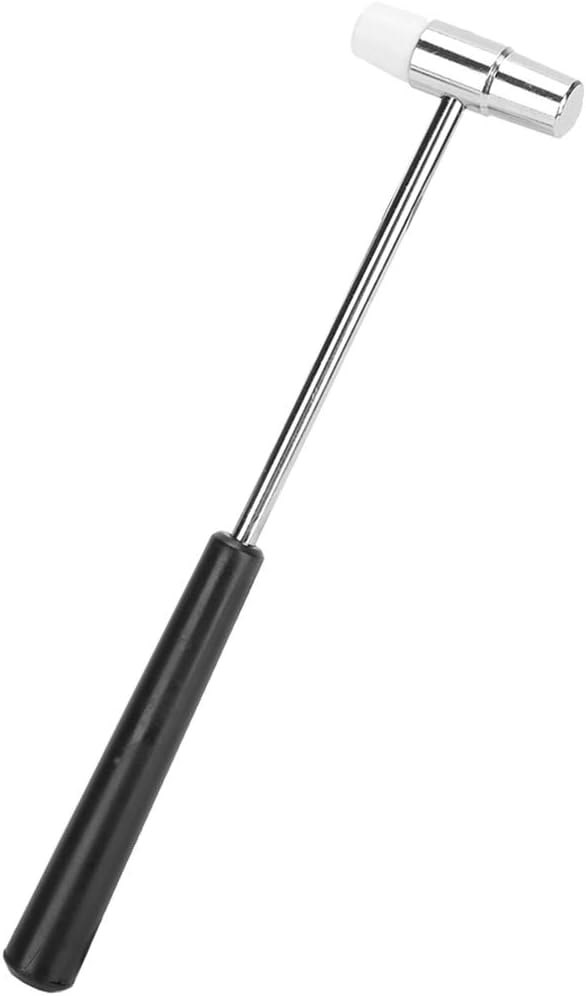

Image: The hammer, watch band holder, and pin punches, essential for strap adjustments.

Техникалык тейлөө

Proper maintenance will extend the life of your BRRNOO Watch Repair Kit.

• After each use, wipe down tools with a clean, dry cloth to remove any oils or debris.
• Store tools in a dry place to prevent rust.
• Keep spare heads and small components in the provided green bottle to prevent loss.
• Inspect tools periodically for wear and tear. Replace worn or damaged parts if necessary.

Проблемаларды чечүү

Техникалык шарттар

• Элемент түрү: Watch Tool Kit
• Материал: Металл
• Колдонмо: Watch strap adjustment and watch band repair
• Модель номери: BRRNOOzg14y9md0b
• Бренд: Brrnoo

Кепилдик жана колдоо

For any questions, concerns, or support regarding your BRRNOO Professional Watch Repair Kit, please contact the seller or manufacturer through your purchase platform. Please refer to your purchase documentation for specific warranty details.
