Hagibis USB4 Docking Station (Model BD246A) User Manual

Introduction

The Hagibis USB4 Docking Station (Model BD246A) is a high-performance hub designed to expand the connectivity of your laptop or desktop. It offers a total bandwidth of 40Gbps, supporting multiple high-speed operations simultaneously. This docking station provides triple display capabilities, fast charging, and various data transfer ports.

Негизги өзгөчөлүктөрү

• 40Gbps Total Bandwidth: Enables concurrent high-speed operation of multiple ports, offering 4x faster upstream bandwidth compared to most standard Type-C docking stations.
• 8K Ultra-HD Visual Experience: Supports 8K/60Hz, 4K/144Hz, 2K/360Hz for high-quality display output.
• Көп дисплей режимдери: Supports various external display configurations for Mac OS and Windows devices.
• USB4 Downstream Port: Provides full-function expansion with 40Gbps total bandwidth, 20Gbps data transfer, DP1.4 video output, and 7.5W power.
• 100W PD3.0 Fast Charging: Supports fast charging for the host device while using expansion functions.

Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз.

• 1 x Hagibis USB4 Docking Station
• 1 x Full Featured USB4 Cable
• 1 x User Manual

Продукт бүттүview

The Hagibis USB4 Docking Station features a durable aluminum alloy casing for efficient heat dissipation. It includes various ports for comprehensive connectivity.

Port Layout

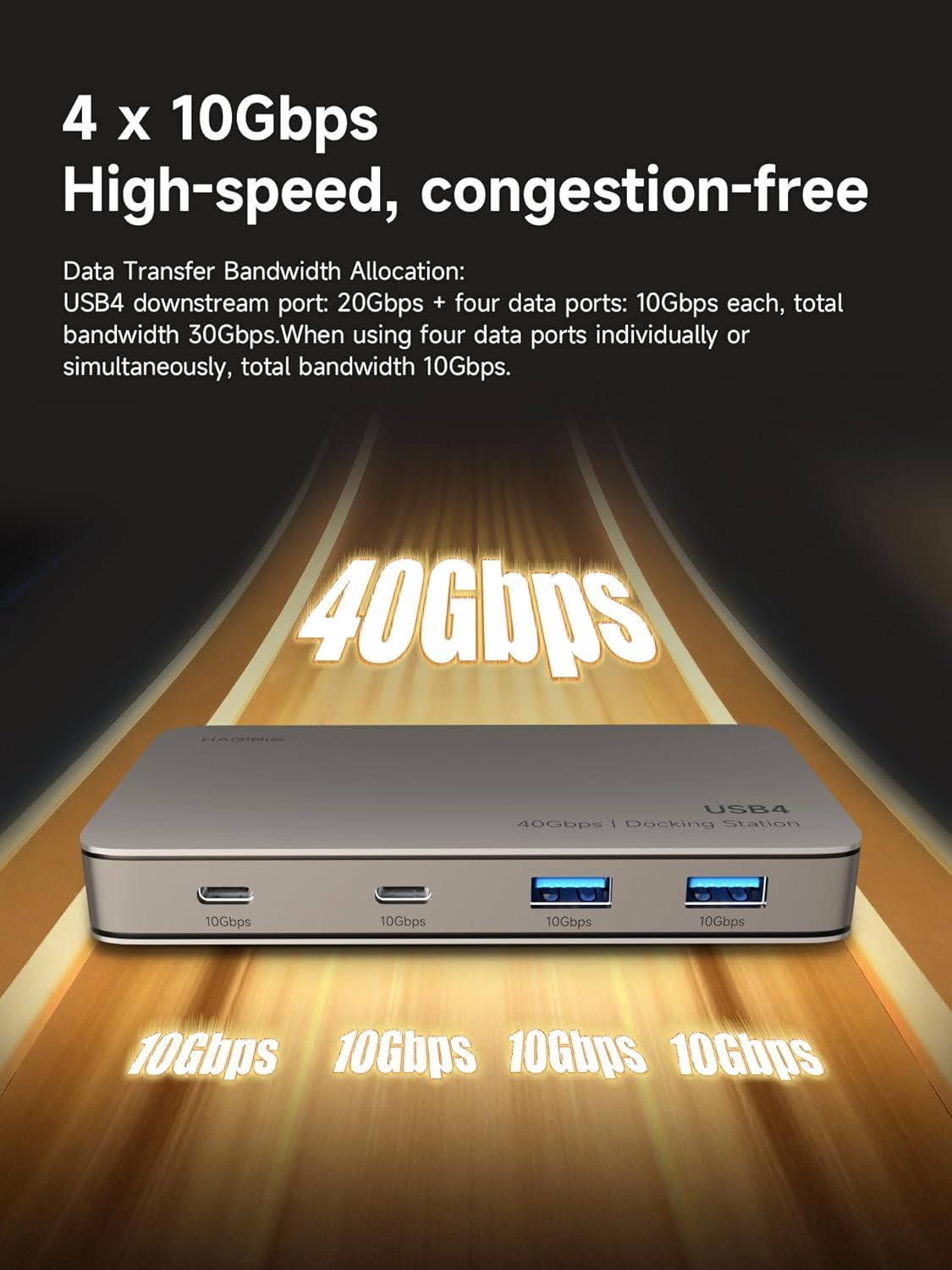

• Алдыңкы порттор: Two USB-C (10Gbps) ports and two USB-A (10Gbps) ports for high-speed data transfer.
• Арткы порттор:
  • USB4 Downstream Port (20Gbps, DP1.4, 7.5W): Supports data, video, and power.
  • HDMI Port (8K/60Hz): For high-resolution video output.
  • PD 100W Power Delivery Port: For charging the host device.
• Каптал порт: HOST (Connect to Host) port with 40Gbps total bandwidth for connecting to your computer.

Орнотуу нускамалары

1. Хост түзмөккө туташуу: Connect the included USB4 cable to the "HOST" port on the docking station and to a Thunderbolt 4/5 or USB4 port on your computer. For optimal performance, your host device must have a Thunderbolt 4/5 or USB4 port supporting 40Gbps bandwidth and DP1.4. If your host only has a 10Gbps port (DP1.2), docking station performance will be reduced.



2. Кубат адаптерин туташтыруу (сунушталат): For stable operation and to utilize the 100W PD charging feature, connect a PD 100W power adapter (not included) to the "PD 100W" port on the docking station. The dock itself consumes approximately 20W of power, providing up to 80W (MAX) to the computer via the HOST port.



3. Тышкы дисплейлерди туташтыруу:
   • For HDMI display, connect an HDMI cable from your monitor to the HDMI 8K/60Hz port on the docking station.
   • For a second display, connect a USB-C to DisplayPort (DP) cable or a full-featured USB-C cable from your monitor to the USB4 Downstream Port (20Gbps DP1.4) on the docking station.

   Эскертүү:

   • Display device and connecting cables must also support 8K/60Hz for 8K resolution.
   • For Mac OS: M1/M2/M3 Chip supports 1 external display. M1 Pro/M2 Pro/M3 Pro/M4/M4 Pro Chip supports up to 2 external displays (refer to Apple official specs).
   • For Windows: Thunderbolt 4/5/USB4 Ports support up to 2 external displays. Full-Function Type-C Ports support 1 external display (via HDMI port).



4. USB перифериялык түзүлүштөрдү туташтыруу: Connect your USB-C and USB-A devices (e.g., external hard drives, keyboards, mice) to the corresponding 10Gbps ports on the front of the docking station.



Иштөө нускамалары

Маалыматтарды өткөрүү

The docking station provides a total of 40Gbps bandwidth. The front USB-C and USB-A ports each support 10Gbps data transfer. The USB4 Downstream port supports 20Gbps data transfer. This allows for simultaneous high-speed data transfer across multiple devices without performance degradation.

Video Output

The docking station supports high-resolution video output through its HDMI 8K/60Hz port and the USB4 Downstream port (DP1.4). Ensure your monitors and cables are compatible with the desired resolution and refresh rates.

Power Delivery

The PD 100W port allows you to charge your host device while using the docking station. Ensure you use a compatible PD 100W charger for optimal charging performance.

USB4 Downstream Port Functionality

This versatile port supports 20Gbps data transfer, DP1.4 video output, and 7.5W power delivery. It can be used to connect high-speed hard drives, other USB-C docking stations for multi-layer expansion, or USB-C monitors/portable screens.

Техникалык тейлөө

• Тазалоо: Use a soft, dry cloth to clean the docking station. Avoid liquid cleaners or aerosols.
• Сактагыч: Аппаратты түз күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
• Жылуулук таркатылышы: Алюминий эритмеси casing is designed for fast heat dissipation. Ensure adequate airflow around the device during operation.

Проблемаларды чечүү

Дисплей чыгаруу жок

• Ensure all cables (USB4 to host, HDMI/USB-C to monitor) are securely connected.
• Verify that your host device (laptop/desktop) and external monitors support the desired resolution and refresh rate.
• Check your computer's display settings to ensure the external monitor is detected and configured correctly (e.g., extended or mirrored mode).
• Confirm that your host device has a Thunderbolt 4/5 or USB4 port for full functionality. Older computers or those with only 10Gbps Type-C ports may have limited display capabilities.

Жай берилиштерди өткөрүү

• Ensure you are using high-speed cables and devices (e.g., USB 3.2 Gen 2 or higher).
• Verify that your host device's port supports 40Gbps bandwidth (Thunderbolt 4/5 or USB4).
• Avoid connecting too many high-bandwidth devices simultaneously if you experience slowdowns.

Заряддоо маселелери

• Ensure a PD 100W power adapter is connected to the docking station's PD port.
• Verify that the power adapter and cable are functioning correctly.

Шайкештик жөнүндө эскертүүлөр

• This product supports only Apple computers released after 2019 and Windows computers released after 2022.
• It is not compatible with Thunderbolt 3 interfaces.
• Not compatible with Nintendo Switch (1st Gen / 2nd Gen).

Техникалык шарттар

Кепилдик

Бул продукт 1 жылдык кепилдик менен келет. Кепилдик дооматтары үчүн сатып алганыңызды тастыктаган документти сактап коюңуз.

Колдоо

For further assistance or technical support, please visit the official Hagibis store or contact customer service.

Official Hagibis Store: https://www.amazon.com/stores/Hagibis/page/AC3D0178-999A-46CD-BA6C-9B107EC614F4
