NIIMBOT B1Pro Label Printer User Manual

1. Киришүү

This manual provides detailed instructions for the safe and efficient operation of your NIIMBOT B1Pro Label Printer. The B1Pro is a high-resolution 300 DPI thermal label printer designed for various labeling needs, including text, barcodes, QR codes, and photo printing. It supports two-color printing (red and black) with compatible labels and connects wirelessly via Bluetooth to your smartphone or PC.

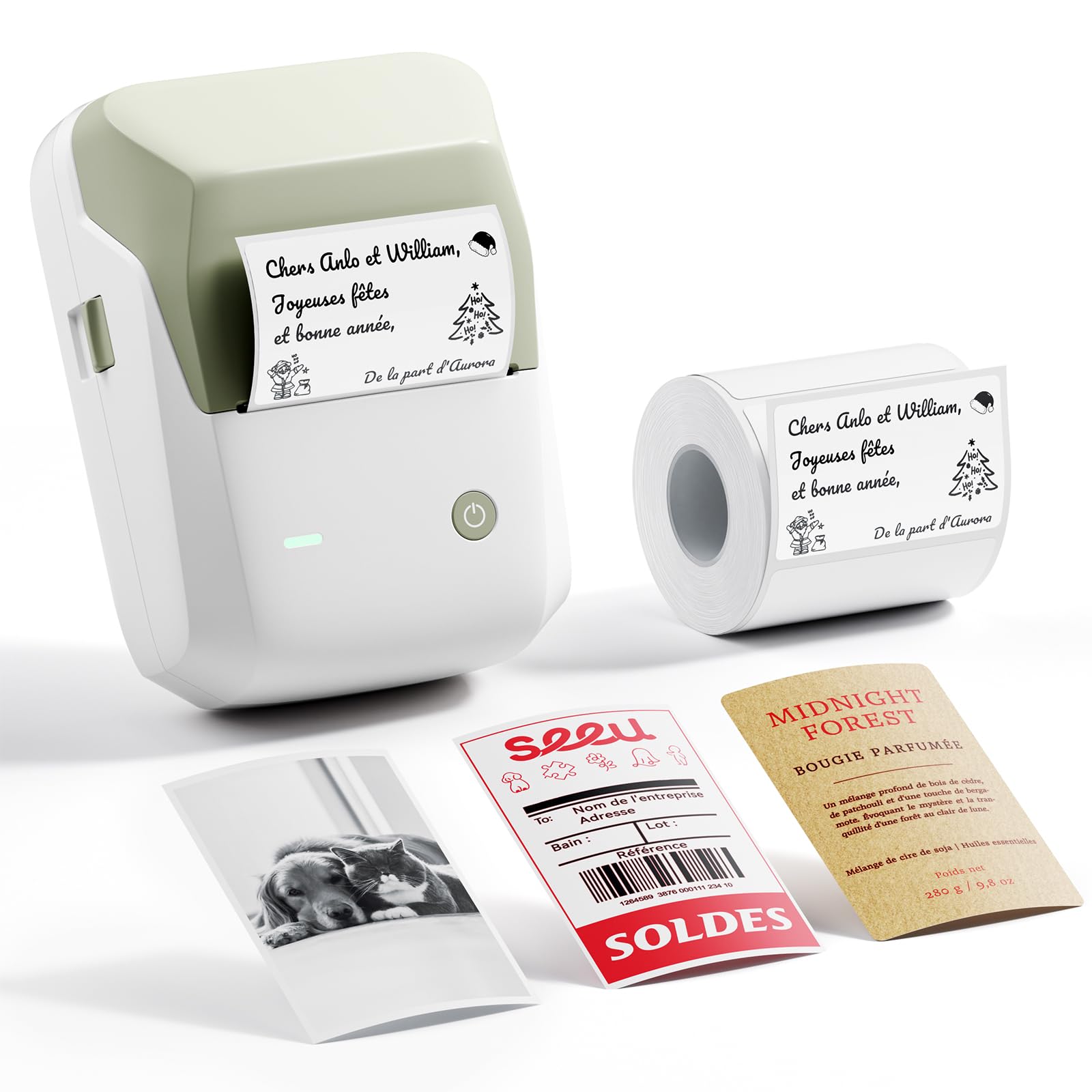

Image 1.1: The NIIMBOT B1Pro Label Printer, a compact and portable thermal printer.

2. Кутуда эмне бар

Пакетте бардык буюмдар бар экенин текшериңиз:

• NIIMBOT B1Pro Label Printer
• 1x White Label Roll (50 x 30 mm)
• USB заряддоо кабели
• Колдонуучунун Колдонмосу (бул документ)

3. Продукциянын өзгөчөлүктөрү

The NIIMBOT B1Pro offers advanced features for versatile labeling:

• High Resolution (300 DPI): Produces sharp, clear text and detailed graphics, even at small sizes.
• Эки түстүү басып чыгаруу: Supports printing in red and black simultaneously with special compatible labels, enhancing visibility and impact.
• Photo Printing Capability: Allows printing of photos on specialized photo labels, capturing moments with clarity.
• Зымсыз туташуу: Connects via Bluetooth to smartphones (Android/iOS) and PCs for convenient printing.
• Intuitive App: The NIIMBOT app provides extensive customization options, including over 60 fonts, 100 borders, 1000 templates, and 1600 icons.
• Сыясыз термикалык басып чыгаруу: Utilizes thermal technology, eliminating the need for ink cartridges and reducing operational costs.

Image 3.1: Comparison highlighting the B1Pro's superior 300 DPI resolution, photo printing, and two-color output compared to the standard B1 model.

Image 3.2: Visual demonstration of 300 DPI print clarity versus 203 DPI, showing sharper text and QR codes.

4. Орнотуу колдонмосу

4.1 Аппаратты заряддоо

Before first use, fully charge the NIIMBOT B1Pro using the provided USB cable. Connect the cable to the printer's charging port and a standard USB power adapter (not included). The indicator light will show charging status.

4.2 Этикетка түрмөгүн орнотуу

1. Open the printer cover by gently pushing the release button or lifting the designated area.
2. Insert the label roll into the compartment, ensuring the labels face upwards and the leading edge is aligned with the print head.
3. Close the printer cover firmly until it clicks into place. The printer will automatically detect the label type and size.

Image 4.1: Proper installation of the label roll, with an automatic self-tightening guide to prevent printing misalignment.

4.3 Downloading and Connecting the App

1. Download the official NIIMBOT app from the App Store (iOS) or Google Play Store (Android). For PC, download the NIIMBOT software from the official webсайт.
2. Ensure your printer is powered on and Bluetooth is enabled on your smartphone or PC.
3. Open the NIIMBOT app and follow the on-screen instructions to connect to your B1Pro printer via Bluetooth. The app will typically detect nearby NIIMBOT devices.

Image 4.2: The NIIMBOT B1Pro supports wireless Bluetooth connection with both smartphones and PCs, allowing simultaneous connections.

5. Иштөө нускамалары

5.1 Creating and Printing Labels

The NIIMBOT app provides a user-friendly interface for label creation:

1. Open the NIIMBOT app and select a template or start a new blank label.
2. Add text, numbers, dates, barcodes, or QR codes using the app's editing tools.
3. Customize fonts, sizes, styles, and alignment.
4. Preview your label to ensure it appears as desired.
5. Tap the print button. Adjust the number of copies if necessary, then confirm to print.

5.2 Photo Printing

To print photos, ensure you are using special photo-compatible labels:

1. Load a photo label roll into the printer.
2. In the NIIMBOT app, select the photo printing option.
3. Choose an image from your device's gallery.
4. Adjust the image as needed within the label boundaries.
5. Print the photo label.

Сүрөт 5.1: Мисamples of photo labels for memos, notes, and personal images, demonstrating the B1Pro's photo printing capability.

5.3 Two-Color Printing

The B1Pro supports two-color printing (red and black) with specific label types. When using these labels, the app will automatically detect the capability and allow you to assign elements to either red or black ink.

Image 5.2: Various applications of two-color red and black labels, including bakery pricing, reminder tags, product prices, and date labels.

5.4 NIIMBOT тиркемесин колдонуу

The NIIMBOT app is a powerful tool for label customization:

• Калыптар: Access a library of over 1000 pre-designed templates for various uses.
• Ариптер: Choose from over 60 fonts to personalize your text.
• Сүрөтчөлөр жана чек аралар: Enhance your labels with over 1600 icons and 100 decorative borders.
• Ыңгайлаштыруу: Adjust text size, alignment, add images, and integrate QR/barcodes.

Image 5.3: The NIIMBOT app offers extensive customization options, including a wide selection of icons, templates, fonts, and borders.

6. Label Types and Applications

The NIIMBOT B1Pro supports a wide range of label types and is suitable for numerous applications:

• Standard Thermal Labels: Rectangular, round, white, colored, transparent.
• Photo Labels: For printing images and graphics.
• Two-Color Labels: For red and black printing.
• Атайын этикеткалар: Including Kraft paper, double-row, and various sizes.

Жалпы колдонмолорго төмөнкүлөр кирет:

• Home organization (spice jars, storage boxes)
• Office organization (files, documents, asset tags)
• Retail (price tags, product information, expiration dates)
• Crafts and DIY projects
• School supplies and study notes
• Medicine labeling

Image 6.1: A selection of available label styles, including standard thermal, photo-compatible, and two-color options.

Image 6.2: The B1Pro supports a diverse range of label types for different needs, from basic text to photo and specialty labels.

Сүрөт 6.3: Мисamples of the B1Pro in various settings, including kitchen organization, personal photo displays, and small business product labeling.

7. Техникалык тейлөө

To ensure optimal performance and longevity of your NIIMBOT B1Pro printer:

• Тазалоо: Regularly clean the print head with a soft, lint-free cloth moistened with isopropyl alcohol. Ensure the printer is off and cool before cleaning.
• Сактагыч: Принтерди салкын, кургак жерде, тике күндүн нурунан жана экстремалдык температурадан алыс сактаңыз.
• этикеткалар: Use only genuine NIIMBOT label rolls to prevent damage to the print head and ensure optimal print quality.
• Батареяга кам көрүү: For prolonged storage, charge the battery to about 50% every three months to maintain battery health.

8. Кыйынчылыктарды

If you encounter issues with your NIIMBOT B1Pro, refer to the following common solutions:

If the problem persists, please contact NIIMBOT customer support for further assistance.

9. Техникалык шарттар

10. Кепилдик жана колдоо

The NIIMBOT B1Pro Label Printer comes with a limited warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official NIIMBOT webсайт.

For technical support, product inquiries, or warranty claims, please contact NIIMBOT customer service through their official webсайт же продукт таңгагында көрсөтүлгөн байланыш маалыматы.
