QUANSHENG TG-FR1 License-Free Two-Way Radio Instruction Manual

Introduction

The QUANSHENG TG-FR1 two-way radio set delivers reliable communication without requiring a license, operating on FCC-compliant FRS 22 channels and PMR446 16 channels for immediate use. Each radio features a 1.3-inch HD color display paired with an intuitive knob interface, allowing users to quickly check channels and battery status while accessing convenient shortcuts. The device includes 10 NOAA weather channels for emergency alerts, VOX hands-free operation for convenient communication, and 38 CTCSS plus 82 DCS codes to minimize interference and ensure clear conversations. Equipped with a powerful flashlight for low-light conditions, these walkie talkies are powered by 1200mAh rechargeable batteries with modern Type-C charging capability. The compact design and durable construction make these radios suitable for outdoor activities like camping and hiking, as well as professional worksite applications.

Коопсуздук маалыматы

• Батареянын коопсуздугу: Use only the provided 1200mAh rechargeable battery. Do not attempt to charge standard AA batteries within the device. Forcibly charging non-rechargeable batteries may cause safety hazards including fire or explosion.
• Иштөө температурасы: Operate the radio within the specified temperature range of -20°C to +50°C.
• Суу каршылык: This device is not water resistant. Avoid exposure to water or high humidity.
• Антеннага кам көрүү: Do not use the radio if the antenna is damaged. Contact with a damaged antenna may result in minor burns.

Пакеттин мазмуну

Стандарттык пакет төмөнкү элементтерди камтыйт:

• QUANSHENG TG-FR1 Two-Way Radio Unit (2 units)
• 1200mAh Rechargeable Battery (2 units)
• Кур кыстыргыч (2 даана)
• Lanyard (2 units)
• Type-C Charging Cable (2 units)

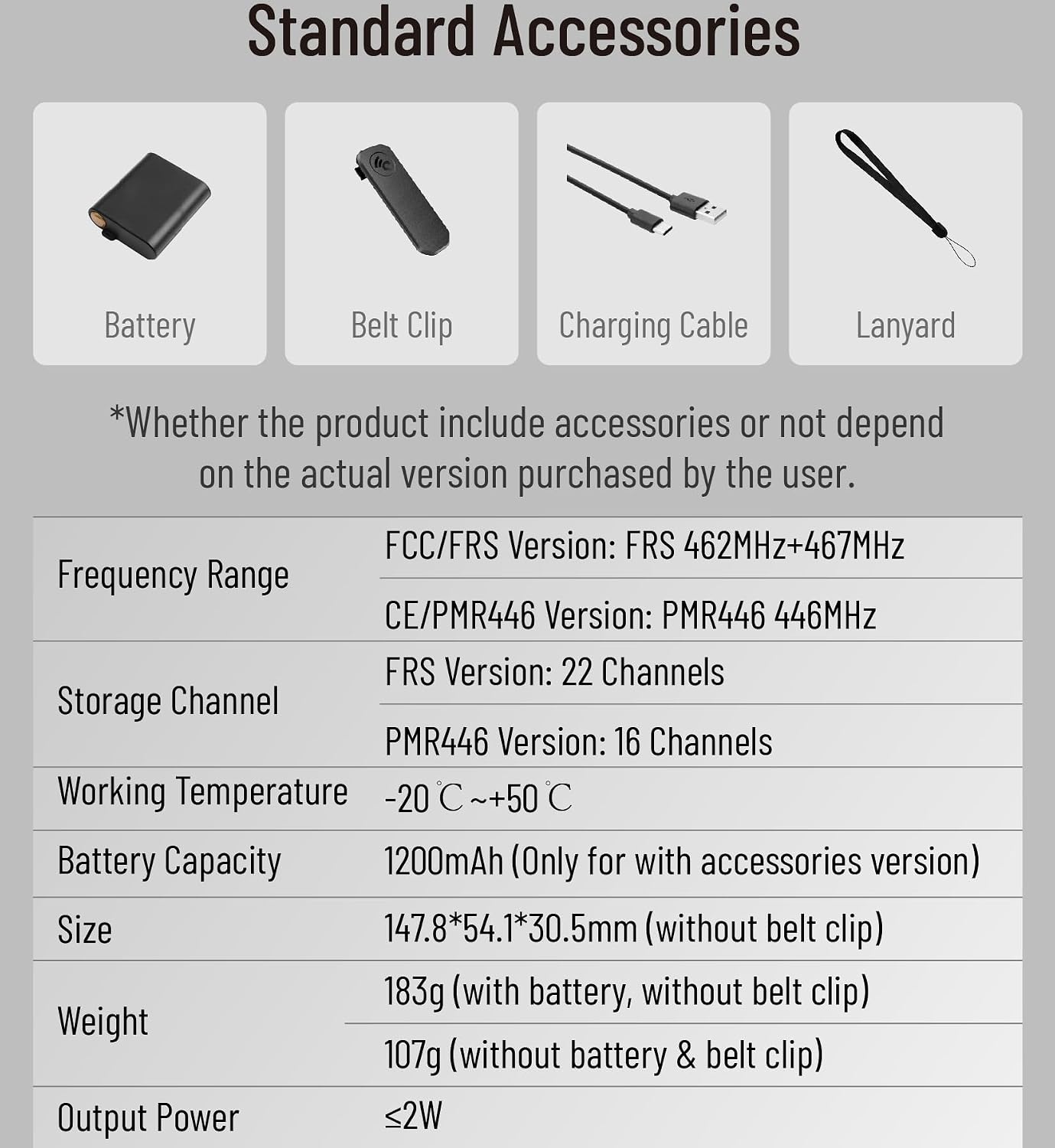

1-сүрөт: Standard accessories included with the QUANSHENG TG-FR1 radio. This image displays a battery, a belt clip, a charging cable, and a lanyard, which are typically provided with the product.

Продукт бүттүview

The QUANSHENG TG-FR1 features a user-friendly design with essential communication functions.

Негизги өзгөчөлүктөрү:

• HD Color Display: 1.3-inch screen for clear visibility of channels, battery status, and other indicators.
• Practical Knob: Intuitive control for channel selection and volume adjustment.
• License-Free Operation: Supports FRS 22 channels and PMR446 16 channels.
• Type-C заряддоо: Заманбап жана ыңгайлуу кубаттоо интерфейси.
• Strong Flashlight: Integrated for illumination in low-light conditions.
• NOAA аба ырайы каналдары: Access to 10 NOAA channels for weather alerts.
• VOX Hands-Free: Voice-activated transmission for convenient communication.
• CTCSS/DCS коддору: 38 CTCSS and 82 DCS codes to enhance privacy and reduce interference.

2-сүрөт: The QUANSHENG TG-FR1 radio's HD color display. The display shows channel numbers, VOX status, battery level, and CTCSS/DCS indicators, providing a vivid and clear user experience.

Жайгашуу

1. Батареяны орнотуу

The QUANSHENG TG-FR1 uses a 1200mAh rechargeable battery. Ensure the battery is correctly inserted into the battery compartment on the back of the radio, aligning the contacts. Close the battery cover securely.

2. Батареяны заряддоо

Connect the provided Type-C charging cable to the radio's Type-C port and the other end to a compatible USB power adapter (not included) or a computer USB port. The charging indicator on the radio will show the charging status. A full charge typically takes approximately 3 hours.

3-сүрөт: Charging the QUANSHENG TG-FR1 radio. The image illustrates the Type-C charging port and cable connection. A warning is present, reminding users not to charge AA batteries in this device.

4-сүрөт: Battery specifications for the QUANSHENG TG-FR1. This image highlights the 1200mAh battery capacity and indicates a standby time of 85 hours, usage time of 10 hours, and a charging time of 3 hours.

3. Күйгүзүү/өчүрүү

To power on the radio, rotate the power/volume knob clockwise until you hear a click and the display illuminates. To power off, rotate the knob counter-clockwise until it clicks off.

Иштөө нускамалары

1. Канал тандоо

The QUANSHENG TG-FR1 supports 22 FRS channels and 16 PMR446 channels. Rotate the channel knob on the top of the radio to select your desired channel. Ensure all radios in your group are set to the same channel for communication.

5-сүрөт: Channel options for the QUANSHENG TG-FR1. This image visually represents the availability of 22 FRS channels and 16 PMR446 channels for communication.

2. Үндү тууралоо

Rotate the power/volume knob clockwise to increase the volume and counter-clockwise to decrease it.

3. Берүү жана кабыл алуу

To transmit, press and hold the Push-to-Talk (PTT) button on the side of the radio. Speak clearly into the microphone. Release the PTT button to receive. The display will indicate when you are transmitting or receiving.

4. VOX колсуз иштөөсү

The VOX (Voice Operated Exchange) feature allows for hands-free transmission. When VOX is enabled, the radio will automatically transmit when it detects your voice. Refer to the on-screen menu or specific button functions to activate and adjust VOX sensitivity.

5. NOAA аба ырайы каналдары

Access the 10 built-in NOAA weather channels to receive real-time weather alerts and forecasts. Consult the radio's menu or dedicated button for NOAA channel access.

6. Кол чырак функциясы

The radio includes a strong flashlight. Locate the flashlight button (often marked with a flashlight icon) and press it to turn the light on or off.

7. CTCSS/DCS Codes

CTCSS (Continuous Tone-Coded Squelch System) and DCS (Digitally Coded Squelch) codes help filter out unwanted conversations on a channel. By setting a specific CTCSS or DCS code, you will only hear transmissions from radios using the same code on that channel. Refer to the radio's menu for setting these codes.

Техникалык тейлөө

• Тазалоо: жумшак колдонуу, damp радионун сыртын тазалоо үчүн чүпүрөк. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
• Батареяга кам көрүү: Батареянын иштөө мөөнөтүн узартуу үчүн, батареянын тез-тез толук зарядын жоготуп алуудан алыс болуңуз. Радиону жана батареяны узак убакыт бою колдонулбаган учурда салкын, кургак жерде сактаңыз.
• Сактагыч: Store the radio in a dry environment, away from direct sunlight and extreme temperatures.

Проблемаларды чечүү

Күч жок

• Батарея туура орнотулганын жана толук заряддалганын текшериңиз.
• Check if the power/volume knob is rotated clockwise to the 'on' position.

Өткөрүп же кабыл ала албайт

• Verify that all radios are set to the same channel.
• Check if CTCSS/DCS codes are enabled and match on all radios.
• Ensure you are within the effective communication range.
• Батареянын заряды жетиштүү экенин ырастаңыз.

Poor Audio Quality or Interference

• Үн деңгээлин тууралаңыз.
• Try switching to a different channel.
• Ensure there are no obstructions (buildings, hills) between radios.
• Электромагниттик тоскоолдуктардын булактарын текшериңиз.

Техникалык шарттар

Кепилдик жана колдоо

Specific warranty information and customer support contact details are not provided within this document. Please refer to the product packaging, the retailer's website, or contact QUANSHENG directly for warranty claims and technical assistance.
