Huanyu 22 Liter Pressure Cooker and Canner (Model HY-PC01) Instruction Manual

Introduction

This manual provides essential instructions for the safe and efficient use of your Huanyu 22 Liter Pressure Cooker and Canner, Model HY-PC01. Please read all instructions carefully before operation to ensure proper use and to prevent injury or damage.

The Huanyu pressure cooker is designed for both pressure cooking and safe home pressure canning of low-acid foods. Its 22-liter capacity makes it suitable for large batches, and the adjustable pressure weight allows for versatile cooking and canning applications.

Продукт өзгөчөлүктөрү

• Safe Home Food Preservation: Pressure canning is the only safe method for preserving low-acid foods such as vegetables, meat, and fish. This process destroys botulism-causing bacteria by using pressure to seal jars, expelling air and preventing spoilage.
• Adjustable Pressure Weight (5, 10, 15 PSI): The improved pressure weight offers three settings:
  • 5 PSI: For low-pressure cooking or use as a conventional slow cooker.
  • 10 PSI: Ideal for daily canning at low altitudes.
  • 15 PSI: Designed for high-altitude canning or preserving meat.
• Large 22 Liter Capacity: This model is suitable for individuals or families requiring large-scale food preservation. It can accommodate up to 18 pint jars or 7 quart jars, allowing for double-layer stacking.
• 2-in-1 Pressure Cooker and Canner: Functions as both a reliable canner for low-acid foods and an efficient pressure cooker for daily meals, significantly reducing cooking times.
• Complete Canning Utensil Kit: Includes a jar lifter, kitchen tongs, jar wrench, bubble remover, magnetic lid lifter, canning funnel, and a heat-resistant glove.

Image: The Huanyu 22 Liter Pressure Cooker shown with its complete set of canning accessories, including a jar lifter, tongs, wrench, bubble remover, magnetic lid lifter, canning funnel, and heat-resistant glove.

Коопсуздук маалыматы

Always follow these safety precautions when operating your pressure cooker:

• Do not overfill the pressure cooker.
• Ensure the lid is properly sealed before increasing басым.
• Меш басым астында турганда капкагын эч качан күч менен ачпаңыз.
• Always allow pressure to release naturally or using the quick release method as instructed, before opening.
• Keep hands and face away from the steam vent during operation.
• Regularly inspect the gasket and safety valves for wear or damage.
• Use caution when handling hot surfaces and steam.

Орнотуу жана чогултуу

1. Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
2. Алгачкы тазалоо: Wash the pressure cooker pot, lid, and all accessories with warm, soapy water. Rinse thoroughly and dry completely.
3. Прокладканы орнотуу: Ensure the sealing gasket is correctly seated in the lid groove.
4. Pressure Regulator Weight Assembly: The adjustable pressure weight consists of a base and removable rings.
   • For 5 PSI: Use only the base weight.
   • For 10 PSI: Add one ring to the base weight.
   • For 15 PSI: Add two rings to the base weight.
   Place the assembled weight onto the vent pipe on the lid.
5. Жайгашкан жери: Place the pressure cooker on a stable, level heat source. The alloy base is compatible with induction, gas, and open flame cooktops.

Image: Illustration of the adjustable pressure weight, showing configurations for 5 PSI (base only), 10 PSI (base with one ring), and 15 PSI (base with two rings).

Image: The alloy base of the pressure cooker, demonstrating its compatibility with induction, gas, and open flame cooktops.

Иштөө нускамалары

General Pressure Cooking

1. Ингредиенттерди кошуу: Place food and the required amount of liquid into the pressure cooker. Do not fill more than two-thirds full for most foods, and no more than half full for foods that expand (e.g., rice, beans).
2. Коопсуз капкак: Place the lid on the cooker, aligning the arrows or marks, and rotate to lock it securely.
3. Set Pressure Weight: Place the appropriate pressure weight (5, 10, or 15 PSI) onto the vent pipe.
4. Жылуулук булагы: Place the cooker on a high heat source. Steam will begin to escape from the vent pipe.
5. Pressure Achieved: Once a steady stream of steam is released, the pressure regulator weight will begin to rock or jiggle. This indicates that the desired pressure has been reached. Reduce heat to maintain a gentle rocking motion.
6. Бышыруу убактысы: Begin timing according to your recipe.
7. басым чыгаруу:
   • Табигый релиз: Remove the cooker from heat and allow pressure to drop naturally. The pressure indicator will drop, and the lid will unlock when safe to open.
   • Quick Release (for some foods): Carefully move the pressure weight to release steam. Use caution as hot steam will escape rapidly. Only use this method if specified by your recipe and for foods that benefit from it.
8. Ачык капкак: Once pressure is fully released, unlock and remove the lid, tilting it away from your face to avoid residual steam.

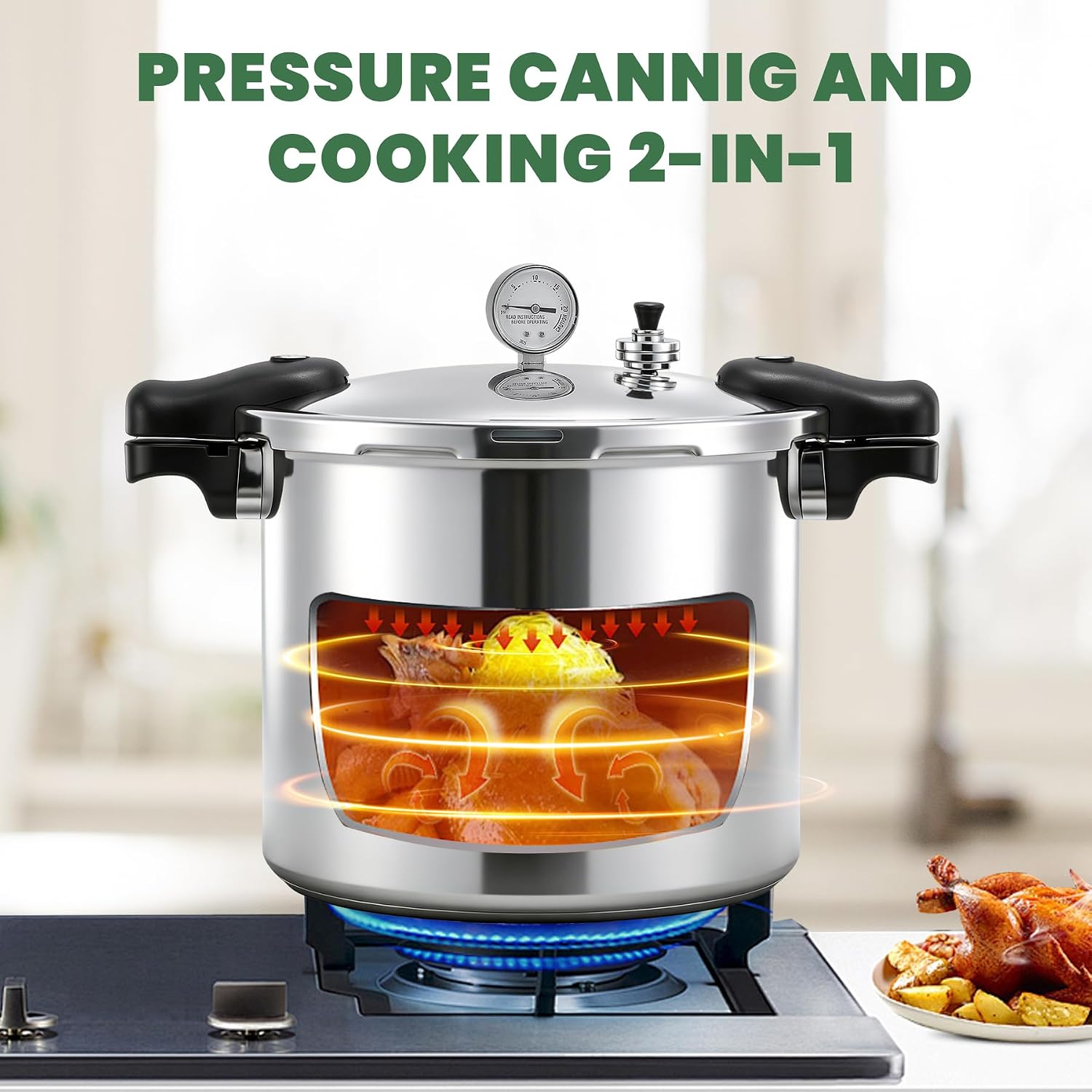

Image: The Huanyu pressure cooker in use on a gas stovetop, illustrating the internal heat circulation during cooking.

Басымдуу консерва

Pressure canning is essential for preserving low-acid foods (pH 4.6 or higher) to prevent bacterial growth, including botulism. Always refer to tested canning recipes and guidelines from reputable sources.

Image: A collage of low-acid foods suitable for pressure canning, including various vegetables, meats, beans, and some fruits.

1. Prepare Jars and Food: Wash and sterilize canning jars. Prepare food according to a tested canning recipe.
2. Банкаларды толтуруңуз: Fill jars with prepared food, leaving the recommended headspace. Use the canning funnel for clean filling.
3. Аба көбүкчөлөрүн алып салуу: Use the bubble remover tool to release trapped air bubbles from jars.
4. Clean Rims and Apply Lids: Wipe jar rims clean. Place new, warm lids and screw bands on jars, tightening finger-tight.
5. Load Canner: Place the canning rack at the bottom of the pressure cooker. Using the jar lifter, carefully place filled jars onto the rack. Jars can be double-stacked if space allows, using a second rack.
6. Суу кошуу: Add 2-3 inches of hot water to the canner, or as specified by your recipe. Do not pour water directly onto jars.
7. Secure Lid and Vent: Place and lock the lid. Turn heat to high. Allow steam to vent steadily from the open vent pipe for 10 minutes to exhaust air from the canner. This is crucial for safe canning.
8. Apply Pressure Weight: After 10 minutes of venting, place the appropriate pressure weight (10 PSI for low altitude, 15 PSI for high altitude) onto the vent pipe.
9. Reach and Maintain Pressure: Allow pressure to build until the weight begins to rock or jiggle steadily. Reduce heat to maintain this steady motion.
10. Иштетүү банкалары: Begin timing the processing according to your recipe. Maintain consistent pressure throughout the entire processing time.
11. Муздатуу: After processing, turn off the heat. Allow the canner to cool naturally until the pressure indicator drops completely and the lid can be opened without resistance. Do not force cool the canner.
12. Банкаларды алып салуу: Using the jar lifter, carefully remove hot jars and place them on a towel-lined surface, allowing space between jars for air circulation. Let them cool undisturbed for 12-24 hours.
13. Мөөрлөрдү текшерүү: After cooling, check jar seals. Lids should be concave and not flex when pressed. Remove screw bands, wipe jars, label, and store in a cool, dark place.

Image: A visual guide demonstrating the use of various canning tools: jar lifter, tongs, jar wrench, bubble remover, magnetic lid lifter, and canning funnel.

Image: A table showing recommended pressure adjustments based on altitude for both weighted gauge and dial gauge canners, emphasizing the importance of adjusting pressure for safe canning at higher elevations.

Техникалык тейлөө жана кам көрүү

• Тазалоо: After each use, wash all parts with warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion. The main pot can be cleaned with a non-abrasive cleaner.
• Прокладка: Remove the gasket from the lid for cleaning. Ensure it is flexible and free from cracks or tears. Replace if damaged.
• Vent Pipe and Safety Valve: Ensure the vent pipe and safety valve are clear of any food debris. Use a small brush or pipe cleaner if necessary.
• Сактагыч: Store the pressure cooker with the lid inverted on the pot to allow air circulation and prevent odors. Store in a dry place.
• Калибрлөө: If your model includes a dial gauge, it is recommended to have it calibrated annually to ensure accuracy, especially for canning.

Проблемаларды чечүү

Техникалык шарттар

Image: The Huanyu 22 Liter Pressure Cooker illustrating its capacity for 18 pint jars or 7 quart jars, along with its dimensions (32cm diameter, 21cm height).

Image: A cutaway diagram showing the multi-layer food-grade aluminum alloy construction of the pressure cooker, highlighting its robust and non-deforming properties.

Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your purchase or contact Huanyu customer service directly. Keep your purchase receipt as proof of purchase.

Байланыш маалыматы: Please visit the official Huanyu website or refer to the contact details provided in the packaging for support.
