Mujocooker M5-1 Electric Wheelchair User Manual

1. Коопсуздук маалыматы

Read all instructions carefully before operating the Mujocooker M5-1 Electric Wheelchair. Failure to follow safety guidelines may result in injury or damage to the product.

• Салмак сыйымдуулугу: 370 lbs (165 кг) максималдуу салмак сыйымдуулугунан ашпаңыз.
• рельеф: Operate on stable and appropriate surfaces. The wheelchair is designed for all-terrain use, including slopes under 10 degrees and obstacles up to 4-5 cm high. Exercise caution on uneven or slippery surfaces.
• Тормоздоо: The wheelchair features an electromagnetic braking system for safe stopping. Ensure brakes are functioning correctly before each use.
• Коопсуздук куру: Always use the adjustable safety belt when operating the wheelchair.
• Батарея: Use only the specified 12Ah lithium batteries. Follow charging instructions carefully to prevent damage or hazards.
• Көзөмөл: If using the rear control option, ensure the caregiver is trained and attentive.

2. Продукт бүтүп калдыview жана компоненттер

The Mujocooker M5-1 is a foldable electric wheelchair designed for mobility and convenience. Key features include a long travel range, powerful motors, and a user-friendly design.

Негизги өзгөчөлүктөрү:

• Long Travel Range: Up to 48+ km (30 miles) with dual 12Ah lithium batteries.
• Күчтүү моторлор: Dual 350W motors (700W total) for robust performance.
• Бүктөлүүчү Дизайн: Folds in approximately 3 seconds for easy transport and storage.
• Авиакомпания жактырылган: Designed to meet airline travel requirements.
• Комфорт: 50cm wide seat with a 7.6cm thick breathable cushion and arched backrest for lumbar support.
• Контролдоо: 360° responsive joystick and optional rear controls for caregivers.
• Коопсуздук: Electromagnetic braking system, anti-tilt wheels, and safety belt.
• Узактыгы: Aluminum frame and solid puncture-free tires.

Майыптар коляскасынын өлчөмдөрү:

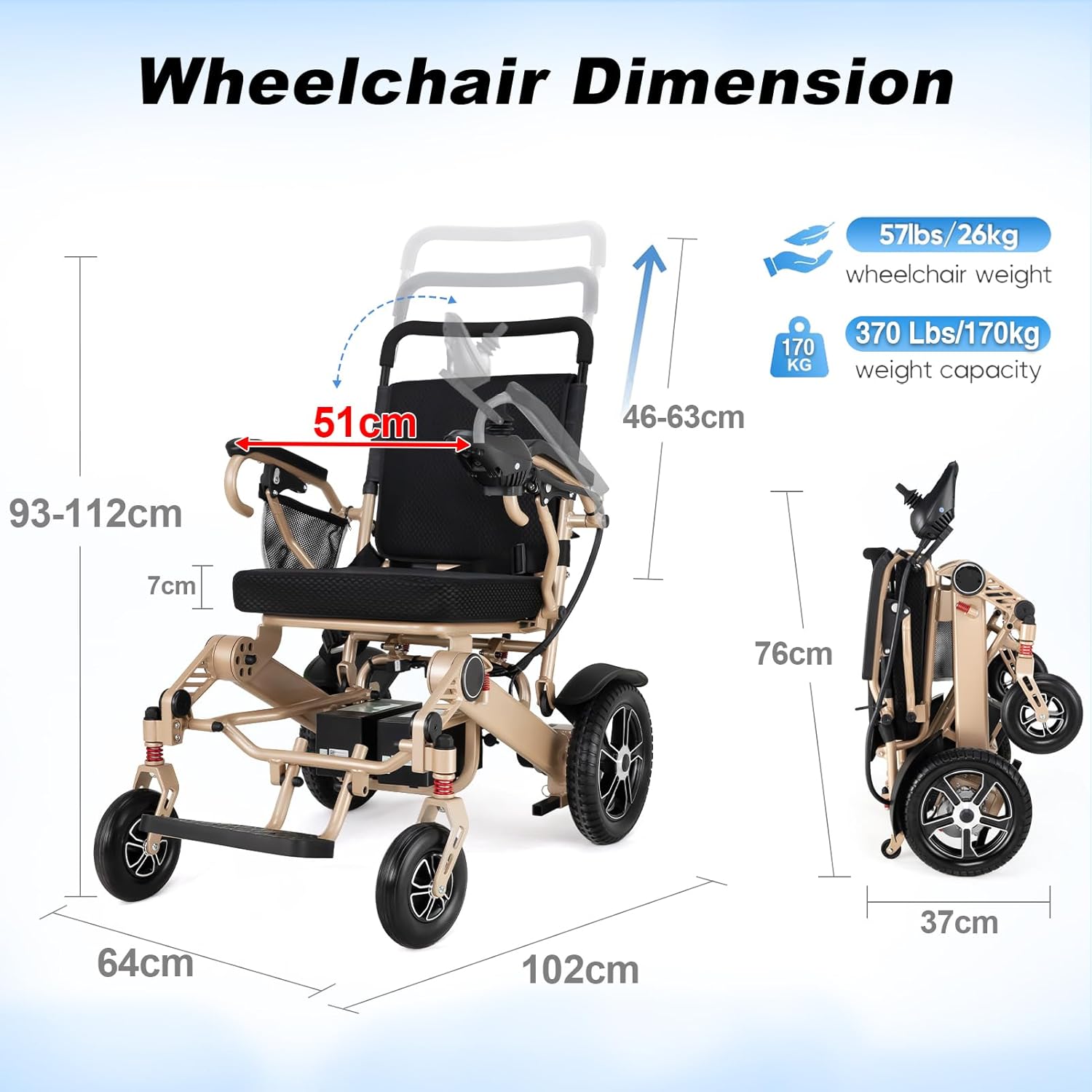

This image illustrates the key dimensions of the M5-1 electric wheelchair, both in its open and folded states. It highlights the overall height, width, and length, as well as the seat width and compact folded size for transport.

User-Friendly Design Features:

This image displays various design elements enhancing user convenience, such as the ability to switch the joystick control to either armrest, liftable armrests for easier access, height-adjustable push handles, anti-tilt wheels for stability, a switch for electric or manual mode, and an adjustable safety belt.

Эргономикалык комфорт:

The ergonomic design ensures comfort during extended use, featuring a breathable cushion and seating angles optimized for the human body to prevent discomfort and pressure sores.

3. Орнотуу жана чогултуу

The Mujocooker M5-1 Electric Wheelchair requires minimal assembly. It arrives largely pre-assembled and can be unfolded for immediate use.

Майыптар коляскасын ачуу:

To unfold, simply release the locking mechanism and extend the frame until it clicks into place. Ensure all components, including armrests and footrests, are securely positioned.

This image demonstrates the quick unfolding process of the wheelchair, highlighting its ease of setup from a compact, folded state.

Батарея орнотуу:

The M5-1 comes with two detachable 12Ah lithium batteries. Insert them into their designated compartments, ensuring a secure connection. The batteries can be charged while installed or removed.

Visual Guide to Setup:

This video provides a visual demonstration of the wheelchair's features, including its folding mechanism, the design of its wheels, the detachable battery, the joystick controls, and how to switch between electric and manual modes. It also shows the wheelchair being driven on various surfaces.

4. Операция

Джойстикти башкаруу:

The 360° joystick provides intuitive control over the wheelchair's movement. It includes buttons for power on/off, speed acceleration, speed deceleration, and a horn. The joystick can be mounted on either the left or right armrest.

This image details the layout and functions of the 360° control joystick, indicating buttons for speed adjustment, power, horn, and displays for speed and battery level.

Electric and Manual Modes:

The M5-1 can be operated in both electric and manual modes. To switch to manual mode, disengage the motors by pushing the red levers on the motors downwards. To engage electric mode, push the levers upwards. Ensure both levers are in the same position for consistent operation.

This diagram illustrates how to switch between electric and manual modes by adjusting the levers on the motors. Pushing both levers up engages electric mode, while pushing them down allows for manual propulsion.

Батареяларды заряддоо:

The wheelchair is equipped with two 12Ah lithium batteries, providing a total of 24Ah capacity. Batteries can be charged directly on the wheelchair via the joystick port or removed for off-board charging. The joystick and the battery pack feature charging displays to monitor progress.

This image highlights the dual 12Ah battery system, emphasizing the extended travel range and the two available charging methods for convenience.

Charging Process Demonstration:

This video demonstrates the charging process for the M5-1 electric wheelchair, showing how to connect the charger to both the joystick and the battery pack, along with the charging displays.

5. Folding and Transport

The Mujocooker M5-1 is designed for easy folding and transport, making it ideal for travel and storage.

• Quick Fold: The wheelchair folds in approximately 3 seconds.
• Компакт өлчөмү: Once folded, it has a compact size (76cm height, 37cm depth) that fits easily into most car trunks.
• Авиакомпания жактырылган: The design and battery specifications are suitable for airline travel. Consult your airline for specific regulations before flying.

This image illustrates the quick folding capability of the wheelchair, emphasizing its space-saving storage size and ease of transport.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Mujocooker M5-1 Electric Wheelchair.

• Тазалоо: Жарнама менен кадрды жана отургучту сүртүңүзamp кездеме. Катуу химиялык заттарды колдонуудан алыс болуңуз.
• Батареяга кам көрүү: Charge batteries regularly, even if not in frequent use, to maintain their lifespan. Store batteries in a cool, dry place.
• Шиналар: The wheelchair is equipped with solid, puncture-free PU tires, eliminating the need for inflation. Periodically inspect them for wear and tear.

This image showcases the durable, non-inflatable PU tires, designed for reliable performance across various terrains without the risk of punctures.

7. Кыйынчылыктарды

If you encounter issues with your M5-1 Electric Wheelchair, refer to the following basic troubleshooting steps:

• Кубат жок: Ensure the battery is fully charged and correctly installed. Check all electrical connections.
• Wheelchair Not Moving: Verify that the motors are engaged in electric mode (levers pushed upwards). Check the joystick connection.
• адаттан тыш үндөр: Discontinue use and inspect for any loose parts or obstructions. Contact customer support if the issue persists.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact Mujocooker customer support.

8. Техникалык шарттар

Мотор деталдары:

This image provides a closer look at the powerful 700W motors, detailing their maximum speed and climbing angle capabilities.

9. Кепилдик жана колдоо

Mujocooker is committed to providing comprehensive after-sales service and support for your M5-1 Electric Wheelchair.

• Battery Coverage: 6 айлык кепилдик.
• Frame Coverage: 12 айлык кепилдик.
• Техникалык колдоо: Өмүр бою техникалык колдоо бар.
• Электрондук почта колдоо: For inquiries or assistance, contact us at mujocooker@163.com. Биз 24 сааттын ичинде жооп берүүгө умтулабыз.

Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
