Introduction
This manual provides instructions for the proper setup, operation, and maintenance of your Takuma P1DC Electronic Intelligent Brake Baitcasting Reel. The P1DC reel features an intelligent electronic brake system, self-powered operation, and precise gear adjustment for an enhanced fishing experience.
Жайгашуу
1. Hand Orientation
Ensure you have selected the correct hand orientation for your reel. If you retrieve with your right hand, choose a Right Hand Reel. If you retrieve with your left hand, choose a Left Hand Reel.
2. Line Installation
Spool your fishing line onto the universal metal short axis cup. The reel has a line capacity of approximately 150 meters. Ensure the line is spooled evenly to prevent tangles and optimize casting performance.
Image: Universal metal short axis cup with hollow hole punching design.
3. Attaching to Rod
Securely attach the reel to your fishing rod's reel seat. Ensure it is firmly seated to prevent movement during casting and retrieval.
4. Bait Weight
The suggested bait weight for optimal performance with this reel is 5-20 grams.
Иштөө нускамалары
1. P1DC Intelligent Control System
The P1DC system utilizes an advanced electronic brake technology with a self-developed algorithm for precise casting control. This system continuously monitors the speed of the wire cup during casting. When it detects the spool speed is too fast, it applies the right amount of braking force in units of one thousandth of a second to stabilize the wire cup and reduce the probability of backlash.
Сүрөт: бүттүview of the P1DC intelligent control system components.
2. Gear Infinite Sensing Adjustment
The Electronic Sao Yin technology provides seamless gear adjustment with infinite sensing capability, ensuring smooth and responsive operation during retrieval.
3. Self-Powered Operation
The reel features an innovative self-charging design. Kinetic energy generated from casting and retrieval is converted into electrical energy, powering the electronic brake system and colorful LED lights without the need for external charging or batteries.
Image: Self-generating power mechanism with colorful LED lights.
4. Throwing Electronic Noise Alert
During casting, the electronic brake emits a light buzzing sound. This sound stops when the bait hits the water or ceases movement. This feature assists in judging the flight time and distance of the bait, particularly in low-light conditions or at night.
Image: Visual representation of the throwing electronic noise alert.
Техникалык тейлөө
1. Тазалоо жана кам көрүү
After each use, especially in saltwater environments, rinse the reel with fresh water to remove salt and debris. Wipe it dry with a soft cloth. Avoid using harsh chemicals or abrasive materials that could damage the finish or internal components.
2. Майлоо
Periodically apply a small amount of high-quality reel oil to moving parts and grease to gears as recommended for baitcasting reels. Refer to general fishing reel maintenance guides for specific lubrication points.
3. Сууга туруктуулук
The reel incorporates nano waterproof technology, making it suitable for freshwater use and resistant to splashes. While it offers protection against water, avoid prolonged immersion.
Image: Nano scale waterproof technology demonstration.
Проблемаларды чечүү
1. Ашыкча терс реакция
The P1DC intelligent electronic brake system is designed to minimize backlash. If you experience excessive backlash, ensure your line is spooled correctly and that you are using appropriate bait weights (5-20g recommended). Adjust your casting technique to be smooth and controlled.
2. No Electronic Noise During Casting
The electronic noise alert should activate during the flight of the bait. If no sound is heard, verify that the reel is functioning correctly and that the self-powered system is generating energy. Ensure the spool is rotating freely during the cast.
3. Reduced Casting Distance
Check your line condition for wear or damage. Ensure the spool is clean and free of obstructions. Verify that the electronic brake system is not overly aggressive; the system automatically adjusts, but extreme conditions or improper technique can affect distance.
Техникалык шарттар

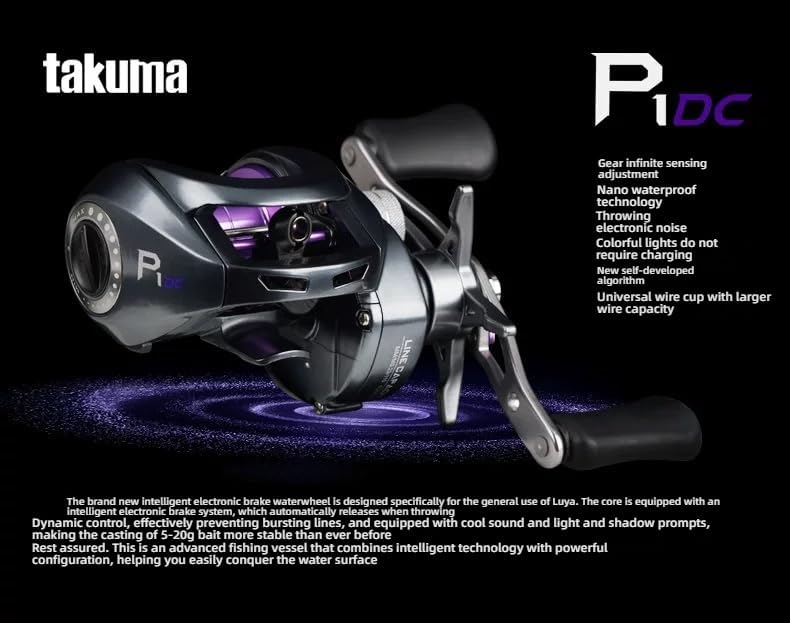

Image: Takuma P1DC Product Parameters.
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Generic (Manufacturer: Takuma) |
| Модель аты | P1DC |
| Колдун багыты | Left Hand or Right Hand |
| Түс | Black With Purple Accents |
| Материал | Aluminum, Carbon Fiber, Stainless Steel |
| Балык кармоонун техникасы | Жем ыргытуу |
| Элемент Салмагы | 185 грамм |
| Редуктор катышы | 7.3:1 |
| Кылдат саны | 10+1 |
| Максималдуу сүйрөө | 17.6 фунт (8 кг) |
| Линиянын кубаттуулугу | Approx. 150 Meters (0.234mm-100m) |
| Элементтин өлчөмдөрү (L x W x Y) | 4.5"L x 2.8"W x 3.1"H |
| Өзгөчөлүктөр | Electronic Intelligent Brake System, P1DC Intelligent Control System, Gear Infinite Sensing Adjustment, Self-charging Technology, Throwing Electronic Noise Alert, Colorful LED Lights, Nano Waterproof Technology |
Кепилдик жана колдоо
Кепилдик маалымат
This product is covered by a 2-Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use.
Кардарларды колдоо
For technical assistance, warranty claims, or inquiries regarding your Takuma P1DC reel, please contact the retailer or manufacturer's customer service department. Refer to your purchase documentation for specific contact details.
