ELUTENG M.2 NVMe USB 3.2 Gen2 SSD Adapter Instruction Manual

1. Продукт бүтүп калдыview

The ELUTENG M.2 NVMe SSD Adapter is an external enclosure designed for M.2 NVMe SSDs (M-Key/B+M-Key) of sizes 2230, 2242, 2260, and 2280. It provides high-speed data transmission up to 10 Gbps via USB 3.2 Gen2, making it ideal for fast backups and large data transfers. This adapter is compatible with Windows 11/10/8/7, Mac OS, and Linux operating systems.

Негизги өзгөчөлүктөрү:

• Universal 2-in-1 Cable: Includes a USB-C to USB-C/A cable for broad compatibility with laptops, PCs, tablets, and OTG-enabled smartphones.
• Куралсыз орнотуу: Allows for effortless SSD changes without screws or tools.
• Жогорку ылдамдыктагы берүү: Equipped with the JMS583 controller and USB 3.2 Gen2, achieving theoretical speeds of 10 Gbps. Note: Full speed requires a USB 3.1 Gen2 (10G) port or higher.
• NVMe Only: Exclusively supports NVMe M-Key or B+M Key SSDs. Not compatible with M.2 SATA or mSATA SSDs.
• Маалыматтын коопсуздугу: Emphasizes secure data handling and connection, recommending safe hardware removal.

2. Пакеттин мазмуну

• 1 x ELUTENG M.2 NVMe SSD Adapter
• 1 x USB-C to USB-A/C 2-in-1 Cable

3. Орнотуу нускамалары

3.1. Installing the M.2 NVMe SSD

1. Ensure the ELUTENG M.2 NVMe SSD Adapter is disconnected from any power source.
2. Gently insert your M.2 NVMe SSD (M-Key or B+M Key) into the slot on the adapter. The adapter supports SSD sizes 2230, 2242, 2260, and 2280. Ensure the SSD is fully seated.
3. No tools or screws are required for installation.

3.1-сүрөт: Tool-free SSD installation into the adapter. The image illustrates the vertical insertion of an M.2 NVMe SSD into the enclosure (step 1), followed by connecting the USB cable to the enclosure (step 2) and then to a laptop (step 3).

3.2. Түзмөгүңүзгө туташуу

1. Connect one end of the included 2-in-1 USB-C cable to the USB-C port on the ELUTENG SSD Adapter.
2. Connect the other end of the cable to an available USB-C or USB-A port on your computer, laptop, tablet, or OTG-enabled smartphone.
3. The device is plug-and-play and should be automatically recognized by your operating system (Windows, Mac OS, Linux).

3.2-сүрөт: Connecting the adapter to various devices. The left panel shows the adapter connected to a smartphone via USB-C, and the right panel shows it connected to a laptop via USB-A.

4. Иштөө нускамалары

4.1. Маалыматтарды өткөрүү

Once connected, your operating system will detect the M.2 NVMe SSD as an external storage device. You can then drag and drop files, copy, or move data to and from the SSD as you would with any other external drive. For optimal performance, ensure you are connected to a USB 3.1 Gen2 (10G) port or higher to achieve the maximum 10 Gbps transfer speed.

4.1-сүрөт: High-speed data transfer. The image shows the adapter connected to a laptop, with an arrow indicating 10 Gbps transmission speed, highlighting its efficiency for large file которуулар.

4.2. Коопсуз алып кетүү

To prevent data loss or damage to your SSD, always use the "Safely Remove Hardware" function (or equivalent) in your operating system before disconnecting the adapter. This ensures all write operations are completed and the drive is unmounted properly.

5. Техникалык тейлөө

5.1. Жылуулук диссипациясы

NVMe SSDs can generate heat during operation, especially during prolonged high-speed transfers. The ELUTENG adapter features a vertical plug-in design to aid in heat dissipation. Ensure adequate ventilation around the adapter during use to maintain optimal performance and longevity of your SSD.

5.1-сүрөт: Heat dissipation design. The image shows the vertical orientation of the SSD in the adapter, with arrows indicating airflow for effective cooling.

5.2. Жалпы кам көрүү

• Адаптерди таза жана чаңдан алыс кармаңыз.
• Адаптерге экстремалдык температурага же нымдуулукка жол бербеңиз.
• Handle the adapter and SSD with care to prevent physical damage.

6. Кыйынчылыктарды

• Адаптер таанылган жок:
  • Ensure the USB cable is firmly connected to both the adapter and your device.
  • Компьютериңиздеги башка USB портуна туташып көрүңүз.
  • Verify that your M.2 SSD is correctly inserted into the adapter.
  • Confirm that your SSD is an NVMe (M-Key or B+M Key) type and not M.2 SATA or mSATA.
  • Test the adapter with a different computer or SSD if possible.
• Slow Transfer Speed:
  • Ensure you are connected to a USB 3.1 Gen2 (10G) port or higher on your host device to achieve maximum speeds. Older USB 2.0 or 3.0 ports will result in lower speeds.
  • Check the health and performance of your NVMe SSD.
  • Ensure no other high-bandwidth operations are running in the background.
• SSD Gets Hot:
  • It is normal for NVMe SSDs to generate heat during operation, especially during heavy use.
  • Адаптердин жетиштүү желдетилишин жана жабылбагандыгын текшериңиз.
  • If temperatures are excessively high and causing performance issues, consider reducing continuous heavy workloads.
• Маалымат жоготуу:
  • Always use the "Safely Remove Hardware" function before disconnecting the adapter to prevent data corruption.
  • Ensure the cable connection is stable during data transfer.

7. Техникалык шарттар

7.1-сүрөт: SSD compatibility overview. This image clearly distinguishes between compatible NVMe M-Key and B+M Key SSDs and incompatible SATA and mSATA SSDs, also showing supported NVMe sizes (2230, 2242, 2260, 2280).

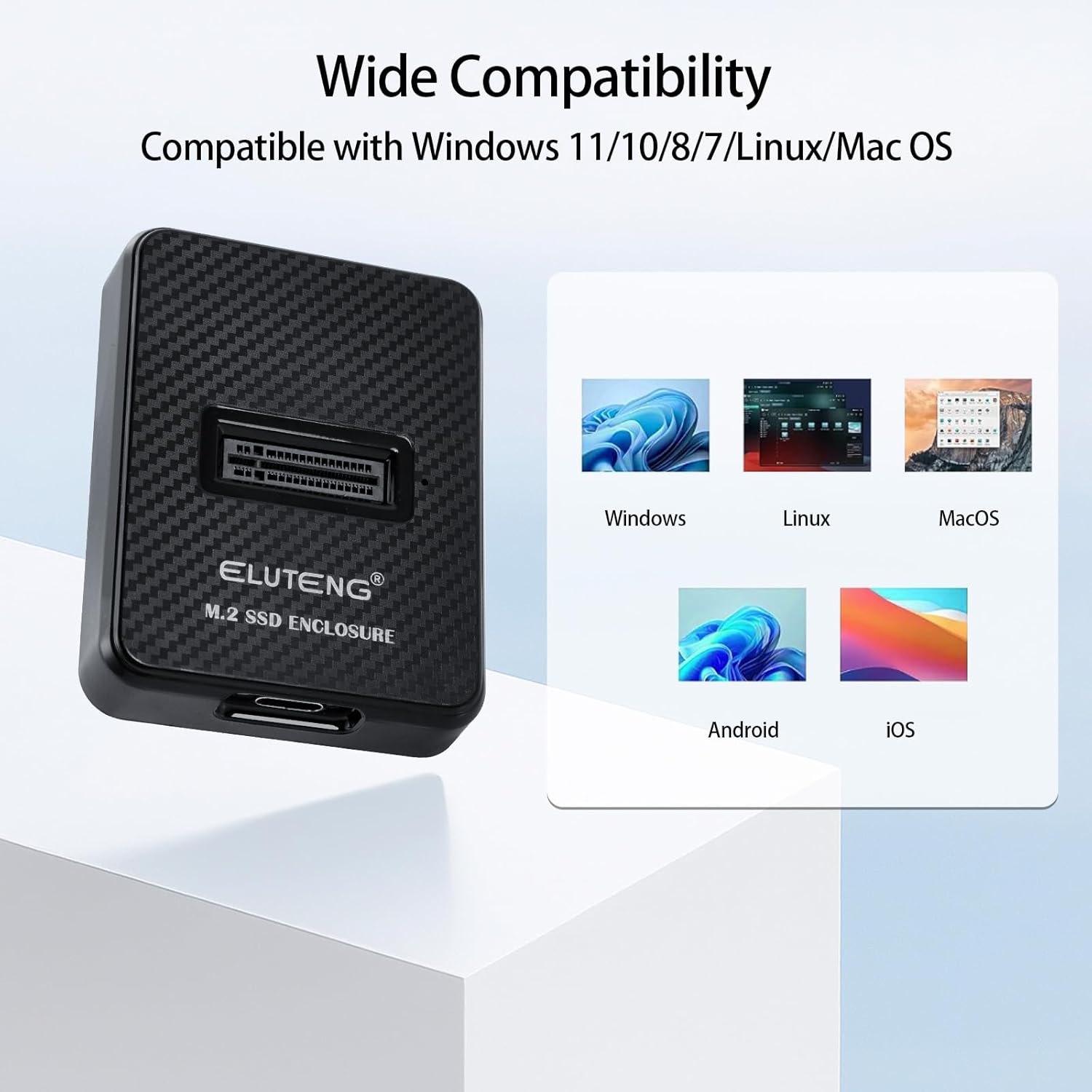

7.2-сүрөт: Wide operating system compatibility. The image displays icons for Windows, Linux, MacOS, Android, and iOS, indicating the adapter's broad system support.

8. Кепилдик маалыматы

Specific warranty details are not provided in the product information. Please refer to the retailer's return policy or contact ELUTENG customer support for warranty inquiries.

9. Кардарларды колдоо кызматы

For further assistance or technical support, please visit the official ELUTENG brand store on Amazon or contact their customer service channels. The brand store link is: ELUTENG Brand Store.
