HTC HSG-2064 Mobile Base

Продукт бүттүview

The HTC HSG-2064 Mobile Base is a robust and essential accessory designed to provide mobility for heavy workshop machinery. Constructed from heavy gauge steel with a full welded design and powder coat finish, it ensures strength and durability. This mobile base is specifically engineered to fit various table saws, including Powermatic 64, 64-A, 63, General 50-175, 50-185, Grizzly 16" Model #G-1538, and Reliant 16" model #EE-166. It features two rigid wheels and one swivel wheel for easy maneuverability, and brake knobs to secure the base in place, raising your machine approximately 3/4-inch off the floor for convenient relocation.

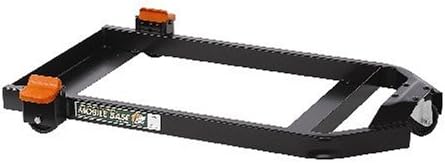

Image: The HTC HSG-2064 Mobile Base, showcasing its sturdy black steel frame, two rigid wheels with orange brake levers, and a single swivel wheel.

Коопсуздук маалыматы

• Always ensure the mobile base is on a level, stable surface before moving or operating machinery.
• Engage all brake mechanisms fully before operating any machinery mounted on the base.
• Do not exceed the weight capacity of the mobile base. Refer to the specifications section.
• Keep hands and feet clear of moving parts, especially during movement and when engaging/disengaging brakes.
• Inspect the mobile base regularly for any signs of wear, damage, or loose components. Do not use if damaged.
• Use appropriate lifting techniques or assistance when placing heavy machinery onto the mobile base.

Бөлүктөр тизмеси

Чогултуудан мурун, бардык компоненттердин бар экендигин жана бузулбагандыгын текшериңиз:

• 1 x Welded Steel Frame (Main Body)
• 2 x Rigid Wheels (pre-attached or requiring simple attachment)
• 1 x Swivel Wheel (pre-attached or requiring simple attachment)
• 2 x Brake Knobs/Levers (for rigid wheels)
• Necessary Fasteners (bolts, nuts, washers) for wheel and brake attachment (if not pre-assembled)

Note: Due to the "full welded" construction, the main frame is a single piece, simplifying assembly.

Орнотуу жана чогултуу

While the main frame is fully welded, some minor assembly of wheels and brake mechanisms may be required. Follow these general steps:

1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн чыгарып, таза, тегиз бетке жаткызыңыз.
2. Attach Rigid Wheels: If not already attached, secure the two rigid wheels to the designated mounting points on one end of the mobile base frame using the provided fasteners. Ensure they are firmly tightened.
3. Attach Swivel Wheel: Mount the single swivel wheel to the designated mounting point on the opposite end of the frame. This wheel allows for directional changes.
4. Install Brake Knobs: Attach the brake knobs or levers to the rigid wheels as per the design. These mechanisms are crucial for locking the base in place.
5. Туруктуулукту текшерүү: Once assembled, gently rock the mobile base to ensure all components are securely fastened and the base is stable.
6. Position Machine: Carefully lift and place your compatible table saw (e.g., Powermatic 64, General 50-175) onto the mobile base. Ensure the machine's feet or base sit securely within the mobile base frame.

It is recommended to have assistance when placing heavy machinery onto the mobile base.

Иштөө нускамалары

Using your HTC HSG-2064 Mobile Base is straightforward:

• To Move the Machine:
  1. Ensure all brake knobs on the rigid wheels are disengaged.
  2. Gently push or pull the machine to its desired new location. The swivel wheel provides easy steering.
  3. Avoid sudden movements or pushing over uneven surfaces.
• To Secure the Machine:
  1. Once the machine is in its desired stationary position, firmly engage the brake knobs on both rigid wheels. This will lock the wheels and prevent unintended movement.
  2. Verify that the base is stable and does not move before operating the machinery.
• Бийиктигин тууралоо: The mobile base raises your machine approximately 3/4-inch off the floor, providing clearance for movement without affecting the machine's operational height significantly.

Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your mobile base:

• Тазалоо: Periodically wipe down the steel frame to remove dust, sawdust, and debris. A damp cloth followed by a dry cloth is sufficient.
• Дөңгөлөктү текшерүү: Check the wheels for any accumulation of debris (e.g., wood chips, string) that might impede their rotation. Clean as necessary.
• Бекер текшерүү: Annually, or more frequently with heavy use, inspect all bolts and fasteners for tightness. Re-tighten any loose components to maintain structural integrity.
• Brake Mechanism: Ensure the brake knobs engage and disengage smoothly and effectively. If they become stiff, a light application of a dry lubricant may help, but avoid over-lubrication which can attract dust.
• Даттын алдын алуу: While the powder coat finish offers protection, if the coating is scratched or damaged, consider touching up exposed metal to prevent rust, especially in humid environments.

Проблемаларды чечүү

Техникалык шарттар

• Модель номери: HSG-2064
• Өндүрүүчү: HTC
• Шайкештик: Powermatic 64, 64-A, 63; General 50-175, 50-185; Grizzly 16" Model #G-1538; Reliant 16" model #EE-166
• Дөңгөлөктүн конфигурациясы: 2 rigid wheels, 1 swivel wheel
• Бийиктиктин өсүшү: Approximately 3/4-inch (1.9 cm)
• Курулуш материалы: Heavy gauge steel, full welded
• Бүтүрүү: Порошок
• Продукциянын өлчөмдөрү (L x W x Y): 93.22 x 83.06 x 9.91 см (36.7 x 32.7 x 3.9 дюйм)
• Элемент Салмагы: 12.07 кг (26.6 фунт)

Кепилдик жана колдоо

For information regarding warranty coverage, technical support, or replacement parts for your HTC HSG-2064 Mobile Base, please contact the manufacturer directly. Refer to the original product packaging or the manufacturer's official webакыркы байланыш маалыматтары жана кепилдик шарттары үчүн сайт.

Өндүрүүчү: HTC

Сураныч, кепилдик дооматтар үчүн сатып алуу далилиңизди сактап коюңуз.
