1. Киришүү
The Dremel 670 Mini Saw Rotary Tool Attachment is designed to convert your Dremel rotary tool into a precision circular saw. This attachment facilitates fine, clear, and straight cuts in various materials such as wood, laminate, wood flooring, thin wood plates, and paneling. It allows for clean, perpendicular cuts up to 1/4 inch (6.35 mm) thick, making it suitable for DIY projects, hobbies, crafts, and model-making.
Image 1.1: The Dremel 670 Mini Saw Rotary Tool Attachment. This image displays the clear housing and compact design of the attachment, ready for connection to a Dremel rotary tool.
2. Коопсуздук маалыматы
Always prioritize safety when operating power tools and attachments. Read and understand all instructions before use. Failure to follow safety warnings and instructions may result in electric shock, fire, and/or serious injury.
- Тиешелүү жеке коргоочу шаймандарды, анын ичинде көздү, угууну жана кол каптарды кийиңиз.
- Даярдоочу бөлүктүн бекем clampкыймылга жол бербөө үчүн кесүү алдында.
- Keep hands and fingers away from the rotating blade. The lower guard retracts during use for safety.
- Disconnect the rotary tool from the power source before changing accessories or making adjustments.
- Do not force the tool; allow the blade to cut at its own pace.
- Ensure the Dremel rotary tool is compatible with 230 volts if operating in regions requiring this voltage.
Сунуш 65 Эскертүү:
Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян келтирүүчү химиялык заттарды камтышы мүмкүн. Көбүрөөк маалымат алуу үчүн, киргиле www.P65Warnings.ca.gov.
3. Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- Dremel 670 Mini Saw Attachment
- Drive Adapter
- Rip/Crosscut Blade (High Speed Steel, 24 teeth)
- Көрсөтмө (бул документ)
4. Орнотуу жана орнотуу
The Dremel 670 Mini Saw Attachment features a quick-connect system for easy installation onto compatible Dremel rotary tools. Follow these steps to attach the mini saw:
- Ensure your Dremel rotary tool is unplugged or has its battery removed.
- Remove any existing accessories or collet nuts from the rotary tool's shaft.
- Insert the provided drive adapter into the rotary tool's collet and tighten it securely.
- Screw the Dremel 670 Mini Saw Attachment onto the threaded collar of your Dremel rotary tool until it is firmly seated. The attachment should be oriented correctly for cutting.
- Insert the Rip/Crosscut blade into the attachment's arbor and secure it with the provided screw. Ensure the blade's teeth are oriented correctly for cutting.
Шайкештик: This attachment is compatible with Dremel rotary tool models: 100, 200, 3000, 4000, 4300, 8220, 8240, 8250, and 8260.
Image 4.1: Diagram illustrating the Dremel 670 Mini Saw Attachment's features, including the clear housing, angled neckline for perpendicular cuts, easy screw-on installation, and retractable lower guard. It also indicates the maximum cutting depth of 1/4 inch (0.635 cm).
5. Операция
Once the Dremel 670 Mini Saw Attachment is securely installed, you can begin cutting. This attachment is designed for precise, straight, and perpendicular cuts in materials such as plastic and wood.
- Жумушчу бөлүгүн даярдоо: Securely clamp the material you intend to cut. This prevents movement and ensures a straight cut.
- Set Up Tool: Ensure the rotary tool is set to an appropriate speed for the material being cut. Refer to your Dremel rotary tool's manual for recommended speed settings.
- Кесүүнү тегиздөө: Position the attachment so the directional guide aligns with your desired cut line. The clear housing provides better visibility of your project and the cutting path.
- Кесүүнү баштоо: Turn on the Dremel rotary tool. Gently lower the spinning blade into the material. The lower guard will retract as the blade engages the workpiece. Apply steady, even pressure, allowing the tool to do the work. Do not force the cut.
- Түздүгүн сактоо: Utilize the angled throat design to maintain straight, perpendicular cuts.
- Maximum Cut Depth: The attachment is designed for cuts up to 1/4 inch (6.35 mm) thick. Do not attempt to cut materials exceeding this thickness.
Image 5.1: A Dremel rotary tool with the 670 Mini Saw Attachment being used to cut wood flooring. The user is guiding the tool along a straight line.
Image 5.2: The Dremel 670 Mini Saw Attachment in use for cutting a rectangular opening in a wall, demonstrating its precision for specific applications.
Image 5.3: An operator using the Dremel 670 Mini Saw Attachment to make a precise cut on a piece of laminate material.
Image 5.4: The Dremel 670 Mini Saw Attachment being used to cut a piece of clear plastic, highlighting its versatility across different materials.
6. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your Dremel 670 Mini Saw Attachment.
- Тазалоо: After each use, disconnect the attachment from the rotary tool and clean it thoroughly. Use a soft brush or cloth to remove dust and debris from the housing, blade, and moving parts. Do not use harsh chemicals or abrasive cleaners.
- Бычак текшерүү: Regularly inspect the Rip/Crosscut blade for sharpness and damage. A dull or damaged blade can affect cutting performance and safety. Replace blades as needed.
- Сактагыч: Store the attachment in a clean, dry place, away from direct sunlight and extreme temperatures.
7. Кыйынчылыктарды
If you encounter issues with your Dremel 670 Mini Saw Attachment, consider the following general troubleshooting steps:
- Кесүү сапаты начар:
- Check if the blade is dull or damaged. Replace if necessary.
- Ensure the rotary tool speed is appropriate for the material.
- Verify the workpiece is securely clamped and not moving during the cut.
- Attachment Not Securing Properly:
- Ensure the drive adapter is correctly inserted and tightened in the rotary tool's collet.
- Confirm the attachment is fully screwed onto the rotary tool's threaded collar.
- Check for any debris preventing a secure connection.
- Ашыкча титирөө:
- Бычактын бузулганын же тең салмактуулугун текшериңиз.
- Ensure all connections (blade, drive adapter, attachment) are tight.
If problems persist, refer to the Dremel rotary tool's instruction manual or contact Dremel customer support.
8. Техникалык шарттар

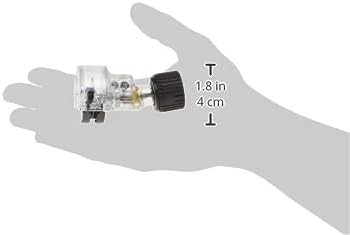

Image 8.1: The Dremel 670 Mini Saw Attachment held in a hand, with approximate dimensions indicated for scale (1.8 inches / 4 cm in height).
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | Dremel |
| Модель номери | 670 |
| Продукциянын өлчөмдөрү (L x W x Y) | 3.13" x 2.25" x 1.75" (7.95 см x 5.72 см x 4.45 см) |
| Элемент Салмагы | 4.2 унция (119 грамм) |
| Бычактын материалы | Жогорку ылдамдыктагы болот |
| Blade Length | 4 дюйм (10.16 см) |
| Тиштердин саны | 24 |
| Кесүү бурч | 90 градус |
| Максималдуу кесүү тереңдиги | 1/4 дюйм (6.35 мм) |
| Surface Recommendation | Пластик, жыгач |
| Өзгөчө өзгөчөлүк | Clear housing for better visibility |
| Камтылган компоненттер | Drive adapter, Instruction Manual, Mini Saw attachment, Rip/Crosscut blade |
| Тtage (Rotary Tool) | 230 Volts (tool dependent) |
9. Кепилдик жана колдоо
The Dremel 670 Mini Saw Rotary Tool Attachment comes with a Limited Manufacturer Warranty. For specific details regarding the warranty coverage, terms, and conditions, please refer to the warranty documentation included with your purchase or visit the official Dremel webсайт.
For technical assistance, replacement parts, or warranty claims, please contact Dremel Customer Service. Contact information can typically be found on the Dremel webсайтында же таңгактоо материалдарында.
