Milwaukee 45136 кабриолет алюминий кол жүк ташуучу унаасынын колдонуучу колдонмосу

1. Киришүү

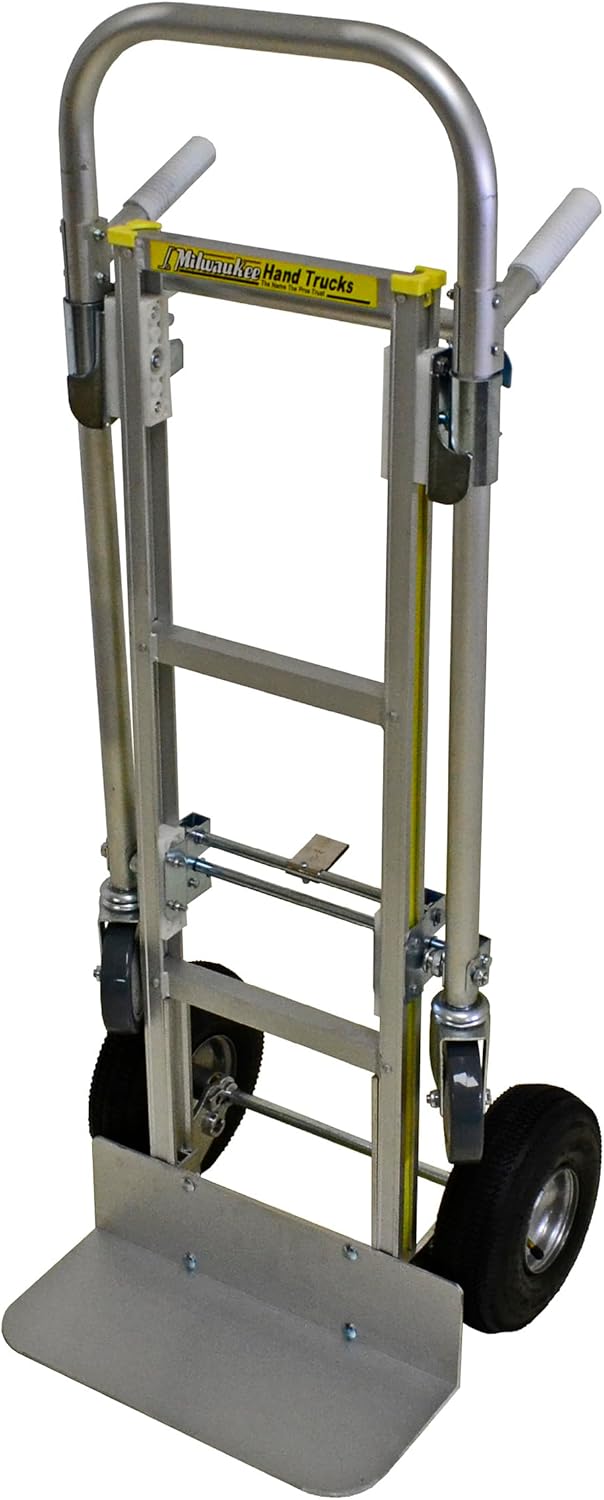

The Milwaukee 45136 Convertible Aluminum Hand Truck is a versatile material handling solution designed for efficiency and durability. This 2-in-1 unit easily transforms from an upright hand truck to a 4-wheel platform cart, adapting to various load requirements. Constructed with a lightweight yet robust aluminum frame, it offers significant load capacities and resistance to rust and corrosion.

Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:

• Heavy-Duty 2-in-1 Convertible Design: Transforms from an upright dolly (800 lbs capacity) to a platform cart (1000 lbs capacity) without the need for hitch pins.
• Durable Lightweight Aluminum Frame: Provides strength without excessive weight, suitable for various environments.
• Smooth-Rolling Pneumatic Wheels: 10-inch air-filled tires absorb shock and navigate uneven surfaces effectively.
• Ergonomic Dual-Handle Design: Ensures maximum grip and control during operation and conversion.
• Extra-Wide 18-inch Toe Plate: Offers stable support for bulky and oversized loads.

2. Орнотуу

The Milwaukee 45136 Convertible Aluminum Hand Truck ships fully assembled, ready for immediate use. Upon receiving the product, perform the following initial checks:

1. Пакетти текшерүү: Check for any signs of damage to the shipping carton.
2. Этияттык менен таңгактан чыгарыңыз: Remove the hand truck from its packaging.
3. Визуалдык текшерүү: Examine the frame, wheels, handles, and conversion mechanisms for any visible damage or loose components.
4. Шина басымы: Verify that the pneumatic tires are adequately inflated. Refer to the tire sidewall for recommended pressure.
5. Функционалдык текшерүү: Test the conversion mechanism to ensure smooth operation between the upright and platform cart configurations.

3. Иштөө нускамалары

3.1. Upright Hand Truck Mode

In its upright configuration, the hand truck is designed for vertical transport of items, supporting up to 800 lbs. This mode is ideal for moving boxes, appliances, and other tall, heavy objects.

1. Позициялоо: Tilt the hand truck slightly backward and slide the 18-inch wide toe plate under the item to be moved.
2. Жүктөө: Ensure the load is centered and stable on the toe plate. Use the dual handles to tilt the hand truck and load backward, balancing the weight over the wheels.
3. Транспорт: Push or pull the hand truck using the ergonomic handles. Maintain a firm grip and keep the load balanced.
4. Түшүрүү: Carefully tilt the hand truck forward to lower the load onto the ground, then slide the toe plate out.

3.2. Converting to Platform Cart Mode

The hand truck can be quickly converted into a 4-wheel platform cart for horizontal transport of larger or multiple items, supporting up to 1000 lbs. No hitch pins are required for this conversion.

1. Аймакты тазалоо: Ensure there is sufficient space around the hand truck for safe conversion.
2. Engage Foot Latch: Locate the foot latch mechanism near the base of the frame. Step on the latch to release the frame.
3. Lower Frame: While holding the handles, gently lower the upper frame section until it locks into the horizontal position, forming the platform.
4. Кулпуну текшерүү: Confirm that the frame is securely locked in the platform position before loading.

Video Demonstration: Conversion and Features

3.3. Maneuvering

The hand truck is equipped with 10-inch pneumatic wheels and 5-inch swivel casters (in platform mode) for enhanced maneuverability.

• Pneumatic Wheels: Provide cushioning for loads and allow for smooth movement over uneven or rough surfaces.
• Айлануучу роликтер: In platform cart mode, the 360-degree swivel casters enable easy navigation and turning in tight spaces.

4. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your Milwaukee 45136 Hand Truck.

• Шина басымы: Periodically check and maintain the recommended air pressure in the pneumatic tires. Under-inflated tires can affect load capacity and maneuverability.
• Тазалоо: Clean the aluminum frame with a damp cloth to remove dirt and debris. The aluminum construction is rust and corrosion resistant, but regular cleaning helps maintain its appearance and integrity.
• Майлоо: Occasionally apply a light lubricant to the moving parts of the conversion mechanism and wheel axles to ensure smooth operation.
• бекиткичтер: Periodically check all bolts, nuts, and fasteners to ensure they are tight. Tighten any loose hardware as needed.
• Сактагыч: Store the hand truck in a dry, protected area when not in use to prevent unnecessary wear and tear.

5. Кыйынчылыктарды

This section addresses common issues you might encounter with your hand truck.

• Айдоо кыйынчылыгы:
  • Check pneumatic tire pressure.
  • Inspect wheels and casters for debris or damage.
  • Ensure axles are properly lubricated.
• Conversion Mechanism Sticking:
  • Clean any dirt or grime from the latch and pivot points.
  • Apply a light lubricant to the moving parts of the mechanism.
  • Ensure no parts are bent or obstructed.
• Туруксуз жүк:
  • Verify the load is centered on the toe plate or platform.
  • Ensure the load does not exceed the specified weight capacity for the current configuration.
  • Check that all wheels are properly inflated and functioning.

6. Техникалык шарттар

7. Кепилдик жана колдоо

For warranty information, technical support, or to inquire about replacement parts, please contact the manufacturer, Gleason Industrial Products, or your authorized Milwaukee dealer. Keep your purchase receipt and model number (45136) readily available when contacting support.
