Продукт бүттүview
The Sierra 18-5241 Marine Condenser is a replacement component designed for optimal performance and reliability in marine engine ignition systems. This condenser is engineered to meet or exceed the specifications of the original equipment part it replaces, ensuring proper function and durability. It is interchangeable with Chrysler F12181-1 and McCulloch 38850115 part numbers.

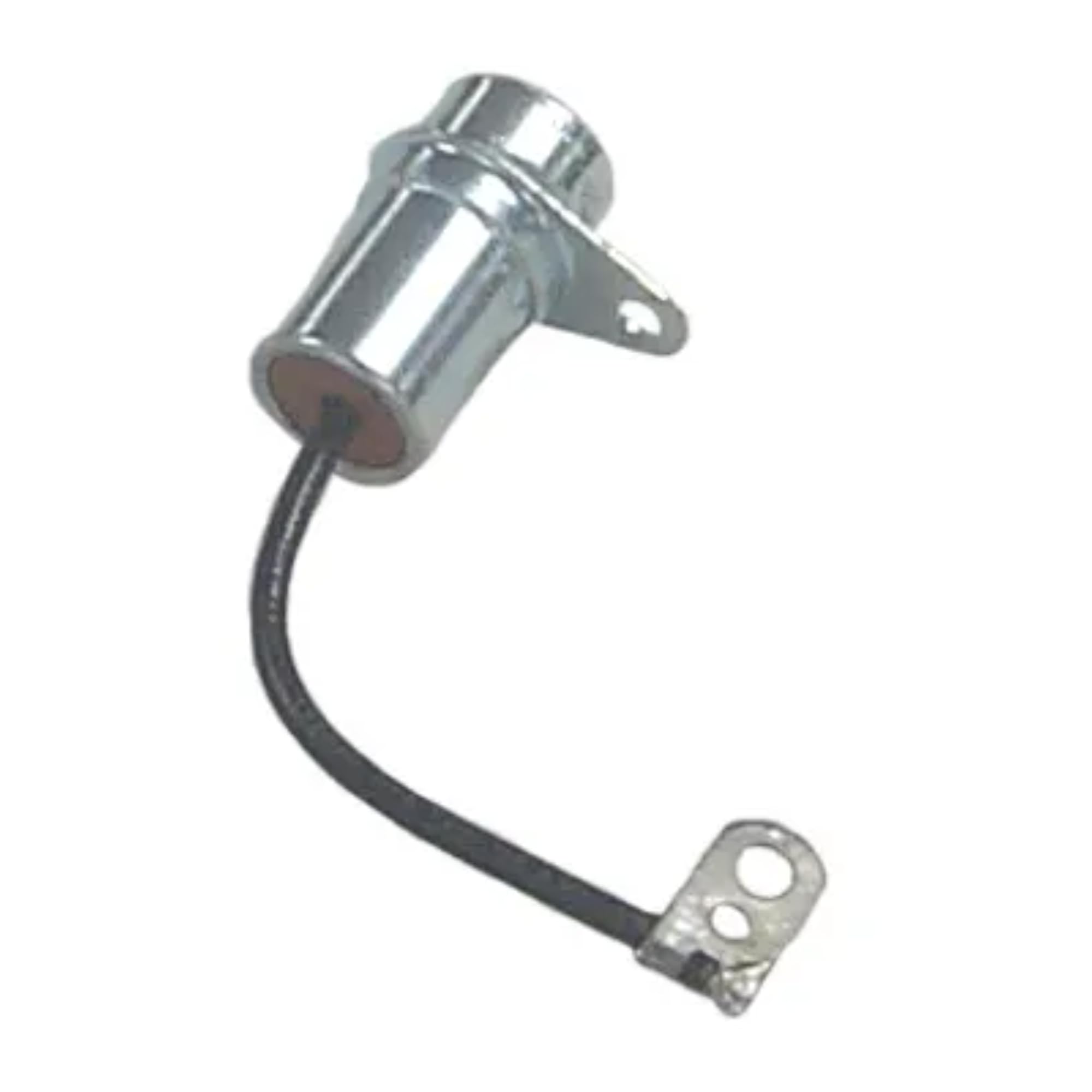

1-сүрөт: Sierra 18-5241 Marine Condenser. This image displays the condenser unit, which is a small, cylindrical metallic component with a wire extending from one end, terminating in a metal ring terminal for connection. The main body is metallic silver, and the wire is black.
Коопсуздук маалыматы
Always observe safety precautions when working with marine engines and electrical components. Disconnect the battery before performing any installation or maintenance. Wear appropriate personal protective equipment, such as safety glasses and gloves. Consult a qualified marine technician if you are unsure about any installation steps.
- Ишти баштоодон мурун, кыймылдаткыч өчүрүлүп, муздаганын текшериңиз.
- Disconnect the battery's negative terminal to prevent accidental electrical discharge.
- Зыян болбош үчүн компоненттерди кылдаттык менен кармаңыз.
- Dispose of old parts responsibly according to local regulations.
Орнотуу жана орнотуу
The Sierra 18-5241 Marine Condenser is a replacement part for specific marine engine ignition systems. Proper installation is crucial for correct engine operation. Refer to your engine's specific service manual for detailed instructions regarding condenser replacement, as procedures may vary by engine model.
Керектүү куралдар:
- Бурагычтар топтому (жалпак баштуу жана Филлипс)
- Wrench set (for mounting bolts, if applicable)
- Wire strippers/crimpers (if new terminals are needed)
- Мультиметр (текшерүү үчүн, кошумча)
Орнотуу кадамдары (Жалпы колдонмо):
- Даярдоо: Ensure the engine is off and the battery is disconnected. Locate the existing condenser within the ignition system, typically near the ignition coil or distributor.
- Removal of Old Condenser: Carefully disconnect the wire leading from the old condenser. Unscrew or unclip the old condenser from its mounting point. Note its orientation and connection points for reference.
- Текшерүү: Inspect the mounting area and wiring for any signs of corrosion or damage. Clean as necessary.
- Installation of New Condenser: Mount the Sierra 18-5241 condenser in the same location and orientation as the old unit. Secure it firmly.
- Зымдарды туташтыруу: Connect the condenser wire to the appropriate terminal in the ignition system. Ensure a secure electrical connection.
- Текшерүү: Бардык туташууларды эки жолу текшерип, кыймылдаткыч бөлүмүндө эч кандай шаймандар же таштандылар калбаганын текшериңиз.
- Сыноо: Reconnect the battery. Start the engine and observe for proper operation. If issues arise, refer to the Troubleshooting section.
Иштөө принциптери
The condenser (also known as a capacitor) plays a critical role in the ignition system of older marine engines that utilize breaker points. Its primary function is to absorb the surge of electricity that occurs when the breaker points open. This prevents arcing across the points, which would otherwise cause rapid wear and inefficient spark production. By suppressing arcing, the condenser helps to ensure a strong, consistent spark at the spark plugs, leading to reliable engine starting and smooth operation.
A properly functioning condenser contributes to:
- Extended life of ignition points.
- Consistent ignition timing.
- Efficient fuel combustion.
- Reduced electrical interference.
Техникалык тейлөө
The Sierra 18-5241 Marine Condenser is a sealed unit and does not require routine maintenance itself. However, it is part of a larger ignition system that does require periodic inspection and maintenance. It is recommended to inspect the condenser and its connections whenever other ignition system components, such as spark plugs or breaker points, are serviced.
- Визуалдык текшерүү: Check the condenser for any signs of physical damage, corrosion, or loose connections.
- Туташуу бүтүндүгү: Ensure the wire terminal is clean and securely fastened.
- Системаны текшерүү: If replacing other ignition components, consider replacing the condenser as a preventative measure, especially if the engine is older or has experienced ignition issues.
Проблемаларды чечүү
If your marine engine experiences ignition problems after installing the Sierra 18-5241 Marine Condenser, consider the following troubleshooting steps:
- No Spark or Weak Spark:
- Verify all electrical connections to the condenser and other ignition components are secure and free of corrosion.
- Check the condition and gap of the breaker points. Faulty points can mimic condenser issues.
- Test the ignition coil for proper resistance and function.
- Engine Misfires or Runs Roughly:
- Ensure the condenser is correctly grounded to the engine block or chassis.
- Inspect spark plugs for fouling or incorrect gapping.
- Check for proper ignition timing.
- Excessive Arcing at Breaker Points:
- This is a primary symptom of a faulty condenser. If arcing persists after installing a new condenser, re-check the installation and ensure the condenser itself is not defective.
If troubleshooting does not resolve the issue, it is recommended to consult a professional marine mechanic or refer to your engine's specific service manual for advanced diagnostics.
Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Бренд | Sierra |
| Модель номери | 18-5241 |
| Interchangeable OEM Part Numbers | Chrysler F12181-1, McCulloch 38850115 |
| Дене материалы | Алюминий |
| Розетка туташуу түрү | Barb |
| Продукт классы | Replacement Part (Meets or exceeds OE quality) |
| Элементтин өлчөмдөрү (L x W x Y) | 0.39 x 0.39 x 0.39 дюйм (болжол менен) |
| Элемент Салмагы | 0.352 унция (болжол менен 0.01 килограмм) |
| Унаа кызматынын түрү | Marine (Note: "Car" listed in some specifications may be a generic category tag; this product is specifically a "Marine Condenser") |
| Газ түрү | Бензин |
| UPC | 030999236876 |
Кепилдик жана колдоо
Sierra products are manufactured to high-quality standards. For specific warranty information regarding the Sierra 18-5241 Marine Condenser, please refer to the official Sierra International website or contact their customer support directly. Warranty terms typically cover manufacturing defects.
Техникалык жардам же кошумча суроолор боюнча, төмөнкү дарекке кириңиз Sierra International Store or consult your local authorized Sierra dealer.
