1. Киришүү
This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your Sennheiser MD 46 cardioid interview microphone. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Продукт бүтүп калдыview
The Sennheiser MD 46 is a high-quality dynamic microphone specifically designed for interview and reporting applications. Its cardioid pickup pattern effectively focuses on the subject's voice while minimizing background noise, making it suitable for challenging environments. The microphone features a robust construction to withstand the rigors of field use.
Негизги өзгөчөлүктөрү:
- Cardioid Dynamic Capsule: Provides focused sound capture and excellent speech intelligibility.
- Double Layer Grille Basket: Offers increased protection against wind and plosive noises.
- Төмөн иштетүү ызы-чуу: Engineered to reduce unwanted noise from physical contact during use.
- Long Handle with Excellent Balance: Designed for comfortable and stable handling during extended interviews.

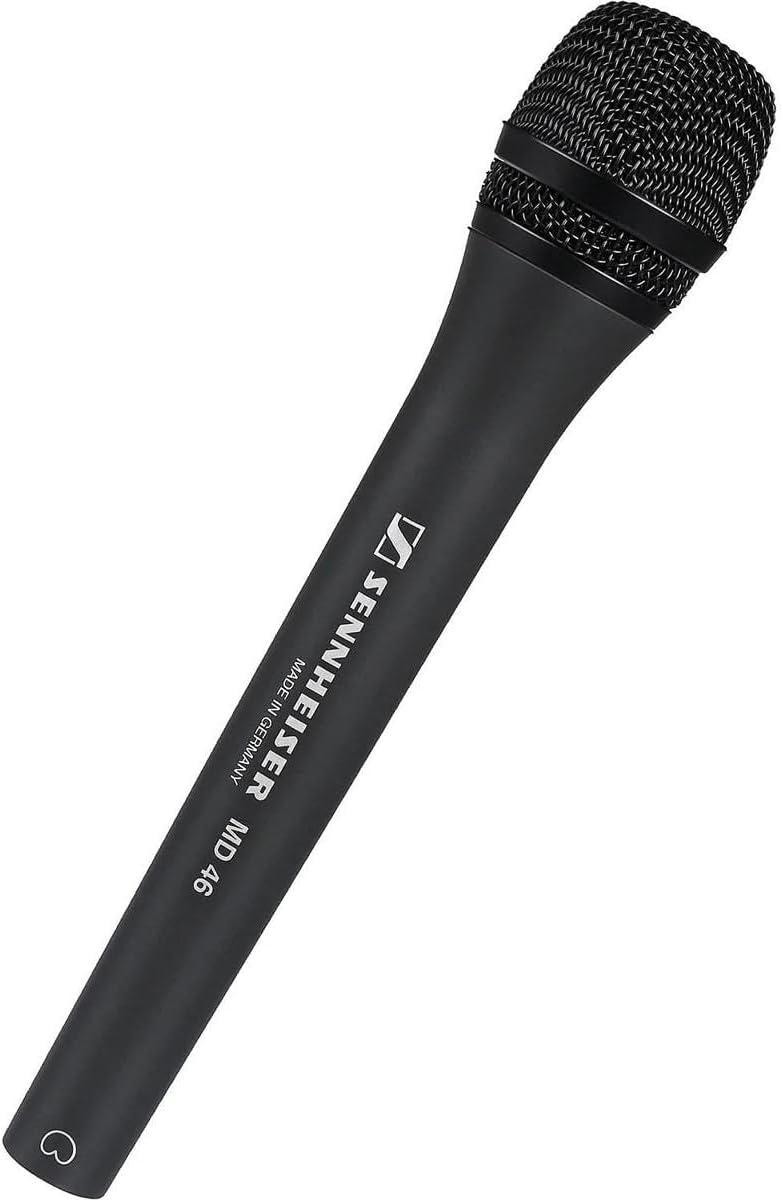

Figure 1: Sennheiser MD 46 Cardioid Interview Microphone. This image shows the full microphone with its black grille and dark gray body.
3. Орнотуу
3.1 Пакеттен чыгаруу
Carefully unpack the contents of the box. The package should contain:
- 1 x Sennheiser MD 46 Microphone
3.2 Микрофонду туташтыруу
The MD 46 microphone uses an XLR connector for audio output. To connect the microphone:
- Ensure your audio recording device, mixing console, or audio interface is powered off.
- Connect a standard XLR cable (not included) to the XLR output port at the base of the MD 46 microphone.
- Connect the other end of the XLR cable to an available XLR input on your recording device.
- Power on your recording device and adjust input gain levels as necessary.
Figure 2: Close-up of the MD 46 microphone grille. This image highlights the robust double-layer grille designed to protect against wind and plosive sounds.
4. Иштөө нускамалары
4.1 Микрофонду жайгаштыруу
The MD 46 is a cardioid microphone, meaning it is most sensitive to sounds coming from the front and rejects sounds from the sides and rear. For optimal performance during interviews:
- Position the microphone directly in front of the speaker's mouth, typically 4-8 inches away.
- Ensure the microphone grille is pointed towards the sound source.
- In noisy environments, maintaining closer proximity to the speaker will enhance voice clarity and further reduce background noise.
4.2 Handling Noise Reduction
The MD 46 is designed with low handling noise characteristics. To further minimize any unwanted noise from handling:
- Hold the microphone firmly but gently by the handle.
- Avoid rubbing or tapping the microphone body during recording.
- If using a microphone stand, ensure it is stable and isolated from vibrations.
4.3 Wind and Pop Noise
The integrated double-layer grille helps to reduce wind and plosive (P, B sounds) noise. For outdoor use or in situations with strong air movement, consider using an additional foam windscreen (not included) for maximum protection.
5. Техникалык тейлөө
5.1 Тазалоо
To maintain the appearance and performance of your microphone:
- Микрофондун корпусун жумшак, кургак чүпүрөк менен сүртүңүз.
- өжөр кир үчүн, бир аз гamp кездемени колдонсо болот, андан кийин дароо кургатуу.
- Do not use harsh chemicals, solvents, or abrasive cleaners, as these can damage the finish or internal components.
- Avoid getting moisture into the microphone grille or connector.
5.2 Сактоо
When not in use, store the microphone in a clean, dry place, away from extreme temperatures and humidity. Using a protective pouch or case (not included) is recommended to prevent dust accumulation and physical damage.
6. Кыйынчылыктарды
If you encounter issues with your MD 46 microphone, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үн жок же начар чыгарылат |
|
|
| Өтө фон ызы-чуу |
|
|
| Popping sounds (plosives) |
|
|
If the problem persists after attempting these solutions, please contact Sennheiser customer support.
7. Техникалык шарттар
The following table lists the technical specifications for the Sennheiser MD 46 microphone:
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | MD 46 |
| Элемент моделинин номери | 005172 |
| Бренд | Sennheiser |
| Полярдык үлгү | Кардиоиддик (бир багыттуу) |
| Frequency Response | 40 - 18,000 Гц |
| Sensitivity (free field, no load, 1kHz) | 2.0 мВ/Па |
| Номиналдуу импеданс | 350 Ом |
| Min. Terminating Impedance | 1000 Ом |
| Туташтыргыч түрү | XLR |
| Байланыш технологиясы | Зымдуу |
| Микрофон форма фактору | Колдук |
| Материал | Эритме болот |
| Түс | Кара |
| Элементтин өлчөмдөрү (L x W x Y) | 5.31 x 2.6 x 13.78 дюйм |
| Элемент Салмагы | 1.9 фунт (360 г) |
| Сунушталган Колдонуулар | Сүйлөө |
| Камтылган компоненттер | 1 MD 46 Microphone |
8. Кепилдик маалыматы
Sennheiser products are covered by a manufacturer's warranty. Specific warranty terms and conditions, including duration and coverage, may vary by region and purchase date. Please refer to the warranty card included with your product or visit the official Sennheiser webтолук маалымат алуу үчүн сайт.
9. Колдоо
For further assistance, technical support, or to access additional resources such as FAQs and firmware updates, please visit the official Sennheiser support webсайт:
You can also find more information about Sennheiser products on their Amazon store page: Sennheiser Amazon дүкөнү
