Pyle PLAM40 Car Stereo Wiring Kit Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation and proper use of the Pyle PLAM40 Car Stereo Wiring Kit. This kit is designed to facilitate the connection of car audio amplifiers and subwoofer speakers within a vehicle's electrical system. Please read this manual thoroughly before beginning installation to ensure safe and correct setup.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ:

• Электр орнотууну баштоодон мурун, ар дайым унаанын терс батарея терминалын сууруп алыңыз.
• Кыска туташуулардын алдын алуу үчүн бардык зымдарды туташтыруу бекем жана тийиштүү түрдө изоляциялангандыгын текшериңиз.
• Кабелдерди кыймылдуу бөлүктөрдөн, курч четтерден жана жылуулук булактарынан алыс кармаңыз.
• Коопсуздук көз айнеги жана кол кап сыяктуу тиешелүү жеке коргонуу каражаттарын колдонуңуз.
• Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, адиске кайрылыңыз.
• Бул продукт Калифорния штатында рак жана тубаса кемтик же башка репродуктивдүү зыян алып келген химиялык заттарды камтыйт.

3. Пакеттин мазмуну

The Pyle PLAM40 Car Stereo Wiring Kit includes the following components:

Сүрөттүн сүрөттөлүшү: This image displays the complete Pyle PLAM40 Car Stereo Wiring Kit, including the retail box and all individual components laid out. Key items visible are various lengths of red, black, and blue wires, RCA cables, an AGU fuse holder, a 60A gold-plated fuse, ring and spade terminals, butt connectors, cable ties, and a black grommet.

• 20 ft. 4 Gauge Red Power Wire
• 4 ft. 4 Gauge Black Ground Wire
• 20 ft. 16 Gauge Blue Remote Turn-On Wire
• 20 ft. 12 Gauge Stereo Speaker Wire
• 20 ft. Stereo RCA Audio Cable (Male to Male)
• 6 ft. Black Split Loom Cable Conduit
• AGU Type 60A алтын жалатылган сактагыч
• In-Line Water Resistant Fuse Holder
• 2 Ring Terminals: 4 Gauge
• 2 Spade Terminals: 4 Gauge
• 5 Spade Terminals: 16-18 Gauge
• 3 Butt Connectors
• 20 Кабель байламталары
• 1 Black Grommet

Сүрөттүн сүрөттөлүшү: This image shows a close-up of the main cables provided in the kit, including the red power wire, black ground wire, blue remote turn-on wire, stereo speaker wire, and RCA audio cables, all coiled neatly.

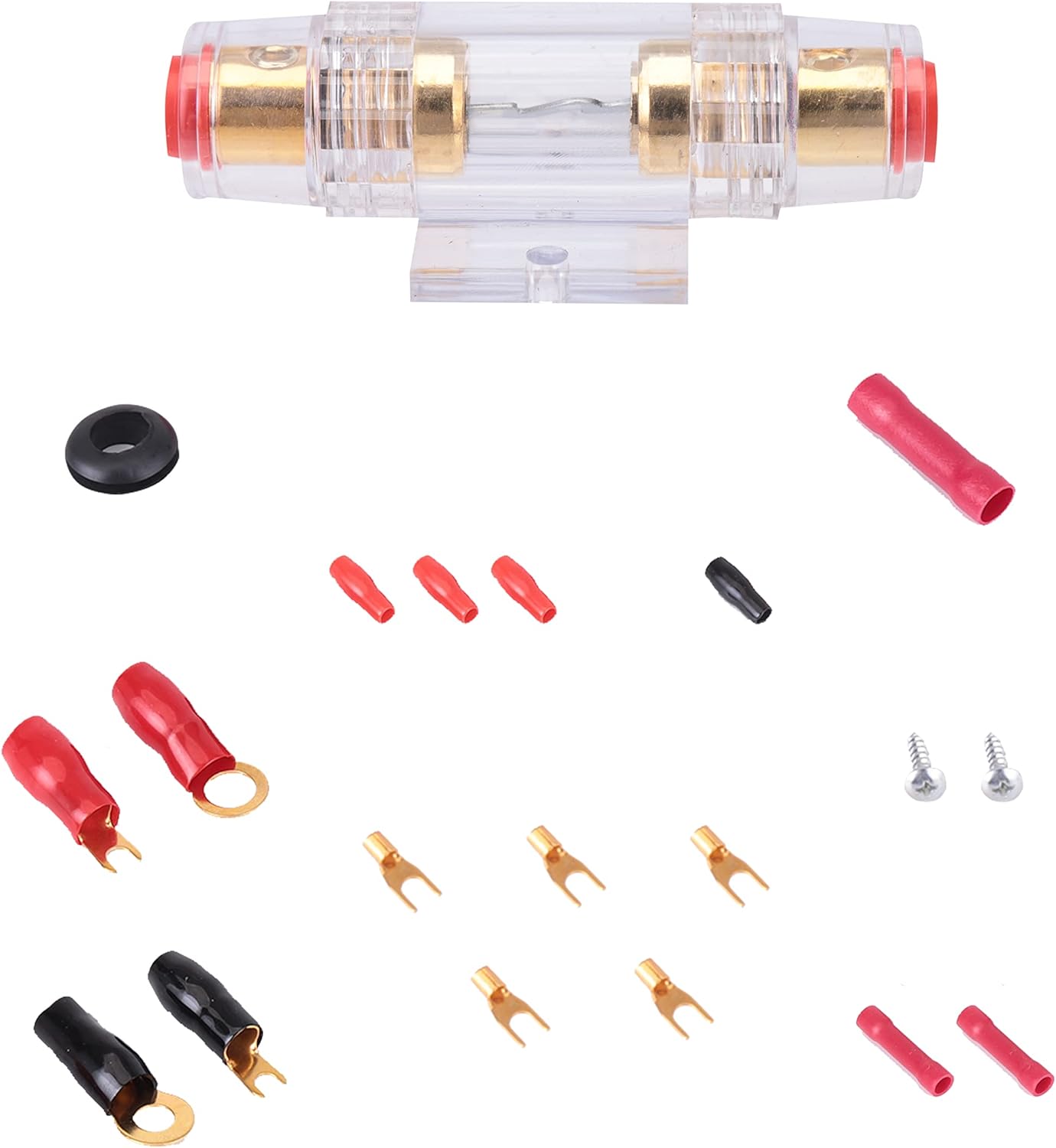

Сүрөттүн сүрөттөлүшү: This image details the smaller components of the kit, such as the AGU fuse holder, various ring and spade terminals, butt connectors, cable ties, and the black grommet, laid out for clear identification.

4. Орнотуу жана орнотуу

This section outlines the general steps for installing your car audio amplifier and subwoofer using the Pyle PLAM40 wiring kit. Specific vehicle configurations may vary.

4.1. Орнотууну пландаштыруу

• Determine the mounting location for your amplifier, ensuring adequate ventilation and protection from moisture.
• Plan the routing of all cables to minimize interference and ensure safety. Avoid sharp bends and areas prone to pinching.

4.2. Power Wire Installation

1. Батареяны ажыратыңыз: Disconnect the negative (-) terminal of your vehicle's battery.
2. Route Power Wire: Route the 20 ft. 4 Gauge Red Power Wire from the battery location through the firewall into the vehicle's interior to the amplifier mounting location. Use the black grommet where the wire passes through the firewall to protect it from abrasion.
3. Сактагыч кармагычты орнотуу: Install the In-Line Water Resistant Fuse Holder within 18 inches (45 cm) of the battery's positive (+) terminal. Connect one end of the power wire to one side of the fuse holder and a short length of power wire (from the kit) to the other side.
4. Батареяга туташуу: Attach a 4 Gauge Ring Terminal to the short length of power wire and connect it to the positive (+) terminal of the battery.
5. Insert Fuse: Insert the AGU Type 60A Gold Plated Fuse into the fuse holder.

Сүрөттүн сүрөттөлүшү: This diagram illustrates the complete wiring setup for a car audio system. It shows the battery connected to the fuse holder, which then connects to the amplifier via the power cable. The amplifier is grounded to the chassis. RCA cables connect the receiver to the amplifier, and speaker wires connect the amplifier to the speakers and subwoofer. A remote turn-on wire connects the receiver to the ampөмүрлүү.

Сүрөттүн сүрөттөлүшү: This image focuses on the power cable connection. It shows the red power cable connected to the car battery's positive terminal via a ring terminal, leading to the water-resistant in-line fuse holder. The fuse holder contains an AGU fuse, protecting the circuit.

4.3. Ground Wire Installation

1. Route Ground Wire: Route the 4 ft. 4 Gauge Black Ground Wire from the amplifier mounting location to a clean, unpainted metal surface on the vehicle's chassis.
2. Prepare Ground Point: Scrape away any paint or rust from the chosen ground point to ensure a good electrical connection.
3. Жер зымдарын туташтыруу: Attach a 4 Gauge Ring Terminal to the ground wire and securely fasten it to the prepared chassis ground point using a self-tapping screw or existing bolt.

4.4. Remote Turn-On Wire Installation

1. Башкы блокко туташуу: Connect one end of the 20 ft. 16 Gauge Blue Remote Turn-On Wire to the remote output terminal of your car's head unit (stereo).
2. Route to Ampөмүр берүүчү: Route the wire to the ampкөтөргүчтүн алыстан киргизүү терминалы.

Сүрөттүн сүрөттөлүшү: This image shows the blue remote turn-on wire connected from the car stereo (head unit) to the amplifier's remote input terminal. This wire signals the amplifier to turn on when the stereo is activated.

4.5. RCA Audio Cable Installation

1. Башкы блокко туташуу: Connect the RCA plugs of the 20 ft. Stereo RCA Audio Cable (Male to Male) to the RCA pre-out jacks on your car's head unit.
2. Route to Ampөмүр берүүчү: Route the RCA cables to the RCA input jacks on your amplifier. Try to route RCA cables on the opposite side of the vehicle from power cables to minimize noise interference.

4.6. Speaker Wire Installation

1. туташуу Ampөмүр берүүчү: Connect the 20 ft. 12 Gauge Stereo Speaker Wire to the speaker output terminals on your ampөмүрлүү.
2. Route to Speakers/Subwoofer: Route the speaker wires to your speakers and/or subwoofer. Ensure correct polarity (+ to + and - to -) for all connections.
3. Динамиктерге туташуу: Connect the speaker wires to the terminals on your speakers/subwoofer. Use the provided spade terminals (16-18 Gauge) for smaller speaker connections if needed.

Сүрөттүн сүрөттөлүшү: This image shows a close-up of speaker wires connected to a car speaker. The wires are typically connected to the positive and negative terminals of the speaker, ensuring proper audio signal transmission.

4.7. Кабелдик башкаруу

• Use the 6 ft. Black Split Loom Cable Conduit to protect wires in areas where they might be exposed to heat or abrasion.
• Secure all cables using the provided 20 Cable Ties to prevent them from moving or interfering with vehicle operation.

5. Operating Your Audio System

Once all connections are made and secured, reconnect the negative (-) battery terminal. Turn on your car's ignition and then the head unit. The amplifier should power on automatically via the remote turn-on wire. Adjust amplifier gain and crossover settings according to your audio preferences and speaker specifications.

6. Техникалык тейлөө

• Мезгил-мезгили менен бардык зымдарды туташтыргычтын бекемдигин жана коррозиясын текшерип туруңуз.
• Check the fuse in the in-line fuse holder. If the fuse blows, replace it only with an AGU type 60A fuse. Do not use a fuse with a higher ampрейтингди өчүрүү.
• Keep cables clean and free from debris.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

The Pyle PLAM40 Car Stereo Wiring Kit comes with a БИР ЖЫЛ warranty from the date of purchase. For warranty claims or technical support, please contact Pyle customer service. You can find more information and contact details on the official Pyle webсайт: www.pyleusa.com.
