1. Киришүү
This instruction manual provides essential information for the safe and proper use, setup, operation, and maintenance of your Piko 57690 H0 ICE 3 Passenger Car. Please read this manual thoroughly before using the product and retain it for future reference.
2. Продукт бүтүп калдыview
The Piko 57690 is an H0 scale model of an ICE 3 1st Class Coach, designed for model train enthusiasts and collectors. It features realistic detail and robust construction, making it a valuable addition to any H0 scale railway layout or diorama.

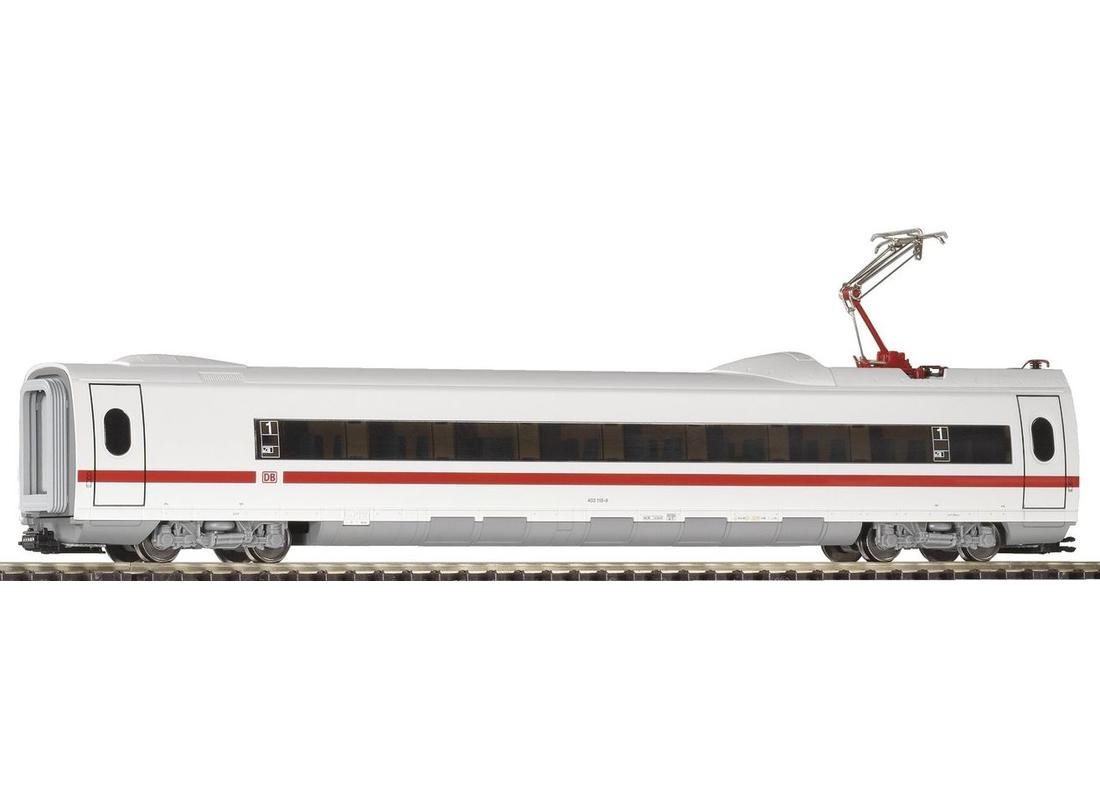

Figure 1: Piko 57690 H0 ICE 3 Passenger Car. This image shows the detailed exterior of the model train car, including windows, doors, and the pantograph on the roof.
Негизги өзгөчөлүктөрү:
- New in manufacturer packaging.
- Realistic Detail.
- Robust materials.
- Original packaging.
- Scale Miniature for Model Trains and Dioramas.
3. Орнотуу
- Кутудан чыгаруу: Carefully remove the passenger car from its packaging. Inspect for any visible damage during transit.
- Текшерүү: Check all components, including wheels, couplers, and the pantograph, to ensure they are intact and properly aligned.
- Тректерде жайгаштыруу: Gently place the passenger car onto your H0 scale railway tracks. Ensure all wheels are correctly seated on the rails.
- Кошуу: Connect the passenger car to other train cars or a locomotive using the integrated couplers. Ensure a secure connection to prevent derailment during operation.
4. Иштөө нускамалары
The Piko 57690 H0 ICE 3 Passenger Car is a non-powered car designed to be pulled by a compatible H0 scale locomotive. Ensure your locomotive and track system are in good working order before operating.
- Трек шайкештиги: Use with standard H0 scale (1:87) railway tracks.
- Кошуу: Ensure the car is securely coupled to the locomotive and other cars. Loose couplings can lead to derailments.
- Жылмакай операция: Operate your train at appropriate speeds. High speeds on curves or uneven tracks can cause the car to derail.
- Пантограф: The pantograph on the roof is for aesthetic detail and is typically non-functional for power collection on H0 scale models unless specifically designed for overhead line operation. Handle with care to avoid damage.
5. Техникалык тейлөө
- Тазалоо: Use a soft, dry cloth to gently wipe the exterior of the car. Avoid abrasive cleaners or solvents, which can damage the paint and plastic.
- Дөңгөлөк тазалоо: Periodically inspect and clean the wheels to remove dust and debris that can affect smooth running. A small brush or cotton swab can be used.
- Сактагыч: When not in use, store the passenger car in its original packaging or a protective case to prevent dust accumulation and accidental damage. Store in a cool, dry place away from direct sunlight.
- Колдонуу: Always handle the model by its body, avoiding delicate parts like the pantograph, railings, or couplers.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Car derails frequently |
|
|
| Car does not run smoothly |
|
|
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 57690 |
| Бренд | Piko |
| Масштаб | H0 (1:87) |
| Продукциянын өлчөмдөрү | 15.43 x 3.23 x 2.05 дюйм |
| Элемент Салмагы | 8.5 унция |
| Өндүрүүчүнүн сунуш кылган курагы | 6 жаш жана андан жогору |
| Чыгарылган күнү | 1-июль, 2005-жыл |
8. Кепилдик маалыматы
Specific warranty details for the Piko 57690 H0 ICE 3 Passenger Car are typically provided with the product at the time of purchase or can be found on the official Piko website. Please refer to the documentation included in your product packaging for comprehensive warranty terms and conditions.
9. Кардарларды колдоо кызматы
For further assistance, technical support, or inquiries regarding your Piko 57690 H0 ICE 3 Passenger Car, please contact Piko customer service directly. Contact information can usually be found on the manufacturer's official webсайтында же продуктунун таңгагында.
