Sealey RE232 Coil Spring Compressing Station

1. Киришүү

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of the Sealey RE232 Coil Spring Compressing Station. This unit is an air-actuated hydraulic tool designed for compressing coil springs with a capacity of up to 1500kg. It offers a quicker and easier alternative to traditional ratchet-driven spring compressors.

Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул нускамаларды аткарбоо олуттуу жаракатка же өлүмгө алып келиши мүмкүн.

• Ар дайым коопсуздук көз айнегин, кол капты жана бышык бут кийимди кошо алганда, тиешелүү жеке коргонуу каражаттарын (ЖКК) кийиңиз.
• Ensure the unit is placed on a stable, level, and non-slip surface before operation.
• 1500 кг максималдуу жүк көтөрүмдүүлүгүн ашпаңыз.
• Ensure the air supply pressure does not exceed 120psi (8.3 bar).
• Keep hands and other body parts clear of moving parts during operation.
• Inspect the unit for damage or wear before each use. Do not operate if damaged.
• Only use the unit for its intended purpose: compressing coil springs within the specified diameter range (Ø80mm to Ø175mm).
• Ensure the spring is securely seated in the plastic-coated yokes before applying pressure.
• Жабдууларды эч кандай өзгөртүүгө болбойт.
• Балдарды жана уруксаты жок адамдарды жумуш аймагынан алыс кармаңыз.

3. Компоненттер жана тетиктер

The Sealey RE232 Coil Spring Compressing Station consists of the following main components:

• Main Vertical Column with adjustable upper yoke positions.
• Hydraulic Cylinder and Piston Assembly.
• Air Actuated Control Valve.
• Foot Pedal for alternative operation.

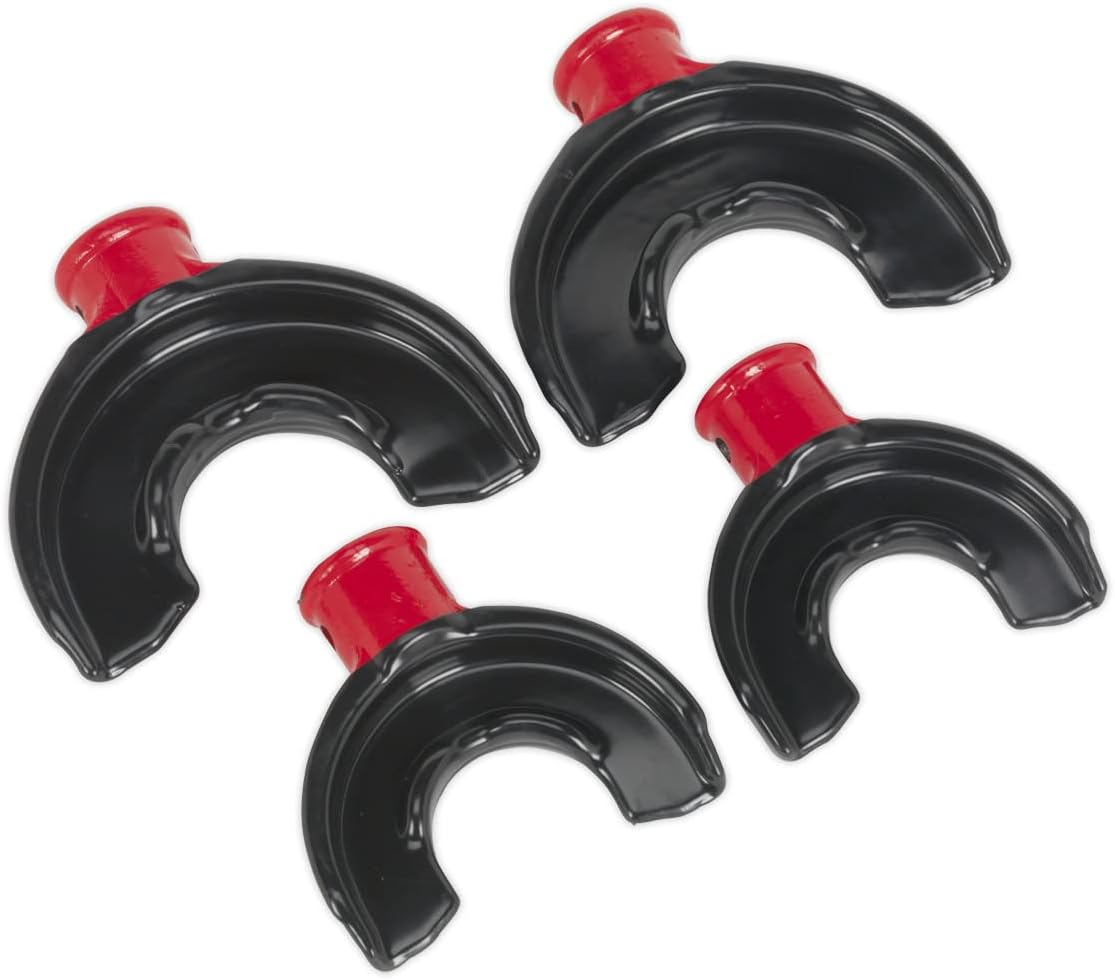

• Upper and Lower Plastic-Coated Yokes (suitable for springs Ø80mm to Ø175mm).
• Base Plate for stability.
• Air Hose with quick connector.

4. Орнотуу

1. Пакеттен чыгаруу: Carefully remove all components from the packaging. Inspect for any shipping damage. Report any damage to your supplier immediately.
2. Ассамблея: The main unit typically comes pre-assembled. Ensure all bolts and fasteners are tight before first use. Refer to the assembly diagram (if provided separately) for detailed steps if any assembly is required.
3. Жайгашкан жери: Position the compressing station on a firm, level, and clean concrete surface capable of supporting the unit's weight and the maximum load. Ensure adequate clear space around the unit for safe operation.
4. Аба менен камсыздоо байланышы: Connect a suitable air compressor to the air inlet on the unit using the provided air hose. Ensure the air supply is clean, dry, and regulated to a maximum of 120psi (8.3 bar).
5. Алгачкы текшерүү: Before loading a spring, perform a test cycle by operating the foot pedal or air control to ensure the hydraulic ram extends and retracts smoothly.

5. Иштөө нускамалары

1. Жазга даярданыңыз: Ensure the coil spring is clean and free from debris.
2. Position the Yokes: Adjust the upper yoke to an appropriate height for the spring being compressed. The unit features 7 upper yoke positions for versatility. The lower yoke has a travel of 340mm.
3. Load the Spring: Carefully place the coil spring into the plastic-coated yokes. Ensure it is centered and securely seated. The yokes are designed for springs with diameters from Ø80mm to Ø175mm.
4. Compress the Spring:
   • Air Actuation: Use the air control valve to slowly apply pressure, causing the hydraulic ram to compress the spring.
   • Бут педалынын иштеши: Alternatively, use the foot pedal to manually actuate the hydraulic unit and compress the spring.
   Apply pressure gradually and observe the spring's compression. Do not over-compress the spring.
5. Secure the Spring: Once the spring is compressed to the desired level, secure it using appropriate spring clamps or retaining tools (not included with the unit).
6. Чыгуу басымы: Slowly release the pressure from the hydraulic unit.
7. Remove the Spring: Carefully remove the secured spring from the compressing station.

Эскертүү: The plastic-coated yokes are designed to reduce the risk of spring slippage or damage during the compression process.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your Sealey RE232 Coil Spring Compressing Station.

• Күнүмдүк текшерүү: Before each use, inspect the unit for any visible damage, loose fasteners, or signs of hydraulic fluid leaks. Check the condition of the air hose and connections.
• Тазалоо: Keep the unit clean and free from dirt, grease, and debris. Wipe down surfaces with a clean cloth. Do not use harsh solvents that could damage paint or seals.
• Гидравликалык суюктуктун деңгээли: Periodically check the hydraulic fluid level. Refer to the unit's specific instructions for accessing the reservoir and the type of hydraulic fluid recommended (typically ISO VG 32 or equivalent). Top up if necessary.
• Майлоо: Lubricate moving parts and pivot points as recommended by the manufacturer to ensure smooth operation.
• Сактагыч: When not in use, store the unit in a clean, dry, and secure location, away from extreme temperatures and corrosive environments.
• Кесиптик тейлөө: Any repairs or major maintenance, especially involving the hydraulic system, should only be performed by qualified personnel.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information, technical support, or to purchase replacement parts, please contact Sealey customer service or visit the official Sealey webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

Sealey Байланыш маалыматы:

• Webсайт: www.sealey.co.uk
• Refer to the product packaging or Sealey's official website for the most current contact details and warranty terms specific to your region.
