Sealey VS803 Heavy Duty Door Hinge Pin Tool Set

1. Киришүү

This manual provides essential instructions for the safe and effective use of your Sealey VS803 Heavy Duty Door Hinge Pin Tool Set. Please read this manual thoroughly before operation and retain it for future reference.

The Sealey VS803 is designed for the removal of door hinge pins, particularly those found in hollow-type hinges. Its robust construction and cranked anvil design facilitate improved access and leverage for efficient pin extraction.

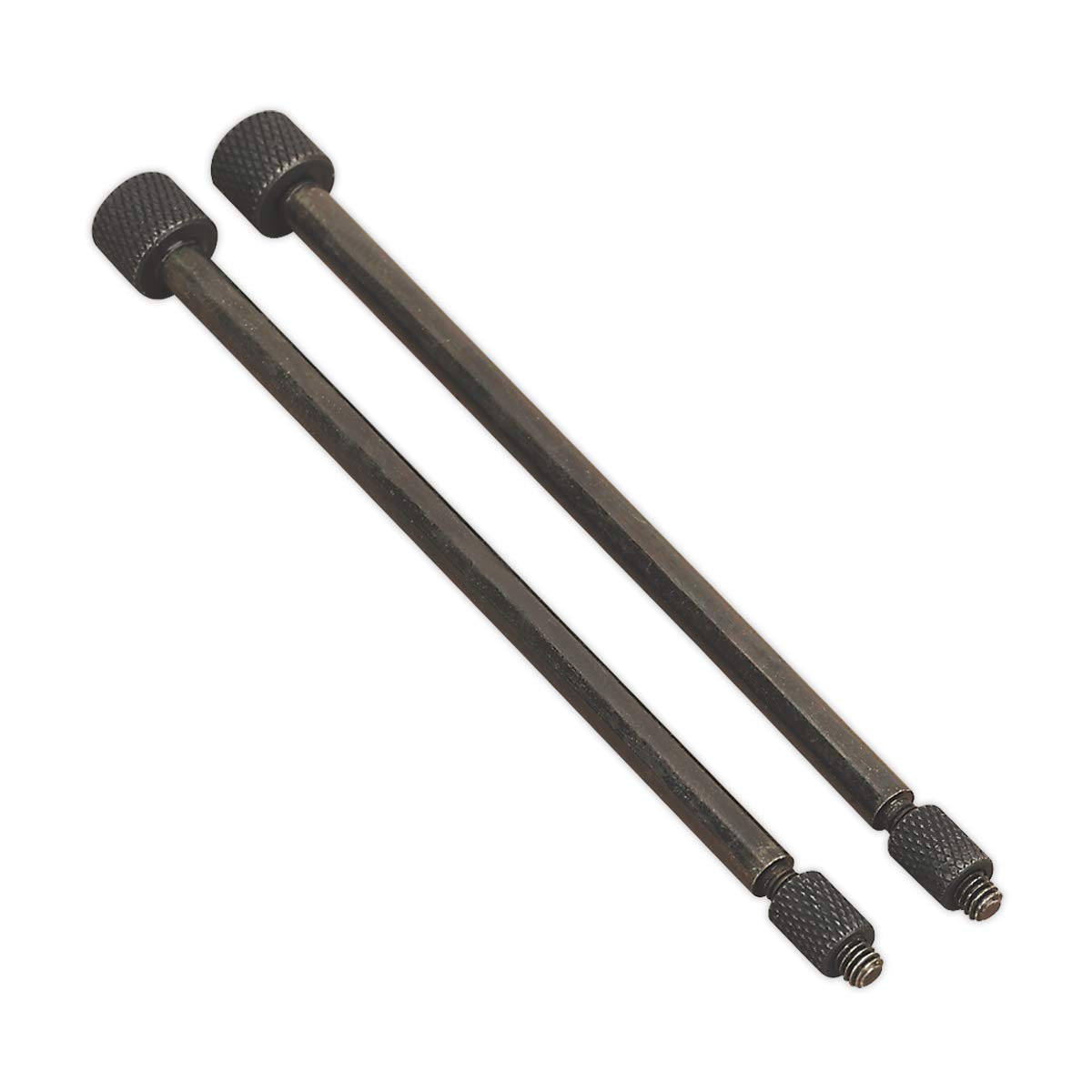

Figure 1: Sealey VS803 Heavy Duty Door Hinge Pin Tool Set. This image displays the two components of the Sealey VS803 Heavy Duty Door Hinge Pin Tool Set. Each pin is made of dark-colored steel, featuring a cylindrical body with a hexagonal cross-section for grip, and knurled, threaded ends designed for engaging and removing hinge pins. The overall length of each pin is approximately 125 mm (4.92 inches), with a diameter of 5 mm (0.2 inches).

2. Коопсуздук маалыматы

• Always wear appropriate personal protective equipment, including safety glasses, when using hand tools.
• Ensure the workpiece is stable and secure before attempting to remove hinge pins.
• Do not use excessive force. If a pin is stuck, investigate the cause rather than forcing the tool.
• Keep hands and fingers clear of the working area to prevent injury.
• Куралды кургак, коопсуз жерде, балдар жетпеген жерде сактаңыз.
• Inspect the tool for any damage before each use. Do not use a damaged tool.

3. Орнотуу

The Sealey VS803 Hinge Pin Tool Set requires minimal setup. Upon unpacking, inspect both pins for any signs of shipping damage or manufacturing defects. Ensure the knurled ends are intact and free from burrs.

No assembly is required for this tool set. It is ready for immediate use after inspection.

4. Иштөө нускамалары

1. Identify Hinge Type: Confirm the door is fitted with hollow-type hinge pins suitable for this tool.
2. Куралды жайгаштырыңыз: Place the cranked anvil end of the tool against the hinge, aligning it with the base of the hinge pin. The cranked design allows for better access in confined spaces.
3. Күч колдонуу: Using a hammer or mallet, gently tap the top of the tool. The steel pin will exert force on the hinge pin, driving it out from the hinge.
4. Gradual Removal: Continue tapping the tool, ensuring the hinge pin is moving smoothly. If resistance is met, stop and re-evaluate the alignment or check for obstructions.
5. Complete Removal: Once the hinge pin is sufficiently dislodged, it can typically be pulled out by hand or with pliers.

Эскертүү: Always ensure stable footing and a clear work area. Avoid striking the tool with excessive force, which could damage the tool or the hinge.

5. Техникалык тейлөө

• Тазалоо: After each use, wipe the tool clean with a dry cloth to remove any dirt, grease, or debris.
• Майлоо: Periodically apply a light coat of rust-preventative oil to the steel pins, especially if storing in a humid environment.
• Сактагыч: Store the tool set in its original packaging or a suitable tool box in a dry, cool place to prevent corrosion and damage.
• Текшерүү: Regularly inspect the pins for signs of wear, bending, or damage. Replace the tool if it shows significant wear or damage that could affect its performance or safety.

6. Кыйынчылыктарды

7. Техникалык шарттар

8. Кепилдик жана колдоо

For warranty information, please refer to the terms and conditions provided by your retailer or the official Sealey webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.

For technical support or further assistance, please contact your authorized Sealey dealer or visit the Sealey official webбайланыш маалыматы үчүн сайт.
