Viking Electronics K-202-DVA эки киргизүүлүү үн тергичинин колдонуучу колдонмосу

1. Киришүү

The Viking Electronics K-202-DVA is a two-input, multi-number auto dialer and voice announcer designed for emergency and non-emergency message notification. This device can be integrated into various systems to provide automated voice alerts and dial out to pre-programmed numbers upon activation of its inputs.

2. Өзгөчөлүктөрү

• Two independent input triggers for distinct notifications.
• Multi-number auto dialing capability.
• Voice announcement for emergency and non-emergency messages.
• Designed for reliable message notification.

3. Коопсуздук маалыматы

Please read and understand all safety instructions before installing or operating the K-202-DVA. Failure to do so may result in injury or damage to the device.

• Ensure power is disconnected before making any wiring connections.
• Install the device in a dry, protected environment, away from direct sunlight, moisture, and extreme temperatures.
• Use only the specified 12 VDC power supply.
• Аппаратты ачууга же оңдоого аракет кылбаңыз. Бардык тейлөөлөрдү квалификациялуу кызматкерлерге тапшырыңыз.
• Балдар жетпеген жерде сактаңыз.

4. Орнотуу жана орнотуу

This section details the physical connections and initial setup of the K-202-DVA unit.

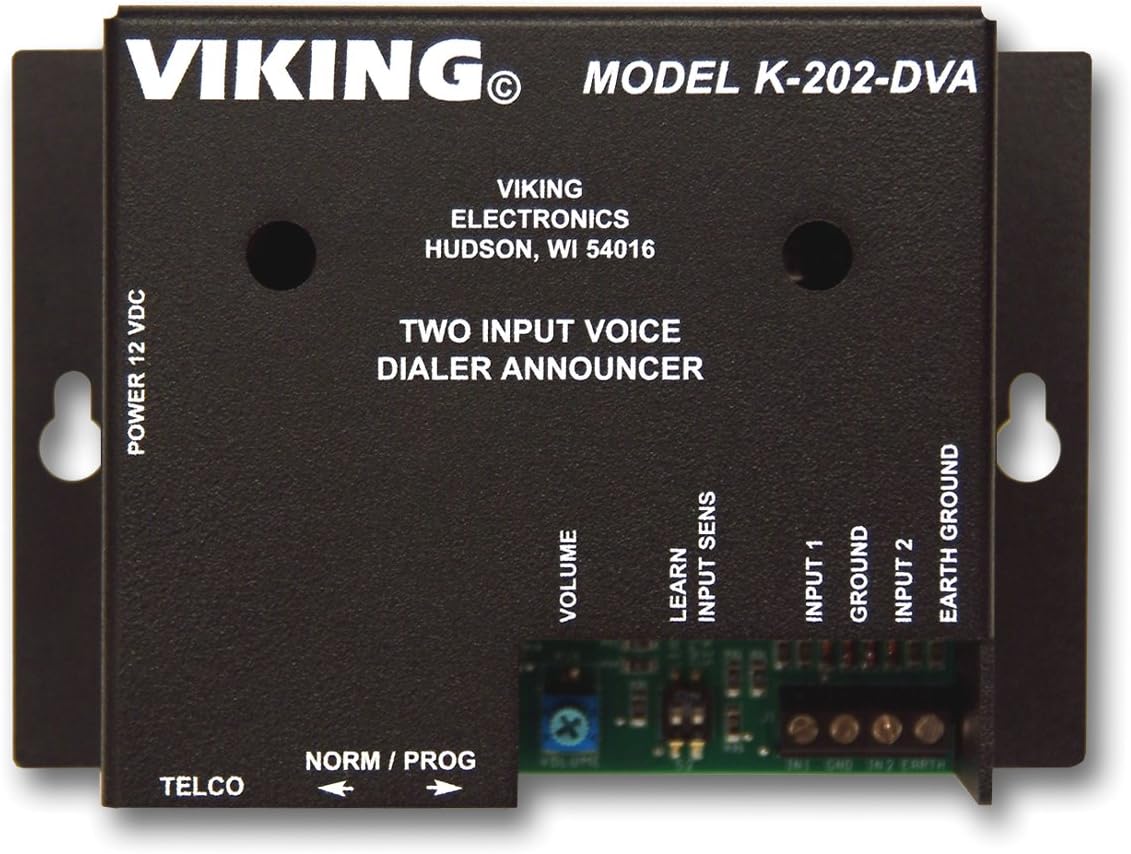

1-сүрөт: Фронт view of the Viking K-202-DVA showing power, TELCO, volume, input, and ground connections.

4.1. Connection Points Overview

Refer to Figure 1 for the location of the following connection points:

• POWER 12 VDC: Connect the specified 12 Volt DC power adapter here.
• TELCO: Connect to the telephone line for dialing capabilities.
• NORM / PROG Switch: This switch is used to toggle between Normal operation mode and Programming mode. Ensure it is in the ПРОГ position for initial setup and programming, and then switch to НОРМ нормалдуу иштеши үчүн.
• Көлөмү: A potentiometer for adjusting the output volume of the voice announcements.
• LEARN INPUT SENS: Used during the learning or programming phase, likely for input sensitivity adjustment or calibration.
• КИРИШҮҮ 1: First trigger input. Connect a device or sensor that provides a signal to activate the dialer.
• ЖЕР: Common ground connection for inputs and other system components.
• КИРИШҮҮ 2: Second trigger input. Connect another device or sensor for a separate activation signal.
• EARTH GROUND: Connection point for grounding the unit to earth for safety and performance.

4.2. Initial Wiring Steps

1. Бирдиктин өчүрүлгөнүн текшериңиз.
2. Connect the telephone line to the TELCO порт.
3. Connect your trigger devices or sensors to 1 жана 2, ensuring a common connection to ЖЕР.
4. Connect the 12 VDC power supply to the POWER 12 VDC terminal. Do not apply power yet.
5. If required by your installation, connect the ЖЕР ЖЕР terminal to a suitable earth ground point.

5. Операция

Once the K-202-DVA is properly installed and programmed, it operates automatically. Ensure the NORM / PROG которуу коюлган НОРМ нормалдуу иштеши үчүн.

5.1. Triggering Announcements

When an input (INPUT 1 or INPUT 2) is activated by a connected device or sensor, the K-202-DVA will initiate its pre-programmed sequence. This typically involves:

• Dialing the pre-programmed telephone numbers.
• Playing the associated voice message for the activated input.
• Repeating the message or dialing sequence as configured during programming.

5.2. Үндү тууралоо

Use a small screwdriver to carefully adjust the VOLUME potentiometer on the unit to achieve the desired announcement volume.

6. Программалоо

The K-202-DVA requires programming to define the telephone numbers to dial and the voice messages to announce for each input. Refer to the detailed programming guide (often provided separately by Viking Electronics or available on their website) for specific steps. Generally, programming involves:

1. которуштуруу NORM / PROG өтүү ПРОГ.
2. Connecting a telephone or programming device to the unit.
3. Following a sequence of button presses or voice prompts to record messages and enter phone numbers.
4. Adjusting settings like dial attempts, message repetition, and input sensitivity (possibly using LEARN INPUT SENS).
5. которуштуруу NORM / PROG switch back to НОРМ after programming is complete.

For detailed programming instructions, please visit the official Viking Electronics support page or consult the full product manual.

7. Техникалык тейлөө

The K-202-DVA is designed for minimal maintenance. Follow these guidelines to ensure longevity:

• Түзмөктү таза жана чаңсыз кармаңыз. Тазалоо үчүн жумшак, кургак чүпүрөк колдонуңуз.
• Do not use liquid cleaners or aerosols directly on the unit.
• Ensure all connections remain secure.
• Periodically test the system to confirm proper operation, especially for emergency notification applications.

8. Кыйынчылыктарды

If you encounter issues with your K-202-DVA, try the following troubleshooting steps:

Эгерде бул чечимдерди колдонуп көргөндөн кийин көйгөй чечилбесе, Viking Electronics техникалык колдоо кызматына кайрылыңыз.

9. Техникалык шарттар

10. Кепилдик жана колдоо

Specific warranty details for the Viking K-202-DVA are not provided in this manual. For comprehensive warranty information, technical support, and additional resources, please visit the official Viking Electronics webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.

Viking Electronics Official Webсайт: www.vikingelectronics.com
