Introduction
Thank you for choosing the Elkay CR2501 33-inch Stainless Steel Double Bowl Sink. This high-quality sink is designed for both commercial and residential applications, offering exceptional durability and a polished finish. Manufactured from 20-gauge nickel-bearing stainless steel, it features Sound Guard undercoating to reduce condensation and dampen sound, ensuring a quieter kitchen environment. This manual provides essential information for the proper installation, operation, and maintenance of your new sink.

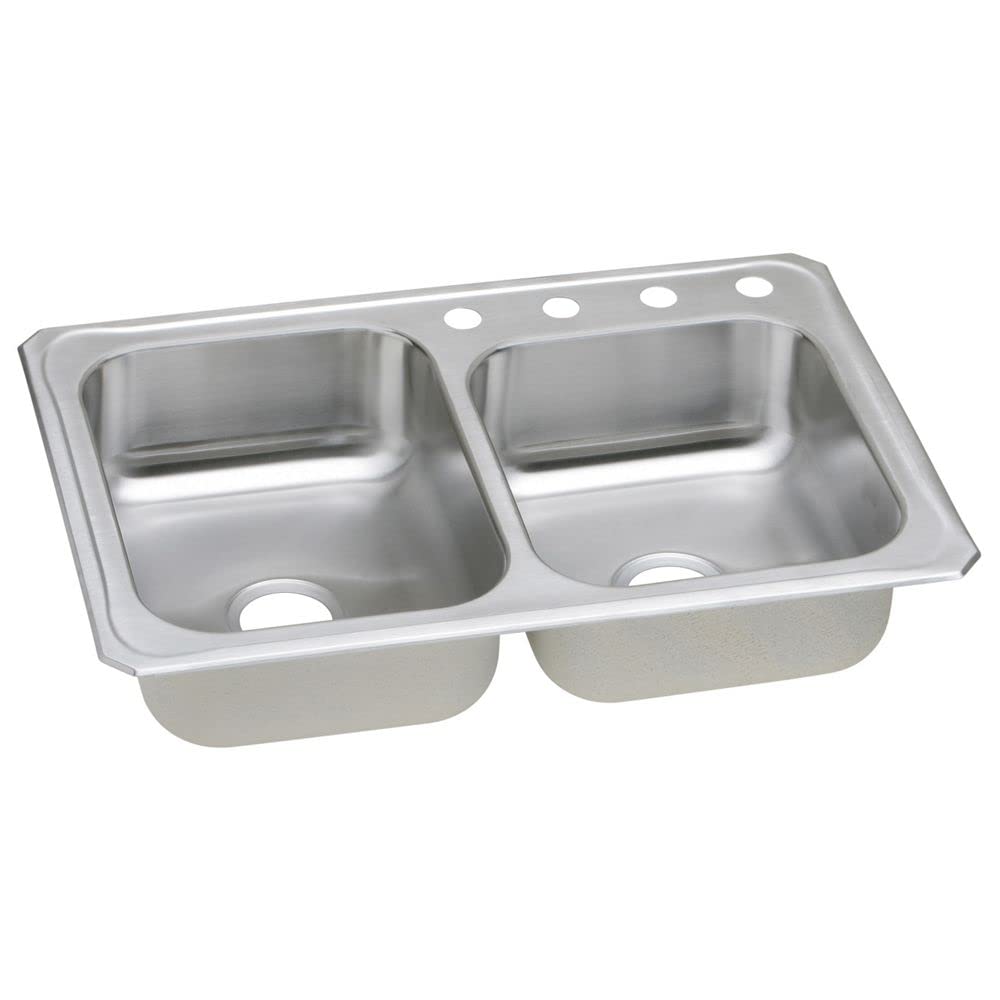

Үстүбүздөгү чыгым view of the Elkay CR2501 double bowl stainless steel sink, showcasing its polished finish and dual basin дизайн.
Орнотуу жана орнотуу
The Elkay CR2501 sink is designed for easy drop-in (topmount) installation. Proper installation ensures optimal performance and longevity. It is recommended to have this product installed by a qualified professional.
Керектүү куралдар жана материалдар (кошумча эмес):
- Jigsaw or appropriate cutting tool
- Өлчөөчү скотч жана карандаш
- Drill (if needed for faucet hole)
- Silicone sealant or plumber's putty
- Screwdriver
- Коргоочу көз айнек жана кол каптар
Орнотуу кадамдары:
- Столду даярдаңыз: Carefully measure and mark the cutout area on your countertop according to the sink's dimensions. Refer to the dimensional diagram below for precise measurements.
- Ачууну кесип: Using a jigsaw or appropriate cutting tool, carefully cut along the marked line. Ensure the edges are smooth.
- Install Faucet and Drain Components: Before placing the sink into the countertop, install the faucet, drain assemblies, and any other accessories into the sink's pre-drilled hole. The sink features one faucet hole.
- Герметикти колдонуу: Apply a continuous bead of silicone sealant or plumber's putty around the perimeter of the countertop opening to create a watertight seal.
- Раковинаны жайгаштырыңыз: Carefully lower the sink into the countertop opening, ensuring it is properly aligned. Press down firmly to engage the sealant.
- Раковинаны бекитүү: Attach the mounting clips (if included with your sink or purchased separately) to the underside of the countertop and tighten them to secure the sink in place.
- Сантехниканы туташтыруу: Connect the faucet supply lines and drain pipes according to local plumbing codes. Check for leaks.
Technical diagram illustrating the precise dimensions of the Elkay CR2501 sink, including overall length (33 inches / 838mm), width (22 inches / 559mm), bowl dimensions (left bowl 13-1/2 inches / 343mm), right bowl 14 inches / 356mm), and corner radius (3 inches / 76mm).
Иштөө нускамалары
The Elkay CR2501 sink is designed for straightforward operation. Simply use the faucet to control water flow and temperature for washing, rinsing, and other kitchen tasks. Ensure that the drain stoppers are properly seated when filling the bowls and removed when draining. The double bowl design allows for multi-tasking, such as washing dishes in one bowl and rinsing in the other.
Кароо жана тейлөө
To maintain the pristine appearance and extend the life of your Elkay CR2501 stainless steel sink, follow these care instructions:
- Күнүмдүк тазалоо: After each use, wipe the sink with a soft, dry cloth to prevent water spots and mineral buildup.
- үзгүлтүксүз тазалоо: Use a mild soap or stainless steel cleaner with a soft cloth or sponge. Always rub in the direction of the grain. Rinse thoroughly with clean water and dry immediately.
- Абразивтерден качыңыз: Do not use abrasive cleaners, steel wool, or scouring pads, as these can scratch the surface and dull the finish.
- Химиялык заттар: Avoid prolonged contact with harsh chemicals such as bleach, acids, or drain cleaners, which can stain or damage the stainless steel. If contact occurs, rinse immediately and thoroughly.
- Чийүүлөрдүн алдын алуу: While stainless steel is durable, it can scratch. Use a sink grid or rubber mat to protect the bottom of the bowls from heavy pots and pans.
Проблемаларды чечүү
Here are solutions to common issues you might encounter with your sink:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Суу тактары/тактар | Hard water minerals, improper drying | Wipe dry after each use. Use a stainless steel cleaner for stubborn spots. |
| Slow Draining/Clogging | Food particles, grease buildup | Use a drain plunger. Avoid pouring grease down the drain. Consider a drain protector. |
| Leaks Around Drain/Faucet | Loose connections, worn seals | Check and tighten all plumbing connections. Replace worn washers or O-rings. Reapply plumber's putty or sealant if necessary. |
| Бетиндеги тырыктар | Abrasive materials, heavy objects | Use a stainless steel scratch repair kit for minor scratches. Prevent future scratches with a sink grid. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Элкай |
| Модель номери | CR2501 |
| Материал | Stainless Steel (20 gauge, nickel-bearing) |
| Түс | Дат баспаган болот |
| Өлчөмү | 33-Inch (Overall Length) |
| Жалпы өлчөмдөр | 33" L x 22" W (838mm L x 559mm W) |
| Идиштин өлчөмдөрү | Left: 13-1/2" (343mm), Right: 14" (356mm) |
| Бурч радиусу | 3" (76мм) |
| Стиль | Self-Rimming / Drop-In / Topmount |
| Элемент Салмагы | 17.25 фунт |
| UPC | 094902003733 |
| GTIN | 00094902003733 |
| Өндүрүүчү бөлүгүнүн номери | CR2501 |
| Камтылган компоненттер | Кош идиш Раковина |
| Форма | Төрт бурчтуу |
| Аяктоо түрлөрү | Жылмаланган |
| Продукцияга кам көрүү боюнча нускамалар | Кургак чүпүрөк менен сүртүңүз |
| Дренаждын түрү | Тор |
| Hole Count | 1 (кран үчүн) |
Кепилдик маалымат
The Elkay CR2501 Stainless Steel Double Bowl Sink is backed by a Чектелген Өмүр бою Кепилдик. This warranty covers defects in material and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full details regarding the terms and conditions of the warranty, please refer to the official Elkay website or contact Elkay customer service.
Кардарларды колдоо
Should you require further assistance with installation, operation, maintenance, or have any questions regarding your Elkay CR2501 sink, please visit the official Elkay website or contact their customer service department. Contact information can typically be found on the Elkay webсайт же продукт таңгак.
Elkay Official Webсайт: www.elkay.com
