1. Продукт бүтүп калдыview
The Torc 1 Racing DEFY MX Lock-On Grips are designed for dirt bikes, ATVs, and street bikes, offering a secure and comfortable interface between the rider and the handlebars. These grips feature a lock-on design for simple installation and removal, ensuring 100% slip-free performance. They are engineered for high quality and durability, providing an economical performance upgrade.
The kit includes a specific throttle tube with 22-point adjustment for precise waffle pattern alignment, and six snap-on multi-adjust throttle cams, eliminating the need for separate purchases. The components are CNC-machined for accuracy and reliability.

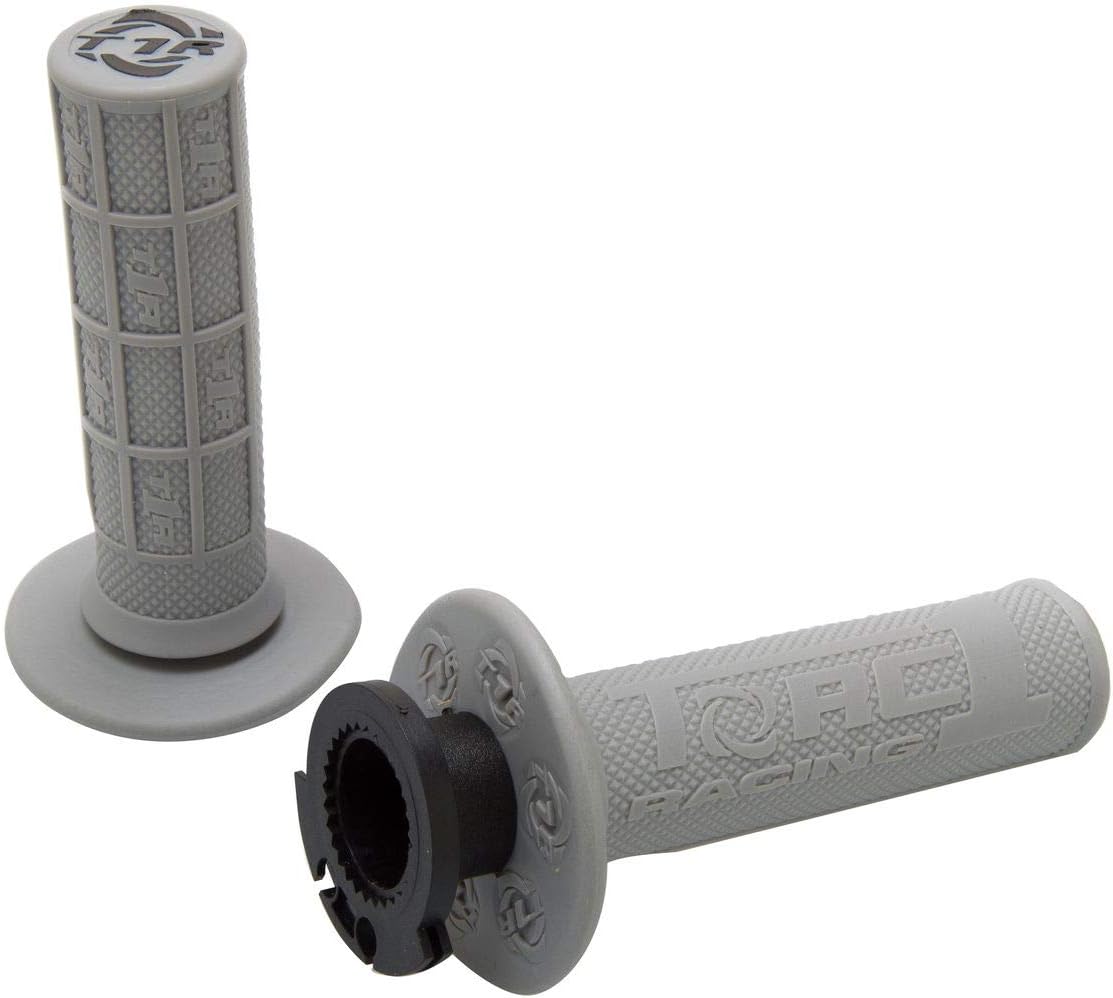

Figure 1.1: Torc 1 Racing DEFY MX Lock-On Grips. The image displays two grey grips, one with an integrated throttle tube and lock-on mechanism, and the other a standard grip. Both feature a textured surface for enhanced grip and the "TORC RACING" logo.
2. Орнотуу жана орнотуу
Proper installation of the Torc 1 Racing DEFY MX Lock-On Grips is crucial for optimal performance and safety. Follow these steps carefully:
- Даярдоо: Ensure handlebars are clean and free of debris. Remove any old grips and adhesive residue.
- Throttle Side Grip:
- Identify the correct throttle cam for your specific motorcycle model from the six included snap-on cams.
- Attach the selected throttle cam to the throttle tube integrated with the grip. Ensure it snaps securely into place.
- Slide the throttle side grip onto the throttle housing. The lock-on mechanism should engage securely.
- Adjust the grip's rotational position to align the waffle pattern as desired, utilizing the 22-point adjustment feature. Secure the lock-on clamp using an appropriate tool (e.g., small hex key), ensuring it is tight but not over-torqued.
- Clutch Side Grip:
- Slide the clutch side grip onto the left handlebar.
- Ensure the grip is fully seated against the handlebar end.
- Secure the lock-on clamp using an appropriate tool, ensuring it is tight but not over-torqued.
- Акыркы текшерүү: After installation, verify that both grips are firmly secured and do not rotate or slide. Ensure the throttle operates smoothly and returns to the closed position without sticking.
3. Иштөө нускамалары
Once installed, the Torc 1 Racing DEFY MX Lock-On Grips require no special operating procedures beyond standard motorcycle operation. Their design ensures a consistent and reliable grip surface for enhanced control.
- Grip Security: Periodically check the lock-on clamps on both grips to ensure they remain tight. Loose grips can compromise control and safety.
- дроссель функциясы: Regularly inspect the throttle's smooth operation and ensure it returns freely. Any resistance or sticking should be addressed immediately.
4. Техникалык тейлөө
To ensure the longevity and performance of your Torc 1 Racing DEFY MX Lock-On Grips, follow these maintenance guidelines:
- Тазалоо: Clean grips with mild soap and water. Avoid harsh chemicals or solvents that could degrade the grip material. Rinse thoroughly and allow to air dry.
- Текшерүү: Regularly inspect the grip surface for signs of wear, tears, or damage. Check the lock-on clamps for corrosion or damage.
- Бекер текшерүү: Ensure all fasteners associated with the grips and throttle assembly are secure before each ride.
5. Кыйынчылыктарды
This section addresses common issues you might encounter with your grips.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Grips rotate or slide on handlebars. | Lock-on clampлар жетиштуу турде бекемделбеген. | Tighten the lock-on clamp screws. Do not overtighten. |
| Throttle sticks or does not return smoothly. | Incorrect throttle cam installed; debris in throttle housing; cable issues. | Verify correct throttle cam. Clean throttle housing. Inspect throttle cables for kinks or damage. |
| Grip material shows premature wear. | Exposure to harsh chemicals; excessive friction; manufacturing defect. | Avoid harsh cleaners. Ensure proper hand placement. Contact support if defect is suspected. |
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 3755-0702 |
| Бренд | MIRA (Torc 1 Racing) |
| Түс | Боз |
| Материал | Stainless (Note: This material is listed in specifications, but grips are typically rubber/composite. This might refer to internal components or clamps.) |
| Элемент Салмагы | 454 g (1 Pound) |
| Унаа кызматынын түрү | ATV, Dirt Bike |
| Throttle Cams Included | Six snap-on multi-adjust cams |
| Throttle Tube Adjustment | 22-пункттук тууралоо |
7. Кепилдик маалыматы
Specific warranty details for Torc 1 Racing products are typically provided at the point of purchase or on the manufacturer's official webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап калуу сунушталат.
Generally, products are warranted against defects in materials and workmanship under normal use. Damage resulting from improper installation, misuse, abuse, or unauthorized modifications may not be covered. For detailed warranty terms and conditions, please refer to the official Torc 1 Racing or MIRA documentation that accompanied your purchase, or visit their respective webсайттар.
8. Кардарларды колдоо кызматы
For technical assistance, installation queries, or warranty support, please contact the manufacturer or authorized distributor. Have your product model number (3755-0702) and purchase details ready when contacting support.
While specific contact information is not provided in this manual, you can typically find support details on the official MIRA or Torc 1 Racing websites. Online resources, FAQs, and product registration may also be available.
