ABUS 83/45 Brass Padlock Instruction Manual

1. Introduction and Overview

The ABUS 83/45 Brass Padlock is engineered for robust security and durability. Constructed from solid brass, it offers enhanced resistance to corrosive and salty environments. The shackle features a Nano Protect coating for additional corrosion protection. A dual ball bearing locking mechanism is incorporated to resist pulling and prying attempts. This padlock is designed with a rekeyable cylinder, allowing it to be matched to existing keys, and includes a patented shackle change feature for quick shackle replacement. The ABUS patented Z-bar allows conversion between key-retaining and non-key-retaining functions.

Сүрөт: алдыңкы view of the ABUS 83/45 Brass Padlock, showcasing its solid brass body and Nano Protect shackle.

2. Негизги өзгөчөлүктөрү

• Solid Brass Body: Provides corrosion resistance, suitable for outdoor and harsh environments.
• Nano Protect Shackle: Special alloy steel shackle with Nano Protect coating for enhanced strength and rust protection.
• Dual Ball Bearing Locking: Mechanism designed to resist pulling and prying.
• Rekeyable Cylinder: The cylinder can be removed and re-keyed to match various security keyways, including common residential keys like Schlage C.
• Patented Shackle Change Feature: Allows for quick and easy replacement of the shackle.
• ABUS Patented Z-bar: Converts the lock between key-retaining and non-key-retaining functions.
• Компакт өлчөмү: Approximately 1.75 inches (45mm) wide, suitable for various applications like toolboxes, gates, and storage units.

3. Setup and Keying

The ABUS 83/45 padlock is supplied as "Zero Bitted," meaning it comes with a blank key and is not pre-keyed to a specific pattern. This design allows for customization to match existing keys, such as your house key (e.g., Schlage C keyway). To make the padlock functional, it must be keyed by a qualified locksmith or by an individual with the necessary re-keying knowledge and tools.

3.1 Keying the Padlock

1. Consult a Locksmith: It is recommended to take the padlock and your desired key to a professional locksmith for proper re-keying.
2. DIY Rekeying (Advanced Users): For experienced users, the cylinder can be removed with a single screw. The "pinning window" feature allows access to the pins directly without a plug follower, simplifying the re-keying process. A compatible pinning kit (e.g., Schlage C) will be required.

3.2 Shackle Change Feature

The patented shackle change feature allows for quick replacement of the shackle. Refer to the detailed instructions provided with the padlock for specific steps on how to utilize this feature. This may involve removing a screw or pin to release the shackle.

3.3 Z-Bar Functionality

The ABUS patented Z-bar enables conversion between key-retaining and non-key-retaining modes. In key-retaining mode, the key cannot be removed until the padlock is locked. In non-key-retaining mode, the key can be removed whether the padlock is locked or unlocked. Consult the padlock's internal mechanism or a locksmith for instructions on adjusting this setting.

Image: A locksmith performing work on a padlock cylinder, illustrating the rekeying process.

4. Кулпуну иштетүү

Once the padlock has been properly keyed, its operation is straightforward.

1. Кулпуну ачуу үчүн: Insert the correctly cut key into the keyway and turn it. The shackle will release, allowing the padlock to open.
2. Бекитүү: Close the shackle into the padlock body. If in key-retaining mode, turn the key to the locked position and remove it. If in non-key-retaining mode, simply close the shackle until it clicks into place.

Image: The ABUS 83/45 padlock securing a metal gate, demonstrating a typical application.

Image: The ABUS 83/45 padlock used to secure a heavy chain, illustrating its robust application.

5. Техникалык тейлөө

To ensure the longevity and smooth operation of your ABUS 83/45 padlock, follow these maintenance guidelines:

• Майлоо: Periodically apply a small amount of graphite-based lubricant or a specialized lock lubricant into the keyway and shackle mechanism. Avoid oil-based lubricants as they can attract dirt and debris.
• Тазалоо: Wipe the padlock body and shackle with a clean, dry cloth to remove dirt and grime. For brass components, a mild brass cleaner can be used if desired, followed by thorough drying.
• Текшерүү: Regularly inspect the shackle and body for any signs of wear, damage, or corrosion. Address any issues promptly to maintain security.

6. Кыйынчылыктарды

If you encounter issues with your ABUS 83/45 padlock, consider the following:

• Ачкыч бурулбай жатат: Ensure the correct key is being used and that it is fully inserted. The lock may require lubrication if it feels stiff.
• Shackle Not Releasing: After turning the key, the shackle should spring open. If it does not, check for obstructions or apply lubricant.
• Lock Not Locking: Ensure the shackle is fully seated in the body. If the Z-bar setting was recently changed, verify it is correctly configured.

For persistent issues, contact ABUS customer support or a professional locksmith.

7. Техникалык шарттар

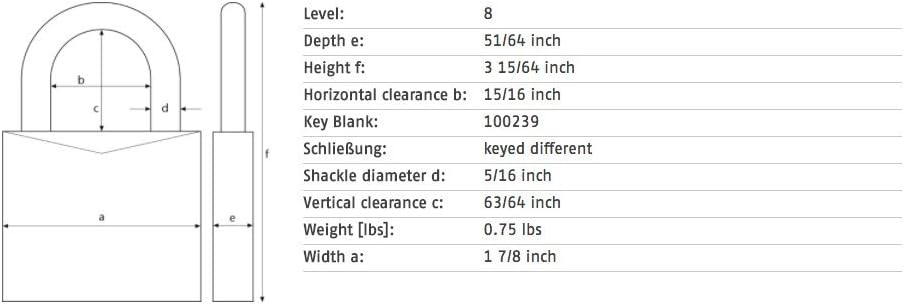

Image: Technical drawing detailing the dimensions and specifications of the ABUS 83/45 padlock.

8. Расмий продукт Video

9. Кепилдик жана колдоо

ABUS products are warranted for a specific period of time from the date of purchase. If an ABUS product fails to work properly due to a manufacturing defect, return it to ABUS postage prepaid, and it will be repaired or replaced at ABUS's discretion.

To obtain warranty service, please call 1-800-352-2287 or return the padlock prepaid along with the receipt of purchase and all parts and keys (if applicable) to:

Specific warranty periods appear on the product packaging.
