Scosche CR1291B Double DIN Radio Installation Dash Kit User Manual

Introduction

This manual provides comprehensive instructions for the installation and use of the Scosche CR1291B Double DIN Radio Installation Dash Kit. This kit is designed to facilitate the seamless integration of an aftermarket car stereo into select 2007-2019 Chrysler, Dodge, Jeep, Mitsubishi, and VW vehicles, providing a factory-installed appearance.

Please read all instructions carefully before beginning the installation process.

Продукт шайкештиги

The Scosche CR1291B Dash Kit is specifically designed for the following vehicle makes and models (2007-2019):

• Chrysler: 200, 300, Aspen, Sebring Convertible, Sebring Sedan, Town & Country
• Додж: Avenger, Caliber, Caravan, Challenger, Charger, Dakota, Durango, Grand Caravan, Journey, Magnum, Nitro, Ram Pickup
• Жип: Commander, Compass, Grand Cherokee, Liberty, Patriot, Wrangler, Wrangler Unlimited, Wrangler JK, Wrangler JK Unlimited
• Mitsubishi: Raider
• Volkswagen: Routan

Important: Always verify your vehicle's specific make, model, and year against the fit guide provided in the images to ensure compatibility before installation.

Note on Stereo Size: Scosche Double DIN Kits accommodate true Double DIN stereos with a maximum faceplate opening of 96.8mm x 173mm (3 13/16" x 6 13/16"). Some radios labeled as Double DIN may be oversized and require minor trimming of the kit for proper fit.

Image: Detailed fit guide table for the Scosche CR1291B Dash Kit, listing compatible Chrysler, Dodge, Jeep, Mitsubishi, and Volkswagen models and years from 2007-2019.

Image: Diagram illustrating the standard Double DIN stereo dimensions (96.8mm x 173mm) and a note about potential trimming for oversized radios.

Кутуда эмне бар

The Scosche CR1291B Dash Kit includes the following components:

• Instruction Manual
• Монтаждоо кронштейндери

Эскертүү: Additional components such as wire harnesses, interfaces, and antenna adapters may be required for a complete installation and are sold separately.

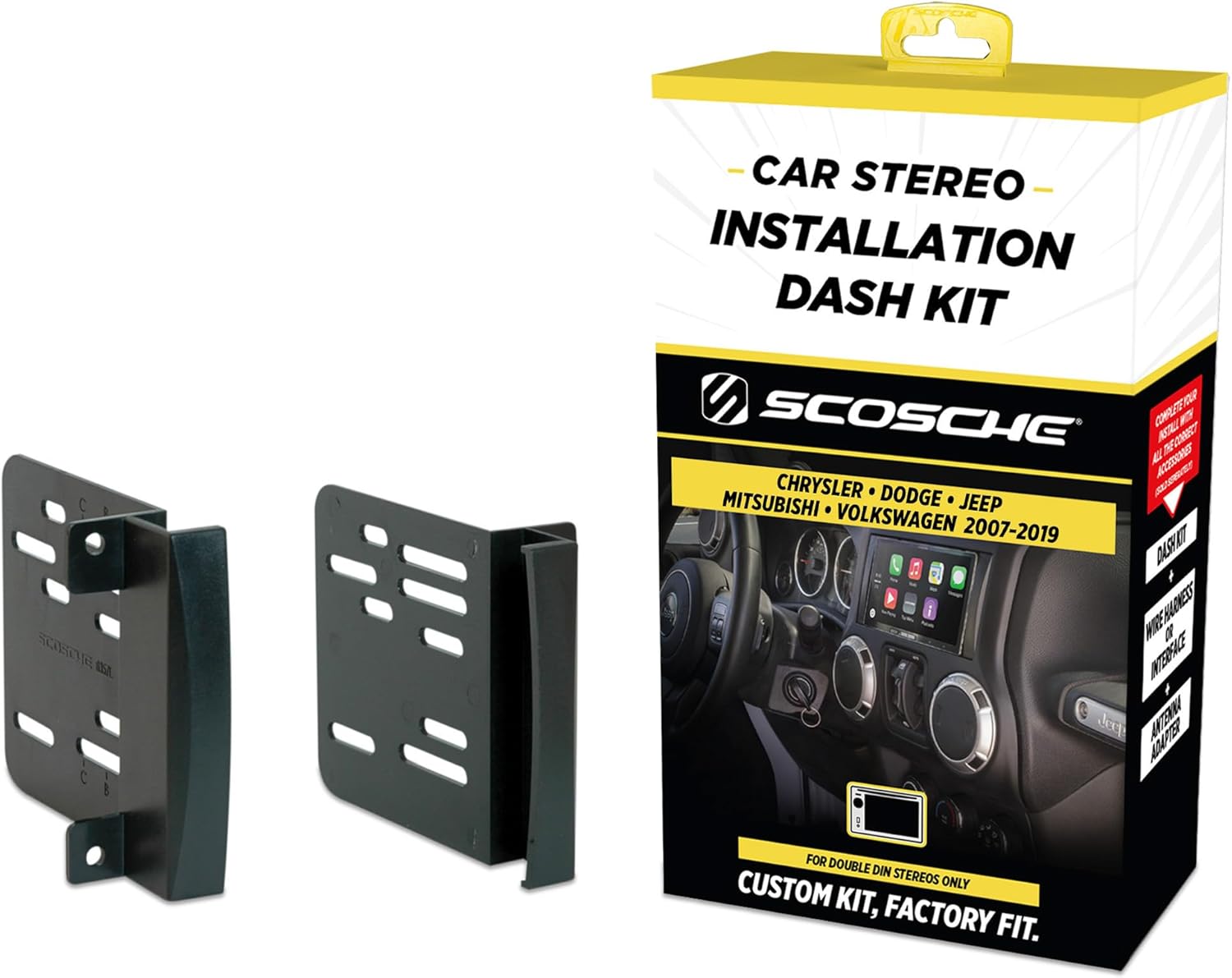

Image: The Scosche CR1291B Dash Kit box, showing the included mounting brackets. The box indicates compatibility with Chrysler, Dodge, Jeep, Mitsubishi, and Volkswagen vehicles from 2007-2019.

Коопсуздук маалыматы

• Кыска туташуулардын жана электр тогуна урунуунун алдын алуу үчүн кандайдыр бир электрдик иштерди баштоодон мурун дайыма унаанын терс батарея терминалын ажыратыңыз.
• Consult your vehicle's service manual for specific instructions regarding battery disconnection and dash panel removal.
• Use appropriate tools for dash panel removal to avoid damage to your vehicle's interior.
• Электрдик коркунучтарды алдын алуу үчүн бардык зымдарды туташтыруу коопсуз жана туура изоляцияланганын текшериңиз.
• Do not obstruct airbags or other safety features during installation.

Орнотуу нускамалары

This section outlines the general steps for installing your new Double DIN stereo using the Scosche CR1291B Dash Kit. Specific details for your vehicle may vary; always refer to your vehicle's service manual and the detailed instructions included with your aftermarket stereo.

1-кадам: Унааны даярдоо

1. Батареяны ажыратыңыз: Locate your vehicle's battery and disconnect the negative terminal.
2. Remove Dash Panel: Carefully remove the factory dash panel surrounding the stereo. Use a panel removal tool to prevent damage.
3. Заводдук стереону алып салуу: Unscrew and remove the factory stereo from the dash.
4. Зымдарды ажыратыңыз: Unplug all wiring harnesses and the antenna lead from the back of the factory stereo.

Video: A detailed demonstration of wiring an aftermarket stereo, including connecting the wiring harness and antenna adapter. This video highlights the process of matching wires and securing connections.

Step 2: Assemble the Dash Kit and New Stereo

1. Prepare Mounting Brackets: Refer to the dash kit instructions to identify and remove any tabs on the mounting brackets that are not required for your specific stereo application.
2. Attach Brackets to Stereo: Secure the Scosche mounting brackets to your new aftermarket Double DIN stereo using the screws provided with the stereo. Ensure the stereo is centered and flush within the brackets.

Image: Close-up of the Scosche CR1291B mounting brackets, designed to secure an aftermarket stereo into the vehicle's dash opening.

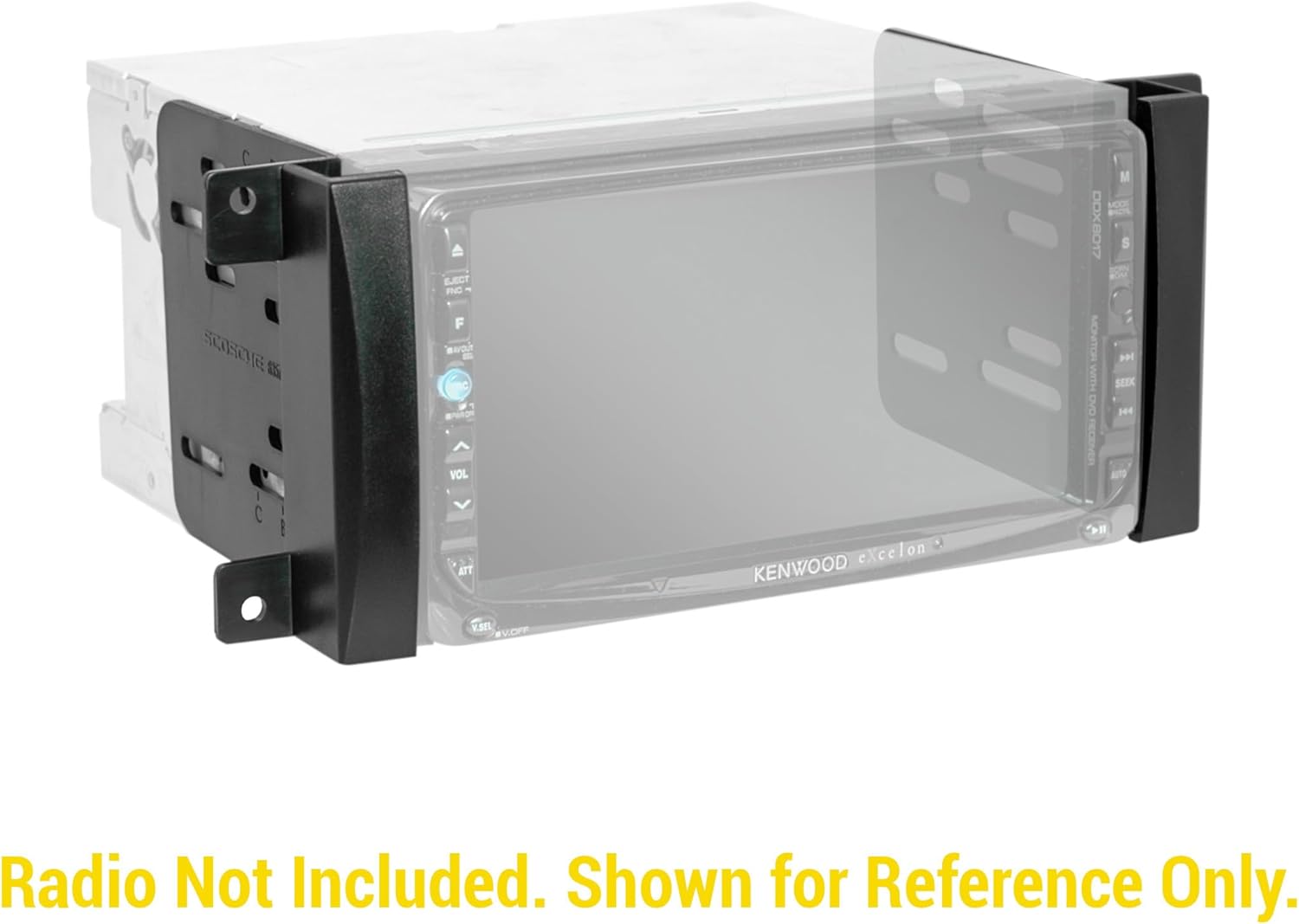

Image: An aftermarket Double DIN stereo shown mounted within the Scosche CR1291B Dash Kit, illustrating how the kit integrates the new stereo.

Step 3: Wire the New Stereo

1. Зымдарды туташтыруу: Connect the wiring harness from your new stereo to the vehicle's factory wiring harness. Match wire colors carefully. If your vehicle requires a stereo replacement interface, connect it at this stage according to its specific instructions.
2. Антенна адаптерин туташтыруу: Attach the antenna adapter (if required and purchased separately) to the vehicle's antenna cable and the new stereo.

Step 4: Install the New Stereo

1. Mount Stereo in Dash: Carefully slide the assembled stereo and dash kit into the vehicle's dash opening. Secure it with the factory screws.
2. Reassemble Dash Panel: Reconnect any factory wiring to the dash panel (e.g., climate controls, hazard lights) and reattach the dash panel. Ensure all clips and screws are properly secured.
3. Батареяны кайра туташтыруу: Терс батарея терминалын кайра туташтырыңыз.

Image: An aftermarket stereo successfully installed in a Jeep dash, showcasing the flush and integrated appearance achieved with the dash kit.

Сүрөт: башка view of an aftermarket stereo installed in a vehicle dashboard, demonstrating the aesthetic integration of the dash kit.

Иштеп жатат

The Scosche CR1291B Dash Kit is a passive component designed to house your aftermarket stereo. Operation of the stereo itself will depend on the specific features and controls of your chosen aftermarket unit. Refer to the instruction manual provided with your aftermarket stereo for detailed operating instructions.

After installation, turn on your vehicle and test the new stereo's functions, including audio output, radio reception, and any connected accessories (e.g., Bluetooth, USB).

Техникалык тейлөө

The Scosche CR1291B Dash Kit requires minimal maintenance.

• Тазалоо: Wipe the dash kit with a soft, damp Чаңды жана кирди кетирүү үчүн кездеме колдонуңуз. Каптамага зыян келтириши мүмкүн болгон абразивдүү тазалоочу каражаттардан же эриткичтерден алыс болуңуз.
• Текшерүү: Periodically check that the stereo remains securely mounted within the dash kit and that all connections are tight.

Проблемаларды чечүү

If you encounter issues after installing your Scosche CR1291B Dash Kit and aftermarket stereo, consider the following:

• Стерео үчүн кубат жок:
  • Унаанын аккумулятору туура туташтырылганын текшериңиз.
  • Check all wiring harness connections for tightness and correct matching.
  • Verify the stereo's fuse is intact.
  • If an interface is used, ensure it is correctly connected and configured.
• Радио кабыл алуу начар:
  • Confirm the antenna adapter is securely connected to both the vehicle's antenna and the new stereo.
  • Ensure the antenna itself is not damaged or obstructed.
• Stereo Not Fitting Flush:
  • Re-check the dimensions of your aftermarket stereo against the maximum faceplate opening (96.8mm x 173mm). Minor trimming of the dash kit may be necessary for oversized units.
  • Ensure the mounting brackets are correctly positioned and secured to the stereo.
• Dash Panel Not Reassembling Correctly:
  • Verify that no wires are pinched or obstructing the dash panel's reinstallation.
  • Ensure all clips and mounting points align properly.

For further assistance, refer to the troubleshooting section of your aftermarket stereo's manual or contact Scosche customer support.

Техникалык шарттар

Кепилдик жана колдоо

The Scosche CR1291B Double DIN Radio Installation Dash Kit is backed by Scosche's Limited Lifetime Warranty and Lifetime Tech Support.

For warranty claims, technical assistance, or additional product information, please visit the official Scosche webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
